SIEMENS SIMATIC S7-1200 6ES7223-0BD30-0XB0 SB 1223 Digital Input/Output Signal Board

SIEMENS SIMATIC S7-1200 6ES7223-0BD30-0XB0 SB 1223 Digital Input/Output Signal Board

6ES7223-0BD30-0XB0

SIMATIC S7-1200 SB 1223 digital input/output signal board

2 DI2 DQ24 V DCS7-1200

Selection note: Confirm the CPU hardware version, I/O load and wiring arrangement before quotation.

Overview
Data
Interfaces
Protection
Installation
Checklist
Commercial
FAQ
Models
Recommended Products

Product Overview

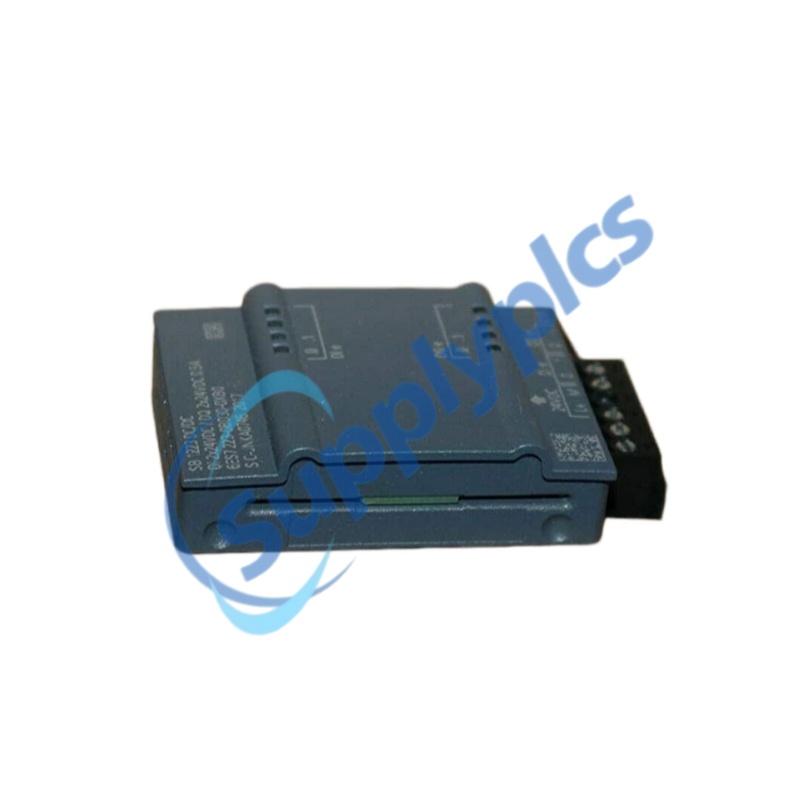

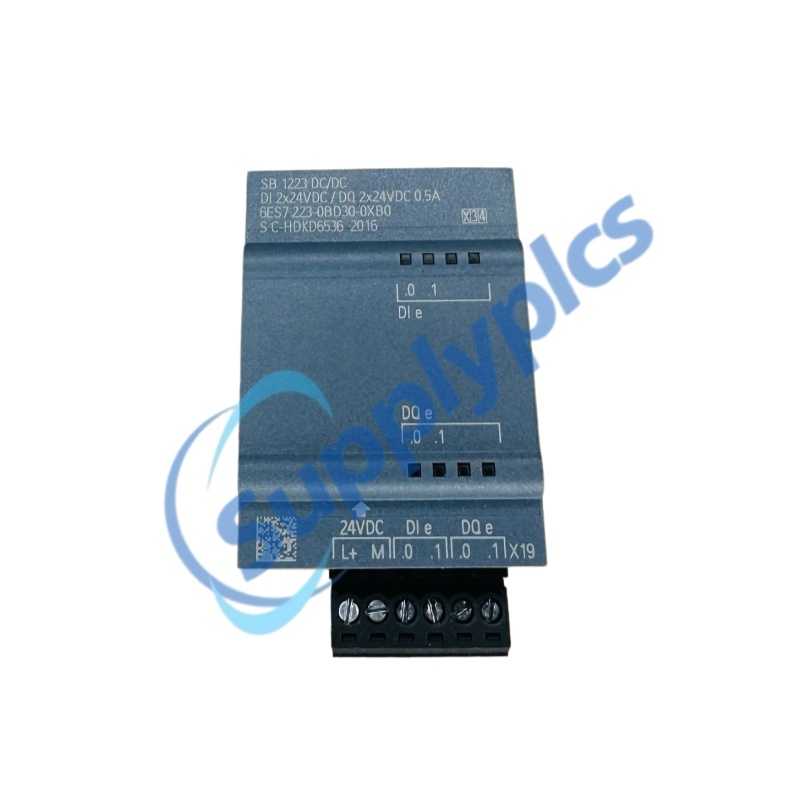

The Siemens SIMATIC S7-1200 SB 1223 6ES7223-0BD30-0XB0 is a compact digital input/output signal board. Official Siemens information identifies two 24 V DC digital inputs and two 24 V DC digital outputs.

Applications

Small local digital I/O additions at an S7-1200 CPU
Connection of 24 V DC field signals within the rated load limits
Machine status acquisition and discrete actuator control
Space-sensitive upgrades where a signal board is preferred to a separate module

Technical basis: official Siemens SIMATIC S7-1200 catalog information for SB 1223 and the exact base MLFB.

Data

Data

Brand Siemens	Family SIMATIC S7-1200	Product type SB 1223 digital I/O signal board
Digital inputs 2 DI, 24 V DC	Digital outputs 2 DQ, 24 V DC	Installation concept CPU-mounted signal board
High-speed behavior Subject to verification for this exact MLFB	Compatibility Confirm CPU type and firmware before quotation

Interfaces

Interfaces

CPU interface	Integrated signal-board connection
Field side	2 digital input channels
Output side	2 digital output channels
Wiring	Use the official terminal assignment for the exact MLFB
Configuration	Parameterize in the applicable SIMATIC engineering environment
Accessories	Confirm required connector and labeling parts

Protection

Protection

Supply environment 24 V DC digital I/O system	Cabinet conditions Follow the host CPU installation manual	Electrical limits Confirm input thresholds and output load data in the exact datasheet
Certifications Available from official Siemens documentation on request

Installation

Installation

1	Power down the S7-1200 system and verify the CPU model.
2	Confirm the CPU supports the selected SB 1223 hardware version.
3	Install the board in the designated CPU signal-board position.
4	Wire the 24 V DC inputs and outputs to the official terminal assignment.
5	Configure channels and perform an application-specific functional test.

Checklist

Checklist

Confirm complete part number 6ES7223-0BD30-0XB0.
Confirm 2 DI and 2 DQ meet the application requirement.
Confirm CPU hardware and firmware compatibility.
Confirm field voltage, output load and protective devices.
Request current unit and nameplate photographs before quotation.

Commercial

Commercial

Stock status	Confirm before quotation
Condition	New, used or refurbished status is subject to verification
Current photographs	Available on request
Warranty	Available on request
Dispatch time	Confirm before quotation
Test status	Scope and records are subject to verification
Payment methods	Available on request
Quotation response	Available on request
Transaction process	Request a formal quotation, traceability details and agreed trade terms

FAQ

FAQ

Q: How many channels are provided?
A: Official Siemens information identifies 2 digital inputs and 2 digital outputs.

Q: What is the signal voltage?
A: The listed digital inputs and outputs are 24 V DC.

Q: Is this the high-speed 200 kHz variant?
A: Do not assume so. High-speed characteristics must be confirmed for the exact MLFB.

Q: Will it fit every S7-1200 CPU?
A: Compatibility depends on the CPU and hardware generation; confirm before quotation.

Q: Is the offered unit new and tested?
A: Condition and test scope are subject to verification for the offered unit.
