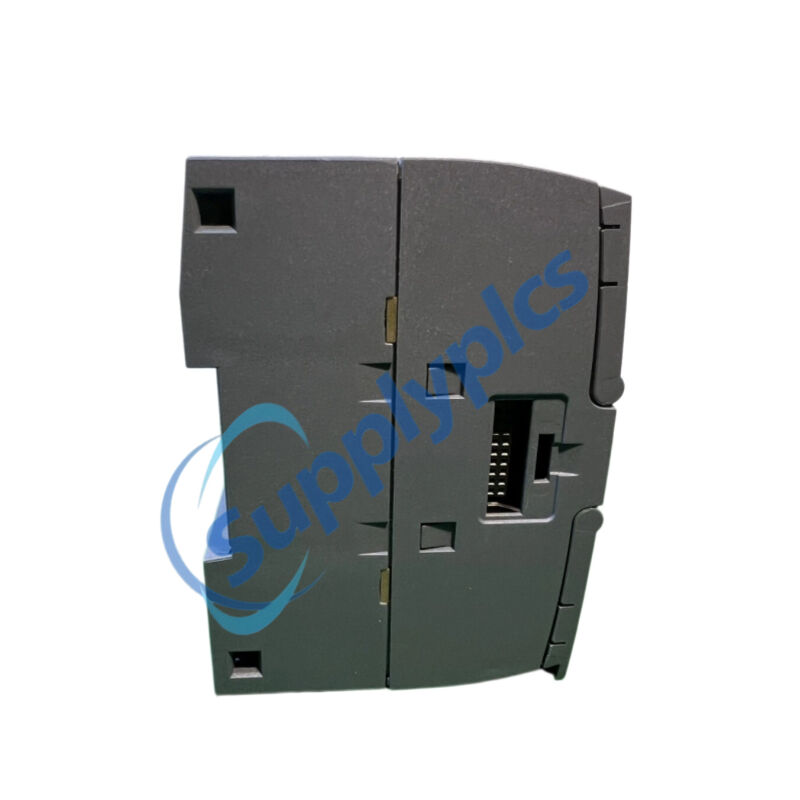

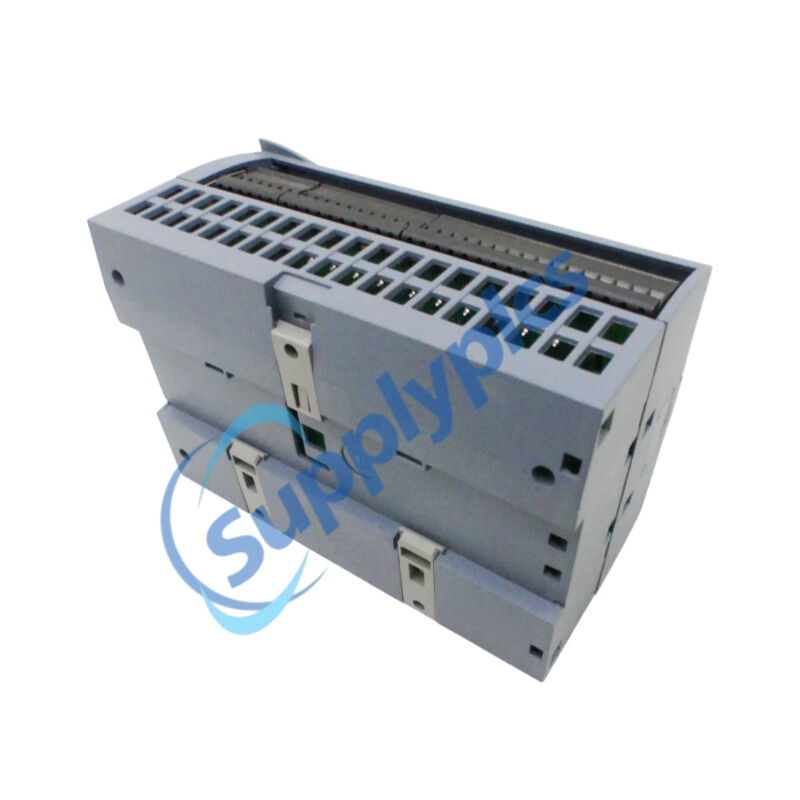

Product Name:compact CPU
Brand Name: SIEMENS
Model Number:6ES7217-1AG40-0XB0
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6ES7217-1AG40-0XB0 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Product Type Designation |
CPU 1217C DC/DC/DC |
|
Order Number |
6ES7217-1AG40-0XB0 |
|
Firmware Version |
V4.6 |
|
Engineering |
STEP 7 V18 or higher (TIA Portal) |
|
Supply Voltage (Rated) |
24 V DC (Permissible range: 20.4–28.8 V DC) |
|
Reverse Polarity Protection |
Yes |
|
Input Current (CPU only) |
600 mA |
|
Input Current (CPU with all expansions) |
1,600 mA |
|
Inrush Current (max.) |
12 A (at 28.8 V DC) |
|
Power Loss (typ.) |
12 W |
|
Work Memory (integrated) |
250 kbyte |
|
Load Memory (integrated) |
4 Mbyte |
|
Backup |
Maintenance-free, battery-free real-time clock (480 h backup time) |
|
Processing Times |
Bit ops: 0.08 μs/inst; Word ops: 1.7 μs/inst; Floating point: 2.3 μs/inst |
|
Digital Inputs (Integrated) |
14 total (10 DI 24 V DC, 4 DI RS-422/485) |
|
Digital Outputs (Integrated) |
10 total (6 DO 24 V DC, 0.5 A; 4 DO RS-422/485) |
|
Analog Inputs (Integrated) |
2 (0–10 V DC, 10-bit resolution) |
|
Analog Outputs (Integrated) |
2 (0–20 mA, 10-bit resolution) |
|
PROFINET Ports |
2 (Integrated switch, RJ45, 100 Mbit/s) |
|
Dimensions (W x H x D) |
150 x 100 x 75 mm |
|
Weight (approx.) |
530 g |
|
Degree of Protection |
IP20 |

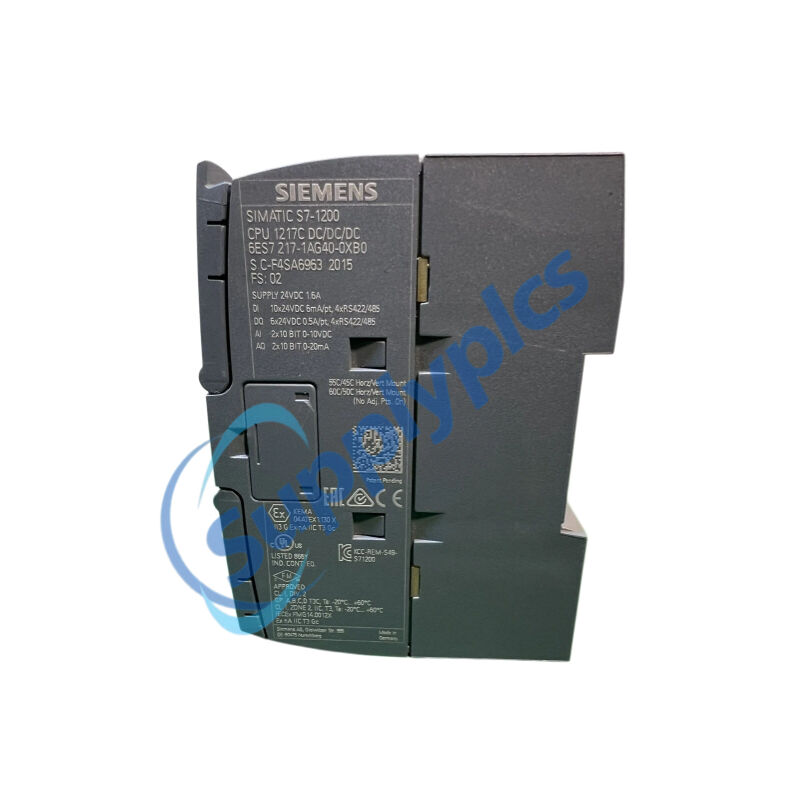

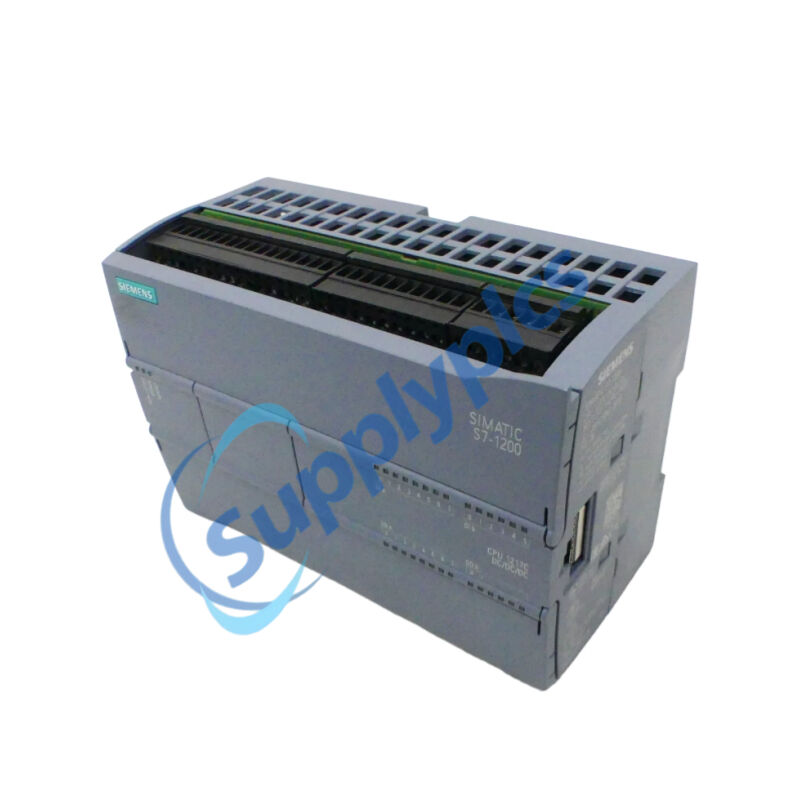

The 6ES7217-1AG40-0XB0, also designated as SIMATIC S7-1200 CPU 1217C, is a high-performance, compact controller engineered for sophisticated automation and motion control tasks. This DC/DC/DC PLC features an integrated power supply, dual PROFINET ports, and a rich mix of onboard I/O including high-speed differential line driver outputs. With 250 KB of integrated work memory and a processing speed of 0.08 µs per bit operation, the 6ES7217-1AG40-0XB0 delivers exceptional real-time performance. Its versatile design supports up to 8 position-controlled axes, making the 6ES7217-1AG40-0XB0 an ideal solution for complex industrial applications.
High-speed packaging machinery (precise timing and rapid response)
Factory automation & assembly lines (reliable machine control)
Motion control systems (up to 8 position-controlled axes with pulse-train outputs)
Process automation (integrating analog signals and PID loops)
Subordinate control in larger plants (distributed automation networks)
Compact design with extensive onboard I/O (14 DIs, 10 DOs, 2 AIs, 2 AOs)
Dual PROFINET ports with integrated switch for line and ring topologies (MRP support)
High-speed processing: 0.08 μs per basic operation and 250 KB work memory
Multi-interface communication: PROFINET IO Controller/Device, Modbus, S7 communication, Open IE, UDP, TCP/IP
Expandability: Supports up to 3 communication modules, 1 signal board, and 8 signal modules
Robust electrical design: Reverse polarity protection and wide voltage tolerance
High-Speed Counting (HSC): Up to 6 integrated counters, independent of CPU scan cycle. CPU 1217C measures up to 1 MHz with differential signals (RS-422/485) and up to 100 kHz (single-phase) / 80 kHz (A/B phase).
Pulse Train Output (PTO): 4 high-speed outputs delivering up to 100 kHz for precise motion control.
PID Controller: Basic PID controller integrated with auto-tuning capabilities for closed-loop process regulation.
Motion Control: Supports up to 8 position-controlled axes (4 with integrated pulse-direction interface).
Comprehensive diagnostics: Real-time trace functionality and versatile diagnostic buffer for rapid troubleshooting.
Q1: What is the operating temperature range of the 6ES7217-1AG40-0XB0?
A1: Horizontal installation: -20°C to +60°C; vertical installation: -20°C to +50°C.
Q2: Which programming software is required for the CPU 1217C?
A2: STEP 7 Professional V18 or higher within the TIA Portal ecosystem.
Q3: Can the CPU 1217C connect to a human-machine interface (HMI)?
A3: Yes, up to 18 HMI connections are supported via PROFINET, Ethernet, or other protocols.
Q4: What is the maximum number of I/O modules that can be attached?
A4: Up to 8 signal modules (SM), 1 signal board (SB), and 3 communication modules (CM).
Q5: Does the 6ES7217-1AG40-0XB0 support OPC UA?
A5: Yes, the CPU features an integrated OPC UA Server (requires a "Basic" license).
