Product Name:RESISTIVE TOUCH
Brand Name: SIEMENS
Model Number:6AV8100-0BB00-0AA1
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6AV8100-0BB00-0AA1 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model Number |
6AV8100-0BB00-0AA1 |
|
Product Type |
SIMATIC SCD 1297-ET Industrial LCD Monitor |
|
Display Diagonal |
12.1 inches (31 cm) TFT active matrix |
|
Display Area (WxH) |
246.0 x 184.5 mm |
|
Resolution |
800 x 600 pixels (SVGA) |
|
Pixel Pitch |
0.308 x 0.308 mm² |
|
Color Depth |
262,144 colors (up to 16.2 million via interpolation) |
|
Touch Technology |
Analog resistive touch screen |
|
Brightness (typical) |
Approx. 370 cd/m² |
|
Contrast Ratio (typical) |
450:1 |
|
Viewing Angle |
L/R 70° horizontal |
|
Backlight |
2 x CCFT (Cold Cathode Fluorescent Tube) |
|
Horizontal Frequency |
30 – 97 kHz |
|
Vertical Refresh Rate |
50 – 72 Hz (flicker-free at 50 Hz) |
|
Power Supply Options |
11.4 – 12.6 V DC / 18 – 36 V DC / 100 – 240 V AC |
|
Power Consumption |
Approx. 25 W (normal operation), approx. 5 W (Standby) |
|
Power Management |
VESA DPMS (Energy Star) |
|
Signal Inputs |
Analog VGA (15-pin D-Sub), DVI-D |
|
Control Interface |
OSD (On-Screen Display) with auto-alignment |
|
Protection Rating (Front) |
IP65 (flush-mount industrial grade) |
|
Protection Rating (Rear) |
IP20 |
|
Industry Certifications |
UL 1950, CE (Industry standard) |
|
Operating Temperature |
0°C to +45°C |
|
Storage Temperature |
–25°C to +60°C |
|
Relative Humidity |
Max. 95% (non-condensing) |
|
Mounting Type |
Flush-mount in control cabinets, consoles, booms |
|
Dimensions (HxWxD) |
240 x 160 x 74 mm (approximately) |
|
Net Weight |
Approx. 0.6 kg – 6.0 kg (weight varies by configuration) |
|
Housing Material |
Robust plastic enclosure, non-reflective mineral glass screen |
|
Commodity Code |
85285940 |
|
Country of Origin |
Japan |
|
Lifecycle Status |
Discontinued (effective April 1, 2012) |
|
Successor Product |
6AV8100-0BB00-1AA1 |
|
Product Class |
A (Standard stock item, returnable within guidelines) |
|
Product Group |
4322 |
|
Catalog ID |
ST80E |
|
Price Group (Headquarter) |
2AP |
|
WEEE Take-Back Obligations |
Not available |
|
RoHS Compliance |
Status not specified in primary documentation |
|
Production Discontinuation Notice |
Product Note ID 57888515 (Issue Date: 01/16/2012) |
|
Typical Applications |
Industrial HMI, process visualization, machine control, SCADA systems, control rooms, switching cabinets |

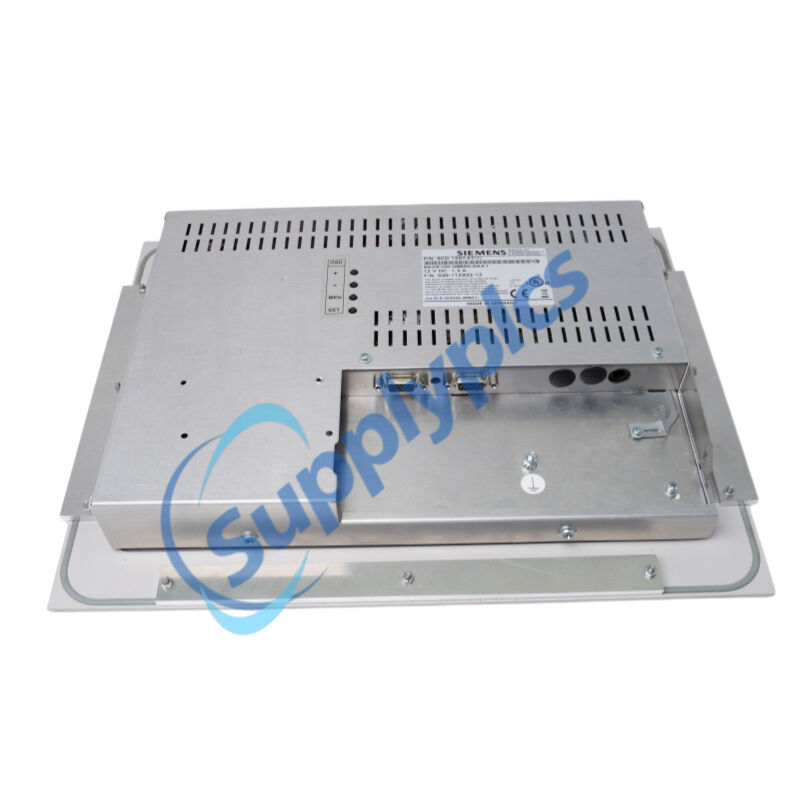

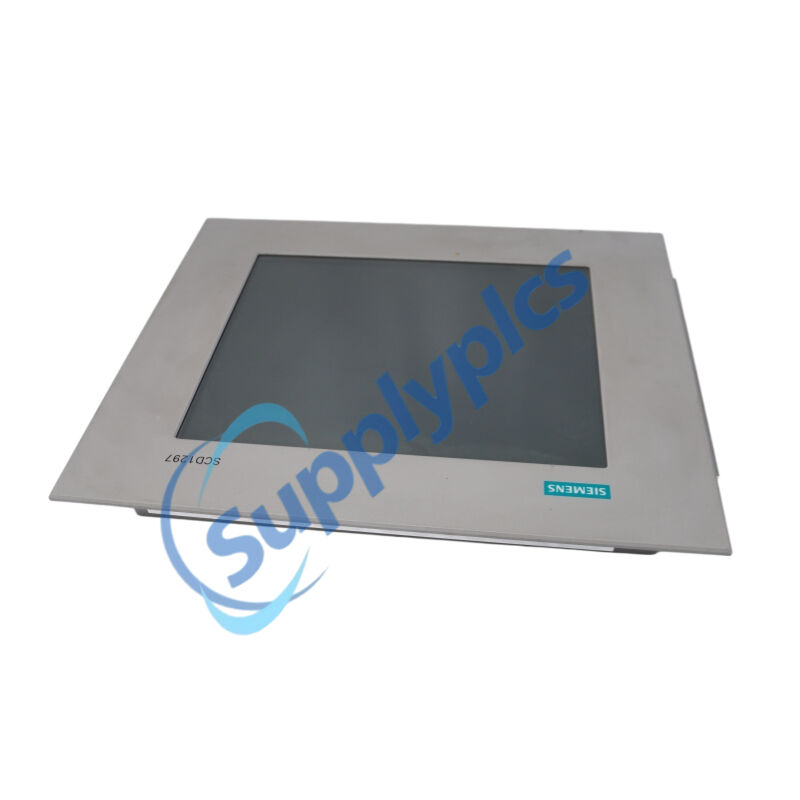

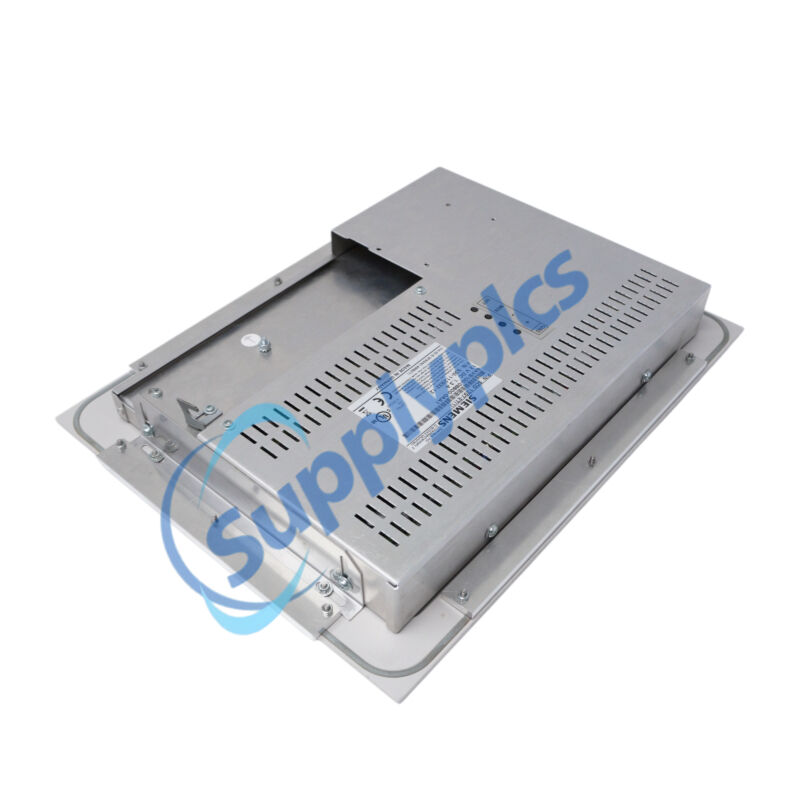

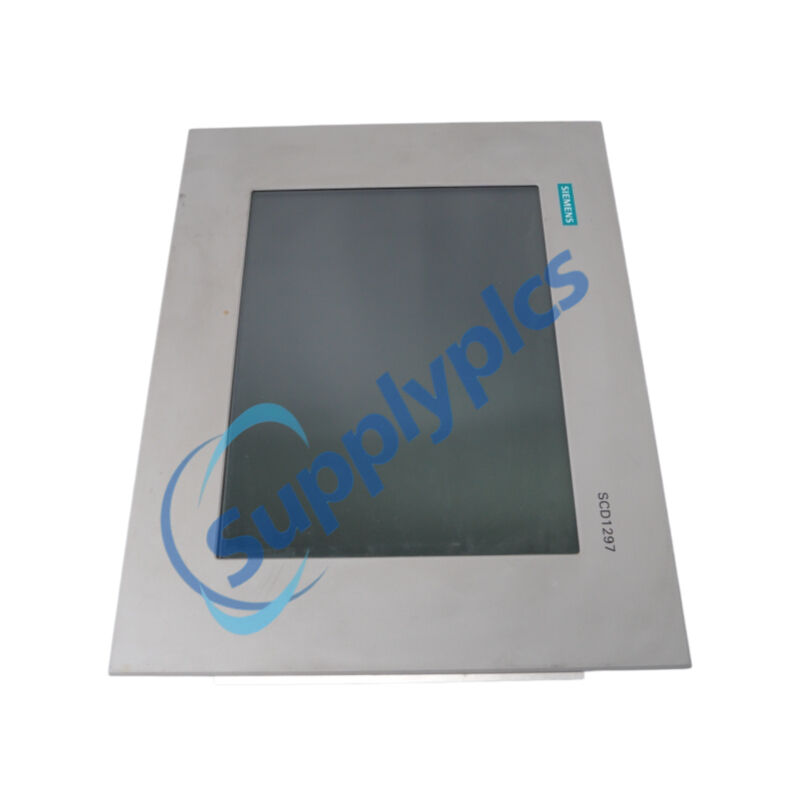

The Siemens 6AV8100-0BB00-0AA1, known as the SIMATIC SCD 1297‑ET, is a 12.1‑inch industrial LCD monitor developed specifically for demanding automation environments. Equipped with an analog resistive touch screen, the 6AV8100-0BB00-0AA1 delivers an 800×600 SVGA color display and supports multiple power supply options, making it a robust HMI solution. This 6AV8100-0BB00-0AA1 monitor resists electromagnetic radiation, offers IP65 front protection, and provides a flicker‑free image even at low refresh rates. As a discontinued product, the 6AV8100-0BB00-0AA1 has been replaced by the successor model 6AV8100-0BB00-1AA1.
Machine Control: Operator interface for assembly lines, packaging systems, and printing machinery
Process Automation: Monitoring and visualization for chemical, food & beverage, and pharmaceutical production
SCADA Systems: Supervisory control and data acquisition interfaces in control rooms
Control Cabinets & Consoles: Flush‑mount operation in industrial switchgear enclosures
Legacy System Replacement: Upgrading CRT monitors in existing Siemens SIMATIC environments
Industrial LCD technology – flicker‑free 12.1" TFT display, 800×600 max resolution
Analog resistive touch screen – robust input with 262,144 colors displayed simultaneously
VESA DPMS power management – reduces power consumption in standby mode (≈5 W)
Auto‑alignment function – one‑button automatic adjustment of picture position, phase, and size
Wide horizontal frequency support – 30 – 97 kHz, compatible with various video sources
IP65 front protection – dust‑tight and resistant to low‑pressure water jets
Multi‑power supply capable – accepts 12V DC, 24V DC, or 100 – 240 V AC input
Ultra‑low electromagnetic radiation – meets the "Industry" CE standard
Mineral glass screen – scratch‑resistant, non‑reflective surface with high mechanical protection
Displays industrial process data – converts a standard analog VGA video signal for the display controller, ensuring compatibility with conventional PC systems.
Provides touch interaction – the analog resistive touch screen allows operators to interact directly with HMI applications without external input devices.
Automatically adjusts display settings – the auto‑alignment function eliminates manual configuration of picture position and phase at the press of a button.
Reduces power consumption during inactivity – the VESA DPMS power management system significantly lowers energy usage when the synchronization signal from the computer is switched off.
Resists industrial environmental factors – immunity to electromagnetic radiation and wide operating temperatures ensure reliable operation in harsh conditions near heavy machinery.
Expands lower‑resolution content – automatically scales images from lower resolutions to fill the entire 800×600 screen area.
Offers flexible mounting options – flush‑mount design suitable for installation in control cabinets, consoles, booms, and 19‑inch racks.
Q1: What is the Siemens 6AV8100-0BB00-0AA1?
A1: The 6AV8100-0BB00-0AA1 is a SIMATIC SCD 1297‑ET 12.1‑inch industrial LCD monitor with analog resistive touch, designed for HMI and process visualization applications.
Q2: Is the 6AV8100-0BB00-0AA1 still available from Siemens?
A2: No. Siemens fully discontinued the 6AV8100-0BB00-0AA1 effective April 1, 2012. A successor product 6AV8100-0BB00-1AA1 is available as a direct replacement.
Q3: What power supply options does the 6AV8100-0BB00-0AA1 support?
A3: The 6AV8100-0BB00-0AA1 accepts a wide range of power inputs, including 11.4 – 12.6 V DC, 18 – 36 V DC, and 100 – 240 V AC, making it versatile for global installations.
Q4: What is the front protection rating of the 6AV8100-0BB00-0AA1?
A4: The 6AV8100-0BB00-0AA1 features an IP65 front rating, meaning it is completely dust‑tight and protected against low‑pressure water jets from any direction.
Q5: Where can I find documentation for the 6AV8100-0BB00-0AA1?
A5: Operating instructions and technical data for the 6AV8100-0BB00-0AA1 remain available through Siemens SiePortal under Document ID 57888515, as well as third‑party manual archives like ManualsLib and Manualzz.
