Product Name:Compact Controller
Brand Name: SIEMENS
Model Number:6DR2004-1
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6DR2004-1 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model |
6DR2004-1 |
|
Product Series |
SIPART DR20 Compact Controller |
|
Manufacturer |
Siemens |
|
Input Signals |
0/4–20 mA, 0–10 V, RTD (Pt100), Thermocouple |
|
Analog Inputs |
Up to 3 simultaneously (expandable with modules) |
|
Output Type |
Continuous (0/4–20 mA) or Step Output |
|
Control Modes |
P, PI, PD, PID |
|
Power Supply |
24 V AC/DC or 115/230 V AC |
|
Digital Inputs/Outputs |
Configurable logic I/O |
|
Display |
LED digital display with status indicators |
|
Communication |
Optional serial interface (V.28 / bus system) |
|
Mounting |
Panel / machine installation |
|
Protection Class |
Up to IP64 (front panel) |
|
Operating Cycle Time |
100 ms |
|
Alarm Outputs |
Configurable (relay or digital via module) |
|
Expandability |
Modular design with plug-in option modules |
|
Dimensions |
7.2x16.2x14.4cm |
|
Weight |
0.98kg |

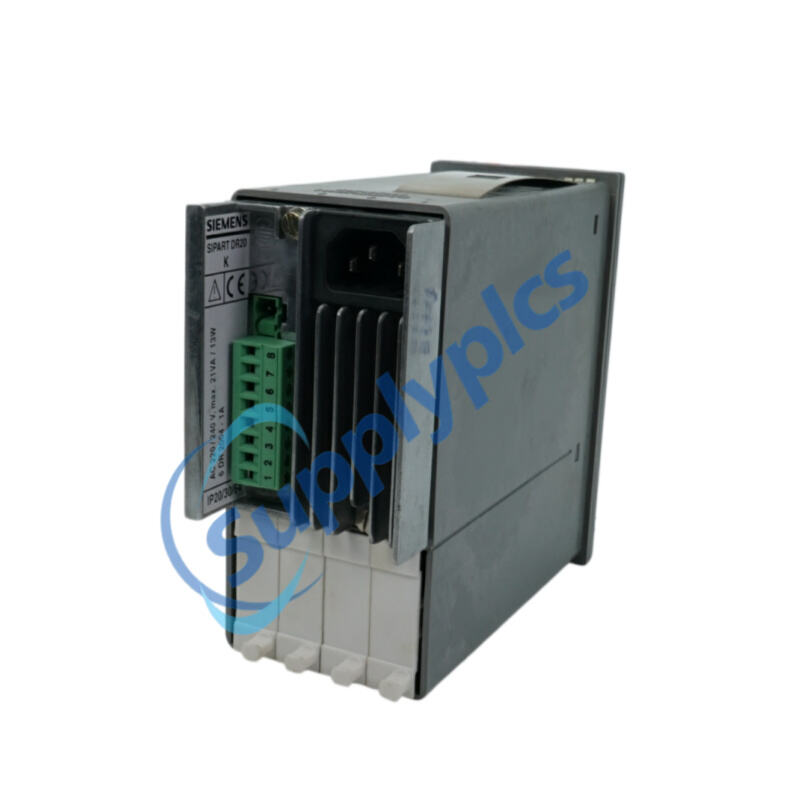

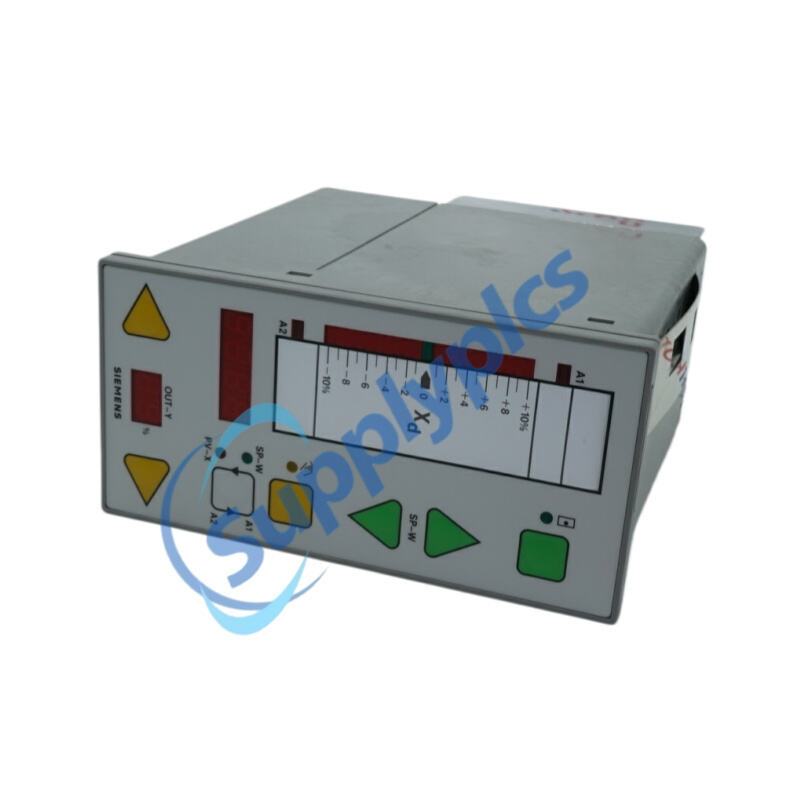

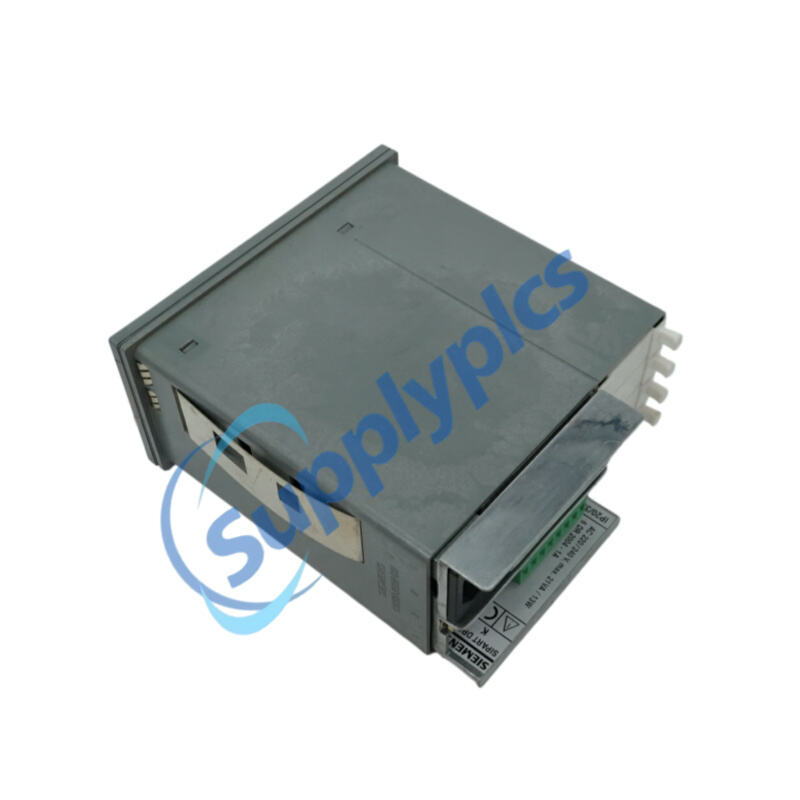

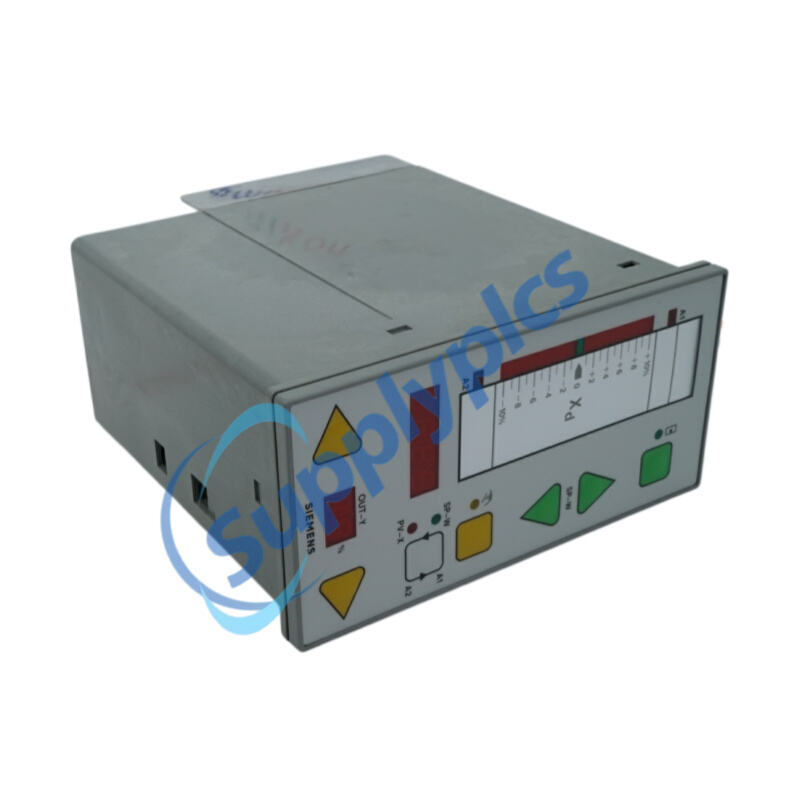

The SIEMENS 6DR2004-1 compact controller belongs to the SIPART DR20 series, designed for precise industrial process control. The 6DR2004-1 supports flexible configuration with PID algorithms and modular I/O expansion. With reliable performance and robust construction, the 6DR2004-1 enables accurate control of temperature, pressure, and flow. Its compact design, intuitive interface, and strong adaptability make the 6DR2004-1 an ideal solution for modern automation systems.
Process engineering systems
Temperature and pressure control loops
Flow and level regulation
Machinery and equipment automation
Chemical and petrochemical industries
Power generation plants
OEM machine integration
Modular and expandable architecture
Supports multiple input signal types
Advanced PID control capability
High noise immunity and reliability
Compact panel-mount design
Configurable alarms and safety functions
Optional serial communication interface
User-friendly front panel operation
Real-time process variable monitoring
PID control (P / PI / PD / PID modes)
Signal conversion and linearization
Alarm monitoring and signaling
Manual/automatic control switching
Disturbance variable compensation
Data communication with higher-level systems
Parameter storage with non-volatile memory
Q1: What is the main function of 6DR2004-1?
A1: The 6DR2004-1 is a compact PID controller used for regulating industrial process variables such as temperature, pressure, and flow.
Q2: Which series does 6DR2004-1 belong to?
A2: The 6DR2004-1 belongs to the Siemens SIPART DR20 series.
Q3: Can 6DR2004-1 support different input signals?
A3: Yes, the 6DR2004-1 supports 0/4–20 mA, voltage, RTD, and thermocouple inputs.
Q4: Is communication supported in 6DR2004-1?
A4: Yes, the 6DR2004-1 supports optional serial communication via an interface module.
Q5: What control algorithms are available in 6DR2004-1?
A5: The 6DR2004-1 supports P, PI, PD, and PID control modes.
