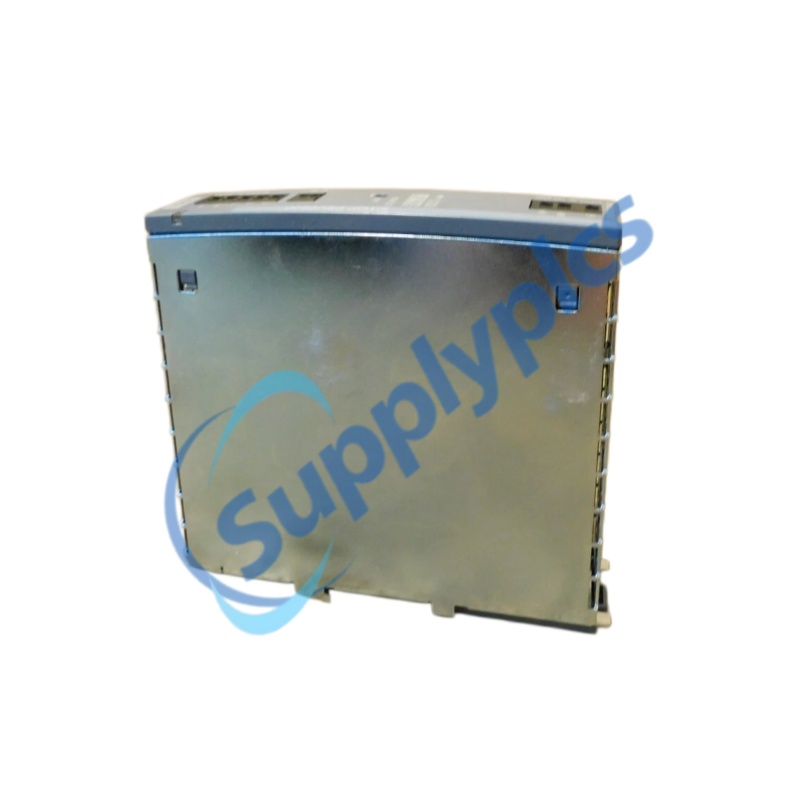

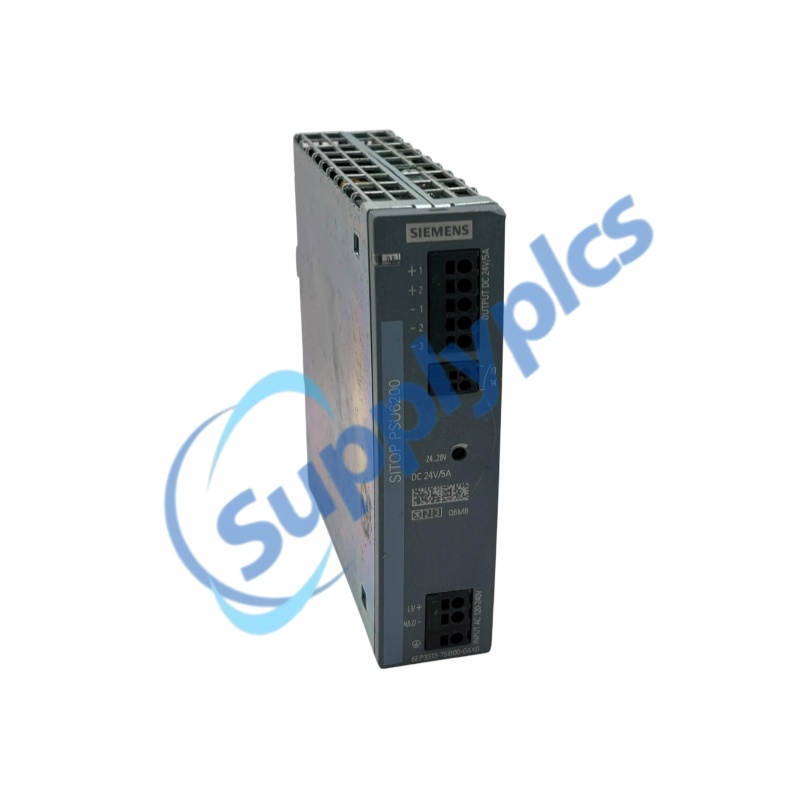

SIEMENS SITOP PSU6200 6EP3333-7SB00-0AX0 24 V DC 5 A Stabilized Power Supply

SIEMENS SITOP PSU6200 6EP3333-7SB00-0AX0 24 V DC 5 A Stabilized Power Supply

SIEMENS · SITOP PSU6200

6EP3333-7SB00-0AX0

24 V DC / 5 A Stabilized Power Supply

OFFICIAL LIFECYCLE

ACTIVE PRODUCT

PM300 lifecycle

Input

120–240 V AC/DC

Output

24 V DC

Rated current

5 A

Extra Power

7.5 A

Selection gate: Confirm input system, downstream 24 V load, protective device, enclosure, terminals and required add-on modules before quotation.

Direct inquiry

Email Inquiry WhatsApp[email protected] | +86 18159889985

Overview
Applications
Data
Construction
Environment
Installation
Verification
Commercial
Models
Recommended Products

Official product overview

24 V DC / 5 A Stabilized Power Supply

SITOP PSU6200 stabilized power supply with 120–240 V AC or 120–240 V DC input and 24 V DC / 5 A output.

Exact MLFB

6EP3333-7SB00-0AX0

Family

SITOP PSU6200

Status

ACTIVE PRODUCT

Lifecycle: Siemens Industry Mall lists 6EP3333-7SB00-0AX0 as a PM300 active product. Actual seller stock and dispatch remain subject to verification.

Applications

Reliable 24 V DC power for industrial control loads

Provide stabilized 24 V DC power for automation and control equipment within the documented load limits.
Use the 5 A rated output for PLC, HMI, sensor, actuator or relay supply after a complete load calculation.
Use the documented Extra Power capability for short demand peaks where the application and wiring permit.
Coordinate optional SITOP redundancy, selectivity or UPS add-on modules only after checking official compatibility.

Application note: Include inrush current, voltage drop, protective coordination and future expansion in the load calculation.

Data

Product-specific values from Siemens official product data and manuals.

Output

24 V / 5 A

Extra Power

7.5 A

Efficiency

90.2%

Protection

C 6 A recommended

Product type	SITOP PSU6200 single-phase stabilized power supply
Rated input	120–240 V AC; 120–240 V DC according to the official product description
Rated output	24 V DC / 5 A
Extra Power	7.5 A for 5 seconds per minute
Efficiency	90.2% in the Siemens PSU6200 technical brochure
Recommended line protection	Miniature circuit breaker characteristic C, 6 A
Mounting	DIN rail according to EN 60715; verify rail and cabinet arrangement
Connection system	Push-in connection technology
Protective conductor	PE terminal must be connected
Lifecycle	PM300 active product

Construction

The PSU6200 combines compact DIN-rail construction with push-in power terminals.

Input sideConnect the documented AC or DC source to the designated line terminals.	Output sideProvide 24 V DC through the documented positive and negative terminals.
Push-in terminalsUse conductor sizes and stripping lengths from the official manual.	DIN-rail bodyInstall on the specified EN 60715 rail with ventilation clearances.
PE connectionConnect the line-supply protective conductor to PE.	Status indicationConfirm front indications and their meaning in the official manual.
Add-on planningCoordinate redundancy, selectivity or UPS modules by official compatibility.	Nameplate verificationVerify MLFB, input and output ratings on the quoted unit.

Environment

Apply the installation and ambient conditions from the SITOP PSU6200 equipment manual.

Installation location	Suitable industrial cabinet or enclosure
Ambient temperature	Subject to verification for exact mounting, loading and derating
Ventilation clearance	Use the clearances stated in the current equipment manual
Pollution / moisture	Protect against condensation and undocumented contamination
Altitude / derating	Subject to verification in the official manual
EMC coordination	Apply documented wiring, grounding and separation measures
Approvals	Verify current certificates for the destination

Protection note: The power supply does not replace upstream isolation, branch protection, cabinet protection or complete-machine safety engineering.

Installation

Coordinate source protection, PE, DIN rail, wiring and downstream load before energizing.

Source checkConfirm AC or DC supply type and permitted voltage.	Line protectionUse the documented protective device or an officially approved equivalent.
PE connectionConnect protective earth before commissioning.	Rail mountingSnap onto the specified DIN rail and maintain ventilation space.
Output wiringSize conductors for current, voltage drop and temperature.	Load checkCalculate continuous and peak demand.
DC input polarityFor DC operation connect plus to L1 and minus to N.	CommissioningVerify output voltage before connecting sensitive loads.

Verification

Confirm the exact article, hardware state and complete system context before replacement or quotation.

Exact MLFB	6EP3333-7SB00-0AX0
Input system	Confirm AC or DC source and protective device
Output load	Confirm steady current, peak current and voltage drop
Terminal condition	Check conductor type, size and terminal integrity
Cabinet conditions	Confirm temperature, airflow and enclosure protection
Add-on modules	Verify official compatibility
Nameplate evidence	Request current overall-unit and nameplate photos
Documentation	Use the current Siemens PSU6200 manual and data sheet

Quotation input: Send the input system, 24 V load list, peak-current data, cabinet conditions and required add-on modules.

Commercial

FAQ and procurement answers use written verification instead of unsupported promises.

Stock

Confirm before quotation

Condition

Stated in writing

Evidence

Available on request

Is this confirmed in stock?	Confirm before quotation for the exact article, quantity and destination.
New, used or refurbished?	The quoted condition is stated in writing. No condition is assumed.
Can current photos be supplied?	Current overall-unit and nameplate photos are available on request.
Has the unit been tested?	Available on request and subject to the agreed inspection or test scope.
Warranty period	Confirmed in the formal quotation.
Dispatch time	Confirmed after stock, destination and order approval are verified.
Payment methods	Available on request in the formal quotation.
Quotation response	Subject to request completeness and verification.
How is the transaction verified?	Company details, quotation, invoice and beneficiary information are available for review before payment.
Compatibility	No automatic substitution is promised. Verify input, output, dimensions, terminals and system coordination.
Included accessories	Included components and accessories are subject to verification in the quotation.
Official product status	Siemens Industry Mall lists 6EP3333-7SB00-0AX0 as a PM300 active product. Actual seller stock and dispatch remain subject to verification.
