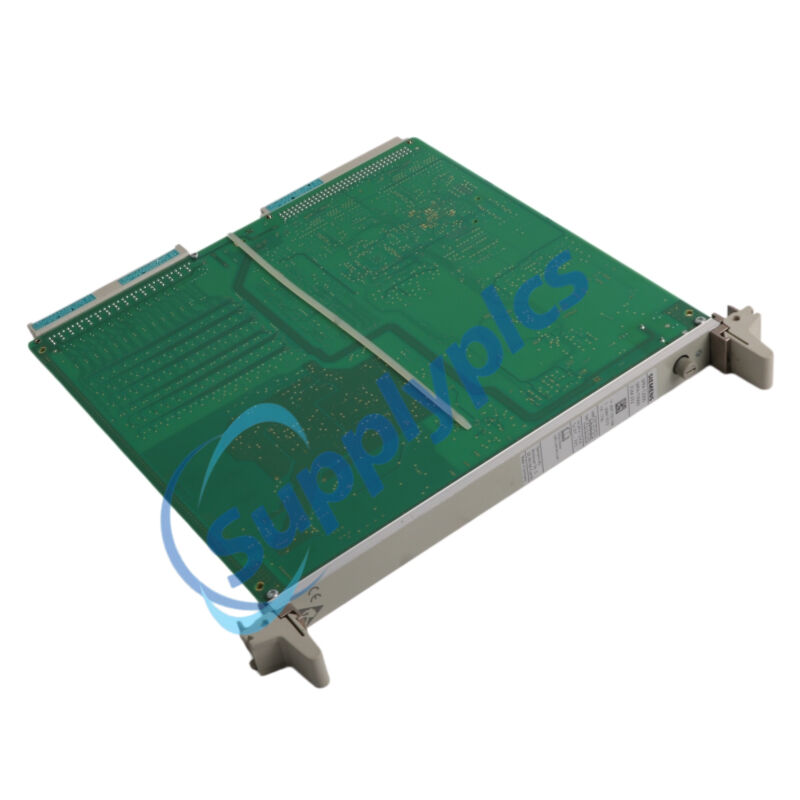

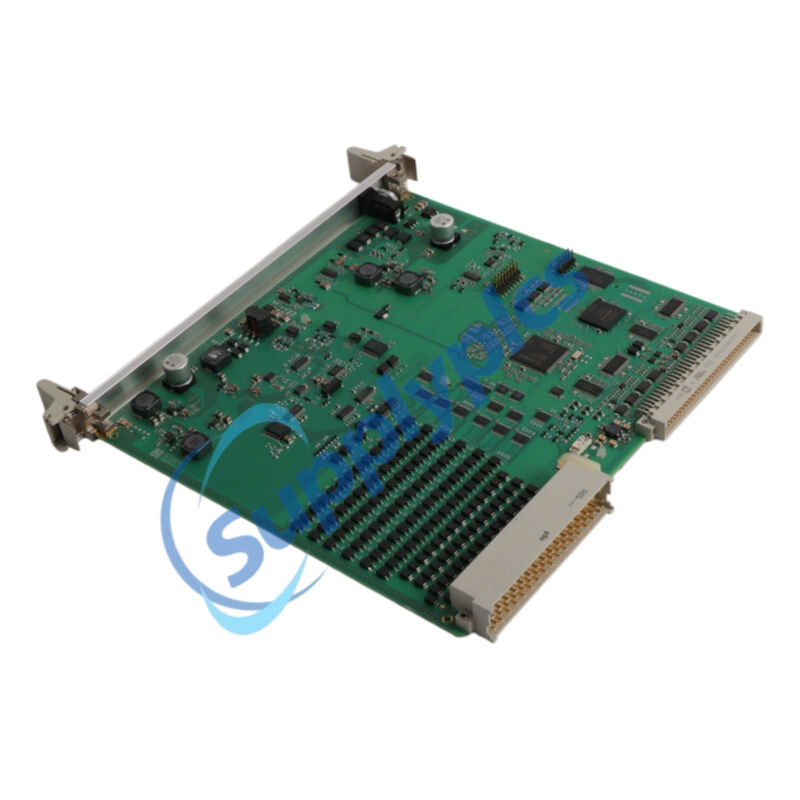

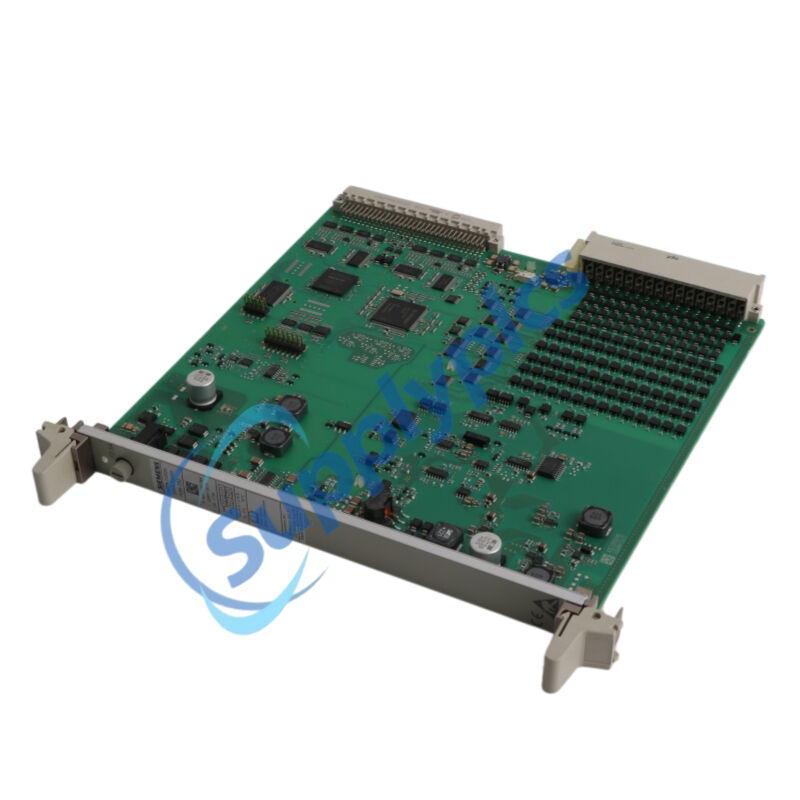

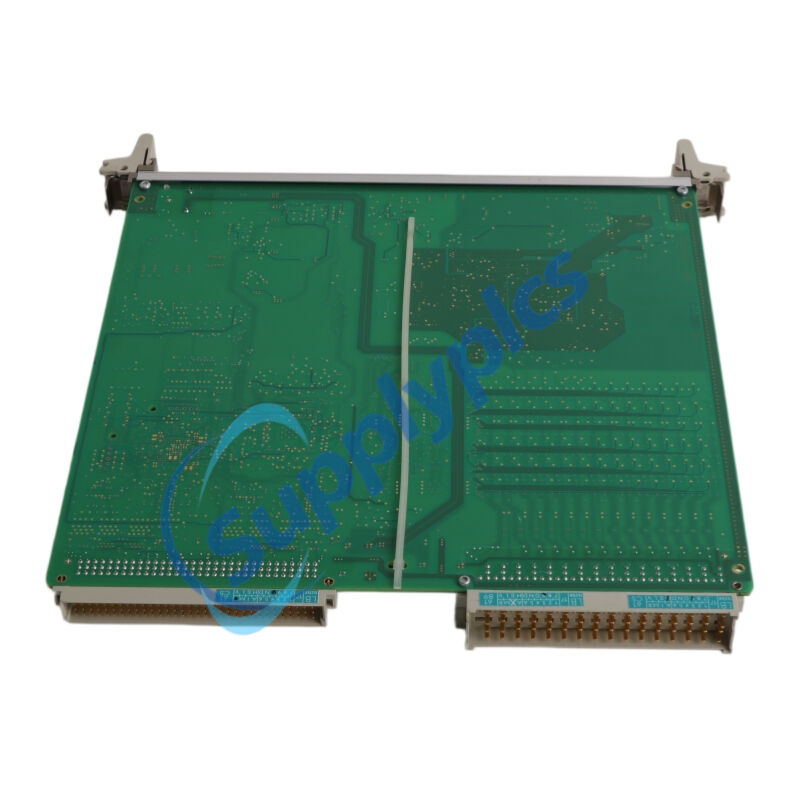

Product Name:Encoder Preparation Module
Brand Name: SIEMENS
Model Number:6DP1232-7AA
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6DP1232-7AA |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Details |
|
Model Number |
6DP1232-7AA |
|
Manufacturer |
Siemens |
|
Module Type |
FUM 232 Encoder / Temperature Signal Conditioning Module |
|
Series |
TELEPERM XP |
|
Input Type |
Thermocouples / RTDs (PT50/100/200/500/1000) |
|
Channel Capacity |
Up to 28 thermocouples or 14 RTDs |
|
Wiring Method |
2-wire / 3-wire / 4-wire |
|
Reference Junction |
Fixed or variable (thermocouples) |
|
Signal Function |
Analog signal conditioning |
|
Power Supply |
Integrated current source for Pt100 |
|
Protection Features |
Overload and short-circuit protection |
|
Communication |
Integrated with control system (e.g., PROFIBUS environment) |
|
Mounting Type |
Rack-mounted |
|
Enclosure Rating |
IP20 |
|
Operating Temperature |
Approx. -20°C to +60°C |
|
System Compatibility |
TELEPERM XP / FUM 232 systems |
|
Redundancy Support |
Yes |
|
Dimensions |
2x26.4x26.1cm |
|
Weight |
0.38kg |
The SIEMENS 6DP1232-7AA is a high-performance signal conditioning module designed for TELEPERM XP systems. The 6DP1232-7AA supports thermocouple and RTD inputs with flexible wiring configurations and precise temperature processing. Engineered for industrial environments, 6DP1232-7AA ensures stable data acquisition and reliable signal conversion. With built-in protection and redundancy support, 6DP1232-7AA is widely used in process automation and power plant control systems requiring accurate temperature monitoring.
Power generation plants (thermal / nuclear)
Industrial process control systems
Temperature monitoring systems
TELEPERM XP DCS platforms
Chemical and manufacturing automation
Supports thermocouples and RTDs
Up to 28 temperature inputs
Flexible wiring (2/3/4-wire)
Built-in reference junction compensation
Overload and short-circuit protection
Suitable for redundant system design
Temperature signal acquisition and conditioning
Conversion of analog sensor signals
Reference junction compensation for thermocouples
Sensor monitoring (e.g., wire break detection)
Integration with DCS/PLC systems
Q1: What is 6DP1232-7AA used for?
A1: It is used for temperature signal conditioning in industrial automation systems.
Q2: Which sensors are compatible with 6DP1232-7AA?
A2: It supports thermocouples and RTDs such as Pt100.
Q3: What system uses 6DP1232-7AA?
A3: It is mainly used in Siemens TELEPERM XP systems.
Q4: Does 6DP1232-7AA support redundancy?
A4: Yes, it is suitable for redundant configurations.
Q5: How many channels does 6DP1232-7AA support?
A5: It supports up to 28 thermocouples or 14 RTDs.
