Product Name:TOUCH PANEL
Brand Name: SIEMENS
Model Number:6AV3627-1QL00-0AX0
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6AV3627-1QL00-0AX0 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model Number |
6AV3627-1QL00-0AX0 |
|
Product Type |
SIMATIC TP27-10 Touch Panel |
|
System Compatibility |
SIMATIC S7-200, S7-300, S7-400 PLCs |
|
Display Type & Diagonal |
STN Color LCD, 10.3" (10.4" in some specs) |
|
Resolution (H×V) |
480 × 640 pixels |
|
Colors |
8 (STN) |
|
Backlight MTBF |
60,000 hrs (@25°C) |
|
User Memory |
1 MB Flash-EPROM (user data) |
|
Processor |
Elan SC400 / X86, 33 MHz |
|
DRAM |
2 MB |
|
Operating System |
Rmos |
|
Programming Software |
ProTool, version 3.1 or higher |
|
Power Supply |
18 – 24 V DC, 0.8 A rated (max) |
|
Power Consumption |
17 W |
|
Real-time Clock |
Yes, battery-backed (opt. 3.6 V battery, min. backup 4 years) |
|
Interfaces |
1 × TTY, 2 × RS232, 1 × RS422, 1 × RS485 (max. 12 Mbps) |
|
Expansion Slot |
1 × PC card slot (PCMCIA) |
|
Front Protection |
IP65 |
|
Rear Protection |
IP20 |
|
Installation |
Panel-mount, vertical orientation (±35° max tilt) |
|
Front Bezel (W×H) |
335 mm × 275 mm (13.19″ × 10.83″) |
|
Cutout Dimensions |
280 mm × 210 mm (11.02″ × 8.27″) |
|
Depth |
73 mm (2.87″) |
|
Weight (without packaging) |
Approx. 5.0 kg (11.0 lbs) |
|
Certifications |
PRS, FM Class I Div. 2, UL, EX Zone 22 |
|
Lifecycle Status |
Discontinued – PM500 (End of Product Lifecycle) |
|
Successor Product |
6AV3627-1QL01-0AX0 |

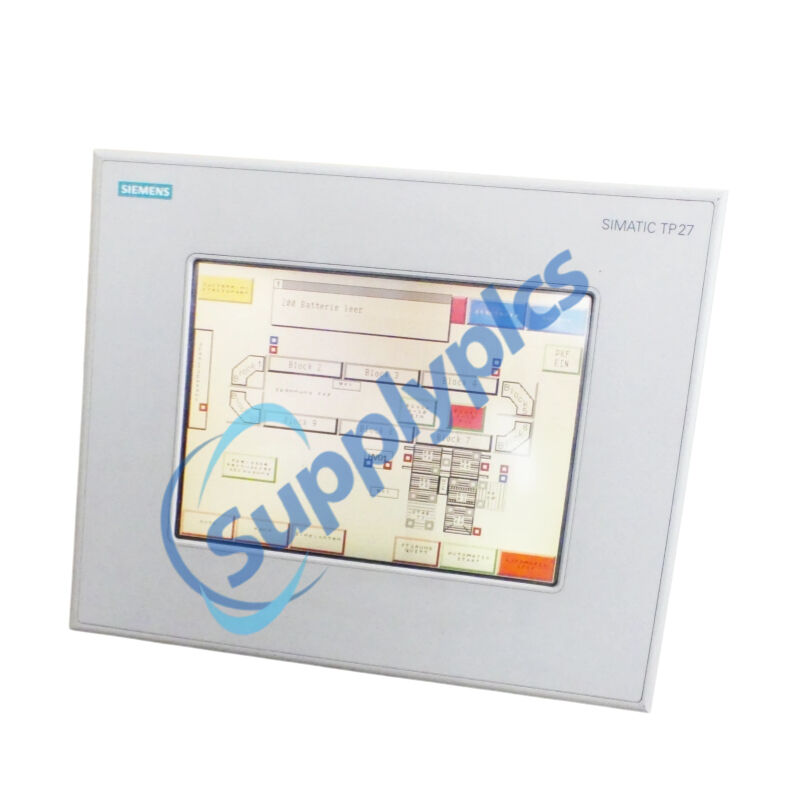

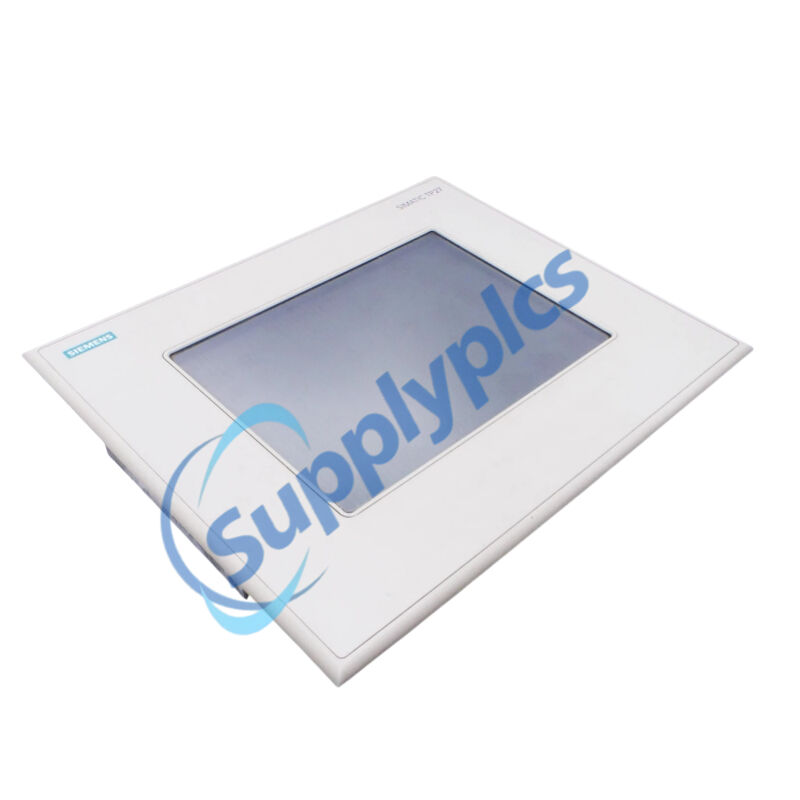

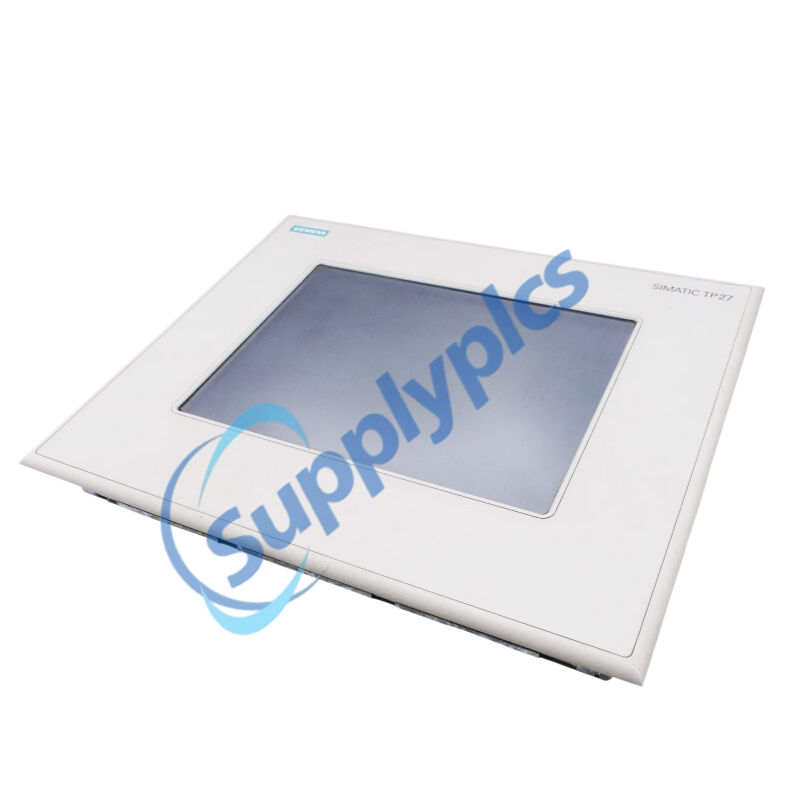

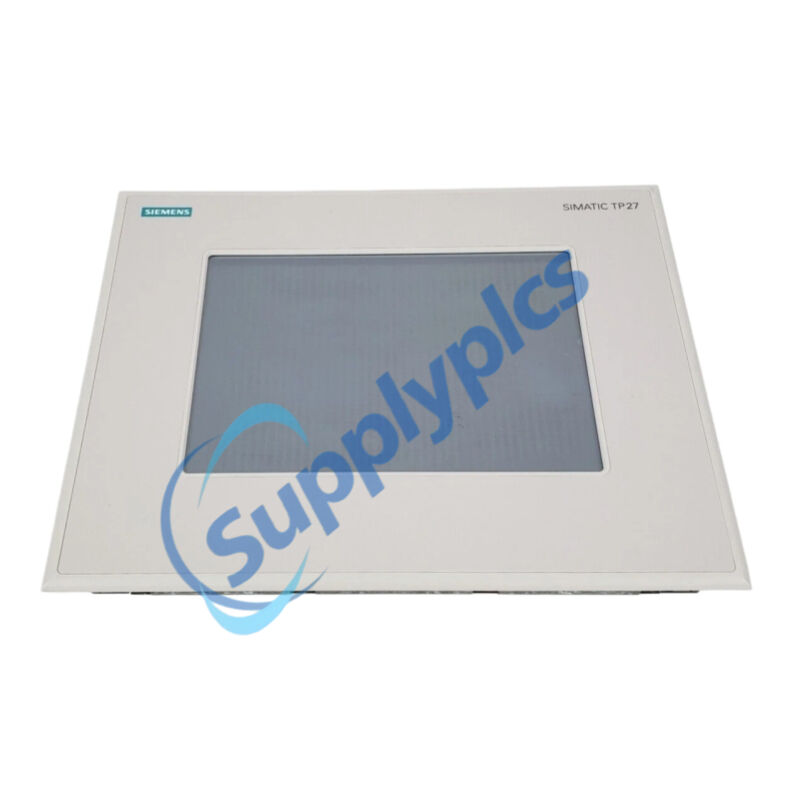

The Siemens 6AV3627-1QL00-0AX0 is a SIMATIC TP27-10 touch panel designed for intuitive industrial HMI applications. This 6AV3627-1QL00-0AX0 features a 10.3‑inch STN color LCD (480×640), a 33 MHz processor, and 1 MB of Flash‑EPROM user memory. The 6AV3627-1QL00-0AX0 offers flexible connectivity with TTY, RS232, RS422, and RS485 interfaces for smooth integration with Siemens S7 PLCs. Configured via ProTool software, the 6AV3627‑1QL00‑0AX0 is a rugged, IP65‑rated panel suitable for demanding factory automation environments requiring visual process control.
Machinery & Production Lines – Assembly control, packaging systems, printing presses, CNC wire‑cutting machines
Process Automation – Visualisation, parameter setting, and monitoring for chemical, pharmaceutical, and food‑processing systems
PLC‐Based Systems – Seamless operation with SIMATIC S7‑200, S7‑300, and S7‑400 controllers
Legacy System Retention – Extremely suitable for maintaining and supporting existing SIMATIC HMI‑based installations
10.3‑inch STN colour display – 480×640 resolution with 8 colours for clear industrial graphics
Intuitive resistive touch screen – Glove‑friendly, menu‑based operation for quick, reliable input control
High reliability & durability – Resistant to industrial environments; certified for dust and moisture protection
Versatile RS‑485 network connectivity – Master‑compatible for integration into PROFIBUS networks
PC card expansion slot – Store additional configuration or log process data via PCMCIA adapters
Rmos real‑time OS with ProTool configuration – Enables the creation of dynamic process visualisation menus, graphic displays, and alarm screens
High front protection rating (IP65) – Dust‑tight and resistant to low‑pressure water jets
ATEX hazardous area approval – Certified for FM Class I Div. 2, EX Zone 22, suitable for use in potentially explosive atmospheres
Graphically visualises system data – Displays real‑time process values, fault diagnostics, alarms, bar graphs, and trends from connected PLCs
Enables intuitive operator control – Operator can input setpoints and navigate menus simply by touching the touch‑sensitive screen
Communicates with automation networks – Built‑in RS‑485 and RS‑422 connections provide seamless integration into SIMATIC S7 control architectures
Maintains time & data integrity – The optional rechargeable battery preserves the real‑time clock for up to 4 years
Reads PCMCIA expansion cards – Expand storage capacity or upload firmware via the device's PC card slot
Customises HMI functionality – Operator interface screens are fully customisable using the ProTool engineering software
Q1: What is the Siemens 6AV3627‑1QL00‑0AX0 used for?
A1: The 6AV3627‑1QL00‑0AX0 is a 10.3‑inch touch panel for industrial control and process visualisation with Siemens SIMATIC PLCs.
Q2: Is the 6AV3627‑1QL00‑0AX0 a colour display? What is the resolution?
A2: Yes, it features an STN colour LCD (8 colour levels) with a resolution of 480 × 640 pixels.
Q3: Is the 6AV3627‑1QL00‑0AX0 still in production?
A3: No, it is discontinued, but replacement units are available from third‑party suppliers. The successor order number is 6AV3627‑1QL01‑0AX0.
Q4: What software is needed to configure the 6AV3627‑1QL00‑0AX0?
A4: It is configured using ProTool, version 3.1 or higher (now superseded by the WinCC flexible family).
Q5: How do I calibrate the touchscreen of my 6AV3627‑1QL00‑0AX0?
A5: Go to System Settings on the touch panel, select the Touch Calibration function, and enter the supervisor password to complete the calibration.
