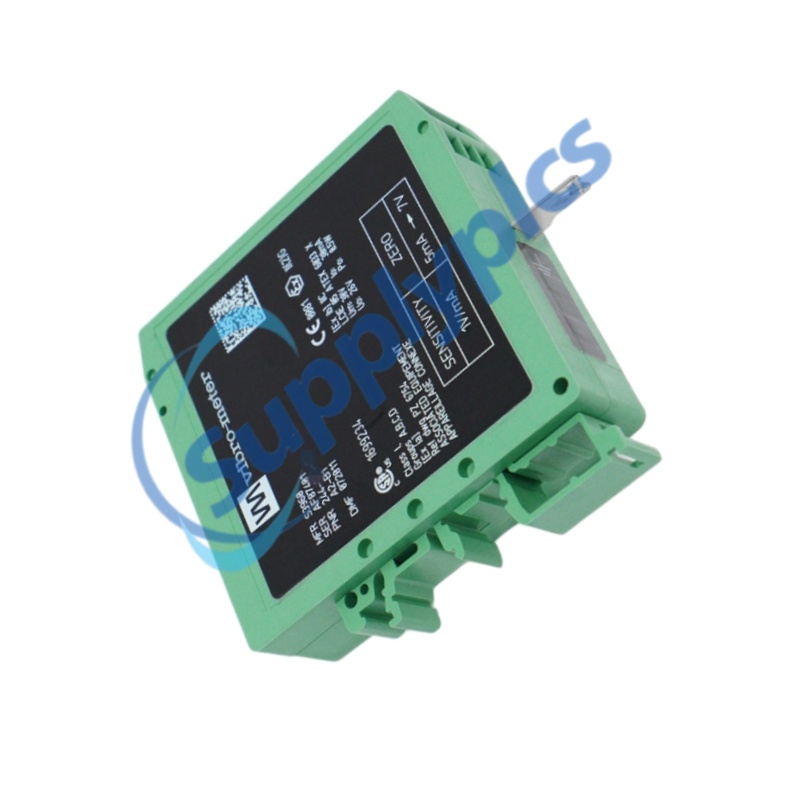

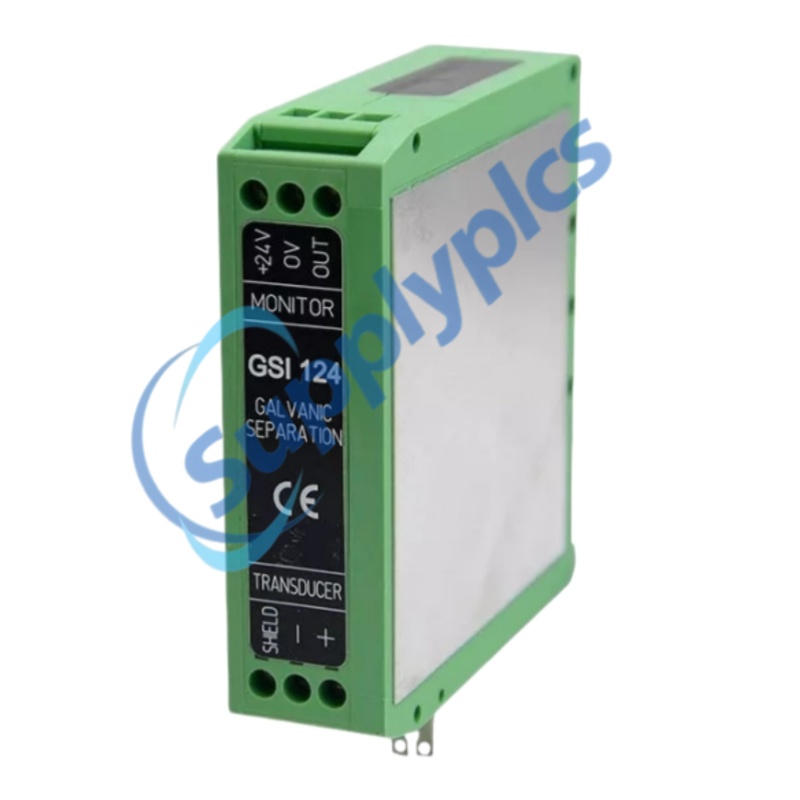

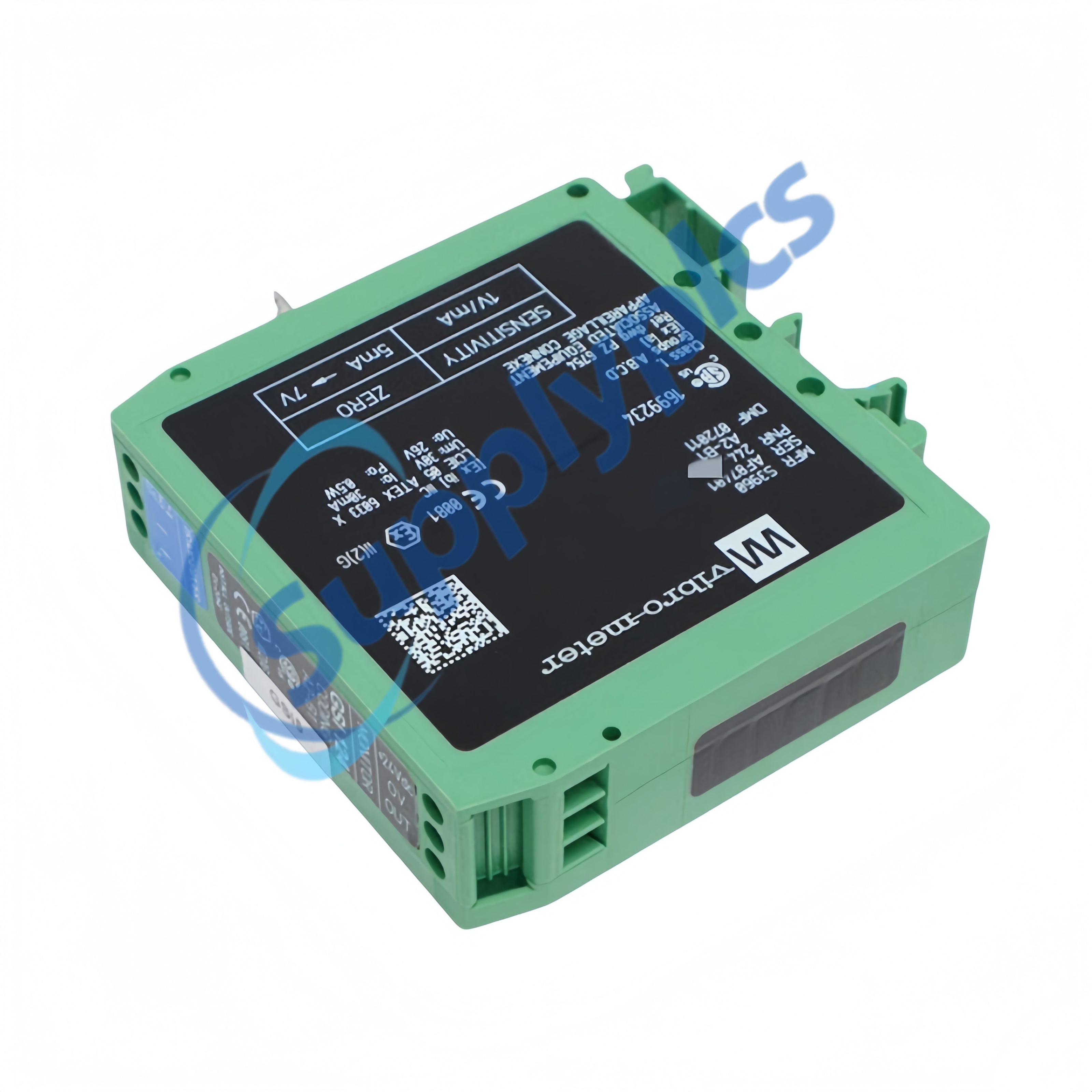

Product Name:Galvanic Separation Unit
Brand Name:Vibro-Meter
Model Number:GSI124 244-124-000-022
Country of Origin:Switzerland
Warranty:12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Vibro-Meter |
Model Number: |
GSI124 244-124-000-022 |
Country of Origin: |
Switzerland |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Specification |
|---|---|
| Product Model | GSI124 |
| Part Number | 244-124-000-022 |
| Function Type | Galvanic separation / signal isolation unit |
| Mounting Type | DIN rail (symmetrical & asymmetrical compatible) |
| Input Supply Voltage | +24 V DC ±5% |
| Signal Output | Proportional analog voltage signal |
| Power Consumption | ~20–60 mA (depending on load) |
| Electrical Isolation | ≥4 kV RMS |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |

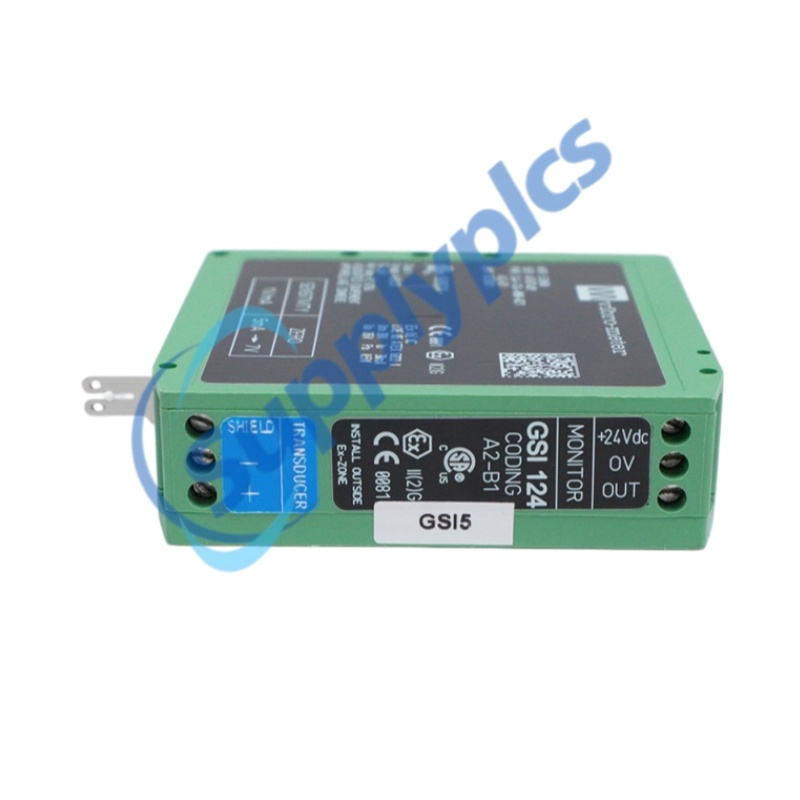

| Dimensions | 130 × 74.5 × 23 mm |
| Weight | Approx. 430 g |
| Connection Type | AMP Faston / screw terminal interface |
The GSI124 244-124-000-022 is a galvanic separation unit designed for safe signal transmission and power isolation in industrial vibration monitoring systems. It ensures reliable decoupling between transducers, signal conditioners, and control electronics, preventing ground loops and maintaining signal integrity in harsh environments.
Built as an upgraded solution within Meggitt Vibro-Meter systems, the GSI124 supports DIN-rail mounting for fast installation in control cabinets, industrial housings, or monitoring racks. It is commonly used as a replacement for legacy GSI122 and GSI130 modules, offering improved installation flexibility and simplified wiring.
The GSI124 provides stable power supply distribution and analog signal transfer for low-current electronic devices, making it suitable for turbine, compressor, and rotating machinery protection systems. Its robust design ensures reliable operation in continuous industrial monitoring applications.
Q1: What is the GSI124 used for?
A1: It is used for galvanic isolation and power supply in vibration monitoring and industrial signal systems.
Q2: Can GSI124 replace older models?
A2: Yes, it is designed as a direct replacement for GSI122 and GSI130 units.
Q3: How is GSI124 installed?
A3: It is mounted on a standard DIN rail inside industrial cabinets or enclosures.
Q4: What voltage does GSI124 require?
A4: It operates on a +24 V DC industrial power supply with ±5% tolerance.
Q5: Does GSI124 improve signal stability?
A5: Yes, it eliminates ground loops and improves signal integrity in measurement systems.
|
