Product Name: HART Analog Input Personality Module
Brand Name: WESTINGHOUSE
Model Number: 5X00059G01
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Description

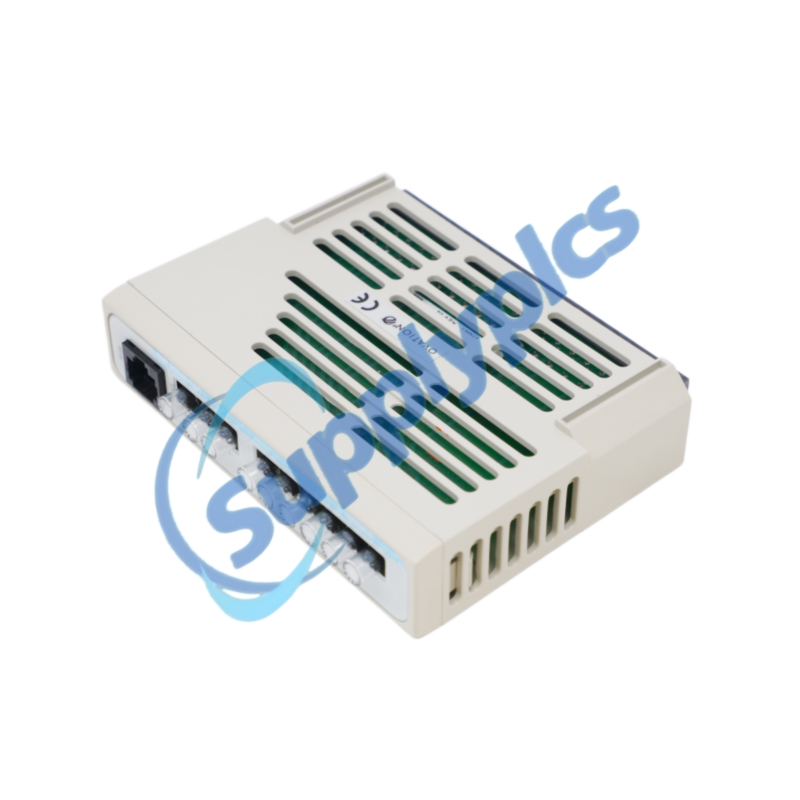

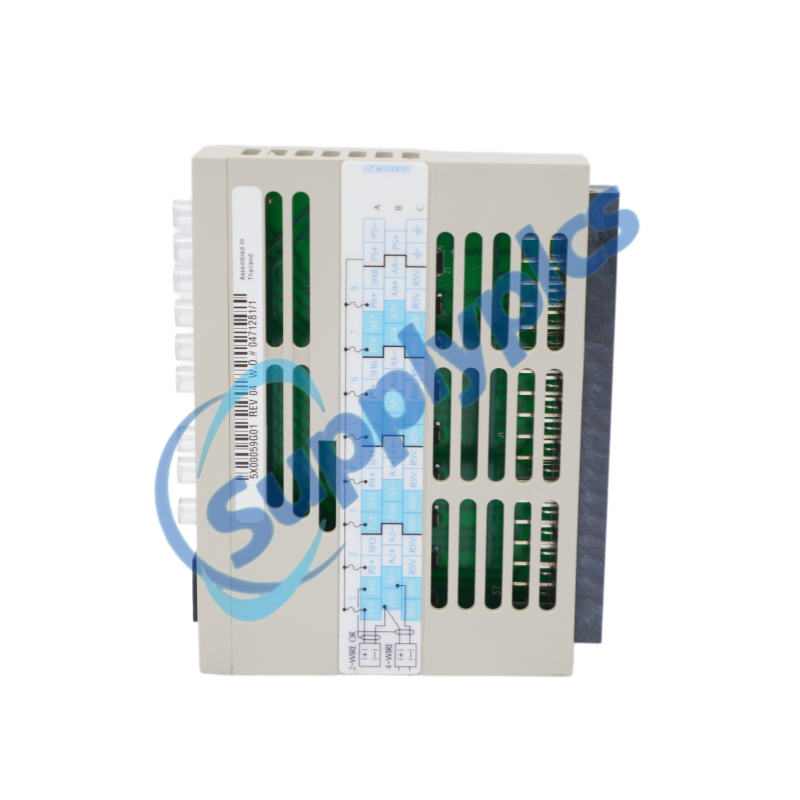

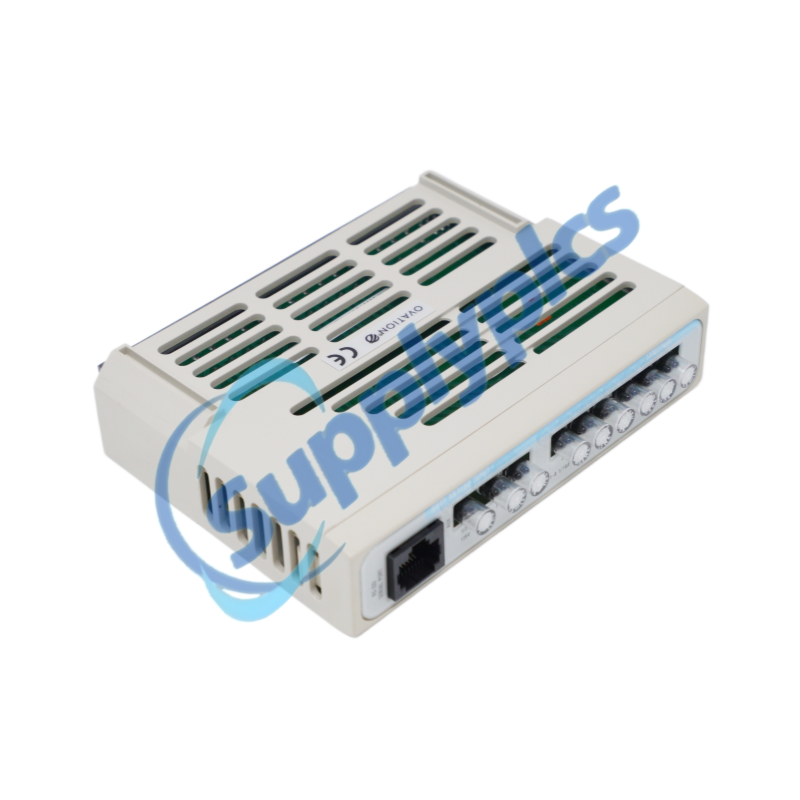

The WESTINGHOUSE 5X00059G01 is a specialized Personality Module designed for use within the Emerson Ovation distributed control system (DCS) to facilitate communication with HART-compliant field devices. It features a single printed circuit board assembly (PHAI) that handles eight analog input channels, enabling the simultaneous coexistence of standard 4-20 mA analog signals and digital HART communication on the same pair of wires. This module is essential for applications requiring precision process measurement and multivariable data acquisition in industrial environments.
Commercial Terms
Minimum Order Quantity |
1 Piece |
Price |
Contact for Winnie |
Packaging Details |
Original new Factory Sealed |
Delivery Time |
3–7 Days |
Payment Terms |
T/T |
Shipping Method |
DHL / FedEx / UPS / TNT |
Supply Ability |
In stock |
|
Sales: |
Email: |
Whatsapp: |
|
JIM |
|
Manufacturer |
WESTINGHOUSE |
|
Module Type |
HART Analog Input Personality Module |
|
Part Number |
5X00059G01 |
|
Number of Channels |
8 |
|
Input Range |
4-20 mA (normal); 0-23 mA (under/over-range monitoring) |
|
A/D Resolution |
16 bits |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Humidity |
0% to 95% (non-condensing) |
|
Auxiliary Power Supply Voltage |
24 VDC (-5%, +6.25%) |
|
Two-Wire Transmitter Power |
13.5V minimum @ 20 mA (current limited to 32 mA maximum) |
|
Dielectric Isolation |
1000 VAC/VDC (Channel to logic) |
|
Place of shipment |
Xiamen, China |
HART Integration: Enables seamless digital communication on standard 4-20 mA loops.
Multivariable Support: Capable of retrieving PV, SV, TV, and QV variables from field devices.

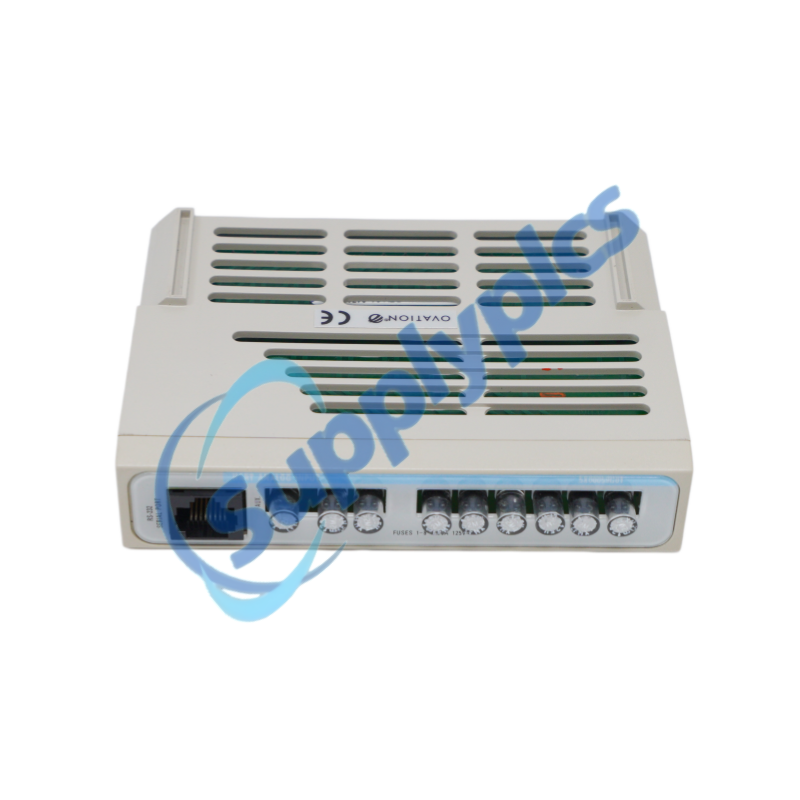

User-Serviceable Protection: Equipped with eight user-replaceable fuses for analog input channel protection.
CE Compliance: Fully certified for use in CE Mark configured systems.
Dual-Mode Interface: Supports both two-wire loop-powered and four-wire active-source current transmitters.
Ovation System Integration: Standard Ovation I/O module form factor for simplified rack mounting.
Diagnostic LEDs: Integrated LED bank for visual monitoring of HART communication activity and channel status.
Auxiliary Power Fusing: Includes dedicated protection for +24 VDC auxiliary power input (Revision 02 and later).
Application Scenarios: Industrial process measurement, power generation, and distributed control automation.
Monitoring & Control: Allows the controller to scan the WESTINGHOUSE 5X00059G01 to retrieve primary, secondary, tertiary, and quarterly variables using IEEE 794 floating-point format.
Compatibility & Interoperability: Compatible with the WESTINGHOUSE 5X00058G01 electronics module to form a complete HART Analog Input subsystem.
Performance & Efficiency: Provides 16-bit A/D resolution with reference accuracy of +/-0.05% of span at 25°C.
Installation & Integration: Requires shielded I/O cables to suppress coupled noise and transients; field wiring connects to the terminal block in the base unit according to specific CE or non-CE diagrams.
The WESTINGHOUSE 5X00059G01 requires the use of shielded I/O cables to ensure signal integrity and compliance with electromagnetic interference standards. Users must ensure that HART-specific register bits are correctly configured to avoid communication errors when interfacing with non-HART field devices.
Q1: How can an engineer diagnose a HART communication issue on the WESTINGHOUSE 5X00059G01?
A: The WESTINGHOUSE 5X00059G01 uses a bank of eight green LEDs to indicate communication. If a HART message is sent and no response is received, the module will illuminate the other seven channel LEDs, indicating a failure to receive a valid response.
Q2: Does the WESTINGHOUSE 5X00059G01 support a mixture of two-wire and four-wire transmitters?
A: Yes, the WESTINGHOUSE 5X00059G01 personality module may interface to a mixture of two-wire loop-powered current transmitters and active-source four-wire current transmitters on the same module.
Q3: What should a technician do if the auxiliary power fuse on the WESTINGHOUSE 5X00059G01 blows?
A: The WESTINGHOUSE 5X00059G01 features user-serviceable fuses for each analog channel. Revision 02 and later modules also include a ninth 1/2A fuse for the +24 VDC auxiliary power input, which should be inspected if field power is lost.
Q4: Can the WESTINGHOUSE 5X00059G01 be used in CE Mark certified systems?
A: Yes, the WESTINGHOUSE 5X00059G01 configuration is CE Mark Certified, provided that installation follows the specific field wiring diagrams and grounding requirements outlined in the manual.
