Overview

Brand Name:	Bently Nevada
Model Number:	330780-50-00
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Details
Model	330780-50-00

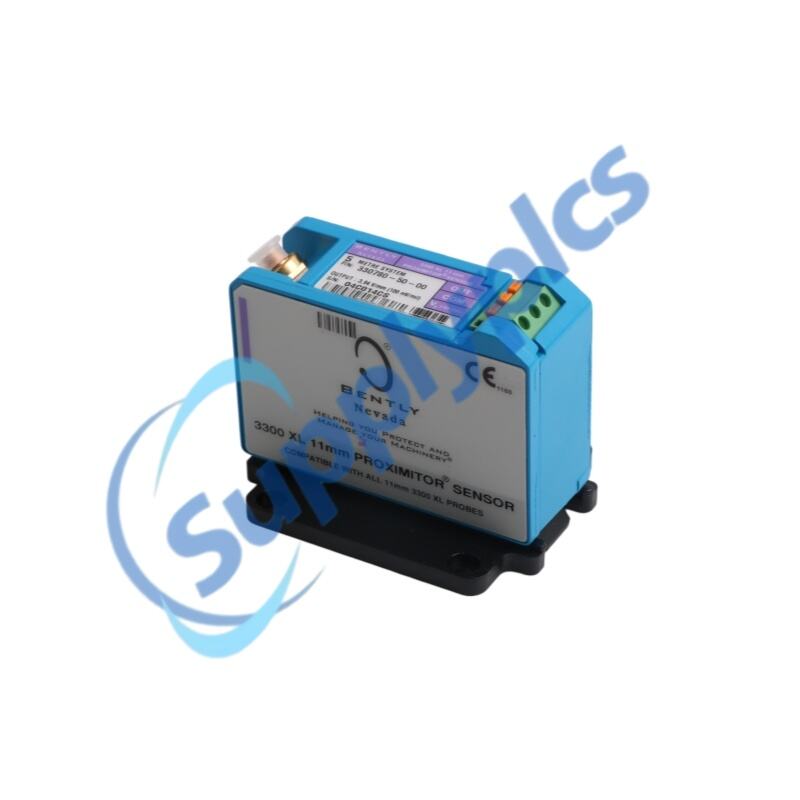

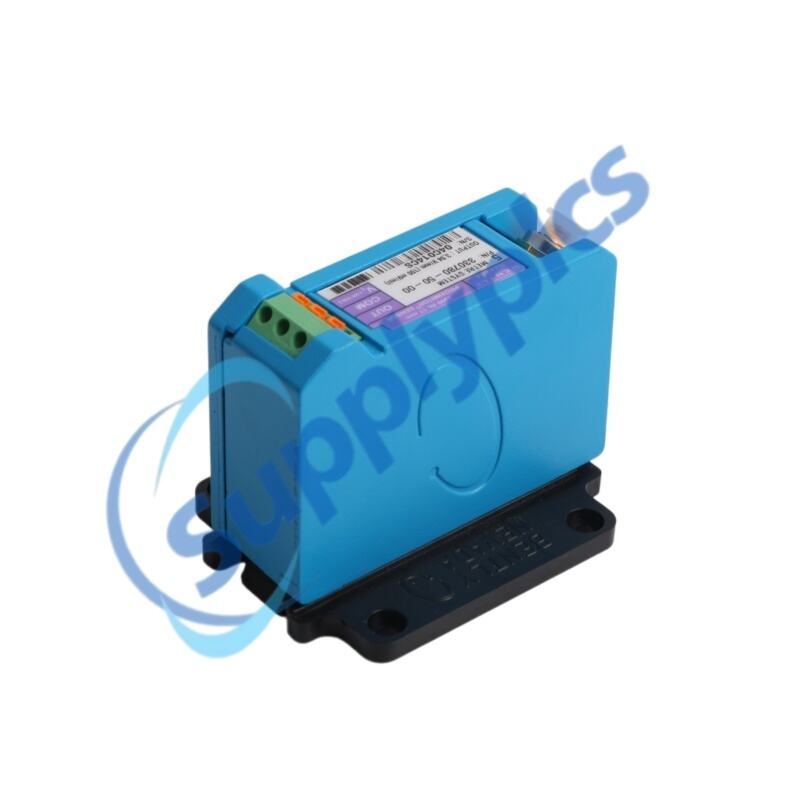

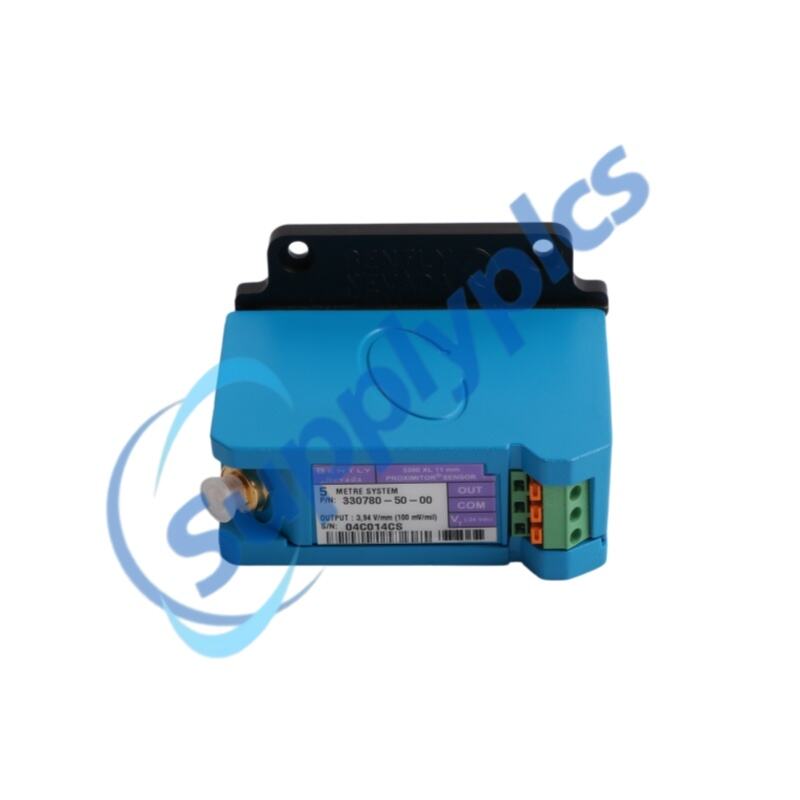

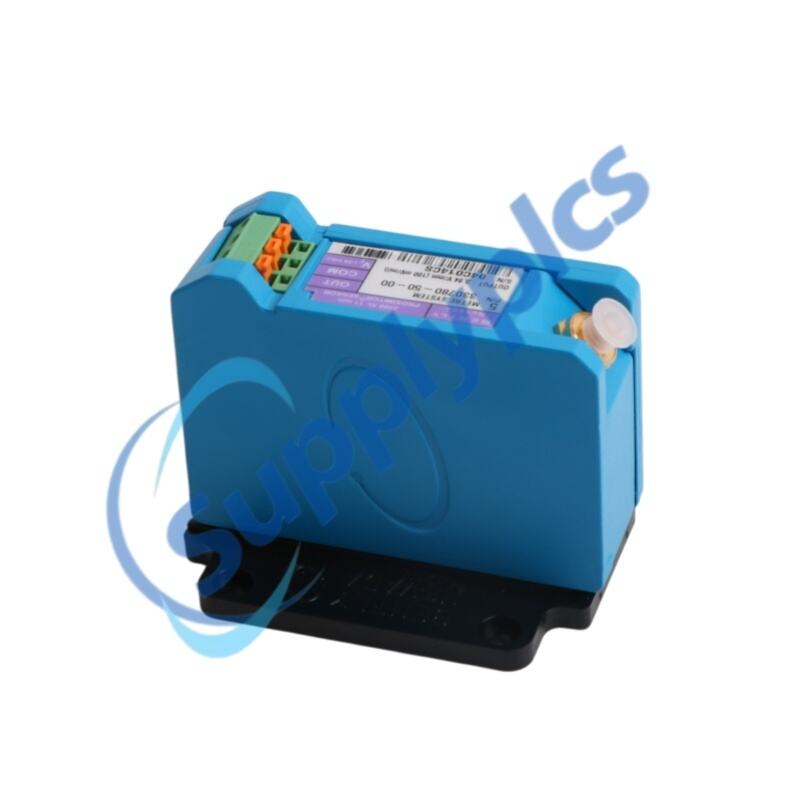

System Type	3300 XL 11 mm Proximitor Sensor
Output Sensitivity	3.94 V/mm (100 mV/mil)
Operating Voltage	-17.5 Vdc to -26 Vdc
Frequency Range	0 – 8 kHz
Total Length and Mounting Option	5.0 meter (16.4 feet) system length, DIN mount
Material	A380 aluminum housing
Dimension	N/A (compact industrial sensor module design)
Weight	255 g (approx.)
Temperature Range	-52°C to +100°C operating

Description

The 330780-50-00 is part of the Bently Nevada 3300 XL 11 mm Proximitor Sensor series, designed for high-precision non-contact vibration and position monitoring. Built around the 3300 XL 11 mm Proximitor Sensor system, it delivers stable signal output for rotating machinery protection in critical industrial environments. This model integrates seamlessly with 3300 XL 11 mm probes and extension cables, ensuring reliable dynamic measurement performance.Engineered with advanced EMI/RFI resistance, the 330780-50-00 supports accurate operation even in electrically noisy plant conditions. It is widely used in systems requiring axial displacement, vibration monitoring, and Keyphasor reference signals. Its DIN-rail and panel-mount compatibility makes installation flexible across modern industrial control cabinets.As part of the Bently Nevada proximity system family, including models such as 330780-AA-BB variants, the 330780-50-00 is optimized for integration with monitoring platforms like the 3500 system. It provides dependable performance in turbine, compressor, and process machinery protection applications, ensuring long-term stability and measurement accuracy.

Applications

Power plants: Used for generator set status monitoring and relay protection.
Substations: Enable bus differential control, line protection, and switchyard signal acquisition.
Chemical plants: Support process automation and intrinsically safe monitoring systems.
Steel mills: Operate reliably in high temperature and high EMI environments.
Machinery manufacturing: Used in automated production lines, robotics, and packaging systems.

Features

High EMI/RFI immunity for industrial environments
Compatible with 3300 XL 11 mm probe systems
DIN rail and panel mount flexible installation
Stable output signal with high measurement accuracy
Rugged industrial-grade aluminum housing
Supports CE, RoHS, and industrial safety standards

Functions

Non-contact vibration measurement
Shaft displacement and position monitoring
Keyphasor reference signal output
Axial thrust and differential expansion detection
Integration with PLC/DCS and condition monitoring systems
Equipment protection and predictive maintenance support

FAQ

Q1: What is the 330780-50-00 used for?
A1: It is used for vibration, displacement, and position monitoring in rotating machinery systems.

Q2: Is the 330780-50-00 compatible with other 3300 XL components?
A2: Yes, it is fully compatible with 3300 XL 11 mm probes and extension cables.

Q3: Can it be used in harsh industrial environments?
A3: Yes, it features strong EMI/RFI resistance for demanding plant conditions.

Q4: What mounting options are available?
A4: It supports both DIN rail and panel mounting configurations.

Q5: Does it support industrial monitoring systems?
A5: Yes, it integrates with systems like Bently Nevada 3500 machinery protection platforms.

Spares

Number	Describe
146255	3300XL 11 mm User Guide
144979	Performance Specification
02120015	Bulk field wire, 1.0 mm² (18 AWG), 3-conductor, twisted, shielded cable with drain wire, specify length in feet
02173009	Bulk field wire, 1.0 mm² (18 AWG), 3-conductor, twisted, shielded cable, specify length in feet
138492-01	Replacement panel-mount mounting pad
138493-01	Replacement DIN-mount mounting pad
01609137	BNC (F) to banana plugs adapter
01609138	Proximitor connector test pin wiring (two test pins to BNC (F) connector)
40971-04	50 Ω cable with two BNC (M) connectors for transducer system testing
04310310	3300XL Proximitor Sensor panel-mount screws (4 pcs, 6-32 UNC)
03200006	Silicone self-fusing tape roll (9.1 m) for connector protection
40113-02	Connector protector kit for 3300 XL probes and extension cables
136536-01	Connector protector adapter for compatibility with older connector kits
40180-02	Connector protectors package (10 pairs)
03839410	Male connector protector for environmental sealing
03839420	Female connector protector for probe and extension cable protection
330153-01	3300 XL connector kit (male/female ClickLoc connectors, sleeves, silicone tape)
163356	Connector crimp tool kit for 75 Ω ClickLoc connector installation
