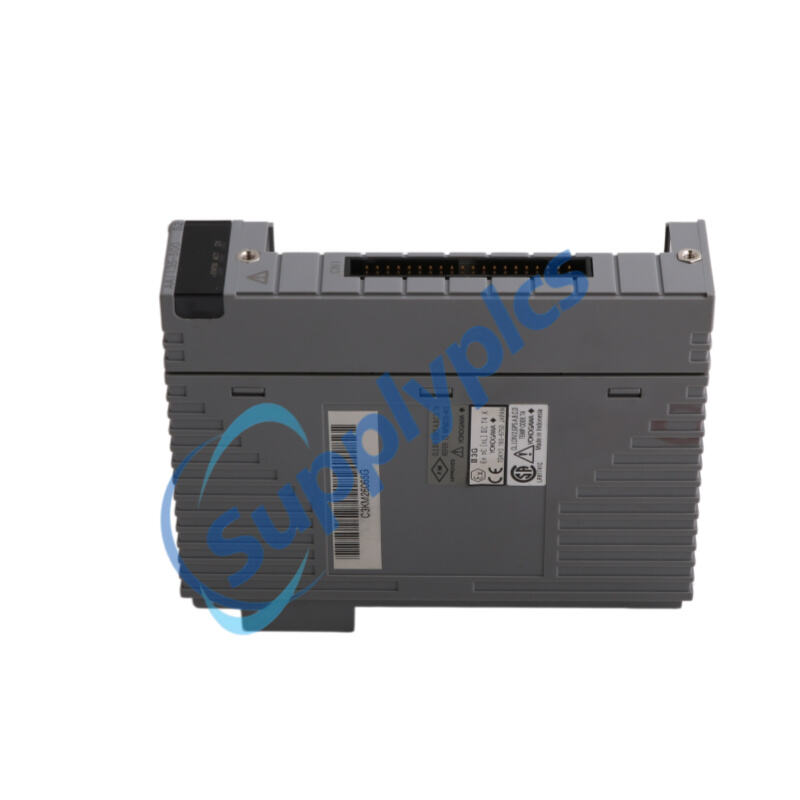

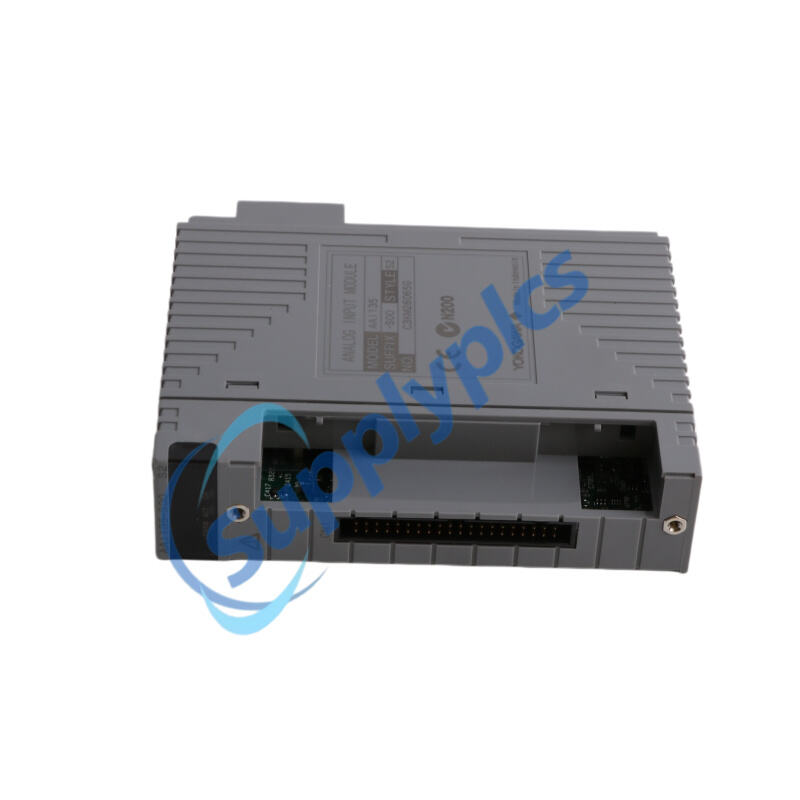

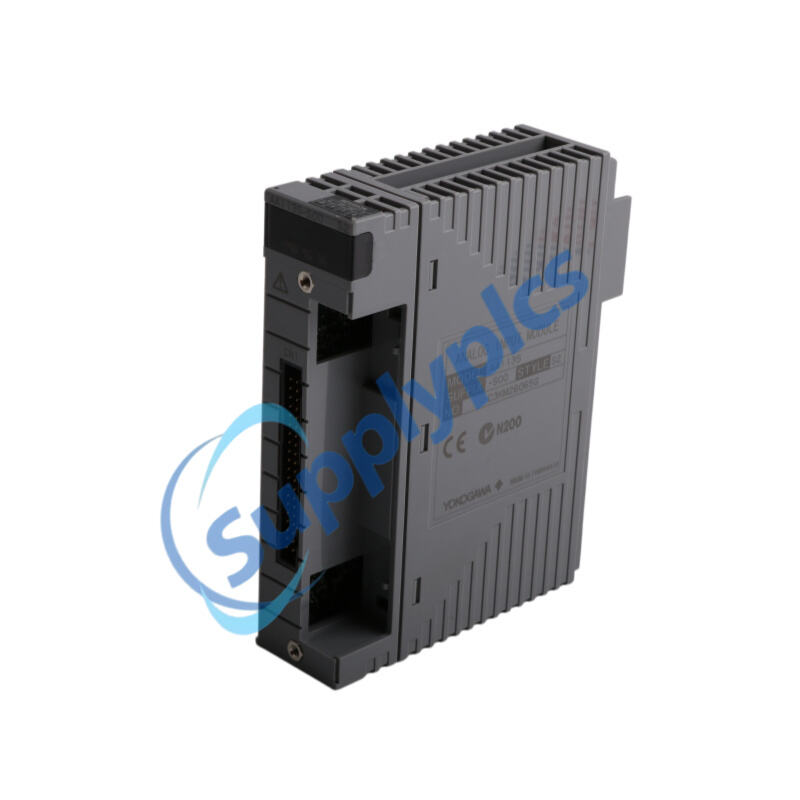

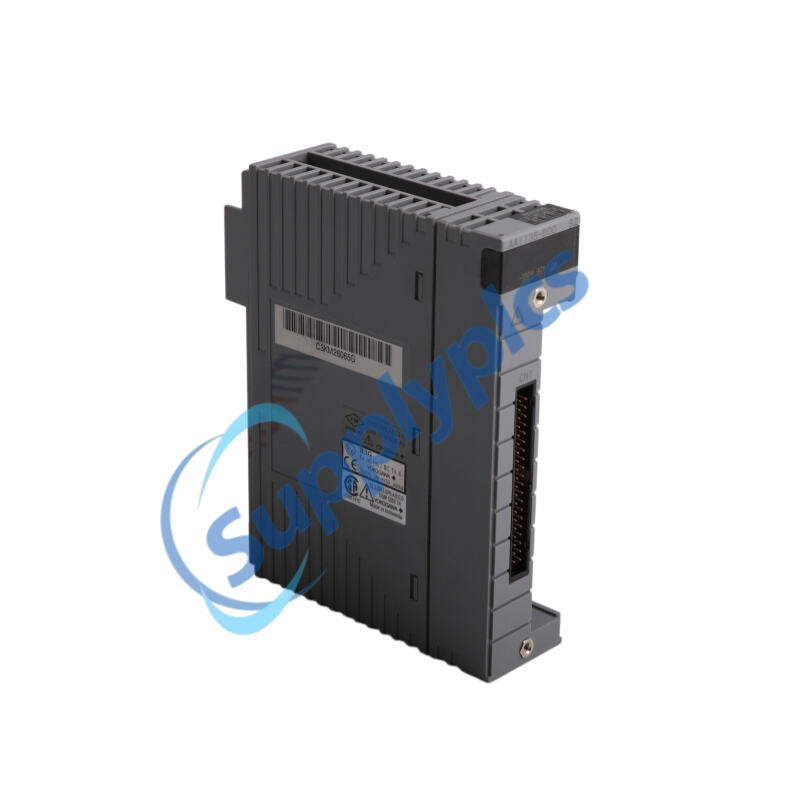

Product Name: Analog Output Module
Brand Name: YOKOGAWA
Model Number:AAI135-S00 S2
Country of Origin:JAPAN
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
YOKOGAWA |
Model Number: |
AAI135-S00 S2 |
Country of Origin: |
JAPAN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Items |
Specifications (AAI135) |
|
Model |
AAI135 (*1) |
|
Number of I/O channels |
8-channel input, isolated channels |
|
I/O signal |
4 to 20 mA |
|
Allowable input current |
25 mA |
|
Withstanding voltage |
Between input and system: 500 V AC, for 1 minute |
|
|
Between input channels: 500 V AC, for 1 minute (*2) |
|
Input resistance |
Power ON: 290 Ω (at 20 mA) to 450 Ω (at 4 mA) (*3) |
|
|
Power OFF: 500 kΩ or larger |
|
Allowable load resistance |
— |
|
Circuit-open detection |
— |
|
Accuracy |
±16 μA |
|
Data update period |
10 ms |
|
Transmitter power supply |
15.0 V or higher (at 20 mA) |
|
|
29.3 V or less (at 0 mA) (*5) |
|
Temperature drift |
±16 μA/10 °C |
|
Maximum current consumption |
360 mA (5 V DC), 450 mA (24 V DC) |
|
Weight |
0.3 kg |
|
External connection |
Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
|
HART communication (*6) |
Available |
|
Weight |
0.3kg |
|
Dimensions |
3.2x10.7x13cm |
The Yokogawa Analog I/O Series AAI543-S53 S1 is a ruggedized 16-channel isolated analog output module designed for CENTUM VP and CS 3000 DCS. It delivers precise 4 to 20 mA signals to field actuators and final control elements. Equipped with ISA Standard G3 conformal coating and extended -20 to 70 °C operation, it is built for harsh industrial environments.
Refineries and chemical plants for control valve positioning and modulation
Power generation facilities for motor speed regulation and VFD control
Offshore platforms and outdoor control cabinets requiring corrosion-resistant electronics
Facilities with high-density I/O cabinets where space constraints demand compact system integration
16 fully isolated channels delivering 4 to 20 mA signals with ±48 μA rated accuracy and 0 to 750 Ω load capability
ISA Standard G3 conformal coating protecting against corrosive gases such as H₂S and SO₂
1500 V AC output-to-system isolation to prevent field-side electrical surges from affecting the control system
Extended operating temperature range from -20 °C to +70 °C enabling reliable performance without active cooling
Hot-swappable design allowing module replacement without powering down the system, minimizing production downtime.
Continuous loop integrity monitoring with open-circuit detection triggered below 0.65 mA for proactive fault identification
In dual-redundant configurations, standard switch-over response ensures secondary module instantly takes control upon primary failure without process interruption
10 ms data update period supports tight PID tuning and near-real-time control for high-speed actuators, enabling exceptional process stability and product quality
Automatic temperature drift compensation at ±16 μA per 10 °C ensures consistent output accuracy across a wide ambient temperature range
Automatic output channel reset upon fault detection to prevent unintended field device operation during diagnostic events, enhancing system safety.
|
Model |
Description |
|
Suffix Codes |
|
|
AA1135 |
Analog Input Module (4 to 20 mA, 8-channel, Isolated channels) |
|
-S |
Standard type |
|
-H |
With digital communication (HART protocol) |
|
5 |
With no explosion protection |
|
E |
With explosion protection |
|
0 |
Basic type |
|
3 |
With ISA Standard G3 option and temperature (-20 to 70 °C) option |
|
/13A00 |
With KS Cable Interface Adapter [Model: ATI3A-00] |
|
/K4A00 |
With KS Cable Interface Adapter [Model: ATK4A-00] |
|
/13S00 |
With Pressure Clamp Terminal Block for Isolated Analog [Model: ATI3S-00] |
|
/13S10 |
With Pressure Clamp Terminal Block for Isolated Analog (surge absorber) [Model: ATI3S-10] |
|
/13D00 |
With Dual Pressure Clamp Terminal Block for Isolated Analog [Model: ATI3D-00] |
|
/13D10 |
With Dual Pressure Clamp Terminal Block for Isolated Analog (surge absorber) [Model: ATI3D-10] |
|
/CCC01 |
With Connector Cover for MIL Cable [Model: ACCC01] |
