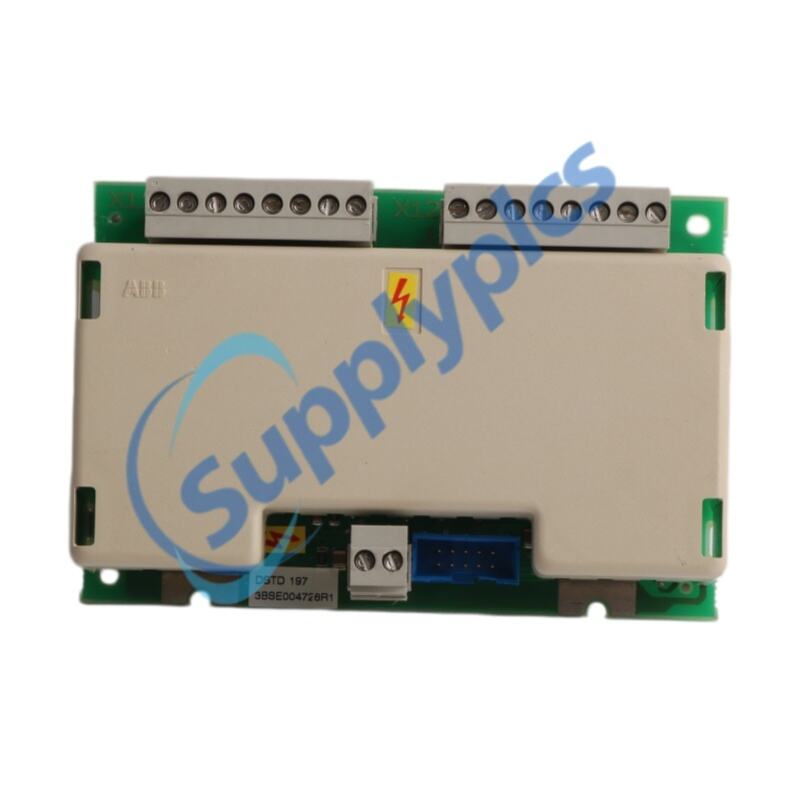

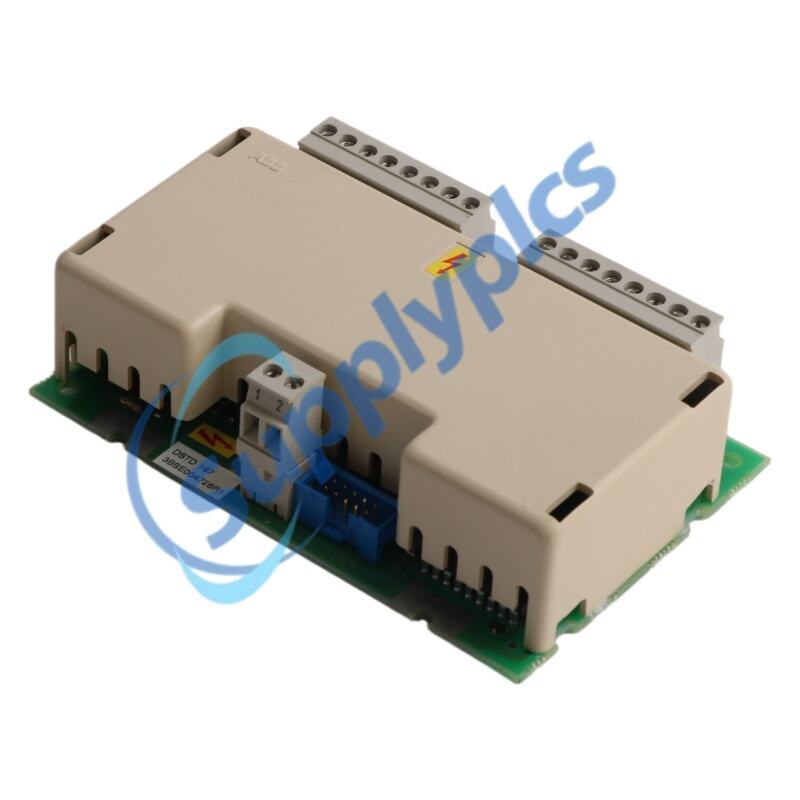

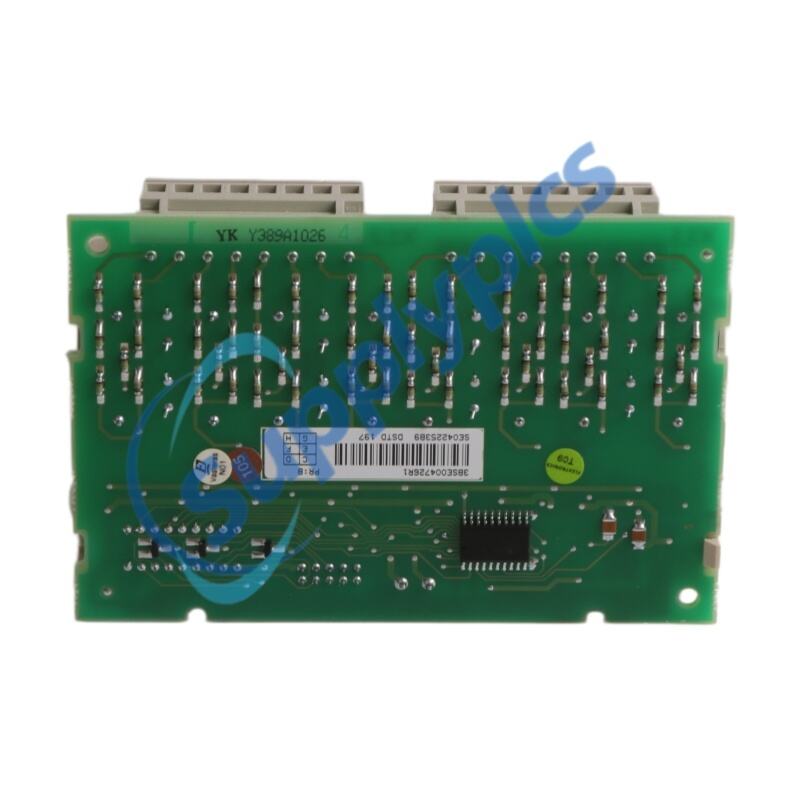

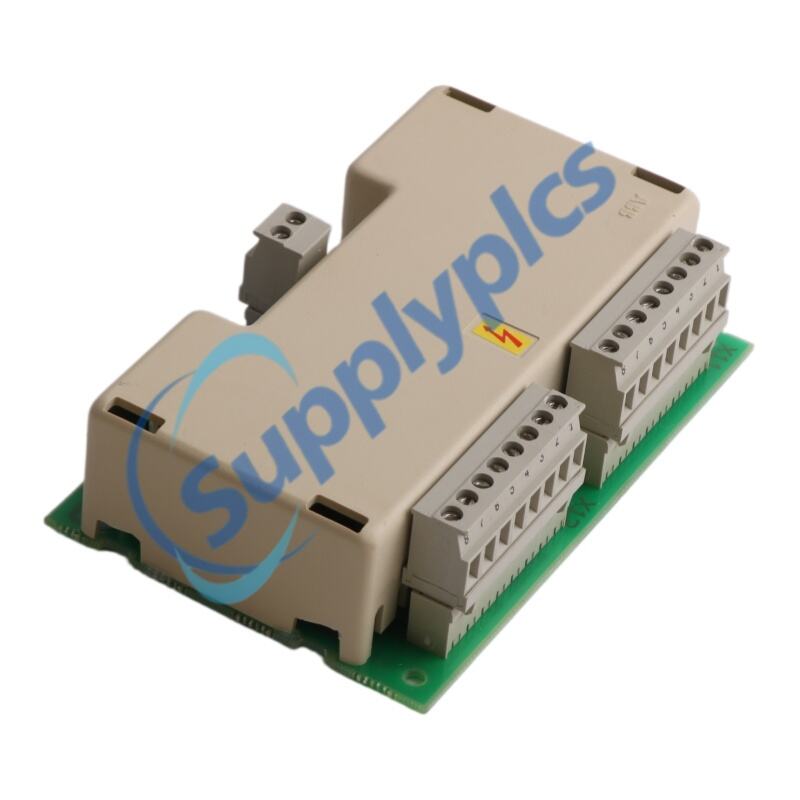

Product Name:DSTD 197 Connection Unit 8 ch, 120V
Brand Name:ABB
Model Number:DSTD197 3BSE004726R1
Country of Origin:SWEDEN
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
ABB |
Model Number: |
DSTD197 3BSE004726R1 |
Country of Origin: |
SWEDEN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Details |
|---|---|
| Product Name | DSTD 197 Connection Unit |
| Order Code | 3BSE004726R1 |
| Product Type | I/O Connection Unit |
| Channels | 8 channels |
| Voltage Rating | 120V AC/DC |
| System Compatibility | ABB S100 I/O / Advant OCS |
| Function | Signal connection & termination |
| Installation Type | Control cabinet mounted |
| Application Level | Industrial automation systems |
| Dimensions (L×W×H) | 234 × 99 × 45 mm |
| Net Weight | 0.165 kg |
| Gross Weight | 0.165 kg |
| Maintenance Type | Replacement / exchange unit |
| HS Code | 85389091 |
The DSTD 197 3BSE004726R1 is a compact and reliable 8-channel interface module designed for ABB S100 I/O and Advant automation systems. Engineered for stable signal handling, the DSTD197 ensures efficient connection of AC/DC signals up to 120V, providing dependable interface performance between field devices and control modules.
The 3BSE004726R1 unit is widely applied in ABB distributed control architectures such as Advant Controller 450 and MasterPiece 200 platforms, supporting flexible integration in industrial automation networks. Its compact design allows easy installation in control cabinets while maintaining high operational reliability.
Built for process industry applications, DSTD197 enhances wiring organization, improves system stability, and ensures long-term performance in demanding automation environments.
Q1: What is DSTD 197 used for?
A1: It is used as an 8-channel connection unit for ABB S100 I/O automation systems.
Q2: What is the voltage rating of this module?
A2: It supports up to 120V AC/DC signal handling.
Q3: Which systems are compatible with 3BSE004726R1?
A3: It is compatible with ABB Advant Controller 450 and MasterPiece 200 systems.
Q4: What is the main function of DSTD197?
A4: It provides stable signal connection and termination between field devices and control systems.
Q5: What is the weight of this connection unit?
A5: The net weight is approximately 0.165 kg.
|
