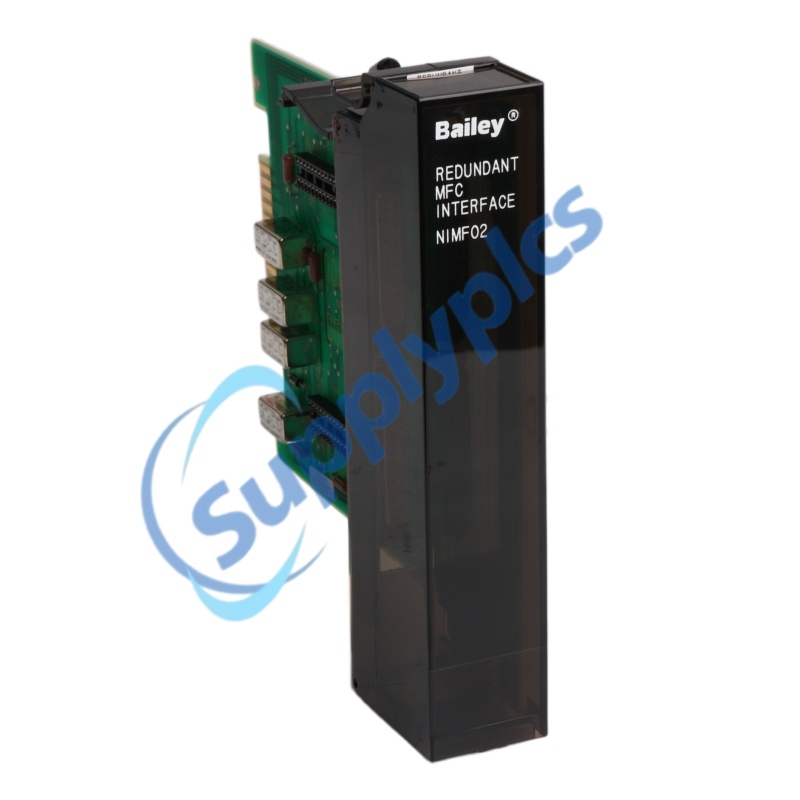

ABB NIMF02 Multi-Function Controller Termination Modules Original new

ABB NIMF02 Multi-Function Controller Termination Modules Original new

Product Name:Multi-Function Controller Termination Modules

Brand Name:ABB

Model Number:NIMF02

Country of Origin:Sweden

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

abb nimf02 multi function controller termination modules original new-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	ABB
Model Number:	NIMF02
Country of Origin:	Sweden
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Specification	Details
Product Model	NIMF02
Manufacturer	ABB Bailey
Product Type	Multi-Function Controller Termination Module
System Platform	ABB INFI 90
Communication Interface	RS-232 Serial Communication
Port Configuration	DTE or DCE Selectable
Compatible Controllers	IMMFC03, IMMFC04, IMMFC05
Compatible Modules	INICT01, INPCT01
Supported Devices	Printers, PCs, Terminals, Event Recorders
Configuration Method	Dipshunt Selectable
Installation Type	Panel Mounted
Dimensions (Approx.)	210 × 140 × 35 mm
Weight (Approx.)	0.4 kg

Description

NIMF02 is a Multi-Function Controller Termination Module designed for ABB Bailey INFI 90 process control systems. The module serves as a reliable interface between multi-function controllers and external communication devices, supporting efficient signal routing, serial communication, and system integration in industrial automation environments.

Compatible with controller modules such as IMMFC03, IMMFC04, IMMFC05, INICT01, and INPCT01, the NIMF02 provides flexible RS-232 communication connectivity for engineering workstations, printers, event recorders, terminals, and industrial computers. Configurable dipshunts allow users to select DTE or DCE operating modes to match application requirements.

The NIMF02 is widely deployed in power generation, manufacturing, petrochemical facilities, and process industries where dependable controller communication, diagnostic access, and system maintenance are essential for reliable plant operation.

Applications

Power Plants: Used for controller communication, operator workstation connectivity, event recording, and system diagnostic access within generation control systems.

Substations: Supports communication between automation controllers, engineering terminals, and monitoring equipment for operational management.

Chemical Plants: Integrates process controllers with supervisory systems, enabling configuration, diagnostics, and industrial communication functions.

Steel Mills: Provides reliable controller communication interfaces in demanding environments with electrical noise, vibration, and continuous operation requirements.

Machinery Manufacturing Plants: Connects controllers to operator terminals, industrial computers, printers, and automated production management systems.

Features

Designed for ABB INFI 90 architectures.
Supports RS-232 communication interfaces.
Configurable as DTE or DCE device.
Compatible with multiple controller platforms.
Supports engineering and diagnostic terminals.
Flexible dipshunt configuration.
Reliable industrial communication performance.
Simplifies controller integration and maintenance.

Functions

Terminates controller communication signals.
Connects controllers to external serial devices.
Supports configuration and diagnostic activities.
Enables data transfer between systems.
Provides communication routing and signal management.
Facilitates event recording and monitoring.
Enhances overall control system connectivity.

FAQ

Q1: What is the primary purpose of the NIMF02?
A1: The NIMF02 provides communication termination and interface functions for ABB INFI 90 controller modules.

Q2: Which communication standard does the NIMF02 support?
A2: The module supports RS-232 serial communication connections.

Q3: Can the NIMF02 be configured as DTE or DCE?
A3: Yes, dipshunt settings allow flexible DTE or DCE configuration.

Q4: Which controllers are compatible with the NIMF02?
A4: It is commonly used with IMMFC03, IMMFC04, IMMFC05, INICT01, and INPCT01 modules.

Q5: What devices can be connected through the NIMF02?
A5: The module can interface with industrial computers, engineering workstations, printers, terminals, and event recorders.
