Product Name: Digital I/O Extension Module
Brand Name: ABB
Model Number: RDIO-01
Place of Origin: Sweden
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Minimum Order Quantity |
1 Piece |
Price |
Contact for Jim |
Packaging Details |
Original new Factory Sealed |
Delivery Time |
3–7 Days |
Payment Terms |
T/T |
Shipping Method |
DHL / FedEx / UPS / TNT |
Supply Ability |
In stock |
|
Sales |
|
|
|
Jim Pei |
| Product Name | ABB RDIO-01 Digital I/O Extension Module |
| Manufacturer | ABB |
| Product Type | Digital I/O Extension Module |
| Part Number | RDIO-01 |
| Estimated shipping dimensions | 6.2x4x9.4cm |
| Weight | 0.1kg |
| Place of shipment | Xiamen, China |
| Country of origin | Sweden |
| Degree of protection | IP20 |
| Connectors | 38-pin parallel bus connector |
| Input voltages | 24…250 V DC, 110…230 V AC |
| Logic levels (DC) | "0" < 8 V, "1" > 12 V |
| Input currents | 4 mA (min), 10 mA (typical) at 24 V DC, 4 mA (typical) at 230 VAC |
| Filtering time (selectable for all channels) | ON: 5…10 ms , OFF: 2 ms |
| Max. contact voltage | 120 V DC, 250 V AC |
| Max. contact current / power | 5 A, 24 V DC; 0.4 A, 120 V DC; 1250 VA, 250 VAC |
| Max. continuous current | 2 A rms |
| Minimum current | 5 mA, 24 V DC |
| Max. power consumption | 150 mA (5 V) + 30 mA (24 V) |
| Estimated min. lifetime | 100 000 h |

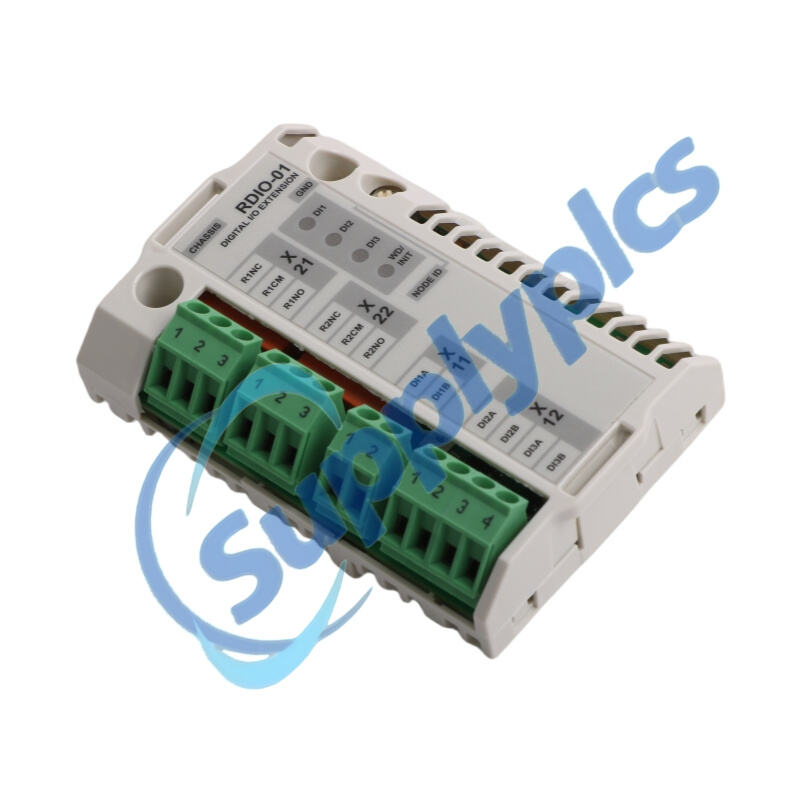

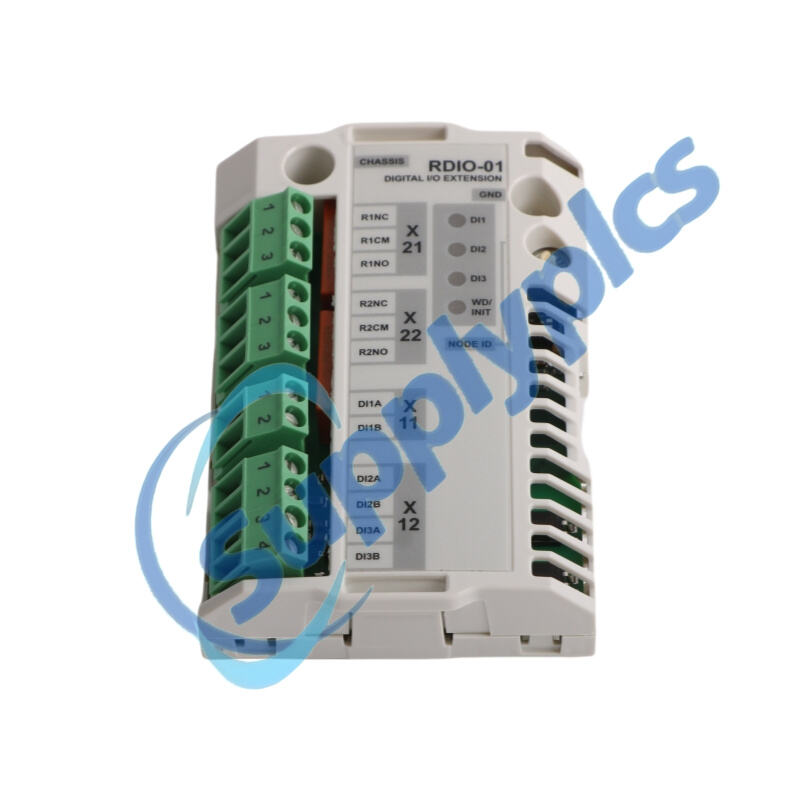

The ABB RDIO-01 is a digital I/O extension module designed to expand the input and output capabilities of compatible ACS 800 drives. Engineered for industrial automation environments, the module provides three multi-voltage digital inputs and two relay outputs, enabling flexible integration with various control and monitoring applications.
The RDIO-01 supports a wide input voltage range of 24…250 V DC and 110…230 V AC, making it suitable for diverse industrial signal conditions. With robust electrical isolation up to 2.5 kV between inputs, outputs, and the power supply, the module ensures reliable operation, enhanced safety, and strong immunity against electrical noise.

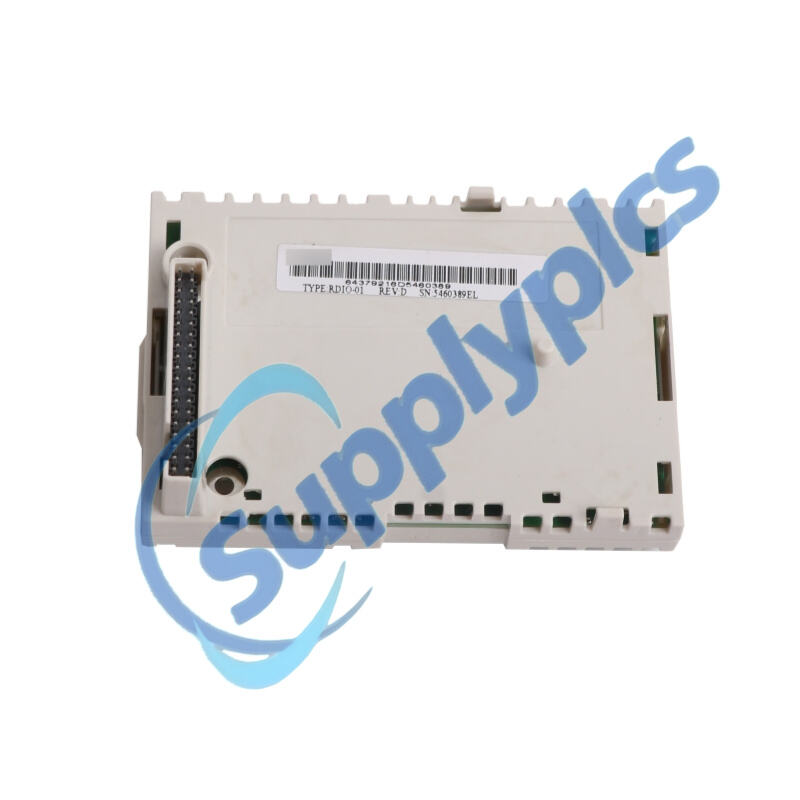

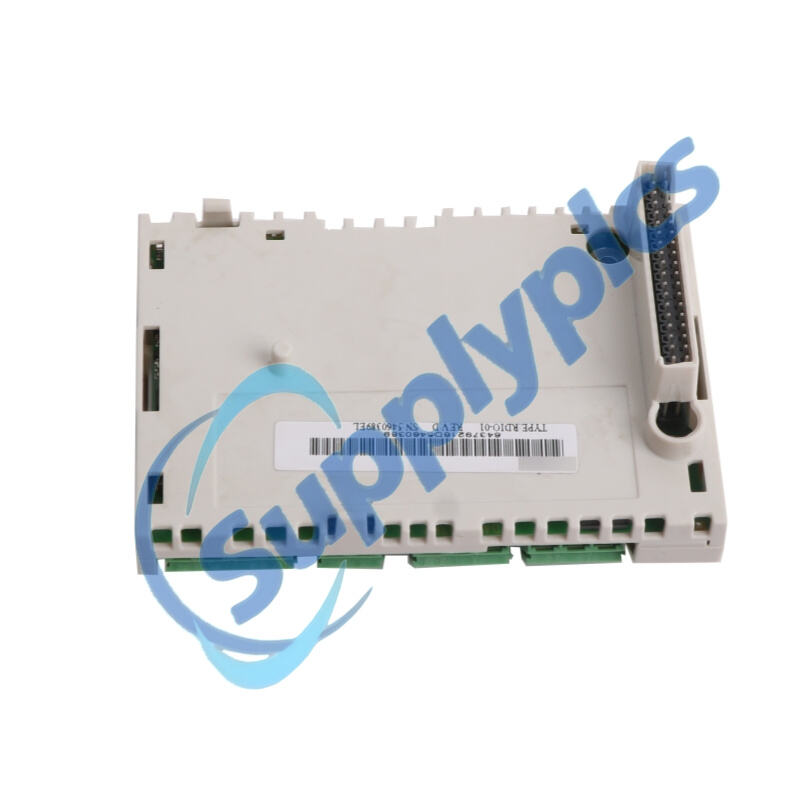

Designed for easy installation, the RDIO-01 mounts directly into SLOT 1 or SLOT 2 on the RMIO board of ACS 800 drives using a 38-pin parallel bus connector. Its compact IP20-rated design, low power consumption, and long operational lifetime make it an ideal solution for extending drive control functionality in industrial systems.
The primary function of the ABB RDIO-01 is to extend the digital input and output capabilities of ACS 800 drives. The module enables the drive system to interface with external control devices, sensors, switches, relays, and automation equipment.
Its digital inputs detect external control signals across a wide voltage range, while the relay outputs provide switching functionality for alarms, status indication, interlocking, and process control tasks. The selectable filtering times help eliminate signal noise and improve input stability in demanding industrial environments.
The RDIO-01 also enhances system reliability through high-level electrical isolation, protecting the drive and connected equipment from voltage surges, electrical interference, and grounding issues.
Typical applications include:
1. What is the RDIO-01 used for?
The RDIO-01 is a digital I/O extension module used to expand the input and output capabilities of ABB ACS 800 drives.
2. How many inputs and outputs does the RDIO-01 provide?
The RDIO-01 provides 3 digital inputs and 2 relay outputs for industrial control applications.
3. What input voltage ranges are supported by the RDIO-01?
The RDIO-01 supports input voltages of 24…250 V DC and 110…230 V AC.
4. Does the RDIO-01 provide electrical isolation?
Yes, the RDIO-01 provides up to 2.5 kV electrical isolation between inputs, outputs, and the power supply for enhanced safety and noise immunity.
5. Where is the RDIO-01 installed?
The RDIO-01 is installed directly into SLOT 1 or SLOT 2 on the RMIO board of compatible ACS 800 drives.
6. What type of connector does the RDIO-01 use?
The RDIO-01 uses a 38-pin parallel bus connector for automatic signal and power connection.
