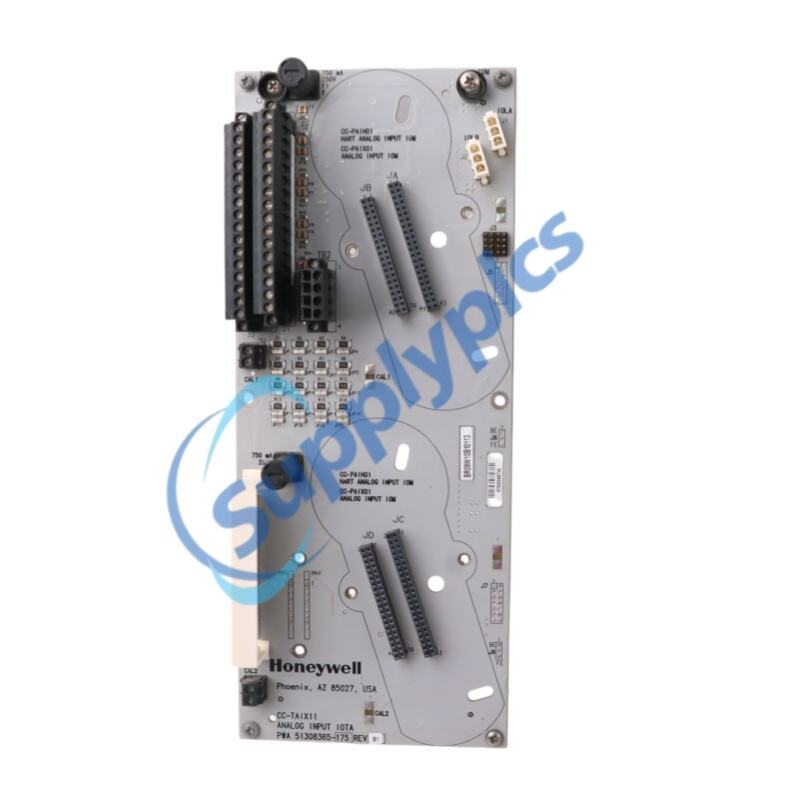

Honeywell CC-TAIX11 51308365-175 Analog Input IOTA Module Ready For Ship, China Honeywell CC-TAIX11 51308365-175 Analog Input IOTA Module Ready For Ship Manufacturers, Suppliers, Factory

Overview

Brand Name:	Honeywell
Model Number:	CC-TAIX11 51308365-175
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model Number	CC-TAIX11 51308365-175
Product Type	Redundant Analog Input IOTA
Compatible Modules	CC-PAIH01, CC-PAIH02, CC-PAIX01, CC-PAIX02
System Platform	Honeywell Experion Series C
Signal Types	4–20 mA, 0–5 V, 1–5 V
Input Channels	16 Channels
Differential Inputs	Channels 13–16
IOTA Size	12 inch (304 mm)
A/D Converter Resolution	16-bit
Input Scan Rate	50 ms
Common Mode Rejection	70 dB
Maximum Input Voltage	±30 V
Input Impedance	>10 MΩ
Redundancy Support	Yes
Wiring Capacity	Up to 12 AWG / 2.5 mm²
Mounting Type	Vertical Cabinet Mounting
Dimensions	Approx. 304 mm × 160 mm × 120 mm
Weight	Approx. 1.6 kg

Description

Honeywell CC-TAIX11 51308365-175is a redundant Analog Input IOTA engineered for theExperion Series Cdistributed control platform. Designed for high-reliability industrial automation systems, it supports seamless integration with analog input modules includingCC-PAIH01,CC-PAIH02,CC-PAIX01, andCC-PAIX02. The unit enables stable acquisition of voltage and current signals from transmitters, sensors, and HART-enabled field devices.

Featuring a compact 12-inch redundant architecture,CC-TAIX11 51308365-175simplifies cabinet wiring and improves maintenance efficiency through detachable terminal connections and integrated field power distribution. Its advanced thermal management structure helps maintain stable operation in high-density control cabinets and harsh industrial environments.

With support for 4–20 mA, 0–5 V, and 1–5 V signal processing,Honeywell CC-TAIX11is widely deployed in power generation, petrochemical processing, manufacturing automation, and process industries requiring accurate analog monitoring and dependable redundant I/O performance.

Applications

Power plants: Used for turbine process monitoring, analog signal acquisition, and redundant control systems.
Substations: Supports voltage and current signal monitoring for intelligent power distribution applications.
Chemical plants: Integrates field transmitters and HART instrumentation into centralized DCS systems.
Oil & gas facilities: Provides reliable analog input processing for refinery and pipeline automation.
Steel mills: Ensures stable operation in environments with strong vibration and electromagnetic interference.
Water treatment plants: Monitors flow, pressure, and level transmitters for automated plant control.
Machinery manufacturing plants: Supports automated production equipment and process instrumentation networks.

Features

Supports redundant I/O configurations
Compatible with HART-enabled field devices
Accepts voltage and current analog inputs
Compact high-density cabinet installation design
Integrated field power distribution
Extensive onboard self-diagnostics
Fast 50 ms input scanning performance
Detachable terminal blocks for simplified maintenance
Enhanced thermal management for stable operation

Functions

Collects and processes analog field signals
Interfaces with HART smart transmitters
Supports real-time process monitoring
Enables redundant signal acquisition architecture
Provides stable analog data transmission to DCS systems
Supports differential and single-ended input channels
Improves control system reliability and maintenance efficiency

FAQ

Q1: What is the function of CC-TAIX11 51308365-175?
A1: It is a redundant analog input IOTA used in Honeywell Experion Series C control systems.

Q2: Which modules are compatible with CC-TAIX11?
A2: It supports modules including CC-PAIH01, CC-PAIH02, CC-PAIX01, and CC-PAIX02.

Q3: Does the module support HART communication?
A3: Yes, it supports HART-enabled analog input modules.

Q4: How many analog input channels are available?
A4: The module supports 16 analog input channels.

Q5: In which industries is CC-TAIX11 commonly used?
A5: It is widely used in power generation, petrochemical, oil & gas, water treatment, and manufacturing industries.

Spares

Number	Describe
CC-PAIH01	High-Level Analog Input Module with HART support
CC-PAIH02	High-Level Analog Input Module with HART and differential input support
CC-PAIX01	High-Level Analog Input Module without HART
CC-PAIX02	High-Level Analog Input Module with voltage/current input support
CC-TAIX01	Non-redundant AI IOTA for Series C systems
CC-GAIX21	Galvanically isolated AI IOTA
CC-GAIX11	Redundant galvanically isolated AI IOTA
CC-TAID01	16-channel differential AI IOTA
CC-TAID11	Redundant differential AI IOTA
C300 Controller	Honeywell Experion Series C process controller
Experion PKS	Distributed control system platform for industrial automation
