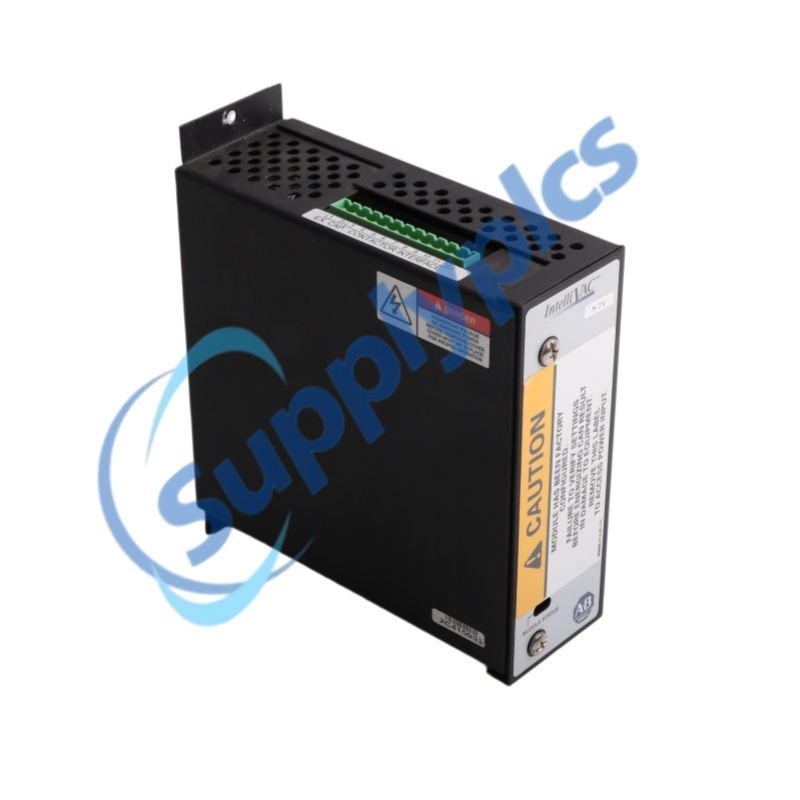

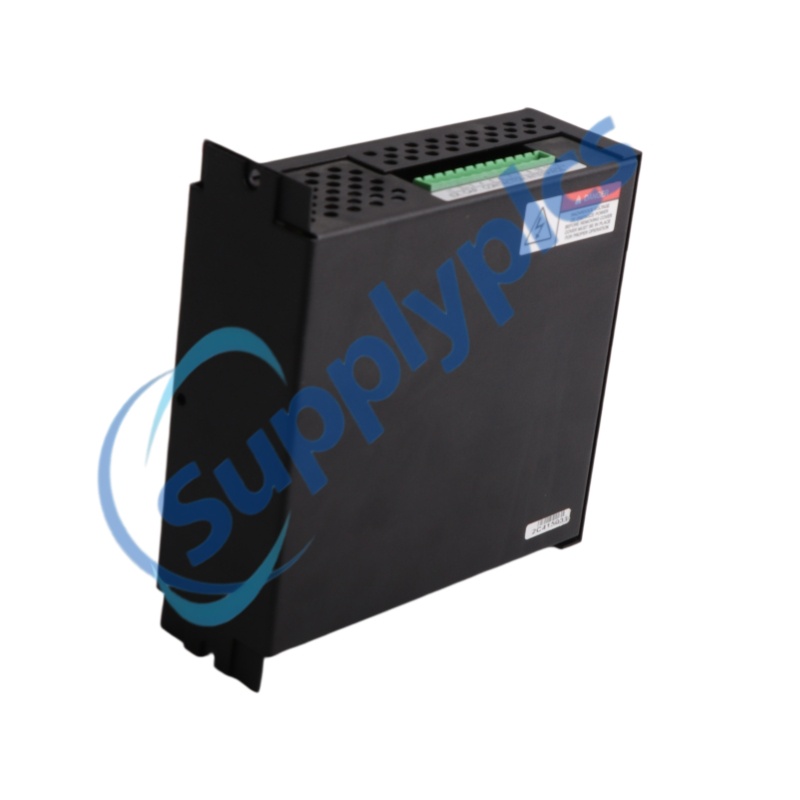

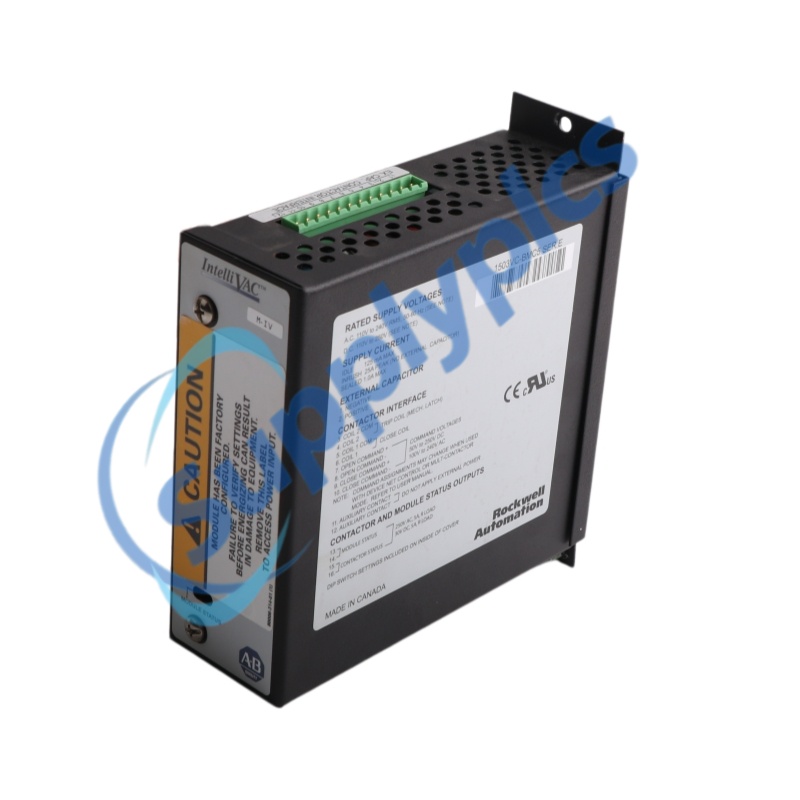

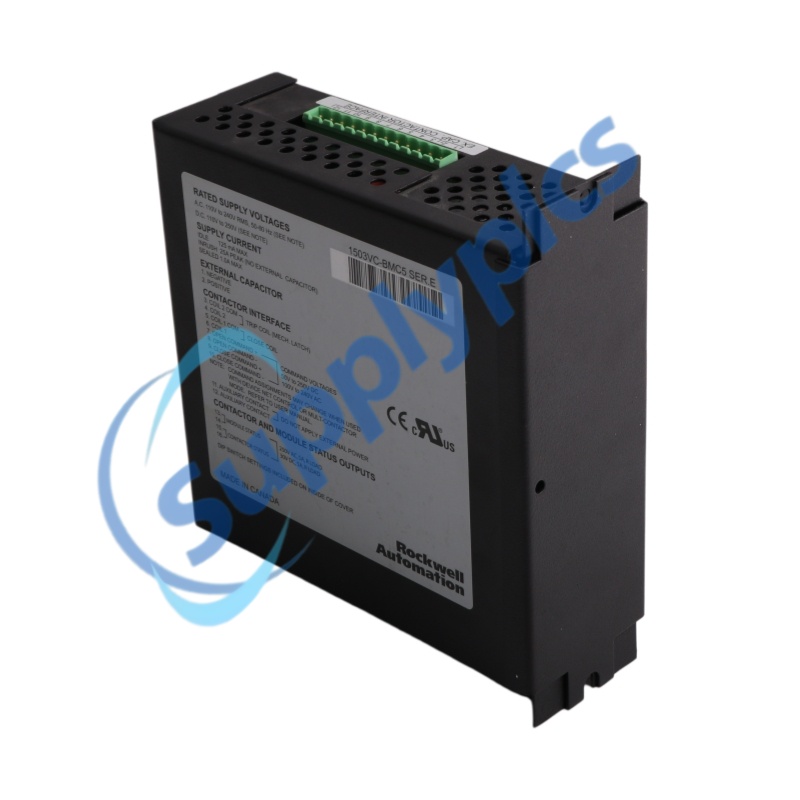

Product Name:IntelliVAC module
Brand Name:Allen-Bradley
Model Number:1503VC-BMC5
Country of Origin:USA
Warranty:12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Allen-Bradley |
Model Number: |
1503VC-BMC5 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Description |
|---|---|
| Product Model: | 1503VC-BMC5 IntelliVAC Series E control module designed for contactor monitoring and industrial switching system management |
| Manufacturer: | Rockwell Automation, industrial control and power system solution provider for motor control and protection systems |
| Product Type: | Contactor control and monitoring module, used for status indication, fault detection, and relay output signaling |
| Function: | System monitoring and protection, provides real-time contactor status feedback and fault condition detection |
| Compatibility: | IntelliVAC Series A–E systems, integrates with Rockwell 1503VC control architecture |
| Application: | Motor control centers, medium-voltage switching systems, and industrial automation control panels |
| Dimension: | 160 mm × 120 mm × 80 mm, compact enclosure design suitable for panel installation |
| Weight: | 0.85 kg, lightweight structure optimized for control cabinet integration |
| Operating Voltage: | 110/120V or 220/240V AC control variants, supports industrial power configurations |
| Protection Function: | Undervoltage, configuration fault, and internal processor fault detection for safe operation |
The 1503VC-BMC5 IntelliVAC module is an advanced control and monitoring component developed by Rockwell Automation for industrial contactor systems. Designed for Series E applications, the 1503VC-BMC5 provides reliable operational supervision, fault indication, and contactor control feedback within medium-voltage switching environments.
Built to support intelligent diagnostics, the 1503VC-BMC5 integrates LED-based status indication and relay output monitoring, ensuring clear visibility of module health and contactor performance. It is engineered to detect undervoltage, configuration faults, and internal system errors, helping maintain safe and stable operation.
As part of the IntelliVAC product family, including 1503VC-BMC1, 1503VC-BMC4, and 1503VC-BMC5, this module is widely used for improving system reliability, reducing downtime, and enhancing protection in industrial motor control and power switching applications.
Power plants: Used for generator set monitoring, contactor switching control, and relay protection in energy production systems.
Substations: Enables switchgear control, bus protection coordination, and reliable signal acquisition for grid operation.
Chemical plants: Supports process automation control and safety monitoring in hazardous industrial environments.
Steel mills: Provides robust performance under high temperature and electromagnetic interference conditions for heavy-duty control.
Machinery manufacturing plants: Used in automated production lines, motor control centers, and robotic system switching applications.
Q1: What is the main function of 1503VC-BMC5?
A1: It is a Rockwell IntelliVAC Series E module used for contactor monitoring, fault detection, and control status indication in industrial switching systems.
Q2: What makes 1503VC-BMC5 different from other IntelliVAC modules?
A2: The 1503VC-BMC5 belongs to Series E and includes enhanced diagnostic indicators and improved fault monitoring capabilities compared to earlier series.
Q3: What types of faults can this module detect?
A3: It can detect undervoltage conditions, configuration errors, and internal processor faults, ensuring safe system operation.
Q4: Where is 1503VC-BMC5 commonly used?
A4: It is widely used in motor control centers, substations, power plants, and industrial automation systems.
Q5: Does the module provide visual status indication?
A5: Yes, it uses LED indicators (green, red, and yellow) to show module and contactor status in real time.
