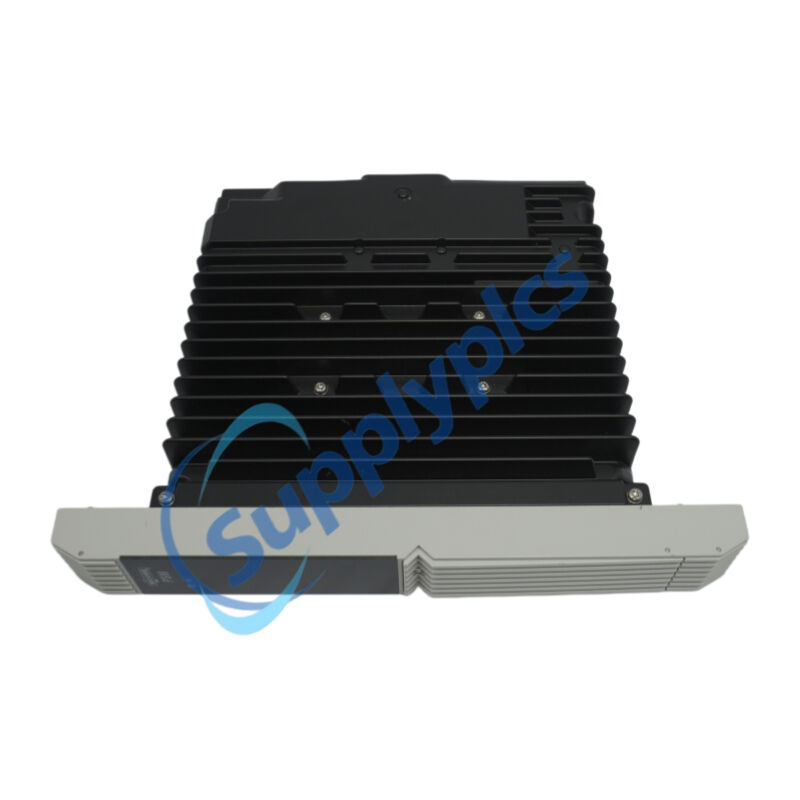

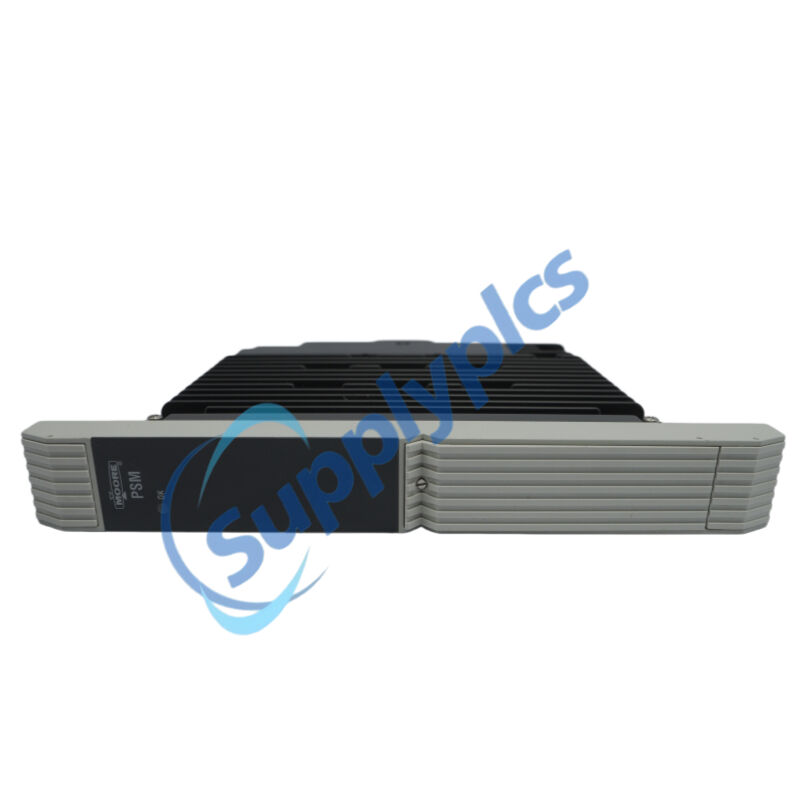

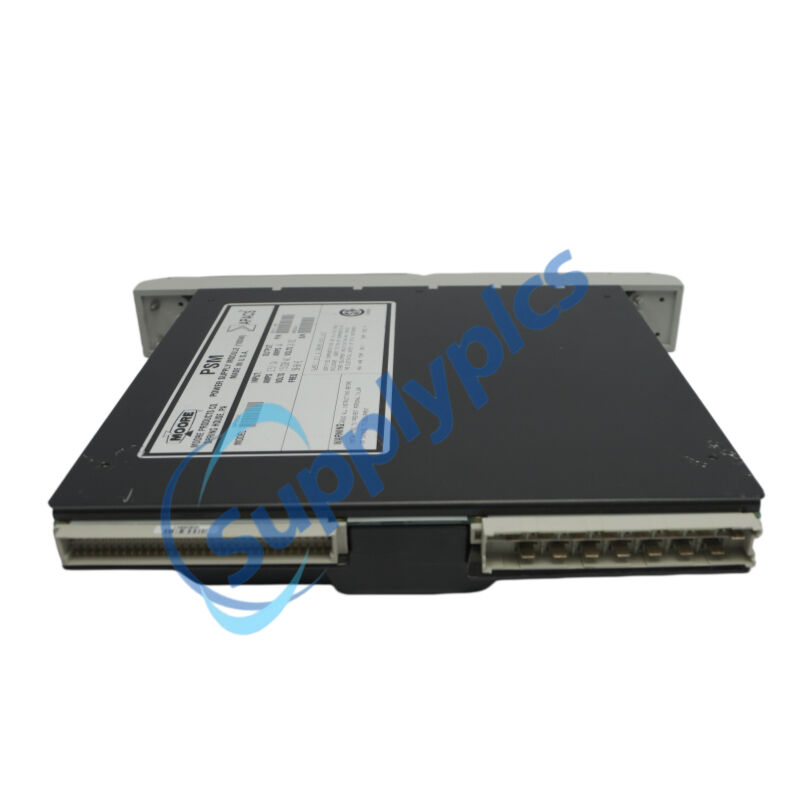

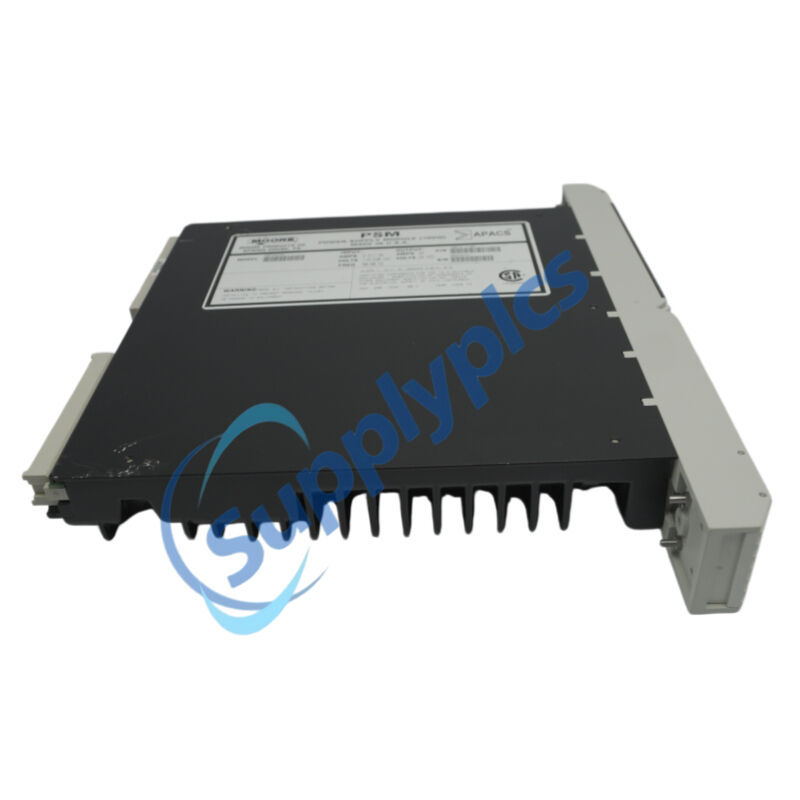

Product Name:Power Supply Module
Brand Name: SIEMENS
Model Number:39PSMNAN
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
39PSMNAN |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Specification |
Details |
|
Model Number |
39PSMNAN |
|
Alternate Part Numbers |
16013-1/09, 16013-1/07, 16013-1/06, 16013-1R/10 |
|
Product Type |
Power Supply Module (PSM) |
|
System Compatibility |
Siemens Moore APACS+, QUADLOG |
|
Input Voltage Range |
85-264V AC or 120V/230V AC (auto-ranging) |
|
Output Voltage |
24V DC (regulated, ±5% tolerance) |
|
Output Current Rating |
16A continuous, 32A peak |
|
Output Power Rating |
384W (16A at 24V) |
|
Efficiency |
≥93% typical, up to 98% |
|
Input Frequency |
47-63 Hz |
|
Power Factor |
≥0.95 |
|
Operating Temperature |
-25°C to +70°C (some sources: -20°C to +60°C) |
|
Storage Temperature |
-40°C to +85°C |
|
Protection Class |
IP20 (some sources: IP67) |
|
Protection Features |
Overload, short-circuit, overvoltage, overcurrent with automatic recovery |
|
Mounting |
APACS+ rack / backplane (DIN-rail options exist) |
|
Dimensions |
27.9 cm x 5.1 cm x 30.5 cm (varies by vendor) |
|
Weight |
Approximately 2.0-2.7 kg |
|
Certifications |
CE, UL, TUV |
|
Status |
Discontinued (replacement parts available) |
The Siemens 39PSMNAN is a discontinued Power Supply Module (PSM) engineered for the Moore APACS+ distributed control system. Designed as the main rack power source for Siemens 39PSMNAN units in APACS+ systems, this module converts AC mains power into a stable 24V DC output. It is compatible with several legacy part numbers, including 16013‑1/09. The Siemens 39PSMNAN features high efficiency exceeding 93%, comprehensive protection against overloads and short circuits, and a robust design suited for harsh industrial environments, ensuring reliable operation of controllers and I/O modules. Although discontinued, it remains available for replacement or spare part needs.
Primary power source for Siemens Moore APACS+ and QUADLOG systems
PLC, I/O module, and HMI power supply in legacy control cabinets
Industrial automation power management in chemical, petrochemical, and power generation plants
Distributed Control System (DCS) maintenance and spare part replacement
Retrofit and upgrade projects requiring existing APACS+ compatibility
Wide auto‑ranging input (85‑264V AC) for global use
High conversion efficiency of 93% to 98% for energy savings
Regulated 24V DC output with ±5% tolerance
Robust overload, short‑circuit, and overvoltage protection
Universal APACS+ rack mounting for seamless integration
Extended operating temperature range of -25°C to +70°C
Low ripple and noise for stable DC supply
LED indicators for real‑time status and diagnostics
CE, UL, and TUV certified for international safety compliance
Converts AC input voltage (85‑264V AC) into a regulated 24V DC output power for the APACS+ backplane.
Automatically switches to high‑efficiency mode to minimise power loss and reduce heat generation.
Distributes stable DC power to all connected controllers, I/O modules, and communication cards within the same APACS+ rack.
Monitors system power health via integrated LED indicators for rapid troubleshooting.
Provides electrical isolation and protective cut‑off during overload or short‑circuit events, preventing damage to downstream automation equipment.
Supports plug‑and‑play replacement for fast maintenance with minimal downtime.
Q1: Is the Siemens 39PSMNAN compatible with all APACS+ racks?
A1: Yes, the Siemens 39PSMNAN is designed as the main rack power supply for the Moore APACS+ system, making it compatible with most APACS+ chassis and controller configurations.
Q2: What is the exact output voltage of the 39PSMNAN?
A2: The Siemens 39PSMNAN provides a nominal output of 24V DC with a tolerance of ±5%, ensuring stable power for all downstream automation devices.
Q3: Is the 39PSMNAN still available for purchase?
A3: The 39PSMNAN has been discontinued by Siemens, but it is still available as a replacement or spare part through third‑party industrial automation suppliers for legacy system support.
Q4: What protection features does the Siemens 39PSMNAN have?
A4: The Siemens 39PSMNAN includes overload, short‑circuit, overvoltage, and overcurrent protection, all with automatic recovery for uninterrupted system uptime.
Q5: What certifications does the 39PSMNAN hold?
A5: The Siemens 39PSMNAN is certified to CE, UL, and TUV international safety standards, ensuring safe and reliable operation in global industrial environments.
