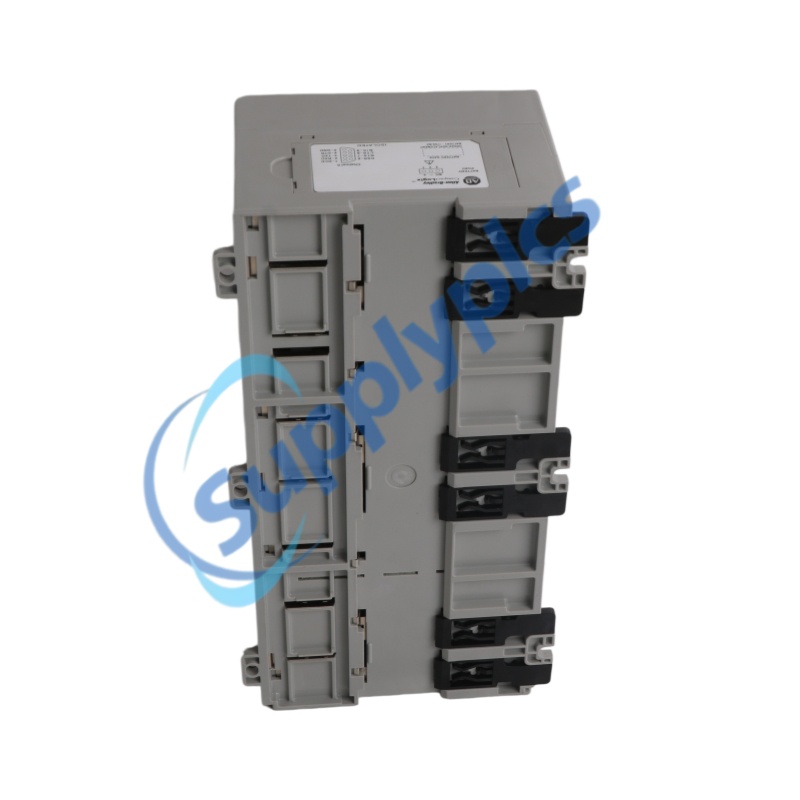

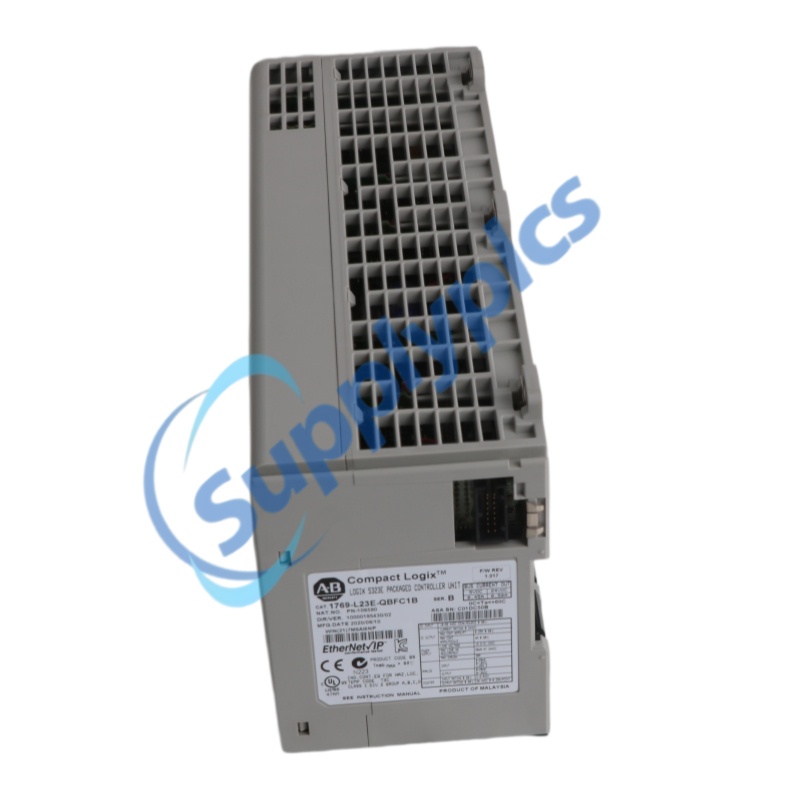

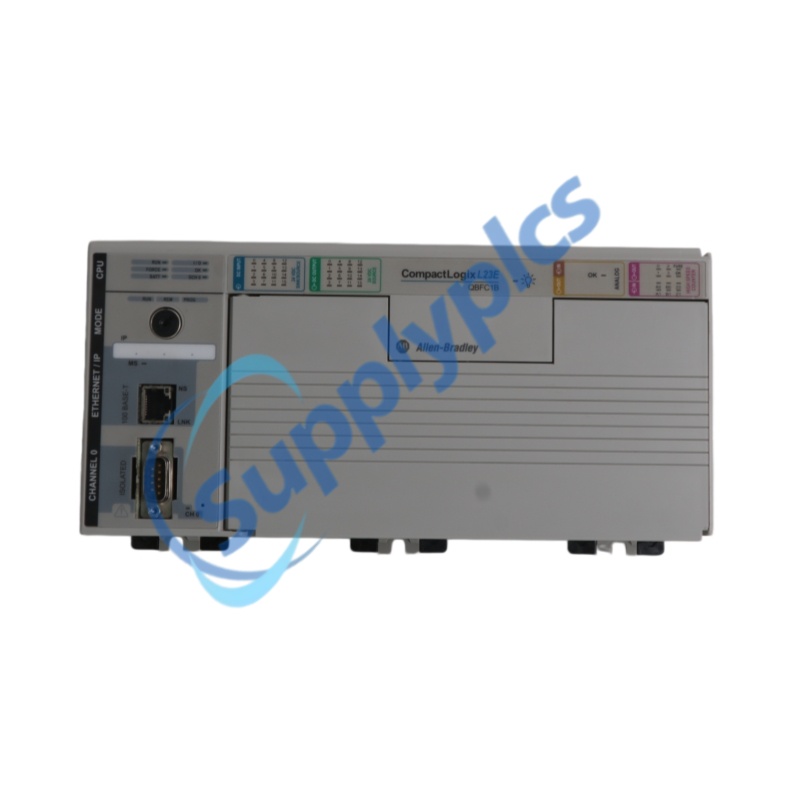

Allen Bradley 1769-L23E-QBFC1B CompactLogix Packaged Controllers Ready For Ship

Allen Bradley 1769-L23E-QBFC1B CompactLogix Packaged Controllers Ready For Ship

Product Name:CompactLogix Packaged Controllers

Brand Name:Allen Bradley

Model Number:1769-L23E-QBFC1B

Country of Origin:USA

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

allen bradley 1769 l23e qbfc1b compactlogix packaged controllers ready for ship-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Allen Bradley
Model Number:	1769-L23E-QBFC1B
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model	1769-L23E-QBFC1B
Product Type	CompactLogix Programmable Automation Controller
Manufacturer	Allen-Bradley / Rockwell Automation
Communication Port	Integrated EtherNet/IP
Controller Family	CompactLogix 1769 Series
Integrated Digital Inputs	16 Points
Integrated Digital Outputs	16 Points
Integrated Analog Inputs	4 Channels
Integrated Analog Outputs	2 Channels
Expansion Capability	Supports 1769 Compact I/O Modules
Programming Software	RSLogix 5000 / Studio 5000
Mounting Method	DIN Rail or Panel Mount
Operating Function	Machine and Process Automation Control
Dimensions	Approx. 118 × 87 × 140 mm
Weight	Approx. 0.75 kg

Description

1769-L23E-QBFC1B is a compact and versatile CompactLogix controller designed for small to mid-sized industrial automation applications requiring integrated control, communication, and local I/O management. As part of the Allen-Bradley CompactLogix family, this controller combines processing power with embedded EtherNet/IP networking, enabling efficient data exchange between machines, operators, and plant-wide control systems.

Featuring integrated digital and analog I/O capabilities, 1769-L23E-QBFC1B helps reduce panel space while simplifying system architecture. It is well suited for standalone machines, packaging systems, material handling equipment, and OEM automation projects where reliability and flexibility are critical. Similar controllers such as 1769-L23E-QB1B and 1769-L23-QBFC1B are often deployed in comparable CompactLogix environments.

Designed to support scalable automation strategies, 1769-L23E-QBFC1B delivers dependable real-time control, streamlined commissioning, and long-term operational stability. Its integrated networking and modular expansion capabilities make it a practical solution for modern manufacturing facilities seeking improved productivity, system visibility, and maintenance efficiency.

Applications

Power Plants: Used for auxiliary equipment automation, generator monitoring, and balance-of-plant control, ensuring reliable operation and efficient process management.
Substations: Supports remote equipment control, status monitoring, and communication between protection and automation systems.
Chemical Plants: Integrates process automation functions, enabling precise control of pumps, valves, and instrumentation in demanding environments.
Steel Mills (Metallurgical Plants): Performs machine sequencing and production line coordination under high-temperature and high-interference industrial conditions.
Machinery Manufacturing Plants: Used for automated production lines, robotic workstations, conveyor systems, and packaging equipment control.

Features

Integrated EtherNet/IP: Enables high-speed communication with HMIs, drives, and distributed I/O devices.
Compact Design: Combines controller, communication, and local I/O in a space-saving platform.
Modular Expansion: Supports additional 1769 I/O modules for flexible system growth.
Reliable Performance: Designed for continuous industrial operation and real-time control tasks.
Simplified Engineering: Easily configured using Studio 5000 and Rockwell Automation software tools.
Scalable Architecture: Suitable for OEM machinery and plant-wide automation projects.

Functions

Machine Control: Executes logic, sequencing, and interlocking operations for industrial equipment.
Data Processing: Collects, processes, and exchanges production and diagnostic information.
Network Communication: Manages EtherNet/IP communication between controllers and field devices.
I/O Management: Monitors sensors and controls actuators through integrated and expansion I/O.
Process Automation: Coordinates automated production processes with high accuracy and reliability.
System Diagnostics: Provides status monitoring and fault detection to support predictive maintenance.

FAQ

Q1: What is the primary purpose of the 1769-L23E-QBFC1B?
A1: It is a CompactLogix controller designed for machine automation, process control, and integrated I/O applications.

Q2: Does the 1769-L23E-QBFC1B support EtherNet/IP communication?
A2: Yes, it includes an integrated EtherNet/IP port for industrial network connectivity.

Q3: Can additional I/O modules be connected to this controller?
A3: Yes, the controller supports expansion using Allen-Bradley 1769 Compact I/O modules.

Q4: Which software is used to program the 1769-L23E-QBFC1B?
A4: It can be configured and programmed using RSLogix 5000 or Studio 5000 software.

Q5: What industries commonly use the 1769-L23E-QBFC1B?
A5: It is widely used in manufacturing, packaging, material handling, water treatment, energy, and process automation industries.
