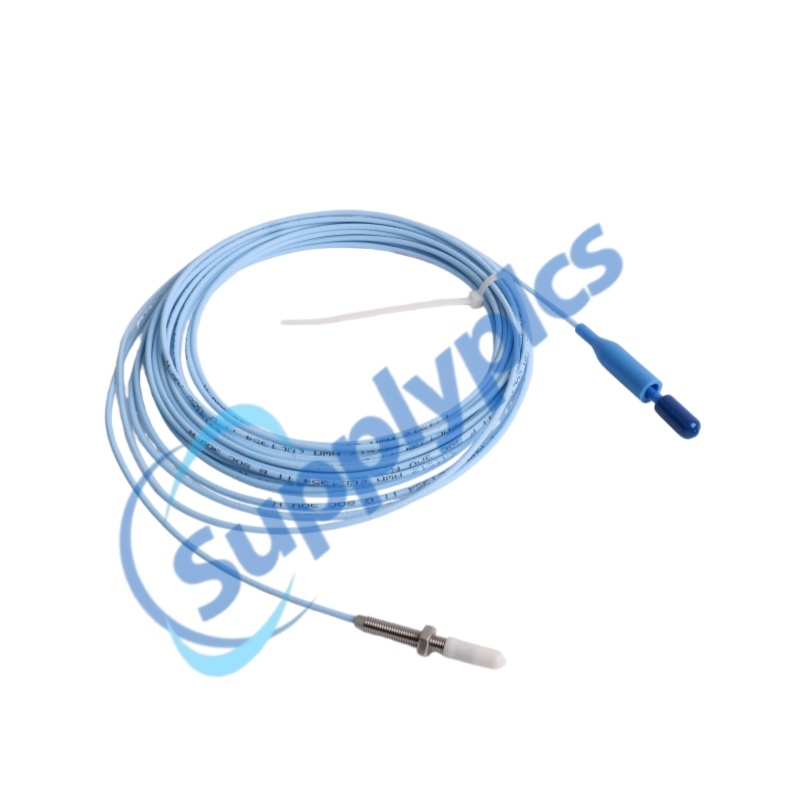

BENTLY NEVADA 3300 5 mm Transducer System 3300 5mm Proximity Probes 330171-00-24-10-02-00 In stock

BENTLY NEVADA 3300 5 mm Transducer System 3300 5mm Proximity Probes 330171-00-24-10-02-00 In stock

Product Name:3300 5mm Proximity Probes

Brand Name: BENTLY NEVADA

Model Number:330171-00-24-10-02-00

Country of Origin:USA

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

bently nevada 3300 5 mm transducer system 3300 5mm proximity probes 330171 00 24 10 02 00 in stock-1

Overview
Contact for quotation
Specifications
Description
Functions
Features
Installation & Wiring
Accessories
Recommended Products

Overview

Brand Name:	BENTLY NEVADA
Model Number:	330171-00-24-10-02-00
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model	330171-00-24-10-02-00
Manufacturer	Bently Nevada (Baker Hughes)
Product Family	3300 5mm Proximity Probe
Thread Type	1/4-28 UNF-2A
Armor	Without armor
Unthreaded Length (Option AA)	00 = 0.0 in
Overall Case Length (Option BB)	24 = 2.4 in
Total Cable Length (Option CC)	10 = 1.0 metre (3.3 feet)
Connector Option (Option DD)	02 = Miniature coaxial ClickLoc connector, standard cable
Agency Approval (Option EE)	00 = Not required
Linear Range	2 mm (80 mils), from 0.25 to 2.3 mm (10 to 90 mils)
Recommended Gap Setting	1.27 mm (50 mils)
Incremental Scale Factor	7.87 V/mm (200 mV/mil) ±6.5% typical
Deviation from Best Fit Straight Line	< ±0.038 mm (±1.5 mils) typical
Frequency Response	0 to 10 kHz: +0, -3 dB
Minimum Target Size	15.2 mm (0.6 in) diameter (flat target)
Minimum Shaft Diameter	50.8 mm (2 in)
Recommended Shaft Diameter	76.2 mm (3 in)
Minimum Cable Bend Radius	25.4 mm (1.0 in)
Probe Case Material	AISI 303 or 304 stainless steel
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Cable	75Ω triaxial, FEP insulated
Probe Case Torque	5.1 N·m (45 in·lb) recommended; 7.3 N·m (65 in·lb) maximum
Probe Tensile Strength	222 N (50 lbf)
Probe Temperature Range	–35°C to +177°C (–31°F to +350°F)
Probe Weight	323 g (11.39 oz)
System Weight (Typical)	0.71 kg (1.6 lb)
Connector Type	Gold-plated brass ClickLoc (finger-tight)
Target Material (Default Calibration)	AISI 4140 steel
Power Requirement	–17.5 Vdc to –26 Vdc at 12 mA max
Output Resistance	50 Ω
Certifications	CE Mark; Hazardous Area: ATEX, IECEx, CSA (with appropriate barriers)

Description

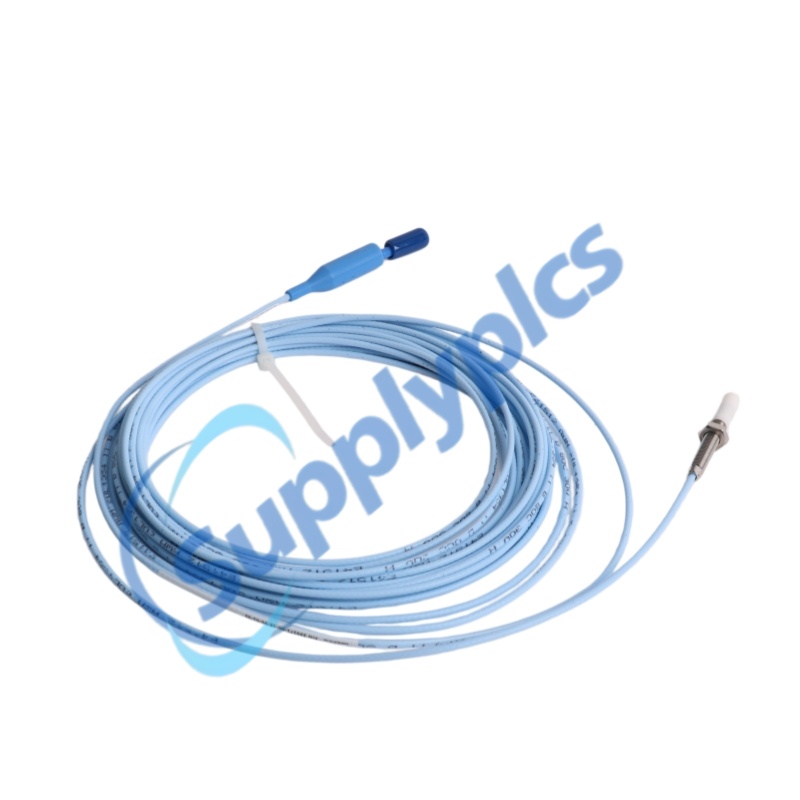

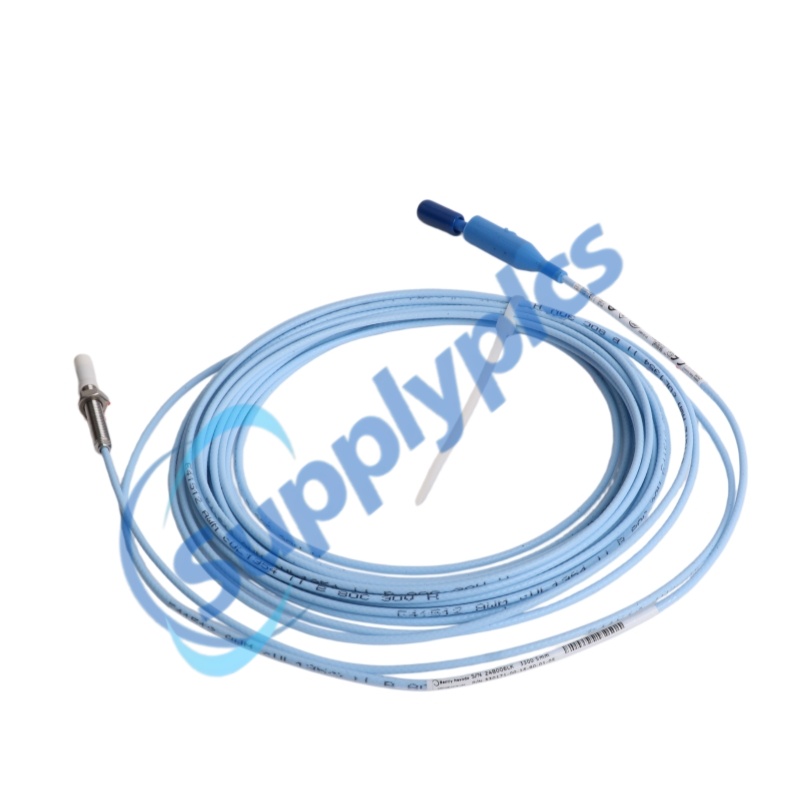

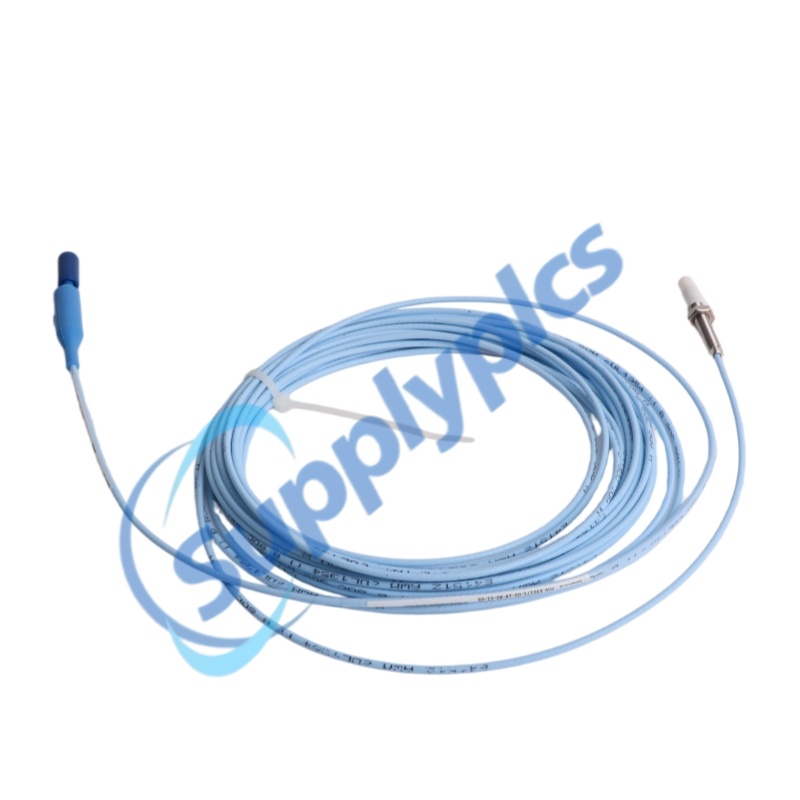

The 330171-00-24-10-02-00 is a non-contacting eddy current proximity probe from Bently Nevada's 3300 series, engineered for precision vibration and position measurement in rotating machinery. The 330171-00-24-10-02-00 features a 5 mm PPS-encapsulated sensing tip with 1/4-28 UNF mounting thread and a 1.0-metre FEP-insulated triaxial cable terminated with a gold-plated ClickLoc connector. When paired with a 3300 XL Proximitor Sensor and extension cable, the 330171-00-24-10-02-00 delivers a linear output voltage proportional to the probe-to-target distance. Its compact 5 mm tip design enables installation in physically constrained spaces such as between thrust bearing pads, making the 330171-00-24-10-02-00 ideal for fluid-film bearing machines, turbines, compressors, and other critical rotating assets.

Functions

Non-Contact Vibration Measurement: Detects shaft radial vibration in fluid-film bearing machines
Static Position Monitoring: Measures axial thrust position and shaft displacement
Speed & Phase Reference: Supports Keyphasor and tachometer/over-speed measurement applications
Eddy Current Principle: Generates output voltage proportional to the distance between probe tip and conductive target surface
Wide Temperature Operation: Maintains specified performance from –35°C to +177°C
Interchangeable System Components: Eliminates need for individual component matching or bench calibration

Features

Patented TipLoc Molding: Provides robust bond between probe tip and body for enhanced durability
ClickLoc Connector System: Corrosion-resistant gold-plated brass connectors with finger-tight installation and positive locking click
Compact 5 mm Form Factor: Smaller physical packaging ideal for space-constrained installations
FluidLoc Cable Option: Prevents oil and liquid leakage through cable interior (orderable option)
FEP-Insulated Triaxial Cable: Provides excellent dielectric strength and chemical resistance
Stainless Steel Construction: AISI 303/304 case and flexible armor for industrial durability
Interchangeable System Architecture: Full compatibility with 3300 XL Proximitor Sensors and extension cables

Installation & Wiring

Mounting

Thread Engagement: 1/4-28 UNF-2A thread. Maximum thread engagement: 9.5 mm (0.375 in) per industry standard (1.5× nominal diameter)
Drill & Tap: Use #3 tap drill (0.213 in) for 1/4-28 mounting holes
Torque: 5.1 N·m (45 in·lb) recommended; 7.3 N·m (65 in·lb) maximum
Minimum Cable Bend Radius: 25.4 mm (1.0 in)

Wiring

System Configuration: Probe → Extension Cable → Proximitor Sensor → Monitor
Connector Installation: ClickLoc connectors require only finger-tight torque; connectors will "click" when properly seated
Field Wiring: Use 3-conductor shielded triad cable, 0.2 mm² to 1.5 mm² (16 AWG to 24 AWG)
Maximum Field Wiring Length: 305 metres (1,000 feet) between Proximitor Sensor and monitor
Connector Protectors: Recommended for all installations to provide environmental protection

Critical Considerations

Gap Setting: Recommended 1.27 mm (50 mils) at center of linear range
Target Material: Factory calibrated to AISI 4140 steel; other materials require custom calibration
Cross-Talk: Maintain minimum tip separation of 40 mm (1.6 in) for axial or 38 mm (1.5 in) for radial measurements
Shaft Diameter: Measurements on shafts <76.2 mm (3 in) may affect scale factor

Accessories

02120015	Bulk field wire 1.0mm2 (18 AWG), 3-conductor, twisted, shielded cable for connections between Proximitor Sensor and monitor.
03200006	Silicone self-fusing tape 9.1-metre (10-yard) roll of silicone tape to protect connectors. It is easy to install and provides excellent electrical isolation and protection from the environment. It is not recommended for use inside the casing of the machine.
40113-03	Connector Protector Kit Connector Protector Kit for 3300 5mm probes, including connector protectors and installation tools.
136536-01	Connector Protector Adapter Makes connector protector kits purchased prior to 1998 compatible with ClickLoc extension cable connectors.
40180-03	Connector Protectors Package containing 10 pairs of 75Ω Coaxial Connector Protectors.
03839410	75Ω Triaxial/95 ohm Coaxial Male Connector Protector Placed onto the extension cable; attaches to the female connector protector on the 5 mm probe to provide environmental protection of connectors.
03800001	75Ω Coaxial Female Connector Protector Placed onto 3300 5mm probe leads; attaches to the male connector protector on the extension cable to provide environmental protection of connectors.
163356	Connector Crimp Tool Kit Includes 1 set of multi-connector inserts and connector installation instructions. Compatible only with 330153 connector kits or with probes shipped in 2003 or later with ClickLoc connectors uninstalled. Supplied with carrying case.
