Bently Nevada Cables

Overview

Brand Name:	BENTLY NEVADA
Model Number:	330909-00-60-10-0-00
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model	330909-00-60-10-0-00
Manufacturer	Bently Nevada (Baker Hughes)
Product Family	3300 XL NSv Proximity Probe
Probe Type	3300 NSv Probe, 3/8-24 UNF thread, with armor
Unthreaded Length (Option AA)	00 = 0.0 in
Overall Case Length (Option BB)	60 = 6.0 in
Total Cable Length (Option CC)	10 = 1.0 metre (39 in)
Connector Option (Option DD)	0 = Miniature coaxial ClickLoc connector, standard cable
Agency Approval (Option EE)	00 = Not required
Thread Size	3/8-24 UNF
Armor	With armor
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel (SST)
Probe Cable	75Ω coaxial, FEP insulated
Average Scale Factor	7.87 V/mm (200 mV/mil)
Linear Range	1.5 mm (60 mils), from 0.25 to 1.75 mm (10 to 70 mils)
Recommended Gap Setting	1.0 mm (40 mils)
Frequency Response	0 to 10 kHz: +0, -3 dB typical
Minimum Target Size (Flat)	8.9 mm (0.35 in) diameter
Minimum Shaft Diameter	30 mm (1.2 in) standard X-Y configuration
Probe Case Torque (Recommended)	11.3 N·m (100 in·lb) for 3/8-24
Probe Case Torque (Maximum)	33.9 N·m (300 in·lb) for 3/8-24
Minimum Cable Bend Radius	25.4 mm (1.0 in)
Probe Temperature Range	–52°C to +177°C (–62°F to +351°F)
Probe Weight	Approximately 14 to 150 g (0.5 to 5.3 oz)
Connector Type	Gold-plated brass ClickLoc (finger-tight)
System Length	1 metre (probe only, no extension cable)
Target Material (Default Calibration)	AISI 4140 steel
Hazardous Area Approvals	Multiple Approvals available (option 05)
Compliance	CE, RoHS, FCC, SIL 2/3

Description

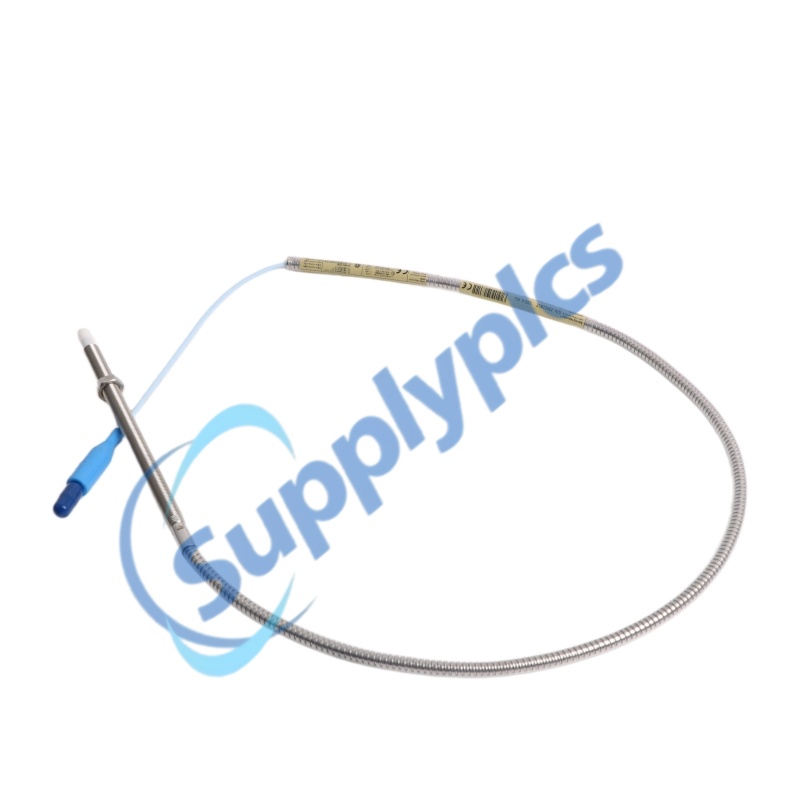

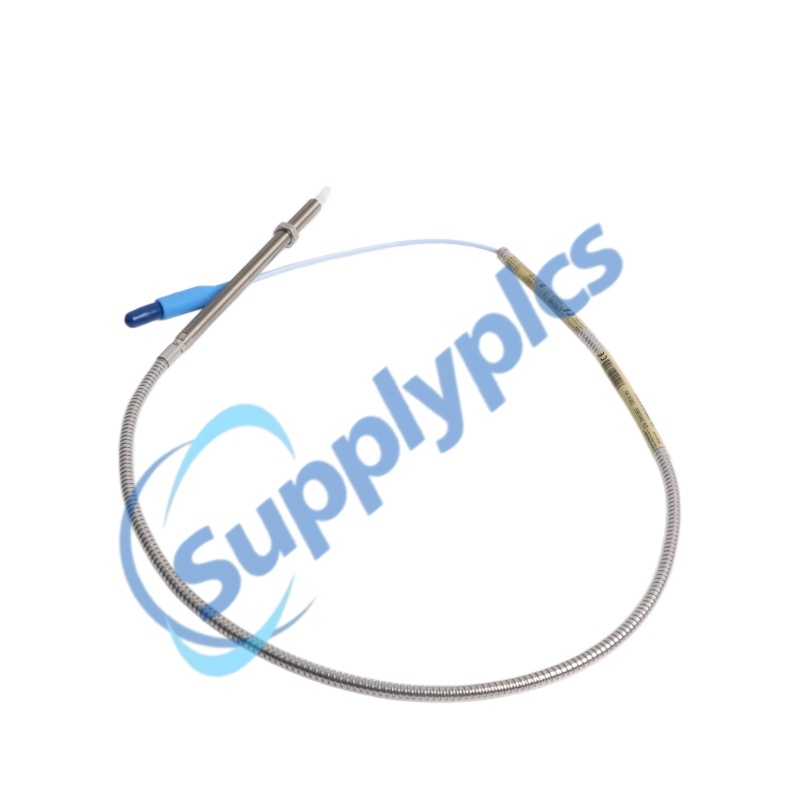

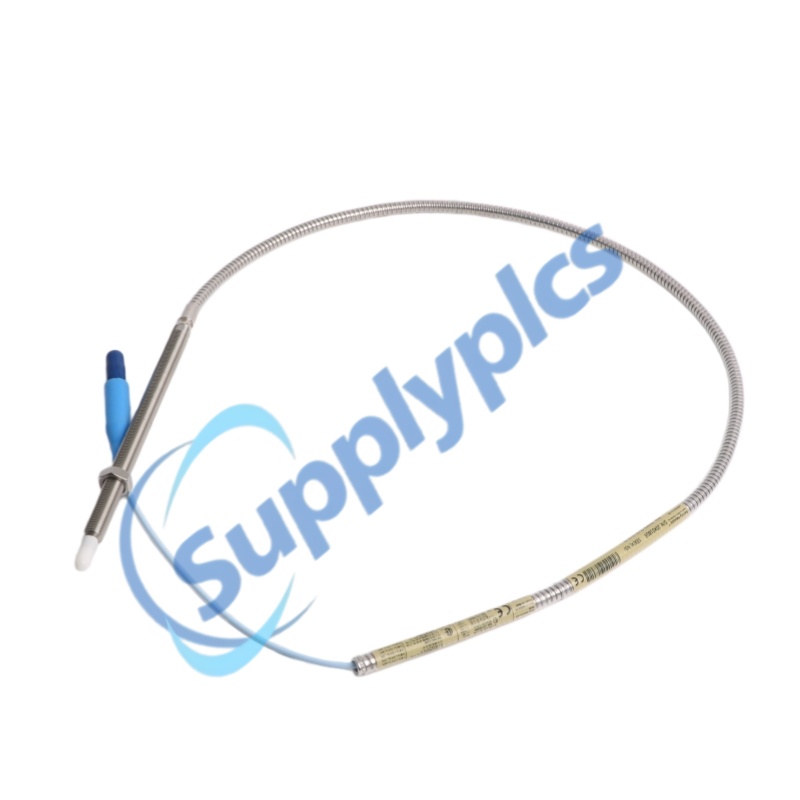

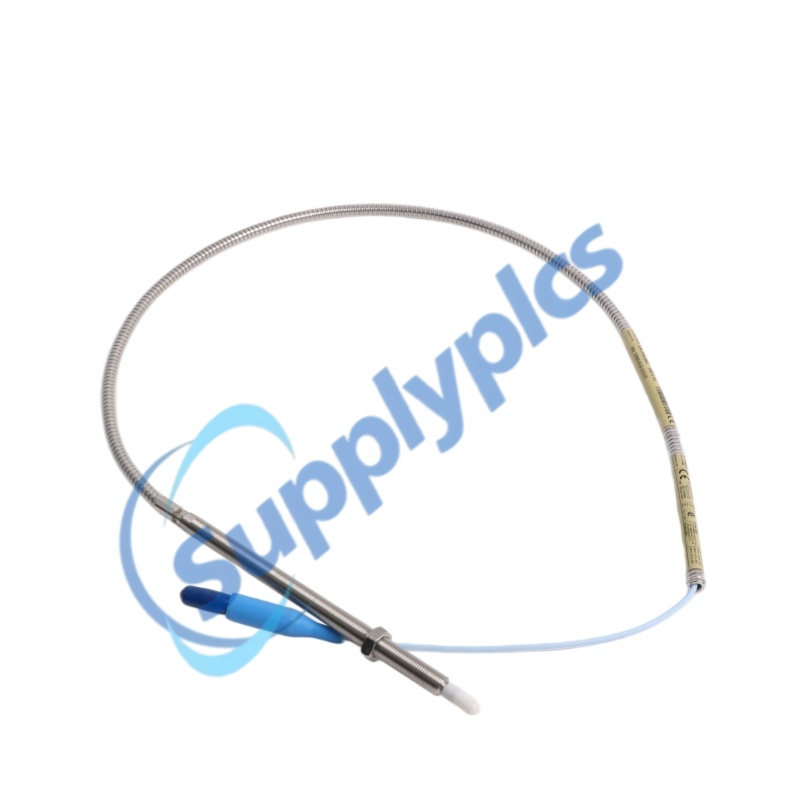

The 330909-00-60-10-0-00 is a narrow-sideview proximity probe from Bently Nevada‘s 3300 XL NSv series, purpose-built for machinery with severe installation space constraints. The 330909-00-60-10-0-00 features a 3/8-24 UNF threaded, armored stainless steel housing with a 6.0-inch case length and a 1.0-metre FEP-insulated coaxial cable terminated with a gold-plated ClickLoc connector. When paired with a 3300 XL NSv Proximitor Sensor, the 330909-00-60-10-0-00 delivers an industry-standard 7.87 V/mm (200 mV/mil) output. The 330909-00-60-10-0-00 is mechanically and electrically interchangeable with previous 3300 RAM probes while offering superior chemical resistance. The 330909-00-60-10-0-00 excels at radial vibration measurements on shafts smaller than 51 mm (2 in) and axial position monitoring on targets under 15 mm (0.6 in).

Features

Narrow Side-View (NSv) Geometry: Optimized for tight installation spaces with counterbore, sideview, or rearview restrictions
Armored Stainless Steel Construction: 3/8-24 UNF threaded probe with AISI 304 stainless steel case and armor for maximum durability
Patented TipLoc Molding: Provides a robust bond between the probe tip and probe body
CableLoc Design: Delivers 220 N (50 lb) pull strength to securely attach the probe cable to the probe tip
Gold-Plated ClickLoc Connectors: Corrosion-resistant, finger-tight connectors with positive locking mechanism
FEP-Insulated Coaxial Cable: 75Ω triaxial cable with excellent dielectric strength and chemical resistance
Viton O-Ring Pressure Seal: Designed to seal differential pressure between the probe tip and case
Wide Temperature Operation: Maintains specified performance from –52°C to +177°C
Hazardous Area Ready: Available with CSA, ATEX, and IECEx certifications (option 05)

Functions

Non-Contact Eddy Current Sensing: Generates eddy currents in a conductive target via a high-frequency oscillator; variations in the probe-to-target gap modulate the returned signal amplitude
Vibration Measurement: Measures radial vibration on fluid-film bearing machines with small shafts or reduced side-view clearances
Position Measurement: Monitors axial (thrust) position on flat targets
Speed and Phase Reference: Provides tachometer, zero-speed, and Keyphasor (phase reference) signals
Linear Voltage Output: Produces a calibrated voltage output directly proportional to displacement with 7.87 V/mm (200 mV/mil) scale factor
Static and Dynamic Measurement: Captures both static position and dynamic vibration data
System Interchangeability: Eliminates the need for individual component matching or bench calibration

Competitive Advantage

Narrow Side-View Design – Enables installation in counterbore, sideview, or rearview-restricted areas where standard 3300/3300 XL 5 mm and 8 mm probes cannot fit.
Small Target Capability – Measures radial vibration on shafts <51 mm (2 in) and axial position on flat targets <15 mm (0.6 in).
3300 RAM Drop-In Replacement – Mechanically and electrically compatible with previous 3300 RAM probes; existing probes, extension cables, and monitoring systems can be retained during upgrades.
Superior Chemical Resistance – Enhanced durability against chemicals compared to the older 3300 RAM probe series.
Superior Side-View Characteristics – Outperforms 3000-series 190 probe when gapped at the same distance from the target.
API 670 Compliance – Meets API 670 requirements for mechanical design, linearity, and thermal stability.
Gold-Plated ClickLoc Connectors – Corrosion-resistant connectors lock in place to prevent loosening; finger-tight installation, no special tools required.

Accessories

147357	3300 XL NSv Proximitor User Guide
02120015	Bulk field wire. 1.0 mm2 (18 AWG), 3 conductor, twisted, shielded cable with drain wire. Specify length in feet.
138492-01	Replacement panel-mount mounting pad
138493-01	Replacement DIN-mount mounting pad
01609137	BNC (F) to banana plugs
01609138	Proximitor Connector Test Pin wiring (two test pins to a BNC (F) connector)
40971-04	50 Ω cable with two BNC (M) connectors. Use this cable in combination with adapter 01609137 and adapter 01609138 when checking performance of the transducer system from the Proximitor Sensor test pin holes.
04310310	3300 XL Proximitor Sensor Panelmount Screws. Package includes one 6-32 UNC thread forming mounting screw (supplied standard with 3300 XL Proximitor Housings [3300 XL option]).
03200006	Silicone self-fusing tape. A 9.1 meter (10 yard) roll of silicone tape to protect connectors. It is easy to install and provides excellent electrical isolation and protection from the environment. It is not recommended for use inside the casing of the machine.
40113-03	Connector Protector Kit for 3300 NSv probes and extension cables, including connector protectors and installation tools.
136536-01	Connector Protector Adapter. Allows connector protector installation tools manufactured prior to 1998 to be used with 75 Ω ClickLoc connectors.
40180-03	Connector Protectors. Package contains 10 pairs of connector protectors.
03800000	Male Connector Protector. Placed on the extension cable to connect to the female connector protector on the probe and provide environmental protection of connectors.
03800001	Female Connector Protector. Placed on the probe lead to connect to the male connector protector on the extension cable and provide environmental protection of connectors. Also placed on the extension cable to slide over the Proximitor Sensor connection and protect it from the environment.
330153-05	3300 NSv Connector Kit. Used on 3300 NSv probes and extension cables. Contains one set of male and female ClickLoc connectors, sleeves and one strip of silicone tape.
163356	Connector Crimp Tool Kit. Includes one set of 75 Ω ClickLoc inserts and connector installation instructions. Supplied with carrying case.
