Brand: Bently Nevada
Series: 3300 XL 8 mm Proximity Transducer System
Model: 330180-X1-05 MOD:145347-05
Official description: 3300 XL Proximitor Sensor
Official source: Baker Hughes Bently Nevada datasheet 141194 Rev. AM.
Configuration notice: The official ordering table identifies 330180-AA-BB. The supplied X1 option and MOD 145347-05 require confirmation from the nameplate or original order record.
The Proximitor Sensor accepts one compatible non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe with its extension cable and conditions the signal for the monitoring system.
The complete transducer system is used for static position and dynamic vibration measurements on fluid-film bearing machines, including radial vibration, axial position, Keyphasor and speed applications. Final application suitability is subject to verification.
|
Sensor input
|
One compatible non-contacting 3300-series 5 mm or 3300 XL 8 mm probe and extension cable
|
|
Linear range
|
2 mm (80 mils), approximately 0.25 to 2.3 mm from the target
|
|
Nominal scale factor
|
7.87 V/mm (200 mV/mil); tolerance depends on confirmed system-length option
|
|
Recommended radial gap
|
-9 Vdc, approximately 1.27 mm (50 mils)
|
|
Frequency response
|
0 to 10 kHz, +0/-3 dB, with up to 305 m of field wiring
|
|
Supply requirement
|
-17.5 to -26 Vdc, 12 mA maximum for the stated non-incendive installation; -23 to -26 Vdc with barriers
|
|
Output resistance
|
50 ohm
|
|
Field wiring
|
0.2 to 1.5 mm² (16 to 24 AWG); 3-conductor shielded triad recommended; maximum 305 m
|
Probe connection: Corrosion-resistant gold-plated ClickLoc connection for the compatible probe and extension-cable system.
Field terminals: SpringLoc terminal strips support robust wiring without screw-type clamping mechanisms.

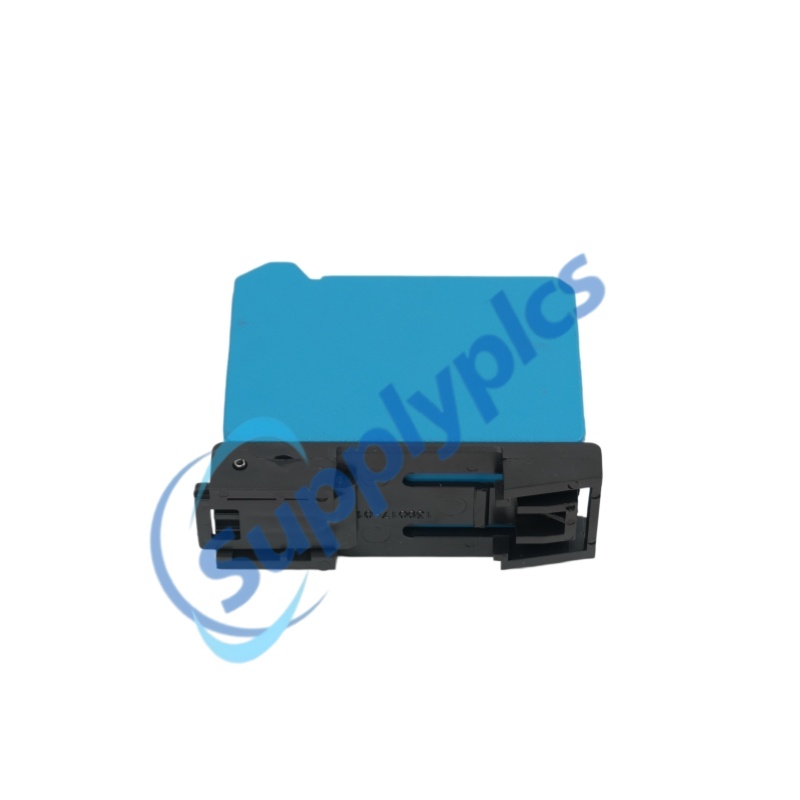

Mounting: The 3300 XL Proximitor Sensor platform supports high-density DIN-rail installation and traditional panel mounting. The exact mounting supplied by X1 is subject to verification.
Isolation: The mounting base provides electrical isolation, eliminating the need for a separate isolator plate.
|
Sensor operating temperature
|
-52°C to +100°C (-62°F to +212°F)
|
|
Sensor storage temperature
|
-52°C to +105°C (-62°F to +221°F)
|
|
RFI/EMI design
|
Improved immunity supports CE-compliant installation without special shielded conduit or metallic housing
|
|
Compliance listed in official datasheet
|
FCC Part 15, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU and China RoHS
|
|
Approval code 05
|
CSA, ATEX and IECEx approvals are identified by the official ordering table; applicable certificates must be confirmed for the supplied unit
|
|
Enclosure rating
|
Subject to verification; the Proximitor Sensor is normally installed in a suitable housing or panel
|
|
Physical stock
|
Confirm before quotation
|
|
Condition: New, Used or Refurbished
|
Subject to verification for the quoted unit
|
|

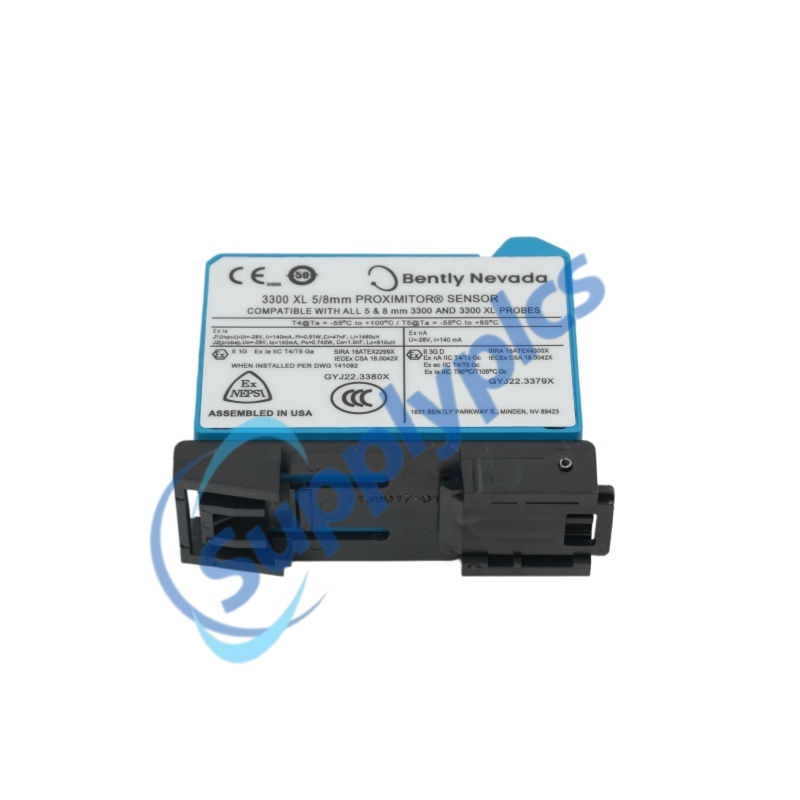

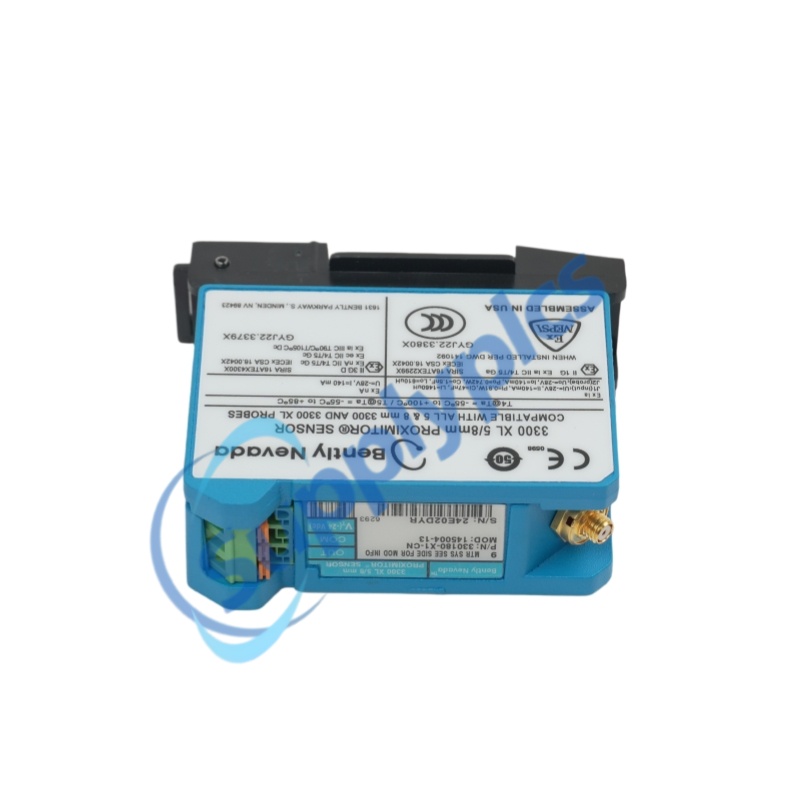

Current unit and nameplate photos
|
Available on request
|
|
Warranty period
|
Available on request and confirmed in the quotation
|
|
Dispatch time
|
Confirm before quotation
|
|
Testing status and test scope
|
Subject to verification; test records are available on request when applicable
|
|
Payment methods
|
Available on request and stated on the proforma invoice
|
|
Quotation response time
|
Available on request
|
|
Transaction confidence
|
Itemized quotation, company details, invoice, pre-shipment verification and shipment records are provided as applicable
|
Is this actual stock?
Confirm before quotation. A current stock check can be supplied for the requested quantity.
Is the unit new, used or refurbished?
Subject to verification for the specific unit offered.
Can you provide current product and nameplate photos?
Available on request before order confirmation.
What is the warranty?
Available on request and confirmed in the written quotation.
When can it ship?
Confirm before quotation after quantity and destination are known.
Has it been tested?
Subject to verification. Request the applicable test scope and available records.
Which payment methods are supported?
Available on request and listed on the proforma invoice.
How is the transaction verified?
Request an itemized quotation, company and banking details, current-unit verification, invoice and shipment documentation.
|
