Product Name:Analog Input Module
Brand Name:Honeywell
Model Number:8C-TAIM01 51306999-175
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
8C-TAIM01 51306999-175 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Product Model |
8C-TAIM01 51306999-175 |
|
Product Type |
Low Level Analog Input Multiplexer IOTA |
|
Compatible Module |
8C-PAIM01 / 8U-PAIM01 |
|
Supported Signals |
RTD, Thermocouple (TC), Millivolt Inputs |
|
Input Capacity |
Up to 64 Channels |
|
Isolation Type |
Channel-to-channel isolated |
|
Scan Rate |
1 Second Fixed Scan |
|
Power Supply |
24 VDC |
|
Installation Type |
DIN Rail / Cabinet Mount |
|
Coating Type |
Conformal Coated |
|
Maximum Cable Distance |
1000 ft (305 m) |
|
Dimensions |
14.5x12x5cm |
|
Dimensions (Inch) |
2.5 × 4.9 × 12.1 in |
|
Weight |
0.24kg |
|
Operating Environment |
Industrial Harsh Environment |

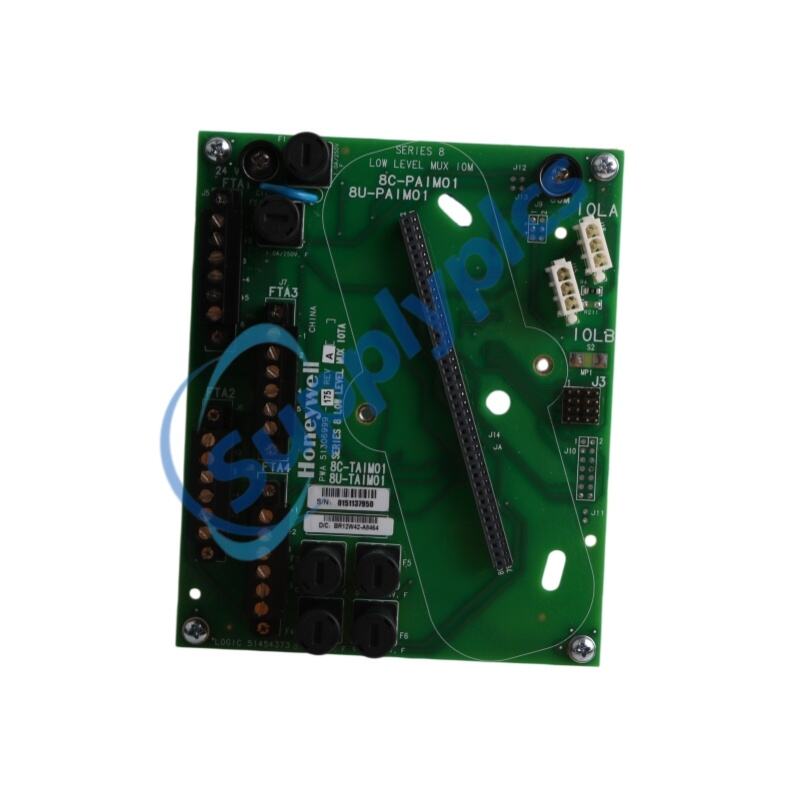

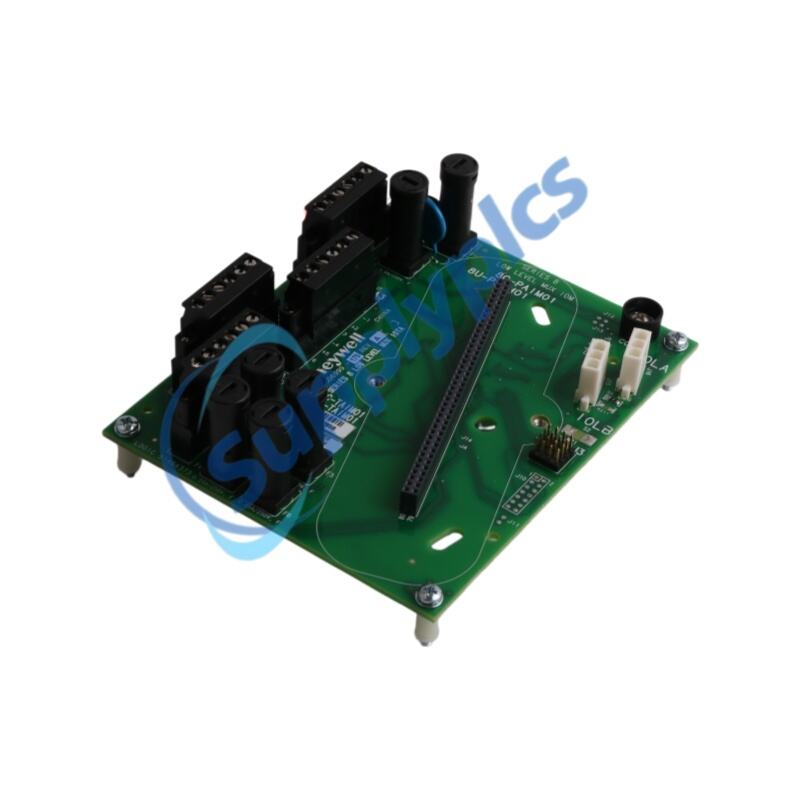

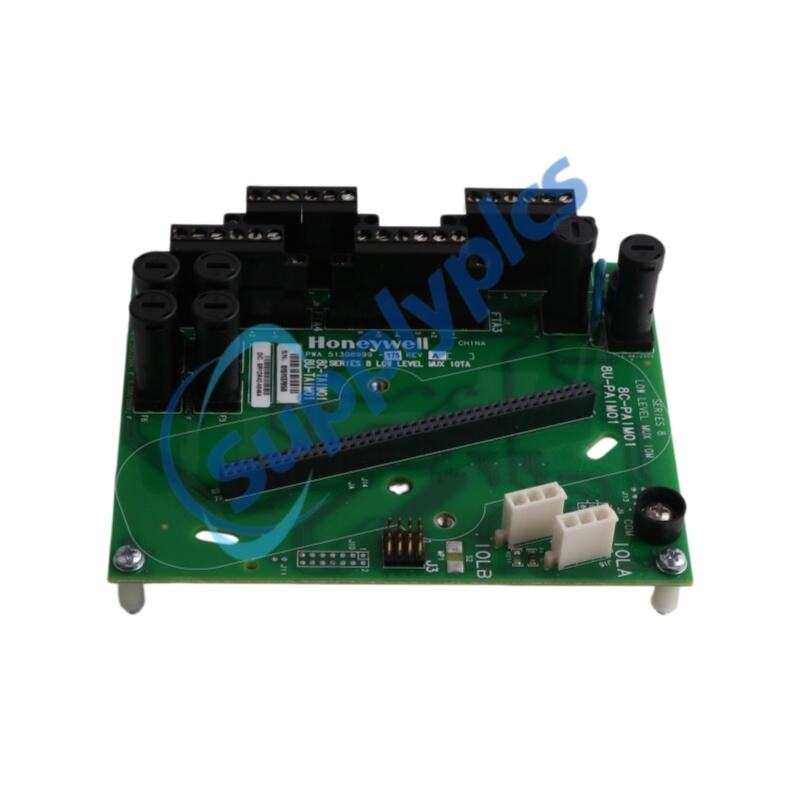

8C-TAIM01 51306999-175 is a high-performance Low Level Analog Input Multiplexer IOTA developed for Honeywell PlantCruise by Experion and Experion PKS control platforms. Designed for demanding industrial automation environments, the coated IOTA supports reliable RTD and thermocouple signal integration while improving system stability, wiring efficiency, and maintenance accessibility. The module works seamlessly with 8C-PAIM01 and related Series 8 components for scalable temperature monitoring applications.
The compact architecture of 8C-TAIM01 51306999-175 enables high-density installation inside modern control cabinets while maintaining effective heat dissipation and robust signal isolation. Its conformal-coated construction enhances protection against dust, humidity, vibration, and corrosive industrial conditions, making it suitable for continuous process operations.
Widely used in power generation, oil & gas, chemical processing, and manufacturing industries, 8C-TAIM01 delivers accurate low-level analog acquisition, simplified field termination, and dependable long-term performance for advanced distributed control systems (DCS).
Q1: What is the main function of 8C-TAIM01 51306999-175?
A1: It serves as a Low Level Analog Input Multiplexer IOTA for RTD and thermocouple signal integration in Honeywell control systems.
Q2: Which modules are compatible with 8C-TAIM01?
A2: It is commonly used together with 8C-PAIM01 and other Honeywell Series 8 I/O modules.
Q3: Does 8C-TAIM01 51306999-175 support harsh industrial environments?
A3: Yes, the module features conformal coating protection against moisture, dust, and corrosive conditions.
Q4: How many channels can the module support?
A4: The system supports up to 64 temperature input channels in 16-point increments.
Q5: What industries commonly use 8C-TAIM01?
A5: It is widely applied in power plants, oil & gas, chemical processing, steel manufacturing, and industrial automation systems.
| Number (I/O Module Coated) | Description |
|---|---|
| 8C-PAIH51 | High-level AI HART |
| 8C-PAIN01 | High-level AI w/o HART |
| 8C-TAIX51 | AI IOTA, Coated |
| 8C-TAIX61 | AI IOTA, Red, Coated |
| 8C-PAIM01 | PMIO LL Mux |
| 8C-TAIM01 | PMIO LL Mux IOTA, Coated |
| MC-TAMT04 | LL Mux TC FTA |
| MC-TAMR04 | LL Mux RTD FTA |
| 8C-PAOH51 | Analog Output 16pt HART |
| 8C-PAON01 | Analog Output 16pt w/o HART |
| 8C-TAOX51 | AO IOTA, Coated |
| 8C-TAOX61 | AO IOTA Red., Coated |
| 8C-PDIL51 | Digital Input 24V |
| 8C-TDIL51 | DI 24V IOTA, Coated |
| 8C-TDIL61 | DI 24V IOTA Red. Coated |
| 8C-PDOD51 | Digital Output |
| 8C-TDOD51 | DO IOTA, Coated |
| 8C-TDOD61 | DO IOTA Red, Coated |
| 8C-PDIS01 | Digital Input Sequence of Events |
| 8C-TDIL01 | DI SOE IOTA, Coated |
| 8C-TDIL11 | DI SOE IOTA Red, Coated |
