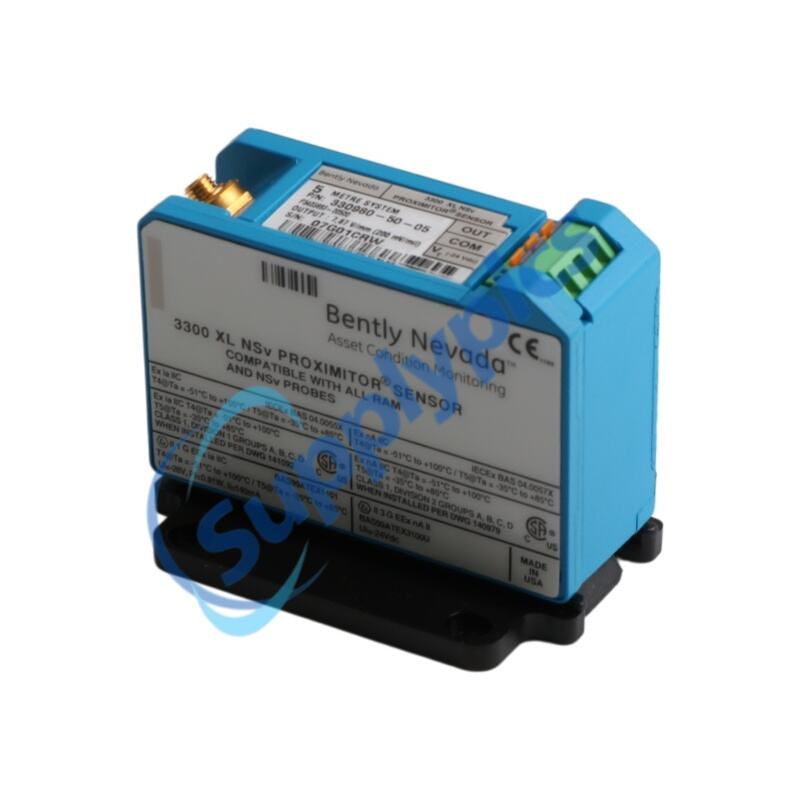

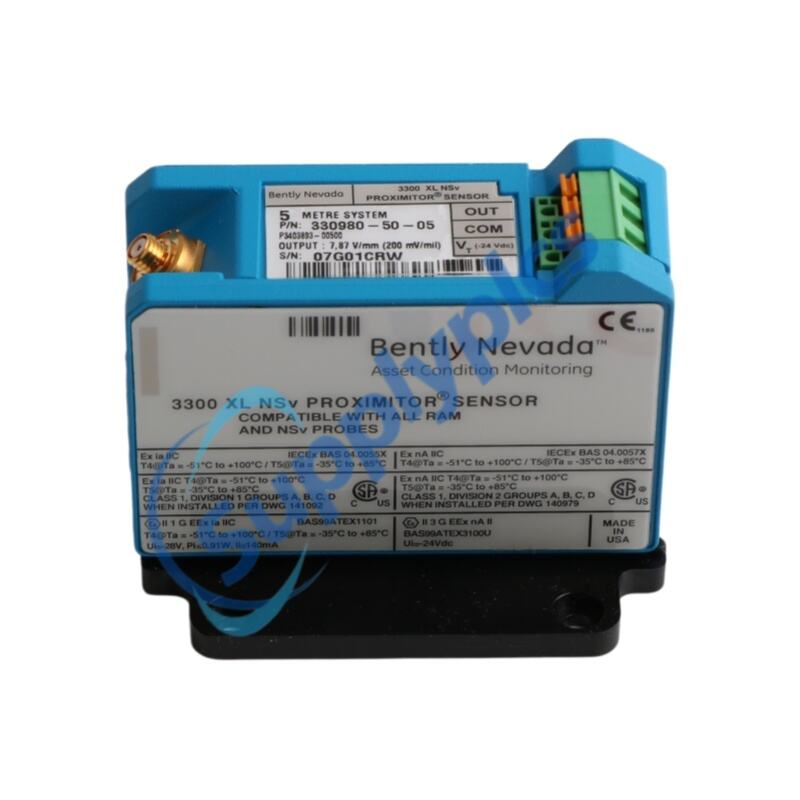

Bently Nevada 330980-50-05 3300 XL NSv Proximitor Sensor Original new

Bently Nevada 330980-50-05 3300 XL NSv Proximitor Sensor Original new

Product Name:3300 XL NSv Proximitor Sensor

Brand Name:Honeywell

Model Number:330980-50-05

Country of Origin: USA

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

bently nevada 330980 50 05 3300 xl nsv proximitor sensor original new-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Bently Nevada
Model Number:	330980-50-05
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Details
Model	330980-50-05
Series	3300 XL NSv Proximity Transducer System
Sensor Type	Eddy current proximity transducer
System Length	5.0 m (16.4 ft)
Mounting Type	Panel mount
Output Scale Factor	7.87 V/mm (200 mV/mil)
Linear Range	1.5 mm (60 mils)
Operating Voltage	-17.5 Vdc to -26 Vdc
Frequency Response	0–10 kHz
Material	Stainless steel / PPS probe construction
Dimensions	7.8x6x6.4cm
Weight	0.24kg
Cable Type	75Ω coaxial FEP insulated

Description

The 330980-50-05 is part of the Bently Nevada 3300 XL NSv Proximity Transducer System, engineered for precise vibration and position monitoring in compact and restricted machine installations. It is widely used with models such as 330980-AA-BB and other NSv sensor configurations, delivering stable eddy-current measurement performance in demanding industrial environments.

The system combines a proximitor sensor, extension cable, and probe to support radial vibration, axial thrust position, and keyphasor signal detection. Its compact design allows installation in tight spaces where standard transducer systems cannot be applied, making it ideal for small shaft diameter applications and limited counterbore conditions.

With enhanced EMI/RFI immunity, flexible mounting options, and improved chemical resistance, 330980-50-05 ensures long-term reliability in compressors, turbines, and rotating machinery monitoring systems.

Applications

Power plants: Used for generator set status monitoring and relay protection
Substations: Enable bus differential control, line protection, and switchyard signal acquisition
Chemical plants: Integrate process control automation and intrinsically safe signal monitoring
Steel mills (metallurgical plants): Perform equipment logic control in harsh environments with high temperature and EMI
Machinery manufacturing plants: Used for automated production lines, robotic workstations, and packaging system control

Features

High-precision eddy current measurement technology
Compact NSv design for tight installation spaces
Strong EMI/RFI immunity for industrial environments
Flexible DIN or panel mounting options
Compatible with Bently Nevada 3300 XL system architecture
High durability for harsh mechanical and chemical conditions

Functions

Real-time radial vibration monitoring
Axial thrust position measurement
Shaft speed and zero-speed detection
Phase reference (Keyphasor) signal output
Continuous condition monitoring of rotating machinery

FAQ

Q1: What is the 330980-50-05 used for?
A1: It is used for vibration and position monitoring of rotating machinery in compact industrial applications.

Q2: Which system is it compatible with?
A2: It is compatible with the Bently Nevada 3300 XL NSv proximity transducer system.

Q3: Can it be used in small shaft applications?
A3: Yes, it is designed specifically for small shaft and restricted space installations.

Q4: What signals can it measure?
A4: It supports radial vibration, axial position, and Keyphasor reference signals.

Q5: Is it suitable for harsh environments?
A5: Yes, it provides strong EMI resistance and durable construction for industrial conditions.

Spares

Number	Describe
147357	3300 XL NSv Proximitor User Guide for installation, configuration, and system operation reference
02120015	Bulk field wire, 1.0 mm² (18 AWG), 3-conductor shielded twisted cable with drain wire, custom length option
138492-01	Replacement panel-mount mounting pad for 3300 XL NSv Proximitor installation support
138493-01	Replacement DIN-mount mounting pad designed for DIN rail sensor mounting configurations
01609137	BNC (F) to banana plug adapter used for signal testing and diagnostic connections
01609138	Proximitor connector test pin wiring kit with dual test pins and BNC (F) connector interface
40971-04	50 Ω BNC cable with dual male connectors for transducer performance testing and verification
04310310	Panel-mount screw kit for 3300 XL Proximitor sensor housing installation and secure fixing
03200006	Silicone self-fusing tape roll (9.1 m) for environmental sealing and connector protection
40113-03	Connector protector kit for NSv probes and extension cables, including installation tools and protective caps
136536-01	Connector protector adapter enabling compatibility with legacy (pre-1998) installation tools
40180-03	Connector protector set containing 10 pairs for sealing and protecting signal connectors in harsh environments
03800000	Male connector protector for extension cable connection and environmental shielding protection
03800001	Female connector protector for probe and Proximitor connections, preventing moisture and contamination ingress
330153-05	NSv connector kit including ClickLoc male/female connectors, sleeves, and silicone sealing tape for secure assembly
