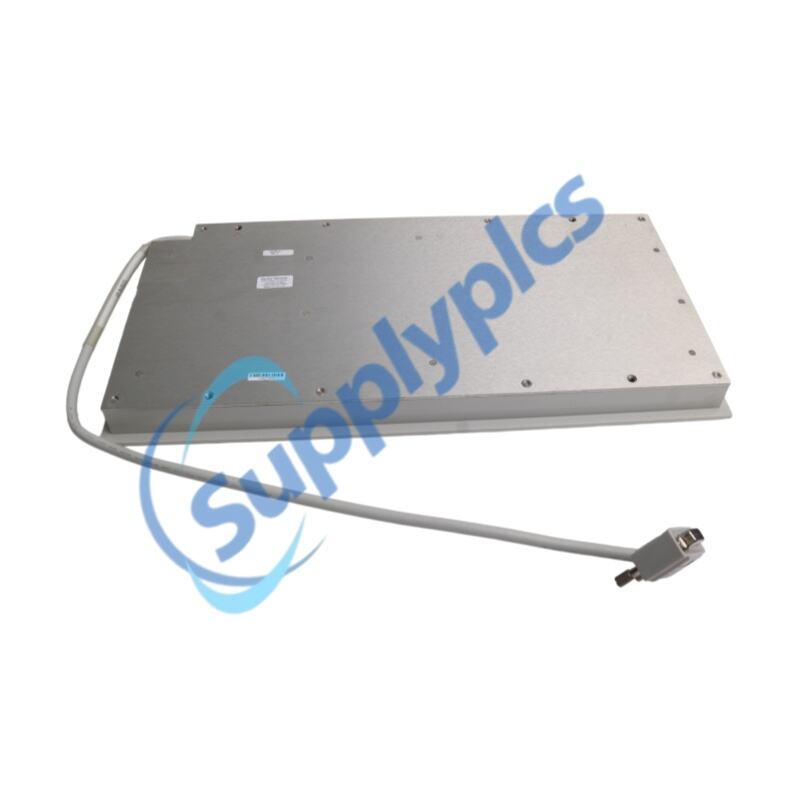

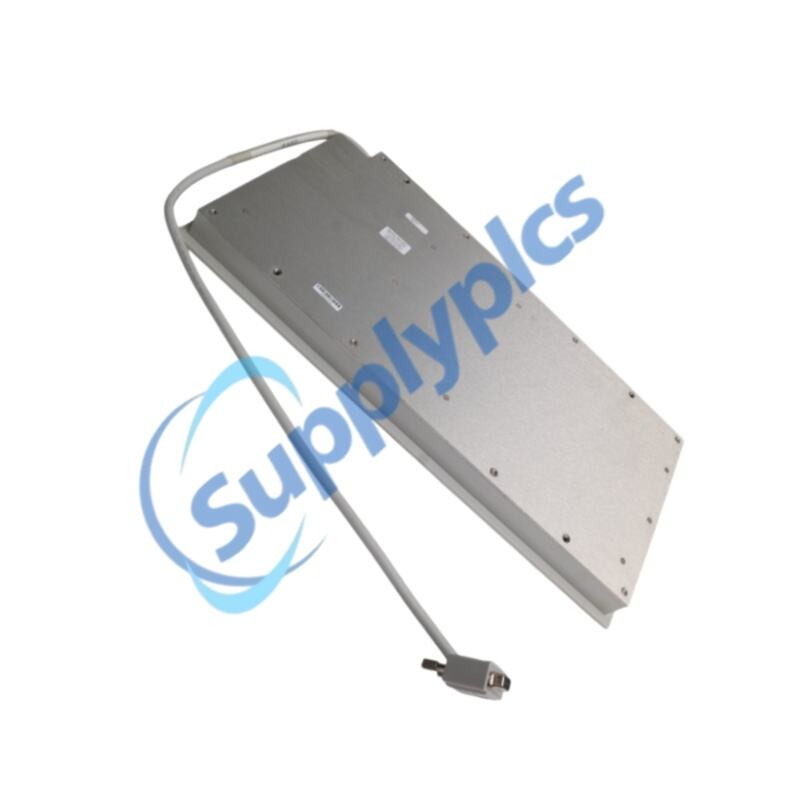

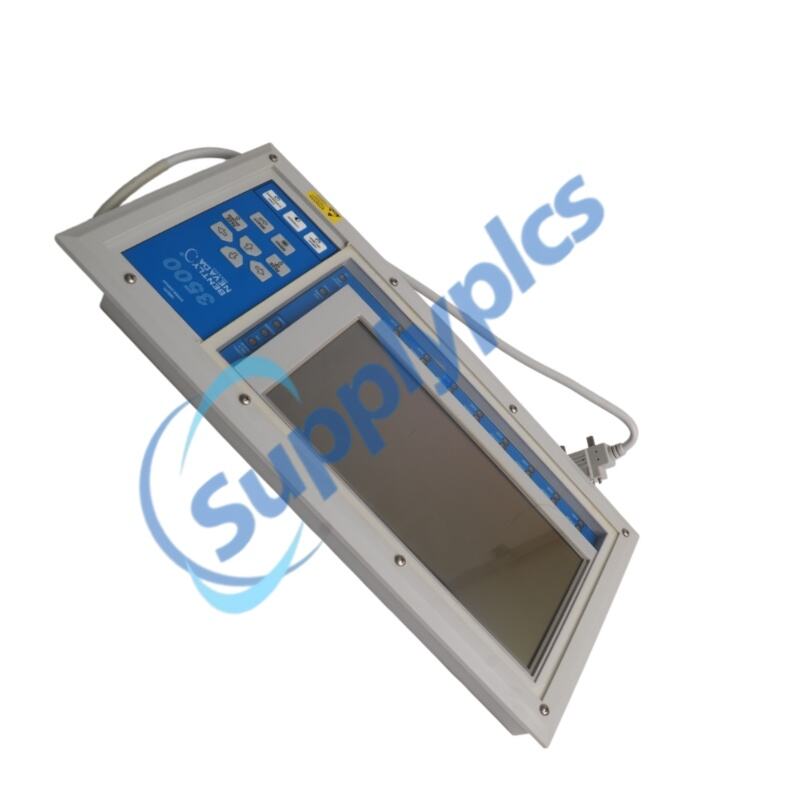

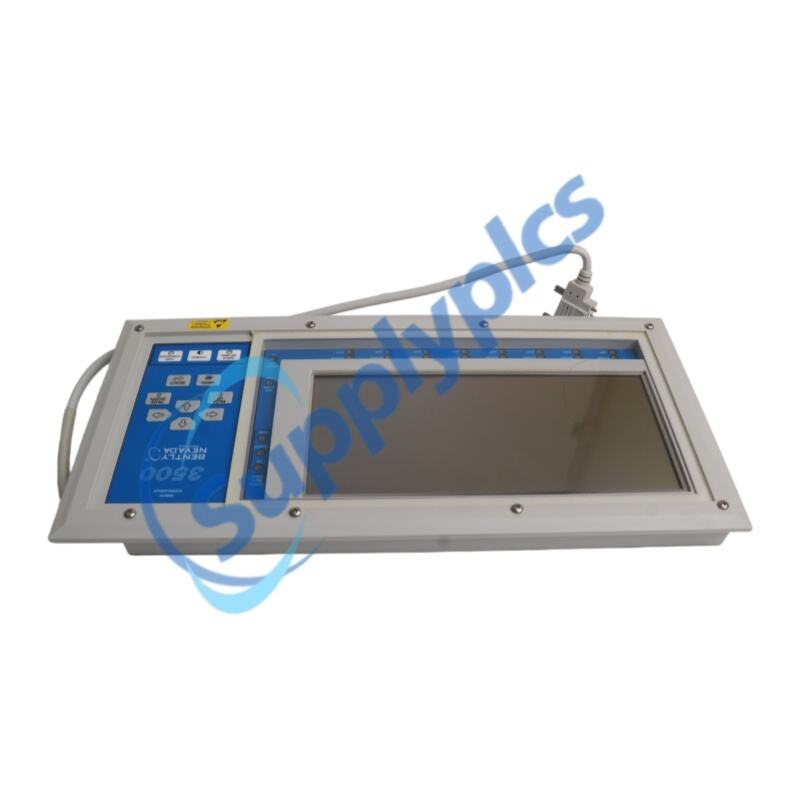

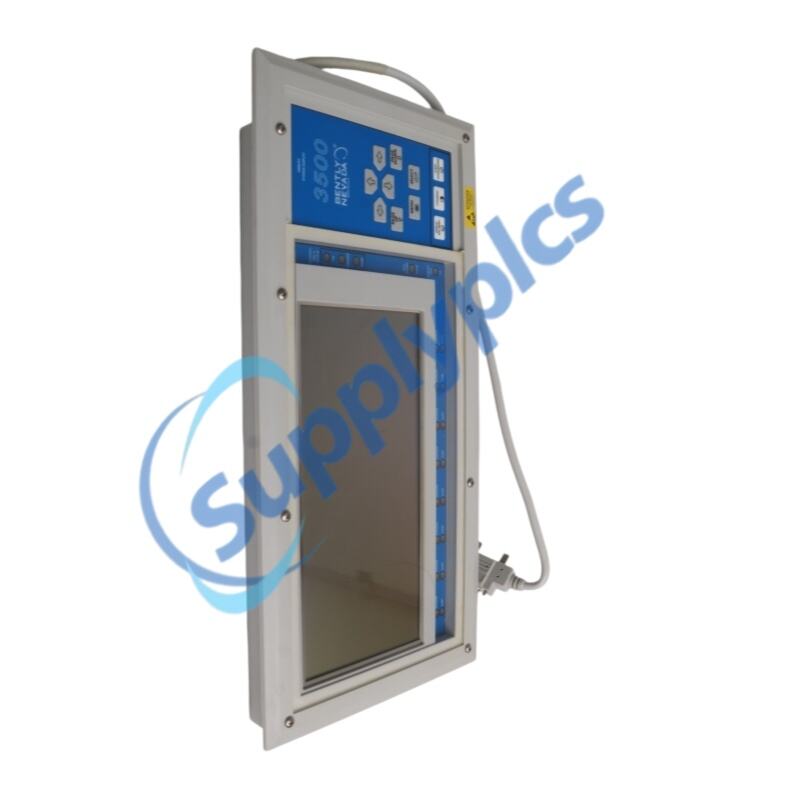

Bently Nevada 3500/93 135785-01 3500/93 Display Unit Original new

Bently Nevada 3500/93 135785-01 3500/93 Display Unit Original new

Product Name:Display Unit

Brand Name:Bently Nevada

Model Number:3500/93 135785-01

Country of Origin:USA

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Bently Nevada
Model Number:	3500/93 135785-01
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	3500/93 135785-01
Product Type	System Display Unit
Manufacturer	Bently Nevada
Display Resolution	640 × 200 Dot Matrix LCD
Display Type	Reflective FSTN LCD (Non-Backlighted)
Communication Interface	RS422
Protocol Support	Bently Nevada Proprietary Protocol, Modbus
Typical Update Rate	1 Second
Operating Temperature	-20°C to +65°C
Storage Temperature	-30°C to +80°C
Humidity	95% Non-Condensing
Power Consumption	Up to 15.5 W (System)
Dimensions (H × W × D)	203.2 × 412.8 × 31.2 mm
Weight	2.1 kg
Mounting Options	Face, Panel, Rack, Independent Mount
Hazardous Area Rating	Class I, Division 2, Groups A-D

Description

The 3500/93 135785-01 System Display is an advanced operator interface designed for the Bently Nevada 3500 Machinery Protection System. It provides clear visualization of machine condition data, alarm events, relay status, and monitoring parameters, helping maintenance teams make faster and more informed decisions. The display supports both local and remote installation, offering flexible deployment options for industrial monitoring environments.

As a key component of the 3500 series, the 135785-01 display unit works seamlessly with the 3500/93, Display Interface Module (DIM), Keyphasor modules, relay modules, and vibration monitoring channels. Its high-resolution graphical interface enables operators to view system diagnostics, event logs, and real-time operating conditions from a centralized location.

Built for demanding industrial applications, the 3500/93 135785-01 delivers dependable performance in power generation, oil and gas facilities, petrochemical plants, and rotating equipment protection systems. Its rugged construction, broad environmental tolerance, and compatibility with the 3500 platform make it a reliable solution for critical asset monitoring and machinery protection.

Applications

Power Plants: Provides real-time visualization of turbine, generator, and rotating equipment protection data.
Oil & Gas Facilities: Monitors critical machinery alarms and operational conditions in production environments.
Petrochemical Plants: Supports centralized display of equipment health and process protection information.
Steel Mills: Enables continuous monitoring of high-value rotating assets under harsh industrial conditions.
Machinery Manufacturing Plants: Assists with testing, commissioning, and performance monitoring of industrial equipment.
Compressor Stations: Displays vibration, speed, and protection system information for critical machinery.
Marine & Offshore Platforms: Offers reliable machinery status indication in demanding operating environments.

Features

High-resolution 640 × 200 graphical LCD display
Supports local or remote installation
Compatible with Bently Nevada 3500 monitoring systems
Displays alarms, events, relay status, and channel values
RS422 communication interface
Supports Modbus communication capability
Rugged industrial-grade construction
Multiple mounting configurations available
Fast 1-second data refresh rate
Suitable for hazardous industrial environments

Functions

Real-time machinery condition visualization
Alarm and event log display
Monitoring channel status indication
Relay module status presentation
Keyphasor and tachometer data viewing
System diagnostics and health monitoring
Operator interface for machinery protection systems
Centralized display of rack information

FAQ

Q1: What is the primary function of the 3500/93 135785-01?
A1: It provides visual monitoring of machine protection and condition monitoring data within a Bently Nevada 3500 system.

Q2: Can the 135785-01 be installed remotely from the rack?
A2: Yes, it supports remote mounting and can be located away from the 3500 rack using the appropriate interface components.

Q3: Which communication protocol does the display support?
A3: The unit supports RS422 communication and Modbus-compatible data exchange.

Q4: Is the 3500/93 display suitable for industrial environments?
A4: Yes, it is designed for harsh industrial applications and supports wide operating temperature ranges.

Q5: What information can operators view on the display?
A5: Operators can access alarm lists, event logs, channel values, relay status, Keyphasor data, and overall system health information.
