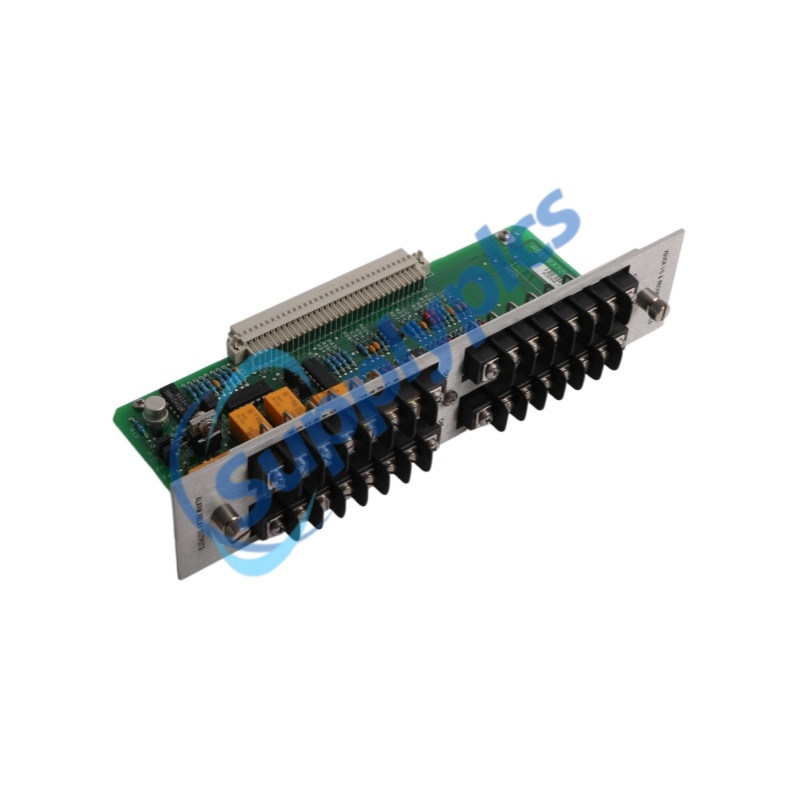

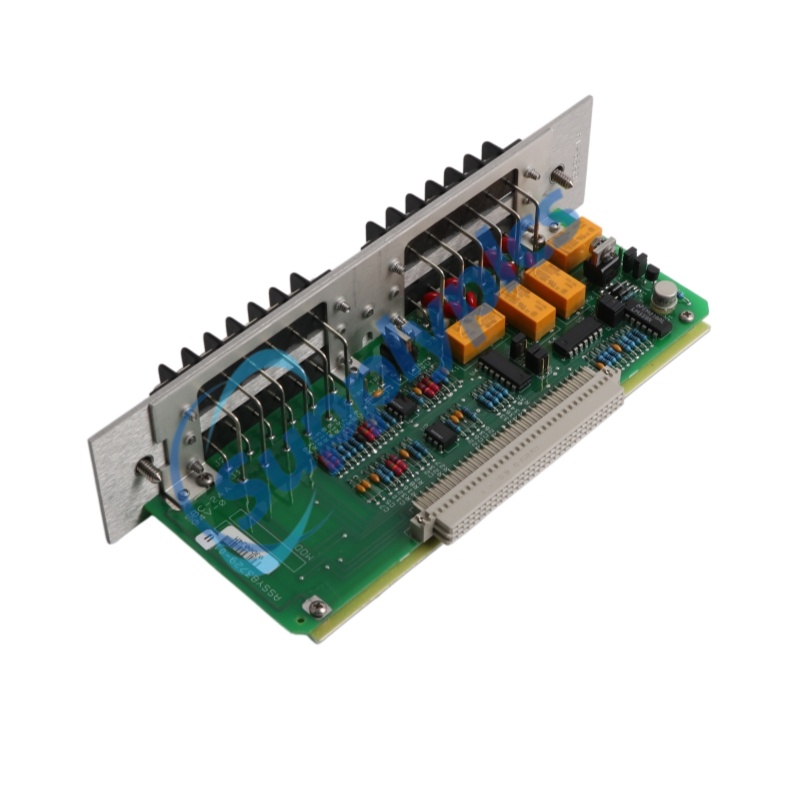

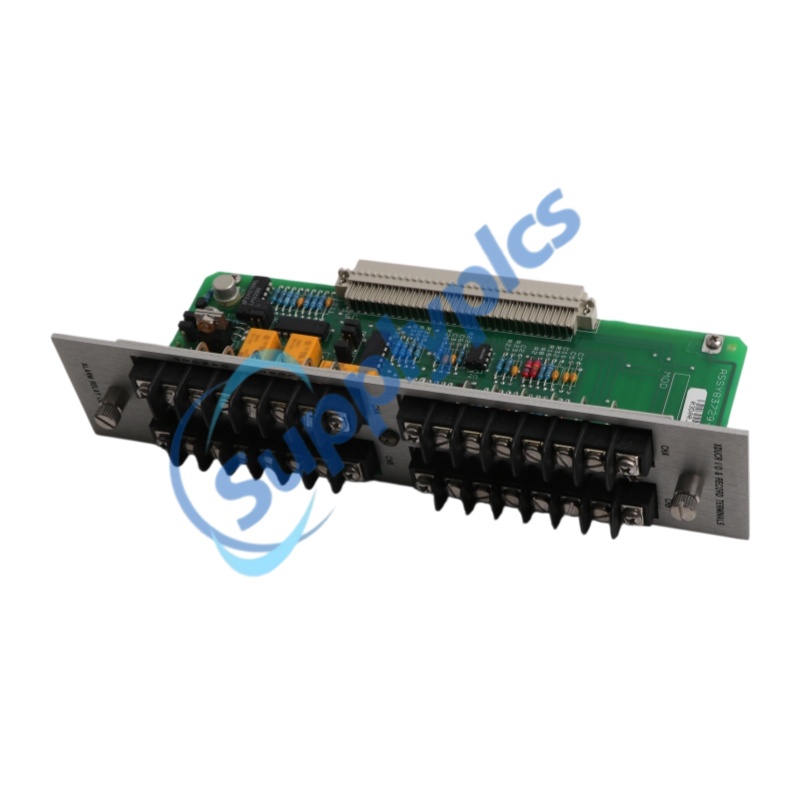

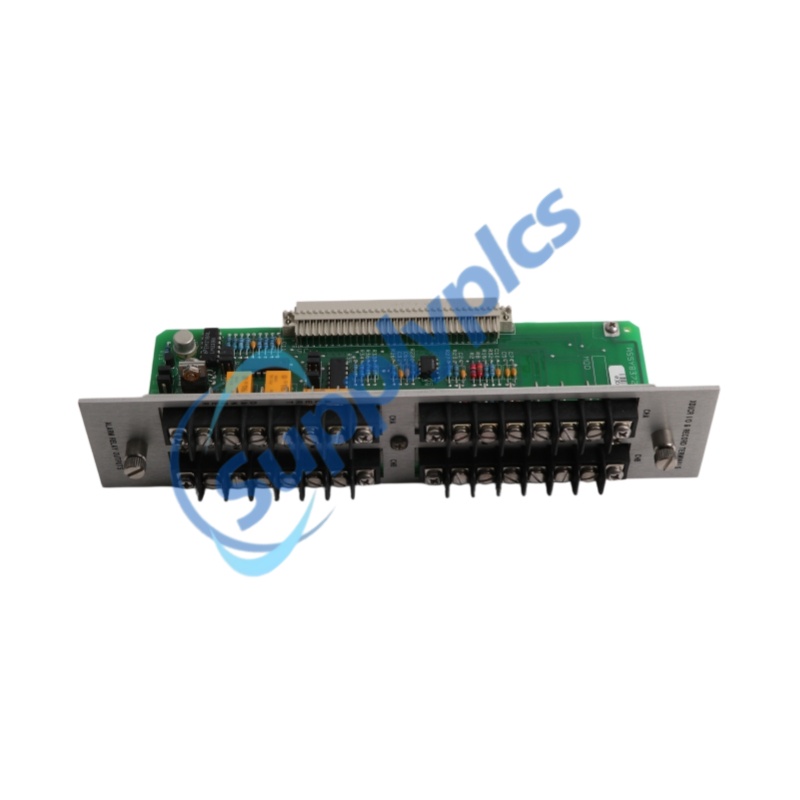

Product Name:Quad Relays
Brand Name:Bently Nevada
Model Number:84152-01
Country of Origin:USA
Warranty:12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
84152-01 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Parameter | Specification |
|---|---|
| Product Model: | 84152-01 dual thrust position monitor module, designed for axial shaft displacement and thrust bearing protection |
| System Compatibility: | Bently Nevada 3300 monitoring system platform, dual probe thrust monitoring configuration |
| Input Channels: | Dual proximity probe inputs, supports independent axial position measurement signals |
| Signal Sensitivity: | 100 mV/mil or 200 mV/mil selectable, optimized for precise displacement detection |
| Output Type: | Independent recorder outputs for each channel, supports current and voltage signal transmission |
| Operating Voltage: | -24 VDC system supply, stable industrial monitoring power requirement |
| Power Consumption: | Approximately 1.5 W low-power design for continuous operation |
| Dimension: | 83 mm (H) x 50 mm (W) x 120 mm (D), compact rack-mounted structure |
| Weight: | 1.0 kg (2.2 lbs), lightweight modular design for easy installation |
| Mounting Type: | Standard 3300 rack slot installation, plug-in modular configuration |
The 84152-01 is engineered for high-precision supervision of shaft axial movement in critical rotating machinery. It is commonly deployed within Bently Nevada 3300 monitoring platforms to provide early detection of thrust bearing wear or failure conditions.
As part of the 3300 series monitoring ecosystem, including models such as 3300/20, the 84152-01 supports dual-channel probe input for enhanced reliability and protection logic in demanding industrial environments.
Designed for turbine, compressor, and pump applications, this module delivers accurate axial position tracking, alarm handling, and machine protection functions. Its robust architecture ensures stable operation in continuous monitoring systems where safety and predictive maintenance are critical.
Power plants: Used for turbine generator axial displacement monitoring, thrust bearing protection, and shutdown safety systems.
Substations (substations): Enable equipment condition monitoring, protection relay logic, and axial position signal acquisition.
Chemical plants: Support process automation systems, machine safety control, and intrinsic safety monitoring applications.
Steel mills (metallurgical plants): Operate in high temperature and high EMI environments for continuous thrust position protection.
Machinery manufacturing plants: Applied in automated production lines, rotating equipment monitoring, and precision machine control systems.
Q1: What is 84152-01 used for?
A1: It is used for dual thrust position monitoring in rotating machinery to detect axial shaft displacement.
Q2: Is 84152-01 compatible with 3300 systems?
A2: Yes, it is fully designed for integration with Bently Nevada 3300 monitoring platforms.
Q3: What type of measurement does it provide?
A3: It measures shaft axial position relative to thrust bearing clearance using dual probes.
Q4: Why does it use dual-channel probes?
A4: Dual probes improve reliability and reduce false alarms through redundant measurement logic.
Q5: Where is 84152-01 commonly applied?
A5: It is widely used in turbines, compressors, pumps, and other critical rotating machinery systems.
