Product Parameters

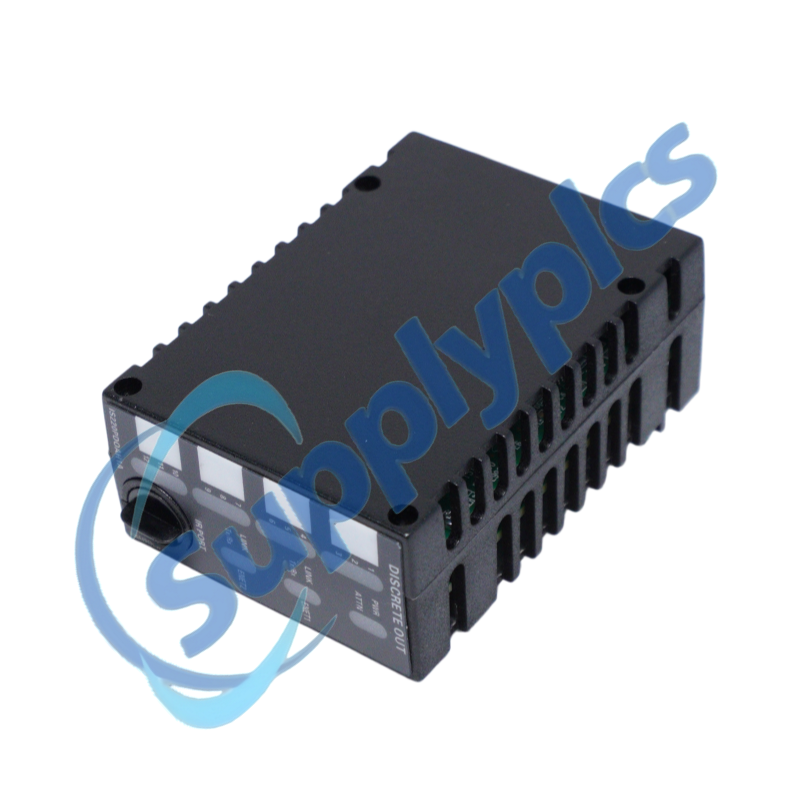

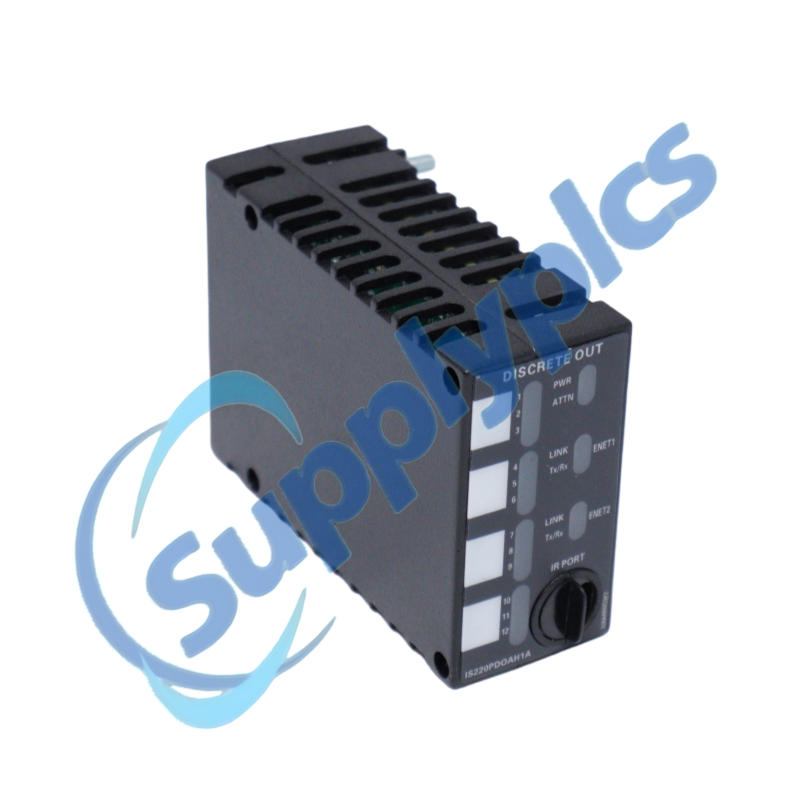

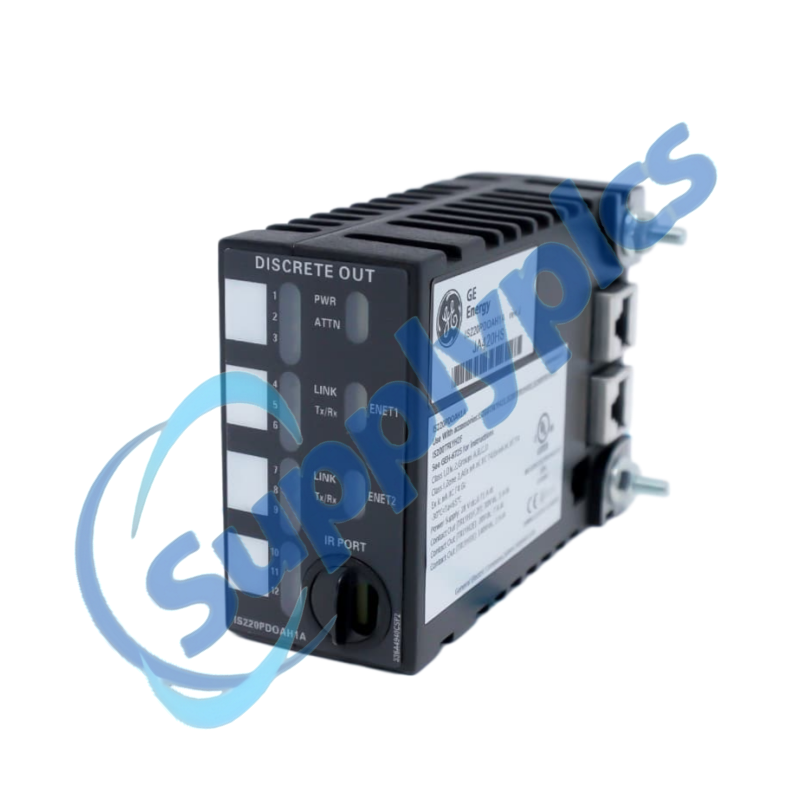

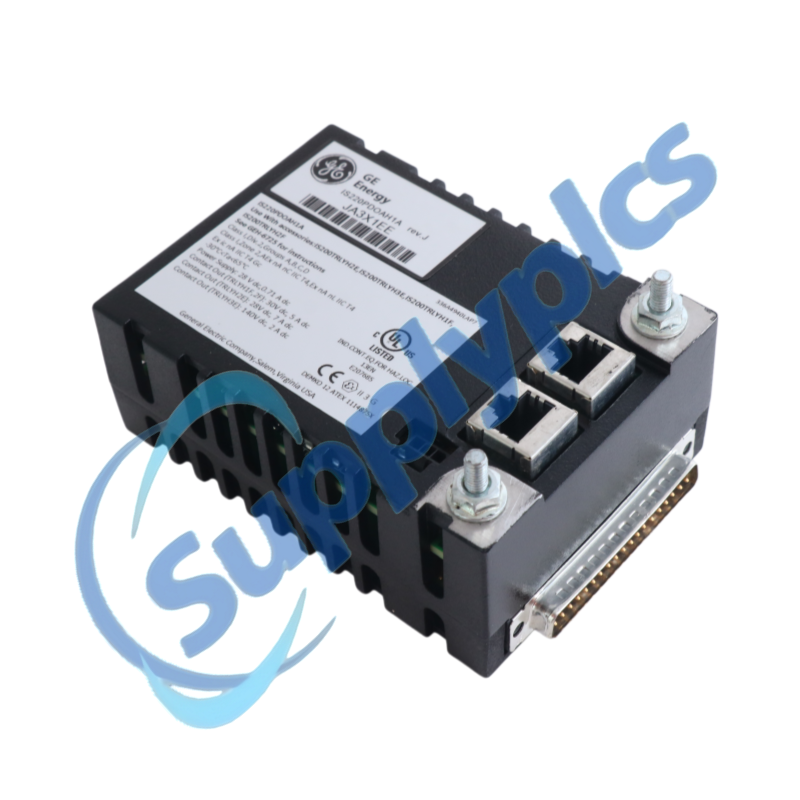

Product Name	GE IS220PDOAH1A DISCRETE OUTPUT
Manufacturer	General Electric
Product Type	DISCRETE OUTPUT
Part Number	IS220PDOAH1A
Weight	0.34 kg
Estimated shipping dimensions	8.2x12.2x6cm
Place of shipment	Xiamen, China
Country of origin	USA
Output Converter	12-bit
Temperature Operating	-30 to +65 C
Memory	128 MB of flash memory
Ethernet	10BaseT/100BaseTX (RJ-45)
Number of Channels	24
Inputs	125 V dc, 15A
Input Impedance	4-20 mA
Input Converter Resolution	16-bit A/D Converter
Product Type	Proportional Digital Output Module
Output Fuses 12 fuses	250 Volt, 15 A

Introduction

The GE IS220PDOAH1A Discrete Output Module is a high-performance industrial control component designed by General Electric for use in advanced automation and turbine control systems. As a Proportional Digital Output Module, it provides reliable signal processing and output control for demanding industrial applications. The module supports 24 output channels and incorporates a 12-bit output converter, enabling accurate and stable control of connected field devices. Its robust construction and industrial-grade design make it suitable for operation in harsh environments with temperatures ranging from -30°C to +65°C.

The IS220PDOAH1A is equipped with 128 MB of flash memory and a 10BaseT/100BaseTX Ethernet interface with an RJ-45 connector, ensuring efficient communication and data handling within modern control architectures. The module includes 12 integrated output fuses rated at 250 V and 15 A, providing enhanced circuit protection and operational safety. Manufactured in the USA and widely used in power generation, process automation, and industrial control systems, the IS220PDOAH1A delivers dependable performance, high reliability, and seamless integration into GE control platforms.

Functions

Provides proportional digital output control for industrial automation systems.
Supports 24 independent output channels for multiple device connections.
Converts digital control signals through a 12-bit output converter for precise output regulation.
Enables high-speed network communication via the integrated 10BaseT/100BaseTX Ethernet interface.
Stores configuration data and operational parameters using 128 MB flash memory.
Protects output circuits with 12 built-in fuses rated at 250 V and 15 A.
Supports monitoring and control of field equipment in power generation and process industries.
Operates reliably across a wide industrial temperature range from -30°C to +65°C.
Integrates with GE control systems to facilitate real-time process management.
Provides stable and accurate signal transmission for critical industrial applications.

Features

Supports 24 output channels for flexible field device control
High-precision 12-bit output converter for accurate signal transmission
16-bit A/D converter resolution for enhanced signal processing performance
Integrated 128 MB flash memory for configuration and diagnostic data storage
Built-in 10BaseT/100BaseTX Ethernet communication interface
Standard RJ-45 network connection for easy system integration
Wide operating temperature range from -30°C to +65°C
Equipped with 12 output protection fuses
Fuse rating of 250 V, 15 A for improved circuit safety
Designed for high-reliability industrial and power generation environments
Supports real-time communication within distributed control systems
Engineered for seamless integration with GE Mark VIe and related control platforms
Rugged industrial design for long-term operational stability
Suitable for turbine control, process automation, and critical infrastructure applications
Manufactured in the USA to meet stringent quality and performance standards.

Advantage

Compared with other digital output modules offering similar functionality, the IS220PDOAH1A stands out through its combination of integrated Ethernet networking, high channel density, wide operating temperature range, and built-in output protection. These characteristics help reduce installation complexity, improve system reliability, and lower maintenance requirements, making it a cost-effective and dependable choice for modern industrial control systems.

Higher system reliability through industrial-grade design and robust circuit protection.
Supports up to 24 output channels, reducing the need for additional output modules.
Integrated Ethernet communication enables faster data exchange and simplified network connectivity.
Wide operating temperature range allows installation in challenging industrial environments.
Compact size and low weight simplify installation and maintenance.
128 MB flash memory provides sufficient capacity for configuration storage and diagnostics.
Built-in 15 A fused outputs enhance equipment protection and reduce downtime.
Compatible with advanced GE control architectures, enabling seamless system integration.
Delivers precise output control through its 12-bit converter technology.
Suitable for mission-critical applications in power generation, oil and gas, and process industries.

FAQ

Q: How many output channels does the IS220PDOAH1A support?
A: The IS220PDOAH1A supports 24 output channels, allowing it to control multiple field devices simultaneously.

Q: Does the IS220PDOAH1A support Ethernet communication?
A: Yes, the IS220PDOAH1A includes a 10BaseT/100BaseTX Ethernet interface with an RJ-45 connector for high-speed communication.

Q: What is the operating temperature range of the IS220PDOAH1A?
A: The IS220PDOAH1A is designed to operate reliably in temperatures ranging from -30°C to +65°C.

Q: What type of memory is included in the IS220PDOAH1A?
A: The IS220PDOAH1A is equipped with 128 MB of flash memory for configuration storage and operational data management.

Q: What protection features are available in the IS220PDOAH1A?
A: The IS220PDOAH1A includes 12 built-in output fuses rated at 250 V and 15 A to help protect connected circuits and equipment.

Q: In which industries is the IS220PDOAH1A commonly used?
A: The IS220PDOAH1A is commonly used in power generation, industrial automation, oil and gas facilities, and process control applications.
