GE Mark VIe PROFIBUS MASTER GATEWAY I/O MODULE IS220PPRFH1B Original new

The IS220PPRFH1B (PPRF) is a PROFIBUS DPV0 Class 1 master gateway module engineered by GE for the Mark VIe distributed control platform. The IS220PPRFH1B acts as a communication bridge between the Mark VIe IONet‑based controller and PROFIBUS DP slave devices, mapping controller I/O to field sensors and actuators. The IS220PPRFH1B integrates a shared Mark VIe processor board with a Hilscher COM‑C communication module, supporting up to 125 PROFIBUS slaves at speeds up to 12 Mbps. With dual redundant Ethernet ports and multiple redundancy modes (simplex, dual‑port, hot‑backup), the IS220PPRFH1B delivers deterministic, real‑time data exchange for safety‑critical turbine and industrial control applications. DIN rail‑mountable and ATEX Zone 2 certified, the IS220PPRFH1B is built for harsh environments and high‑availability systems.

• Gas turbine control systems (GE Speedtronic Mark VIe platform) connecting PROFIBUS field devices to IONet

• Steam turbine and wind turbine distributed I/O automation architectures

• Combined‑cycle power plants and power generation facilities requiring high‑availability communication

• Compressor station automation, pipeline control, and industrial process control (chemical, petrochemical, refining)

• Offshore platforms and hazardous location installations (ATEX Zone 2 / Class I Div 2)

• Retrofit of legacy PROFIBUS systems with GE Mark VIe controllers

• Water treatment, mining, and material handling systems with distributed sensors and actuators

• Nuclear power plant safety systems requiring redundant communication links

• PROFIBUS DPV0 Class 1 master (Hilscher COM‑C module): Implements full DPV0 master functionality including slave configuration, cyclic I/O data exchange, and PROFIBUS diagnostic reception via Siemens ASPC2 technology — despite COM‑C hardware supporting DPV1, the firmware is configured for DPV0 .

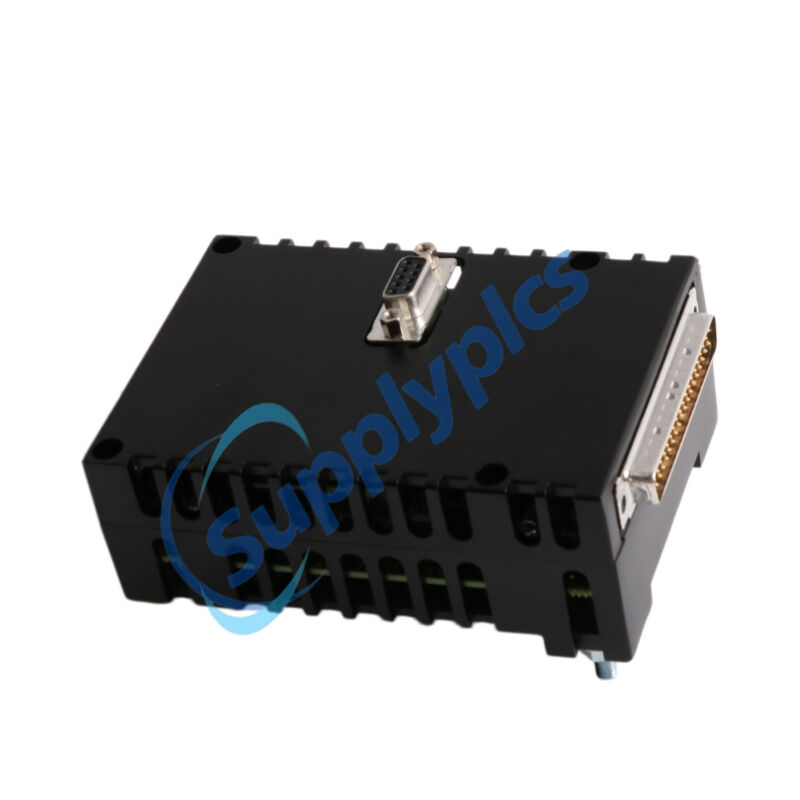

• High‑speed PROFIBUS RS‑485 interface with wide baud rate range: Built‑in COM‑C module provides a DE‑9 D‑sub RS‑485 connector, supporting transmission rates from 9.6 KBaud to 12 MBaud with automatic baud rate detection for compatibility with mixed slave device populations .

• Large‑scale slave support with high I/O throughput: Handles up to 125 PROFIBUS slave devices, each capable of 255 bytes of input and output data, with a system throughput of 500 inputs and 500 outputs per gateway, making it suitable for large distributed I/O networks .

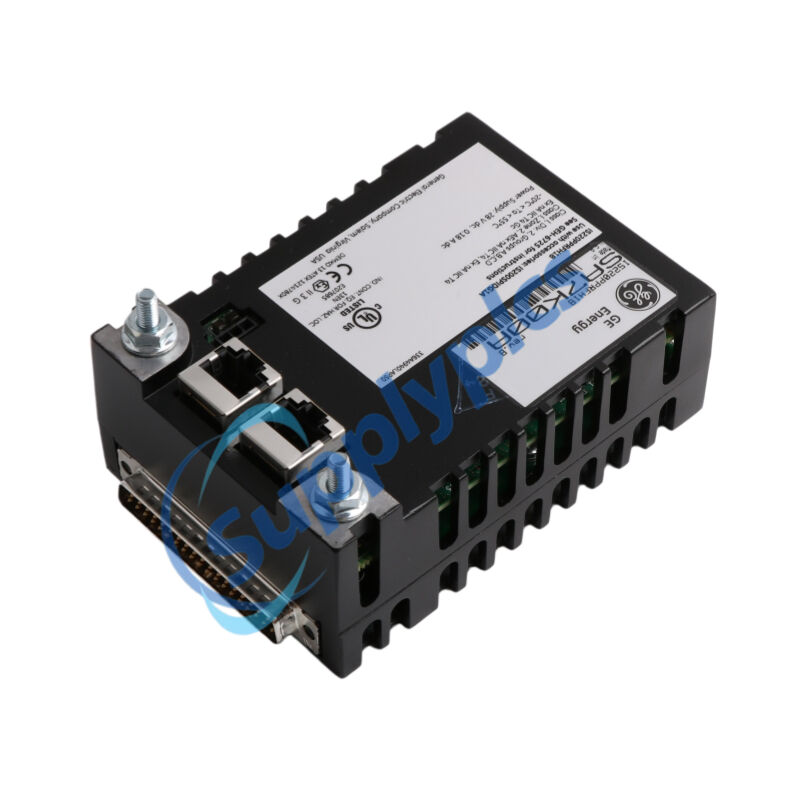

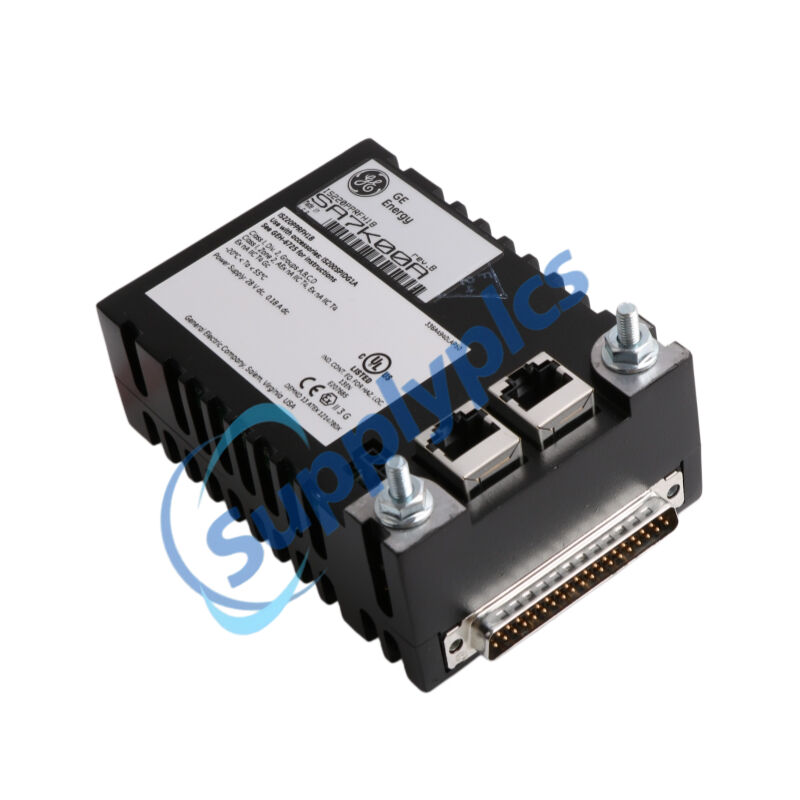

• Dual redundant IONet Ethernet ports: Two independent RJ‑45 10/100 Mbps Ethernet ports support IEEE 1588 Precision Time Protocol, enabling seamless integration into Mark VIe redundant backplane architectures .

• Flexible redundancy modes: Supports simplex (single I/O pack), dual Ethernet (single pack, two networks), and hot‑backup (two PPRF modules – active/standby) configurations for high‑availability critical systems with automatic failover .

• Plug‑and‑play installation with soft‑start inrush limiting: Directly mounts onto IS200SPIDG1A terminal board via proprietary connector; integrated soft‑start circuit controls inrush current, allowing live cable connection without power removal .

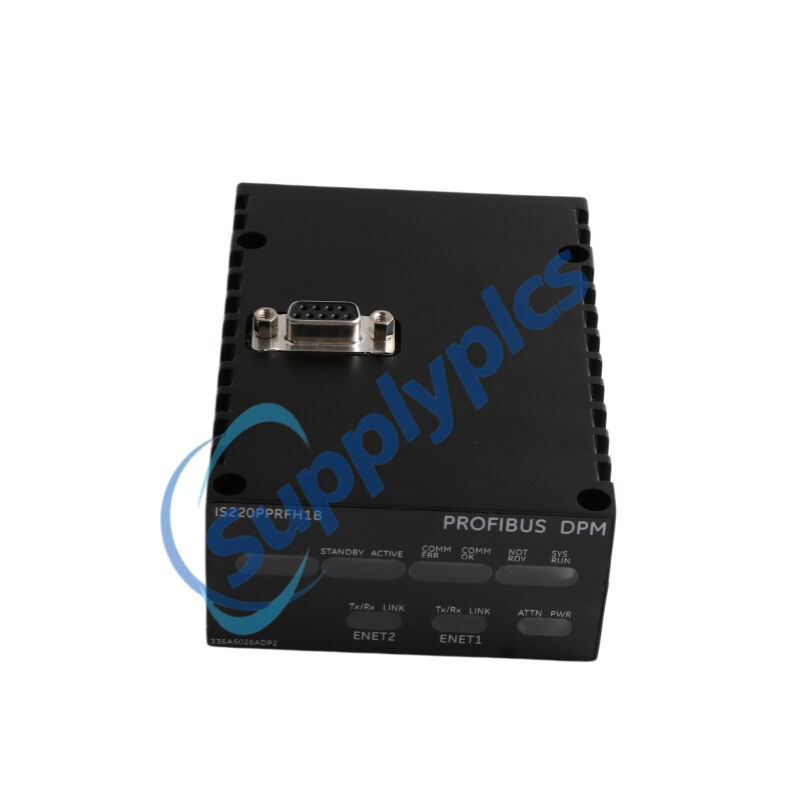

• Comprehensive LED diagnostic array: Front‑panel LEDs provide real‑time visual status for Standby/Active, CommErr/CommOK (communication error/healthy), Not Rdy/System Run (processor readiness), and ENET1/ENET2 link/activity, enabling rapid on‑site troubleshooting .

• Power‑up hardware self‑test with compatibility verification: At startup, the processor validates RAM, flash memory, Ethernet ports, and processor hardware, then reads board ID data to verify that the application code matches the acquisition board and terminal board before enabling operation .

• ATEX Zone 2 and Class I Division 2 hazardous location certified: Certified for UL Demko 12 ATEX 1114875X and UL E207685, allowing installation in potentially explosive atmospheres (gas zones, refineries) when paired with IS200SPIDG1A terminal board .

• Conformal coating with surge / EMI protection: PCB features conformal coating for moisture and chemical resistance, plus 6 kV surge protection and EMI/RFI shielding for reliable operation in high‑noise industrial environments .

• ToolboxST software configuration: All PPRF parameters are configured via GE‘s ToolboxST engineering software; PROFIBUS slave definition is handled via standard GSD files loaded into the project .

• Electronic ID board recognition: The associated SPIDG1A terminal board contains an electronic ID chip that identifies the board type, serial number, and hardware revision to the PPRF processor, ensuring correct hardware pairing and configuration validation .

• Fixed I/O mapping for system‑wide diagnostics: Predefined fixed I/O signals (L3DIAG, IOPackTmpr) are automatically available to the controller, providing continuous health status without application‑driven configuration .

• Translates Mark VIe IONet protocol to PROFIBUS DP, allowing the Mark VIe controller to exchange I/O data with PROFIBUS slave devices (pressure transmitters, valve positioners, motor drives, etc.) as if they were native I/O.

• Configures connected PROFIBUS slave devices using parameters defined in the GSD file, including device address, I/O data mapping, diagnostic thresholds, and communication timing.

• Executes cyclic I/O data exchange with all 125 slave devices simultaneously, maintaining deterministic and real‑time data delivery for safety‑critical turbine control loops.

• Performs automatic load balancing for Modbus read operations, distributing requests across available connections to prevent bottlenecks and improve system throughput.

• Monits the health of the PROFIBUS network, detecting cable faults, device disconnections, or communication errors and reporting them via LED status indicators and controller fault tables.

• Electrically isolates the field‑side PROFIBUS RS‑485 interface from the IONet backplane via the COM‑C module, blocking conducted EMI and ground loops in high‑voltage turbine cabinets.

• Supports hot‑backup redundancy: two PPRF gateways operate as an active‑standby pair; when the active master fails, the standby assumes control of the PROFIBUS network with minimal interruption.

• Provides deterministic time synchronisation across the IONet via IEEE 1588 PTP, enabling coordinated event time‑stamping and sequence‑of‑event recording between distributed I/O packs.

• Stores its configuration data (including PROFIBUS slave parameters) in non‑volatile flash memory, retaining all settings through power cycles; a power‑up self‑test verifies configuration integrity before enabling field communication.

• Reports diagnostic conditions (COM‑C module fault, Ethernet link loss, board ID mismatch, temperature out‑of‑range) via L3DIAG status bits and front‑panel LED indications.

• Loads application code specific to the PPRF type from flash memory at startup, cross‑referencing board ID information to verify that the loaded code matches the acquisition board and terminal board.

Q1: What is the IS220PPRFH1B used for?
A1: The IS220PPRFH1B is a PROFIBUS DPV0 Class 1 master gateway that bridges GE Mark VIe controllers (IONet) to PROFIBUS DP slave devices such as sensors, actuators, drives, and valve positioners.

Q2: How many PROFIBUS slaves can the IS220PPRFH1B support?
A2: It supports up to 125 PROFIBUS slaves, each capable of handling 244–255 bytes of inputs and outputs, with total throughput of 500 inputs and 500 outputs .

Q3: What redundancy options does the IS220PPRFH1B offer?
A3: Three redundancy modes are available: simplex (single pack, one network), dual Ethernet (single pack, two IONet connections), and hot‑backup (two PPRF packs – active/standby) .

Q4: Which terminal board is required for the IS220PPRFH1B ?
A4: The IS220PPRFH1B must be mounted on the IS200SPIDG1A PROFIBUS Master Gateway Terminal Board, which provides the electronic ID and physical mounting interface .

Q5: Is the IS220PPRFH1B suitable for hazardous location installations?
A5: Yes. The IS220PPRFH1B carries UL Class I, Division 2, Groups A‑D and ATEX Zone 2 Group IIC certifications, making it suitable for potentially explosive atmospheres when used with the appropriate enclosure and terminal board .
