Product Name: Motor Management Relay
Brand Name: GE
Model Number:269PLUS-D/O-216-100P-HI
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
269PLUS-D/O-216-100P-HI |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Manufacturer |
GE Multilin |
|
Model |
269PLUS-D/O-216-100P-HI |
|
Type |
Motor Protection System for medium-sized AC motors |
|
Phase Current Input Range |
0.05 to 12 x phase CT primary amps |
|
Ground Fault Input |
0.1 to 1.0 x GF CT primary amps (5 A secondary CT); 1.0 to 10.0 A (50:0.025 A / 2000:1 CT) |
|
Overload Curves |
8 standard curves + FlexCurve™ custom curve |
|
RTD Inputs |
10 programmable RTD inputs |
|
Output Relays |
4 Form-C contacts (Trip, Alarm, Aux 1, Aux 2) |
|
Analog Output |
1 programmable 4-20 mA output |
|
Control Power |
HI range: 80-300 V DC / 65-265 V AC, 50/60 Hz |
|
Power Consumption |
20 VA max |
|
Operating Temperature |
-25°C to +60°C |
|
Humidity |
Up to 95% non-condensing |
|
Weight |
8.6 lbs (3.9 kg) |
|
Certifications |
UL, CSA, CE, ISO9001 |

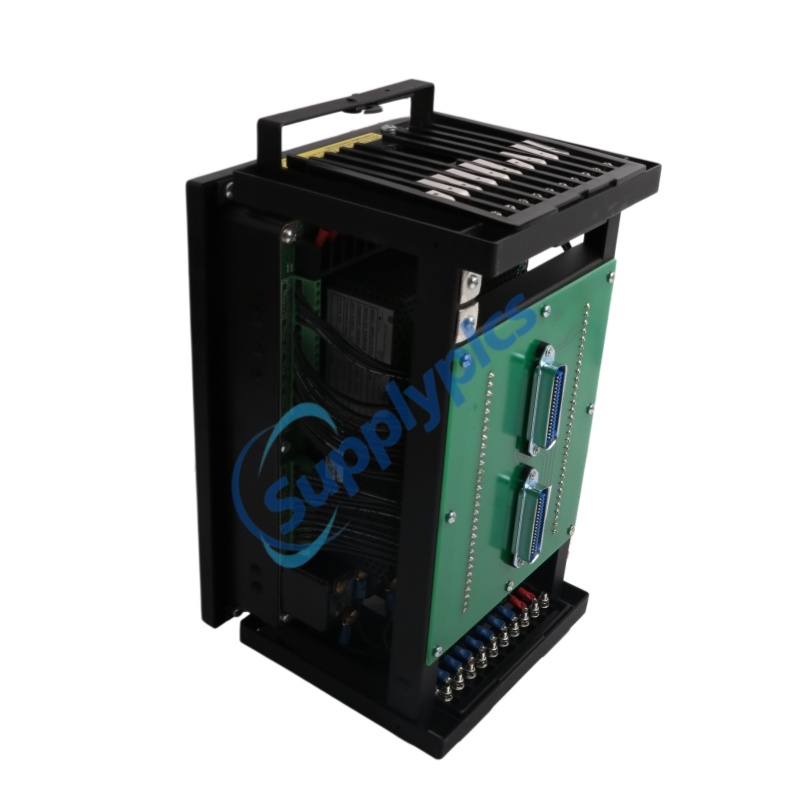

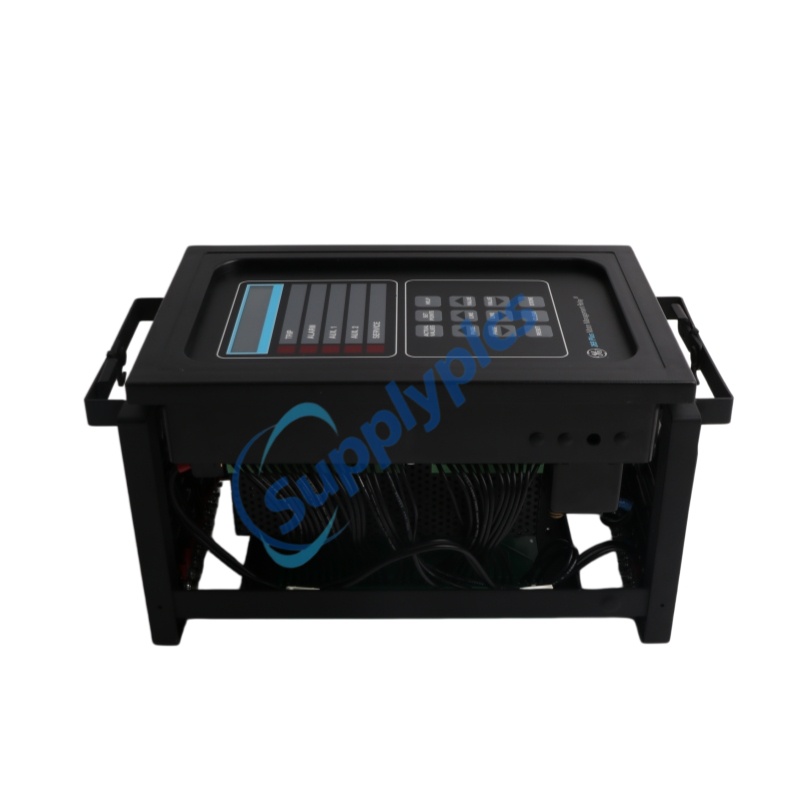

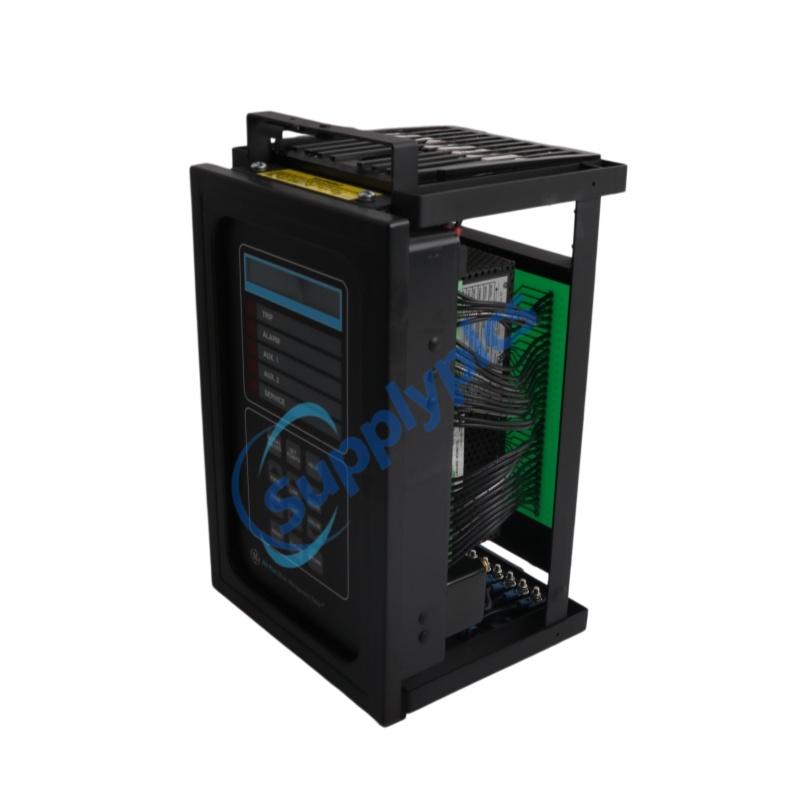

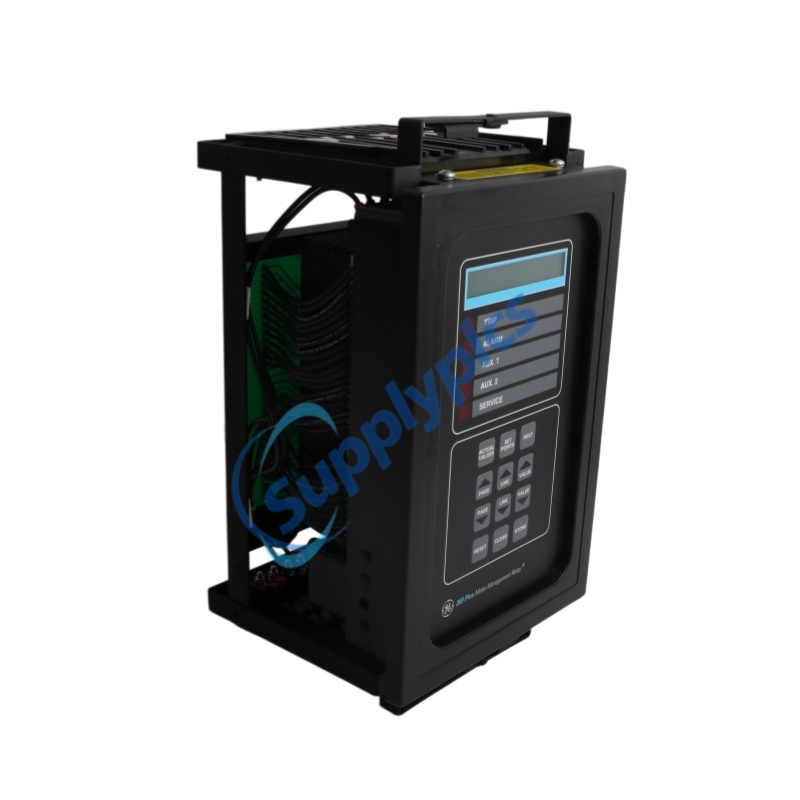

The 269PLUS-D/O-216-100P-HI is a digital motor protection relay from GE Multilin's 269 Plus series, engineered for comprehensive protection and control of medium-sized AC motors. This 269PLUS-D/O-216-100P-HI model features a drawout case option (D/O) for simplified maintenance, 216 A input rating, 100 A output capacity, and a high-range control power supply (80-300 V DC / 65-265 V AC). Equipped with 100 Ohm platinum RTDs, the 269PLUS-D/O-216-100P-HI integrates advanced thermal modeling, unbalance biasing, and RTD temperature monitoring.
Pumps, fans, and compressors
Conveyors and material handling systems
HVAC systems in commercial and industrial facilities
Mining and aggregate processing equipment
General industrial motor control applications
Drawout case option for bench testing without motor shutdown
MotorMatch system with learned thermal and cooldown parameters
FlexCurve™ custom overload curve programming
Start inhibit with auto-timed lockout
Exponential cooldown characteristic
RS485 communication with Modbus RTU protocol
Emergency restart capability
Built-in simulation features for simplified testing
The relay provides overload, phase loss, unbalance, ground fault, short circuit, and mechanical jam protection. It monitors current, RTD temperatures, and ground leakage current. The thermal model uses calculation with RTD feedback, exponential cooldown, and negative-sequence biasing. It offers fault diagnosis with last trip data, statistical records (StatTrac), and self-test diagnostics.
Q1: What does the "D/O" designation in 269PLUS-D/O-216-100P-HI indicate?
A1: "D/O" indicates the drawout case version, allowing relay removal for bench testing without motor shutdown.
Q2: What type of RTDs does the 269PLUS-D/O-216-100P-HI use?
A2: The relay uses 100 Ohm platinum RTDs, with other types available by order.
Q3: What is the control power range for the 269PLUS-D/O-216-100P-HI?
A3: It accepts 80-300 V DC or 65-265 V AC at 50/60 Hz.
Q4: What communication protocol does the 269PLUS-D/O-216-100P-HI support?
A4: It supports Modbus RTU communication via an RS485 serial port.
Q5: What protection features does the 269PLUS-D/O-216-100P-HI offer?
A5: It provides overload, phase loss, unbalance, ground fault, short circuit, mechanical jam, and undercurrent protection.
