Product Name: Analog Output Module
Brand Name: GE
Model Number:IC697ALG320
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
IC697ALG320 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

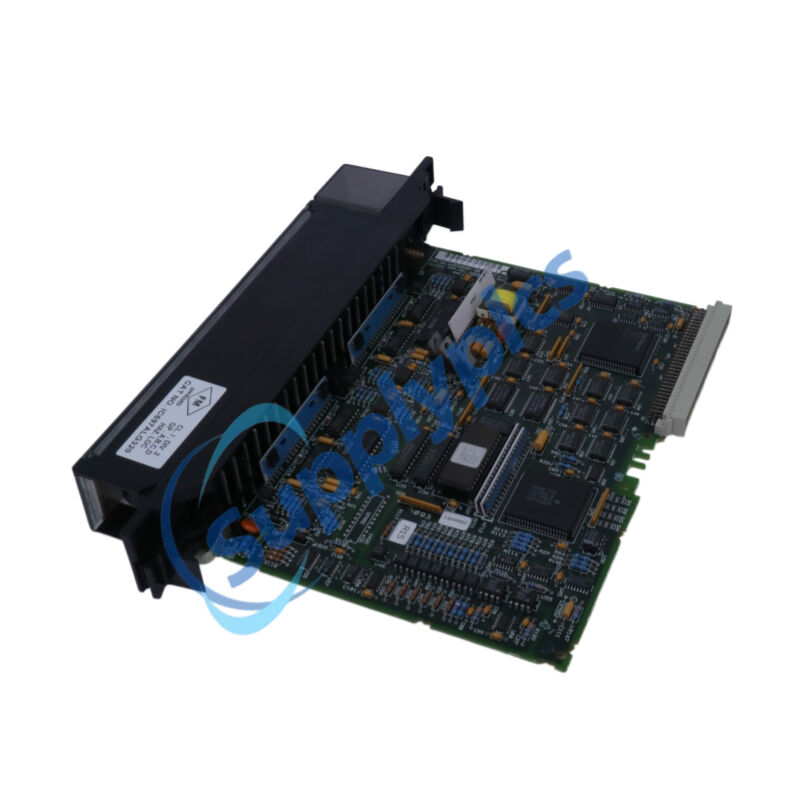

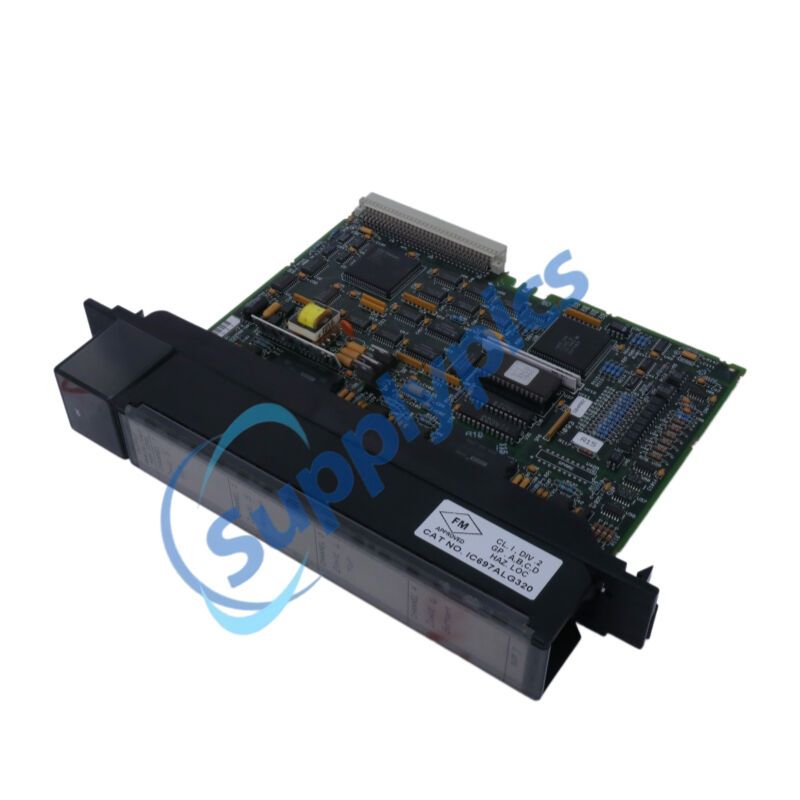

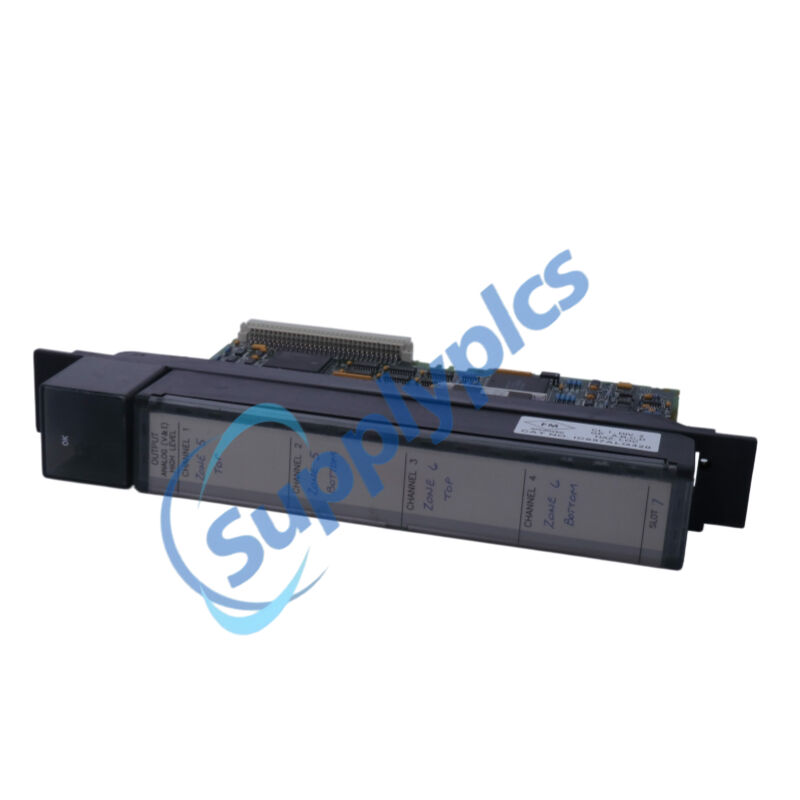

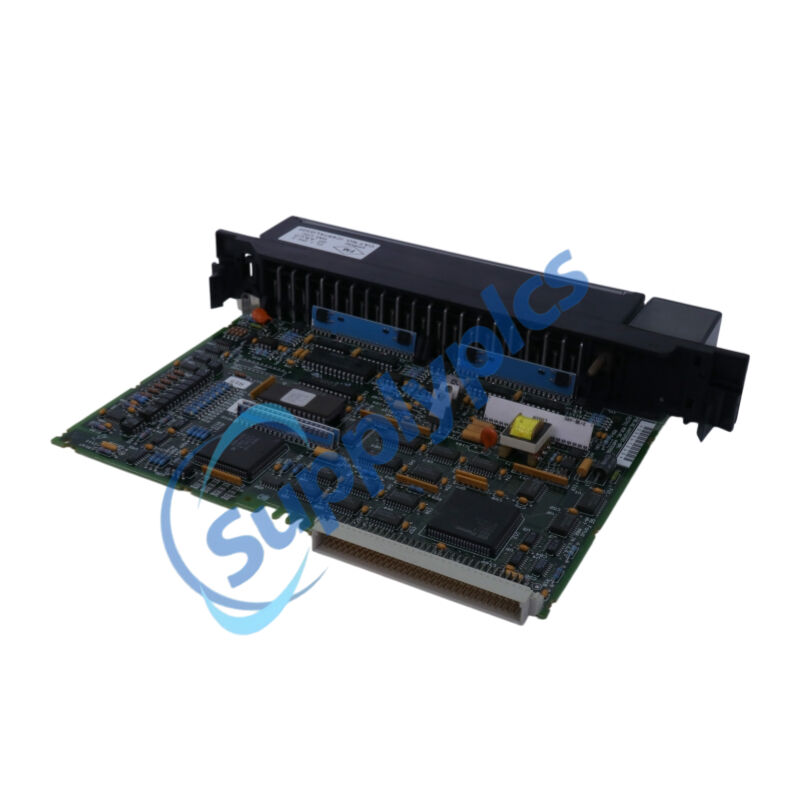

The IC697ALG320 is a 4‑channel high‑level analog output module from GE Fanuc‘s Series 90‑70 PLC family. Each channel on the IC697ALG320 can be independently configured for voltage (±10 V, 0–10 V) or current (4–20 mA, 0–20 mA) via software without jumpers. The IC697ALG320 converts digital data from the CPU into precise analog signals for field actuators, variable frequency drives, and control valves. Factory calibration data is stored in non‑volatile EEPROM, and outputs are galvanically isolated from the backplane. With a 2 ms update rate and comprehensive diagnostics, the IC697ALG320 ensures accurate, reliable control in demanding industrial environments
4 independent analog output channels – voltage and current on a single module
16‑bit resolution with 14‑bit monotonicity – high‑precision signal generation
Factory calibration in EEPROM – long‑term stability, no field calibration
Galvanic isolation from backplane – protects against transient overvoltage
Diagnostic suite – over‑range, under‑range, open‑wire detection, module health monitoring
Fast 2 ms conversion rate – all channels updated sequentially
Output hold/default mode – configurable behavior on CPU communication loss
Removable 40‑terminal screw block – simplified field wiring
Converts PLC digital data (16‑bit words in %AQ memory) into analog voltage or current outputs
Provides 16‑bit DAC resolution: 312.5 µV per LSB for voltage, 0.5 µA per LSB for 4–20 mA
Reports diagnostic faults to CPU I/O fault table and energizes fault contact (if point faults enabled)
Supports COMMREQ ladder function for runtime configuration changes (fault reporting, output defaults)
Allows 0.5 VDC compliance voltage between channels to prevent ground loops
Q1: How many output channels does the IC697ALG320 provide?
A1: Four individually configurable analog output channels.
Q2: What output signals can the IC697ALG320 generate?
A2: Voltage outputs (±10 V, 0–10 V, ±5 V, 0–5 V) or current outputs (0–20 mA, 4–20 mA).
Q3: How do I configure the IC697ALG320 output ranges?
A3: Via MS‑DOS or Windows programming software (no jumpers or DIP switches required).
Q4: Does the IC697ALG320 require external power for current outputs?
A4: Yes, a user‑supplied 10–30 V DC power supply (24 V typ) is required for current loop operation.
Q5: What diagnostics does the IC697ALG320 offer?
A5: Over‑range, under‑range, open‑wire (for 4–20 mA), configuration error detection, and module health monitoring.
