Product Name:Digital Input Module
Brand Name:Honeywell
Model Number:900G02-0102
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
900G02-0102 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Parameter | Specification |
|---|---|
| Product Model | 900G02-0102 |
| Product Type | DC Voltage Digital Input Module |
| Input Channels | 16 Channels (Sinking) |
| Input Voltage Range | 10 VDC to 32 VDC |
| Peak Voltage | 32 VDC |
| ON Voltage Level | 9.5 VDC Minimum |
| OFF Voltage Level | 3.5 VDC Maximum |
| Input Impedance | 2.6 KΩ Nominal |
| Input Current | 2.3 mA @ 12VDC / 6.9 mA @ 24VDC |
| Isolation | 2 Groups of 8 Inputs, 42.4 VDC Max |
| Response Time | 4 ms Max ON/OFF |
| Power Consumption | 5V; 130mA Max |
| Mounting Type | 35 mm DIN Rail |
| Dimensions | 137 mm × 35.6 mm × 66 mm |
| Weight | Approx. 210 g |
| Operating Temperature | 0°C to 60°C |
| Certifications | CE, UL, CSA, FM, ATEX |

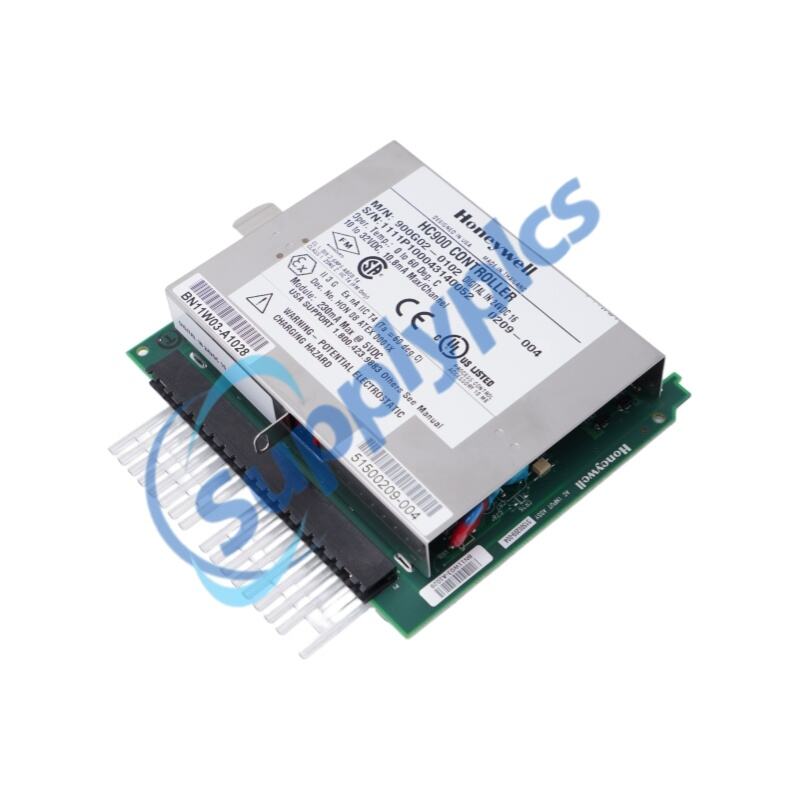

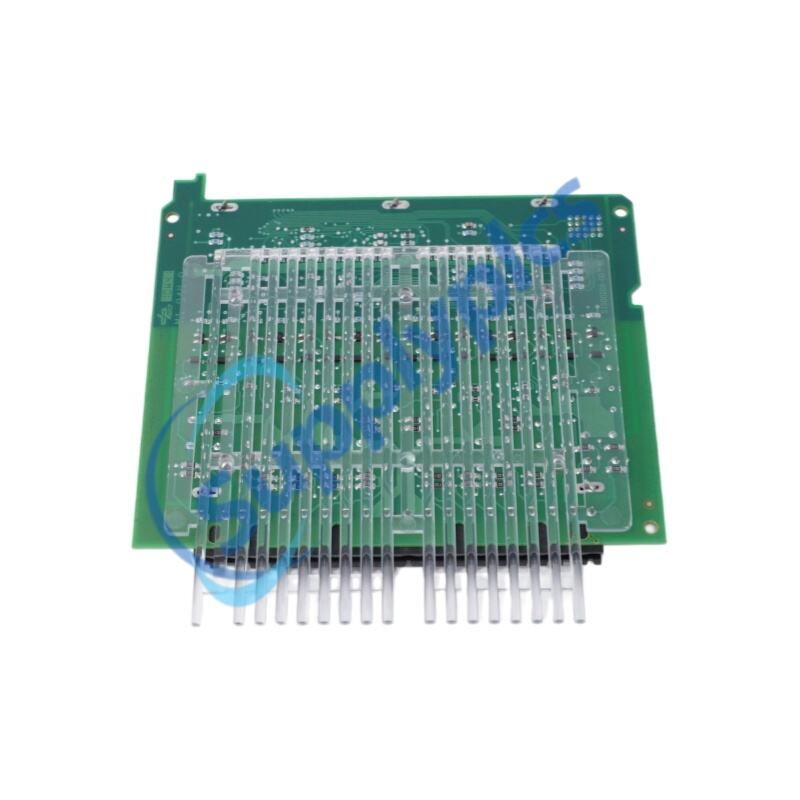

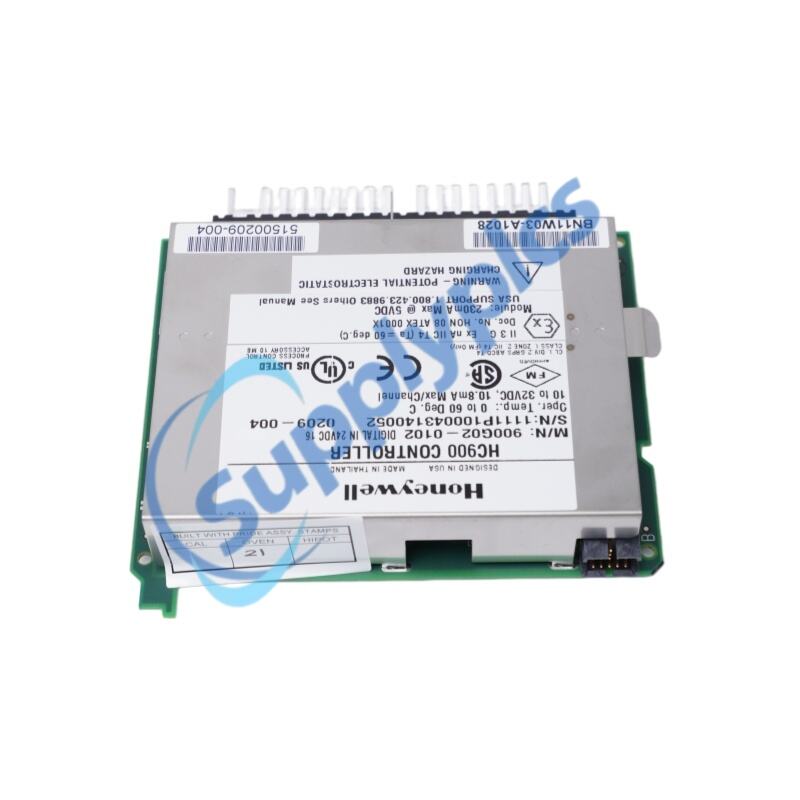

Honeywell 900G02-0102 is a compact and high-efficiency DC digital input module engineered for the ControlEdge HC900 distributed control platform. Designed for industrial automation environments, the module supports 16 sinking-type digital inputs with a voltage range of 10 to 32 VDC, enabling stable and accurate signal monitoring for field devices, switches, and control systems.
The 900G02-0102 adopts a dual-group isolation architecture with two independent groups of 8 inputs, improving signal integrity and reducing electrical interference in demanding industrial applications. Built-in LED indicators provide real-time channel status, communication activity, force indication, and fault diagnostics, helping maintenance teams quickly identify operational conditions.
Compatible with other Honeywell HC900 modules such as 900G03-0202, 900G04-0101, and 900H32-0102, the 900G02-0102 is widely applied in power generation, manufacturing automation, petrochemical processing, and machinery control systems requiring dependable DC digital signal acquisition.
Q1: What is the primary function of the 900G02-0102 module?
A1: It is used to monitor and process 16 channels of DC digital input signals within Honeywell HC900 control systems.
Q2: What voltage range is supported by the 900G02-0102?
A2: The module supports DC input voltages from 10 VDC to 32 VDC.
Q3: Does the 900G02-0102 support electrical isolation?
A3: Yes, it includes two isolated groups of 8 inputs to improve signal stability and protection.
Q4: Can the module be installed or removed while powered on?
A4: Yes, the HC900 platform supports hot-swapping of I/O modules during operation.
Q5: Which industries commonly use the 900G02-0102?
A5: It is widely used in power generation, petrochemical, steel manufacturing, and industrial automation systems.
| Number | Description |
|---|---|
| 900G03-0202 | Digital Input 120/240 VAC, 16 Ch |
| 900G32-0101 | Digital Input 24VDC, 32 Ch |
| 900G01-0202 | Digital Input, Contact Type, 16 Ch |
| 900G04-0101 | Digital Input, 120/240 VAC / 125VDC, 16 Ch |
| 900H03-0202 | Digital Output, 120/240 VAC, 8 Ch |
| 900H32-0102 | Digital Output, 24VDC, 32 Ch |
| 900H01-0202 | Digital Output, Relays, 8 Ch |
| 900K01-0201 | Pulse/Frequency Module, 4 Ch |
| 900P01-0301 | Power Supply 120/240VAC, 60W |
| 900P24-0301 | Power Supply 24VDC, 60W |
| 900P01-0401 | SIL Power Supply 120/240VAC, 60W |
| 900P24-0401 | SIL Power Supply 24VDC, 60W |
| 900PSM-0200 | Power Status Module, Redundant |
| 50008930-001 | MOXA Network Switch, 8 Ports |
| 50008930-002 | MOXA Network Switch, 16 Port Multi-mode |
| 50135395-001 | MOXA IMC-101-M-SC Fiber Optic Converter |
