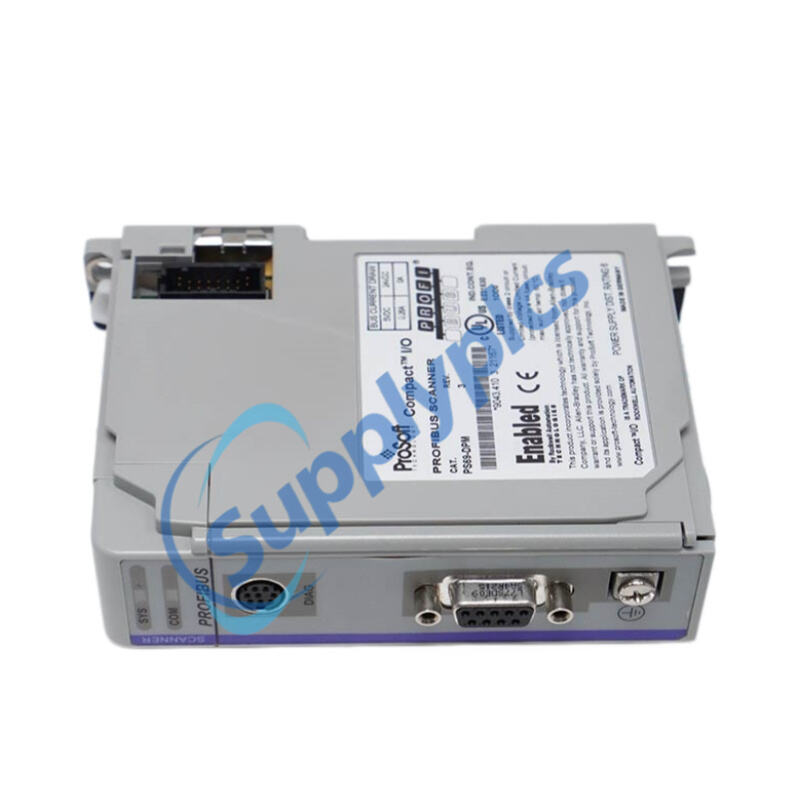

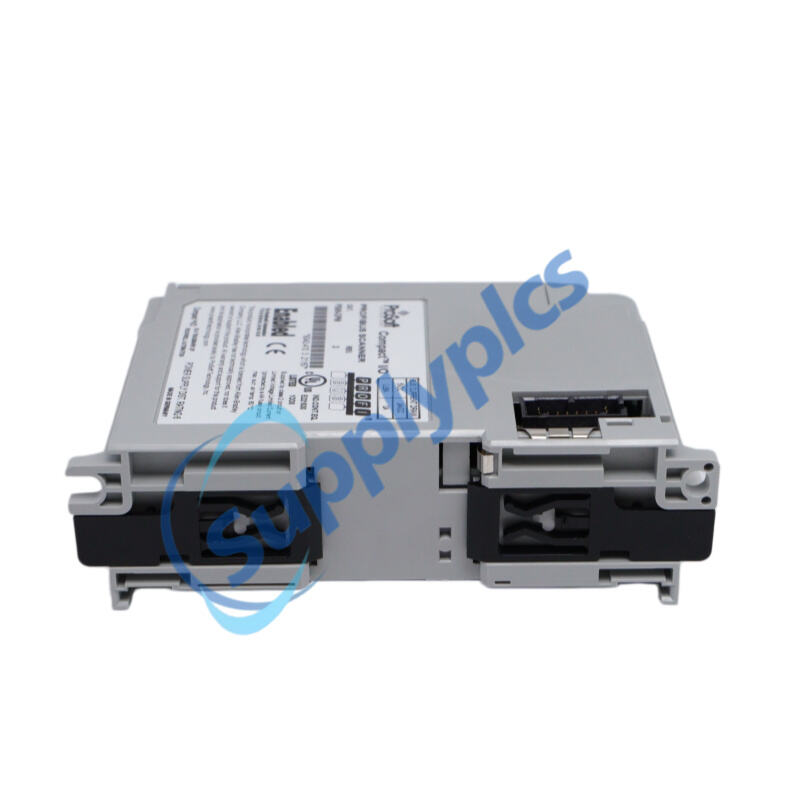

Overview

Brand Name:	PROSOFT
Model Number:	PS69-DPM
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Type	PROFIBUS DPV1 Master Network Interface Module
Manufacturer	ProSoft Technology / Allen Bradley
Compatible Platforms	Rockwell Automation CompactLogix & MicroLogix 1500
Backplane Compatibility	Single Slot – 1769 backplane compatible
Maximum Slaves	125 (up to 32 per bus segment, expandable via repeaters)
Max I/O per Slave	244 Bytes Input / 244 Bytes Output
Total Input Data	Up to 408 Bytes (cyclic)
Total Output Data	Up to 480 Bytes (cyclic)
Status Data Area	88 Bytes
Command Data Area	16 Bytes
PROFIBUS Interface	Isolated RS-485 per EN 50170. Max. 12 MBaud
Diagnostic Interface	RS-232, PS/2 Mini DIN female connector, 9600 Baud, non-isolated
Power Supply	+5 V ±5% / 260 mA
Operating Temp.	0 to 60°C (32 to 140°F)
Relative Humidity	5 to 95% (non-condensing)
Dimensions	4cm × 9.3cm × 13.2cm (Standard 1769 Single-slot module)
Weight	Approx. 0.15 kg
Certifications	PROFIBUS certified, UL 508, C-UL, CE
Configuration Software	PROSOFT.fdt (SYCON.net) V1.023 or higher
PLC Programming Software	RSLogix 5000 V13.00 or higher (CompactLogix); RSLogix 500 V6.30 or higher (MicroLogix)
Processor	EC1-160P with integrated ASPC2
EMC Compliance	Burst (EN 61000-4-4, 2 kV / 5 kHz); ESD (EN 61000-4-2, 4 kV contact, 8 kV air)

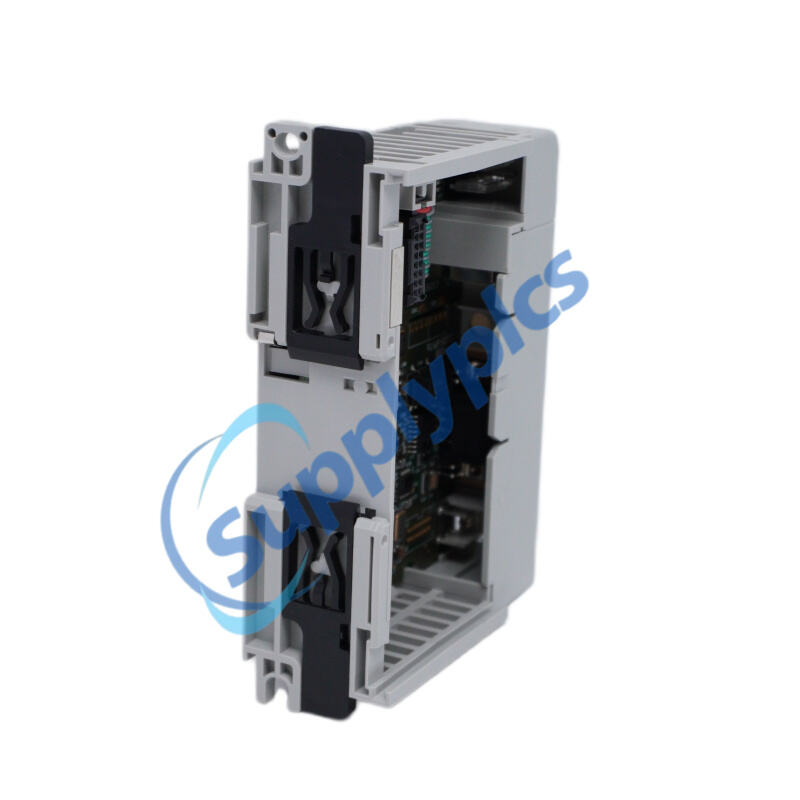

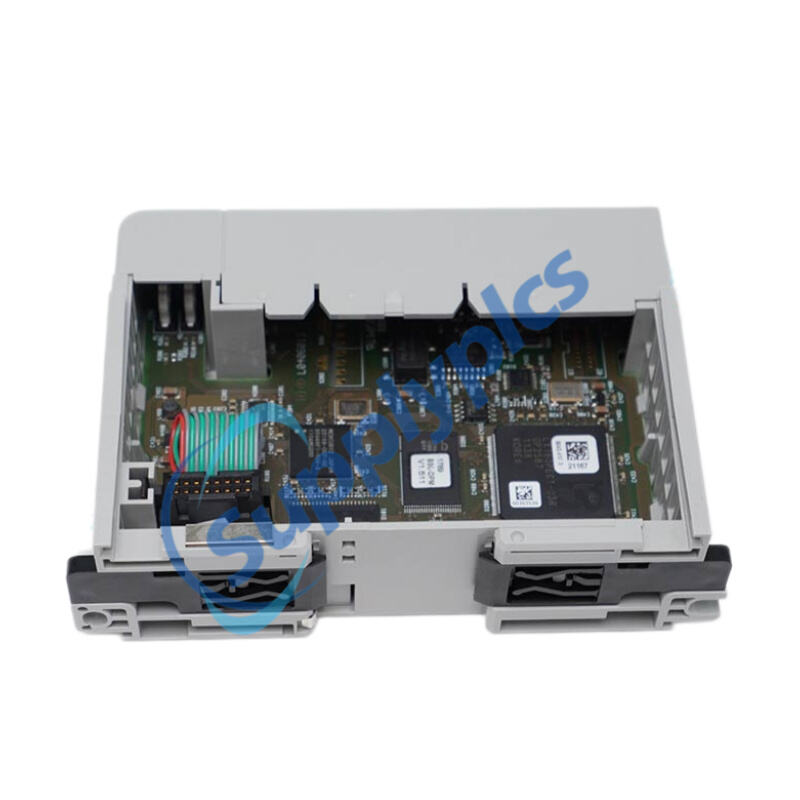

Description

The PS69-DPM is a PROFIBUS DPV1 Master module that seamlessly integrates PROFIBUS connectivity into CompactLogix or MicroLogix 1500 controllers . Supporting both cyclic I/O control and CIP messaging, the PS69-DPM combines DPV0 and DPV1 functionality within a single-slot 1769 backplane-compatible format . Configuration and diagnostics are performed via the PROSOFT.fdt (SYCON.net) tool, making the PS69-DPM an ideal solution for industrial applications requiring high-performance PROFIBUS communication

Applications

Discrete Factory Automation – Connecting sensors, actuators, and drives to CompactLogix/MicroLogix controllers via PROFIBUS DP

Process Control Systems – Integrating PROFIBUS instruments and analyzers into Rockwell Automation environments

Retrofit & Migration – Replacing legacy RIF 1769-DPM modules without modifying existing ladder logic or configuration

Multi-Vendor Integration – Bridging Rockwell PLCs with PROFIBUS devices from Siemens, ABB, and other manufacturers

Distributed I/O Networks – Building cost-effective distributed control systems with up to 125 slave devices across multiple segments

Asset Management – Utilizing FDT/DTM-based diagnostic capabilities for predictive maintenance and device health monitoring

Features

Single-slot, 1769 backplane-compatible module

PROFIBUS DPV1 Master with full DPV0 and DPV1 service support

Supports up to 125 PROFIBUS slave devices across up to 32 devices per bus segment expandable via repeaters

PROFIBUS certified, UL 508, C-UL and CE certified

PROSOFT.fdt (SYCON.net) FDT-based configuration tool included

RIF 1769-DPM project conversion compatibility for legacy system migration

Sample ladder logic files and Add-On Instruction (AOI) provided for RSLogix 5000 (V16 or higher)

Diagnostic serial interface for real-time system monitoring and troubleshooting

Supports CIP messaging for acyclic data exchange on platforms that support messaging

Functions

Function Category	Supported Services
DPV0 Cyclic Services	Fail Safe Mode, Global Control (Sync/Unsync, Freeze/Unfreeze), Watchdog
DPV1 Acyclic Services	MSAC1 Read Request, MSAC1 Write Request, Alarm Indication, Extended Device Diagnostics
Diagnostic Services	DDLM Slave Diagnostic (via I/O area or CIP messaging), Station status monitoring
Control Commands	Global Control (Sync/Freeze to individual slaves or groups), Set Parameter
Data Exchange	Cyclic I/O via process data image (408 Bytes Input / 480 Bytes Output max.); Acyclic via CIP messaging
Device Command Interface	NRDY (controlled start/stop of PROFIBUS communication), Reset (Cold Start)

FAQ

Q1: Which Rockwell controllers are compatible with the PS69-DPM?

A1: The PS69-DPM is compatible with Rockwell Automation CompactLogix processors that feature the 1769 I/O bus capability, as well as the MicroLogix 1500 LRP controller with 1764-LRP/A Rev.2.0 processor. For CompactLogix systems, RSLogix 5000 version 13.00 or higher is required.

Q2: How do I configure the PROFIBUS network using the PS69-DPM?

A2: The PROFIBUS network is configured via the PROSOFT.fdt (SYCON.net) configuration tool. Connect the serial diagnostic interface of the module (using the supplied CABLE-SRV-MD8) to your PC‘s COM port, then use PROSOFT.fdt to set bus parameters, assign slave addresses, and configure the I/O mapping.

Q3: My PS69-DPM is installed in Slot 1 of a 1768-L43/L45 processor and is not working. What should I do?

A3: This is a known issue in RSLogix 5000 versions 18 and 19. The solution is to move the PS69-DPM module to any slot other than Slot 1 (while remaining within the power supply distance rating). Alternatively, you can downgrade to RSLogix 5000 revision 16 or upgrade to revision 20 when available.

Q4: Does the PS69-DPM support DPV1 messaging with MicroLogix 1500 controllers?

A4: No. As of the PS69-DPM‘s release, MicroLogix 1500 controllers do not support CIP messaging for generic Compact I/O modules. Therefore, DPV1 services (MSAC1 Read/Write, Alarm Handling) are only supported when using a CompactLogix processor that supports CIP messaging. MicroLogix systems are limited to cyclic I/O and basic I/O-based diagnostic functions.

Q5: Can the PS69-DPM be installed while the rack is powered on?

A5: No. The PS69-DPM is NOT hot-swappable. You must always remove power from the rack before inserting or removing this module. Failure to do so may result in damage to the module, the processor, or other connected devices.
