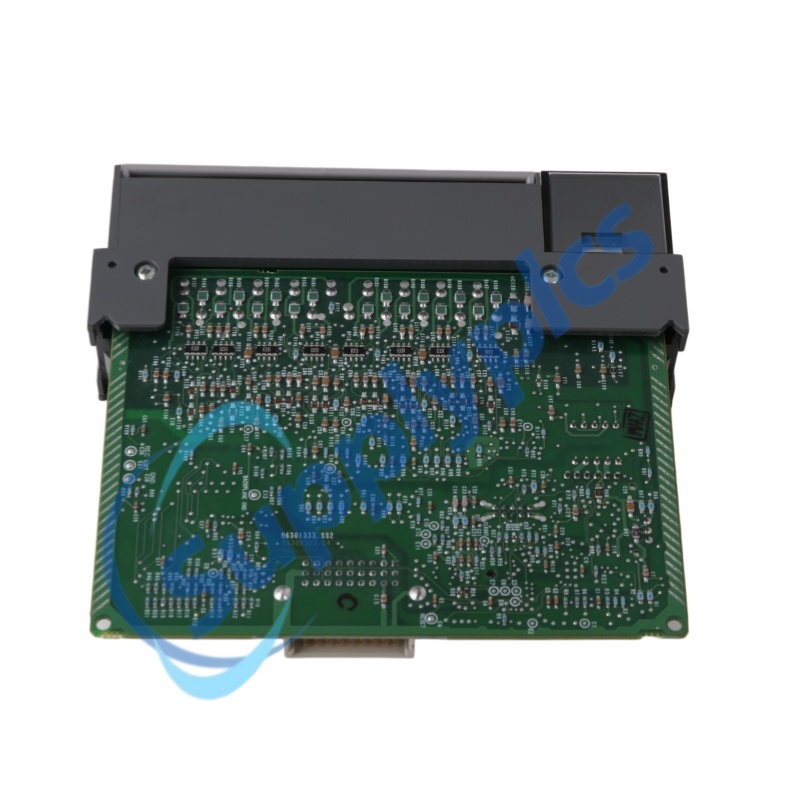

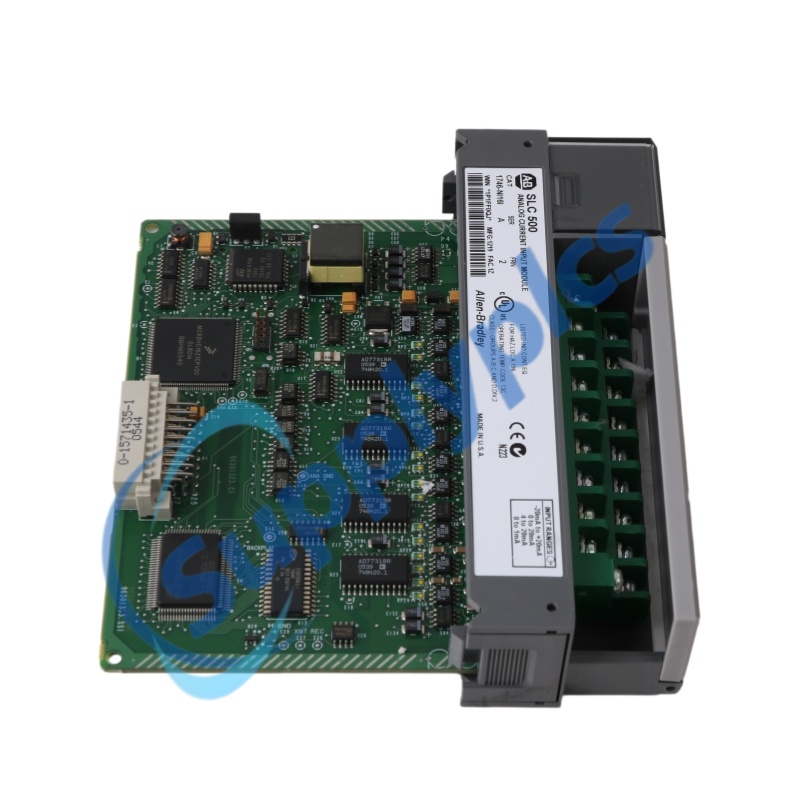

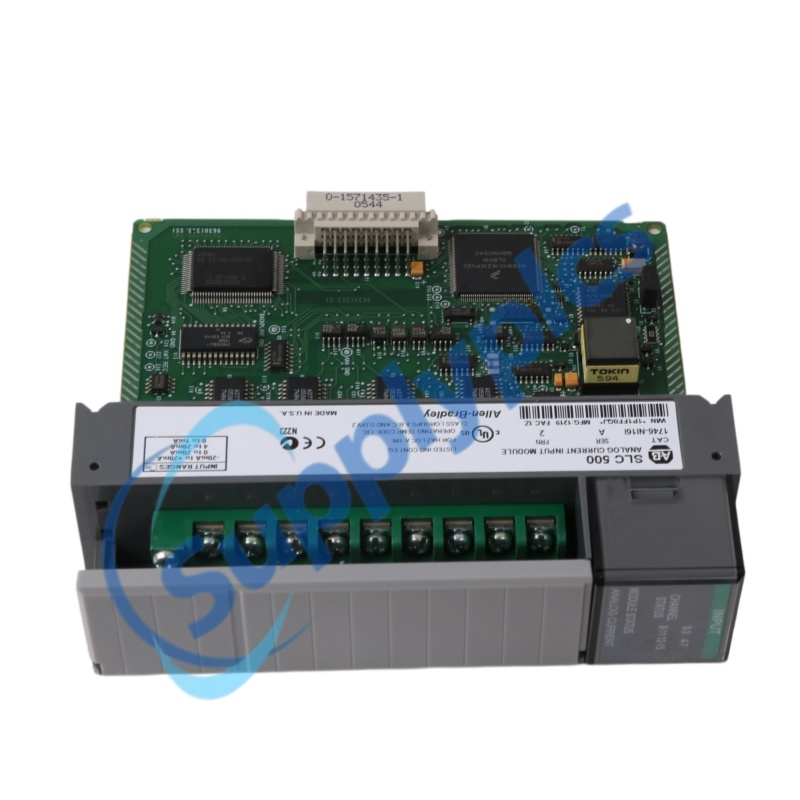

Model
|
1746-NI16I
|
|
Official description
|
SLC 16 Point Analog Input Module
|
|
Input type
|
16 backplane-isolated current-input channels
|
|
Selectable ranges
|
+/-20 mA, 4 to 20 mA, 0 to 1 mA, or 0 to 20 mA
|
|
Selection note
|
Discontinued product. Verify lifecycle, chassis compatibility, terminal block, condition and current nameplate before quotation.
|
Rockwell Automation identifies 1746-NI16I as an SLC 500 sixteen-point analog input module for current signals. The official product page lists the lifecycle status as discontinued.
Brand |
Allen-Bradley / Rockwell Automation |
Series |
SLC 500 |
Complete model |
1746-NI16I |
Official description |
SLC 16 Point Analog Input Module |
Lifecycle |
Discontinued as of September 30, 2024 |
Core selling point |
Sixteen selectable current-input channels in one SLC 500 module |
|
Current acquisition
|
Accepts industrial current signals across sixteen backplane-isolated channels.
|
|
Selectable ranges
|
+/-20 mA, 4 to 20 mA, 0 to 1 mA and 0 to 20 mA are selectable.
|
|
Data handling
|
Supports engineering units, scaled-for-PID and proportional-count data formats.
|
|
Signal filtering
|
Programmable low-pass digital filters support 6, 10, 20, 40, 60, 80, 100 and 250 Hz.
|
|
Diagnostics
|
Open-circuit detection is specified at less than five seconds.
|
|
Typical application
|
SLC 500 process measurement and monitoring where the chassis, power budget and transmitter loops are verified.
|
|
Channels
|
16, backplane isolated
|
|
Input impedance
|
249 ohm
|
|
Input resolution
|
640 nA
|
|
Display resolution
|
1 microampere
|
|
Calibrated accuracy at 25 C
|
Better than 0.15% of range
|
|
Module error over 0 to 60 C
|
+/-0.3% for current input types
|
|
A/D conversion
|
Sigma-delta
|
|
Backplane consumption
|
125 mA at 5 Vdc and 75 mA at 24 Vdc; 2.425 W maximum
|
|
Chassis position
|
Any SLC 500 I/O module slot except slot 0
|
|

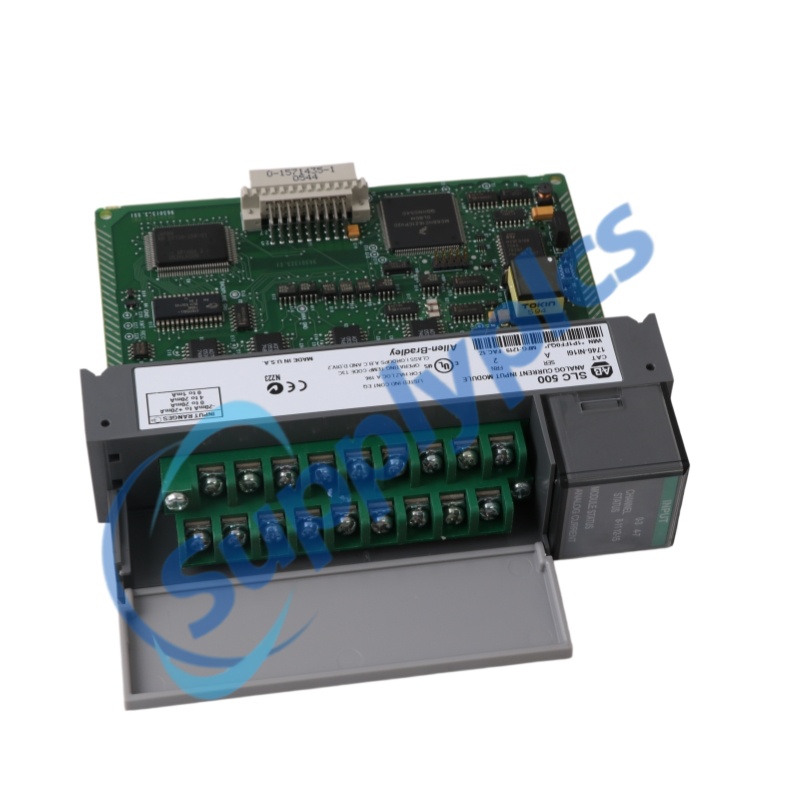

Terminal block
|
Removable 1746-RT25G
|
|
Status indication
|
Five green indicators: one per group of four channels and one module-status indicator
|
|
Recommended cable
|
Belden 8761 or equivalent
|
|
Wire capacity
|
Two 14 AWG wires maximum per terminal
|
|
Interposing options
|
1492-AIFM8-3 or 1492-AIFM16-F-3; cable selection subject to verification
|
|
Operating temperature
|
0 to 60 C
|
|
Storage temperature
|
-40 to 85 C
|
|
Relative humidity
|
5% to 95%, non-condensing
|
|
Isolation
|
500 Vac for 1 second
|
|
Hazardous location
|
Class I, Division 2, Groups A, B, C and D, or non-hazardous locations only
|
|
Agency information
|
UL listed, C-UL approved and CE compliant as stated in publication 1746-IN001B-US-P; verify marks on the offered unit
|
|
Chassis
|
Confirm the exact SLC 500 fixed or modular chassis and do not install in slot 0.
|
|
Power budget
|
Add 125 mA at 5 Vdc and 75 mA at 24 Vdc to the chassis load calculation.
|
|
Noise control
|
Keep the module and shielded twisted-pair wiring away from relays, hard contacts, drives and high-voltage wiring.
|
|
Shielding
|
Connect the shield drain to earth or chassis ground as directed in the official installation instructions.
|
|
Loop check
|
Verify transmitter supply, polarity and a maximum 249-ohm loop impedance for common-mode requirements.
|
|
Commissioning
|
Verify channel range, data format, filter, scaling and fault handling before service.
|
|
Catalog number
|
Confirm 1746-NI16I on the nameplate; do not substitute 1746-NI16V.
|
|
Lifecycle
|
Discontinued status and any engineering replacement require confirmation.
|
|
Condition and photos
|
Request current front, side, terminal and nameplate photographs.
|
|
Included parts
|
Confirm 1746-RT25G terminal block, connectors, packaging and documentation.
|
|
Compatibility
|
Verify chassis, processor, power supply, slot, application program and transmitter loops.
|
|
Testing
|
Power-up, channel simulation, calibration evidence and test-report scope are subject to agreement.
|
|
Official reference
|
Rockwell Automation publication 1746-IN001B-US-P and the official 1746-NI16I product page.
|
|
Current stock
|
Confirm before quotation
|
|
Condition
|
New, used or refurbished status is subject to verification
|
|
Current photos
|
Available on request, including product and nameplate views
|
|
Warranty
|
Quotation-specific; confirm before order
|
|
Dispatch time
|
Subject to stock, inspection, packing and destination verification
|
|
Testing
|
Status and report scope subject to verification
|
|
Payment methods
|
Available on request and confirmed on the proforma invoice
|
|
Quote response
|
Subject to requirement and configuration verification
|
|
Is this real stock?
|
Confirm before quotation. Current inventory evidence is available on request.
|
|
Is the offered unit new, used or refurbished?
|
Subject to verification for the specific offered unit and stated in the quotation.
|
|
Can current product and nameplate photos be provided?
|
Available on request before order confirmation.
|
|
What warranty is included?
|
Quotation-specific. Confirm the duration and scope before order.
|
|
What is the dispatch time?
|
Subject to stock verification, inspection, packing and destination requirements.
|
|
Has the module been tested?
|
Test status and the agreed test scope are subject to verification.
|
|
Which payment methods are supported?
|
Available on request and confirmed on the proforma invoice.
|
|
How quickly will a quotation be issued?
|
Response time is subject to requirement and configuration verification.
|
|
How can the company and transaction be verified?
|
Request company-registration information, a formal proforma invoice and beneficiary details, then verify them through normal procurement and banking controls before payment.
|
