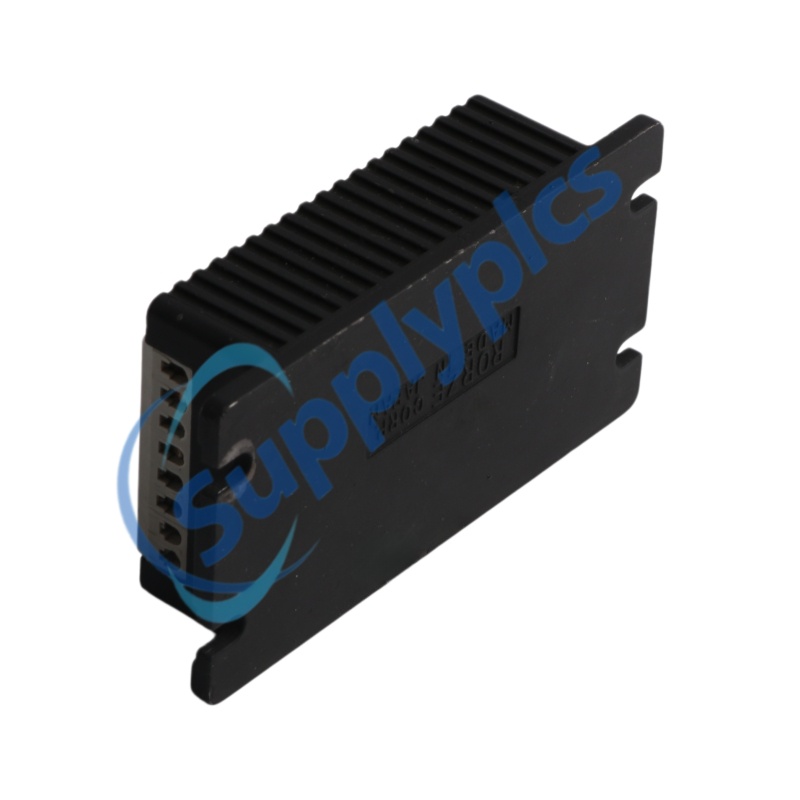

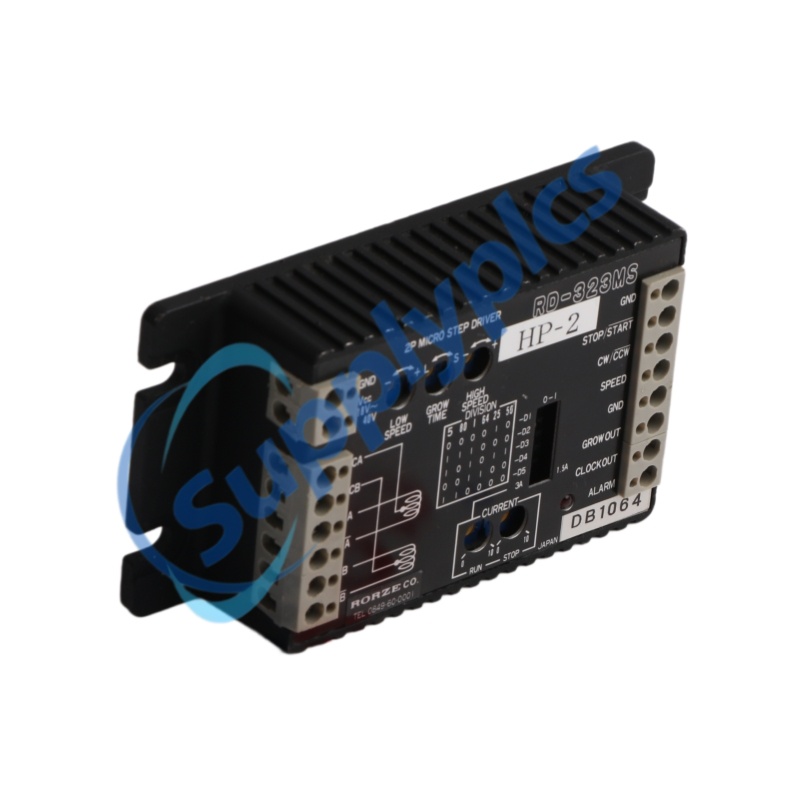

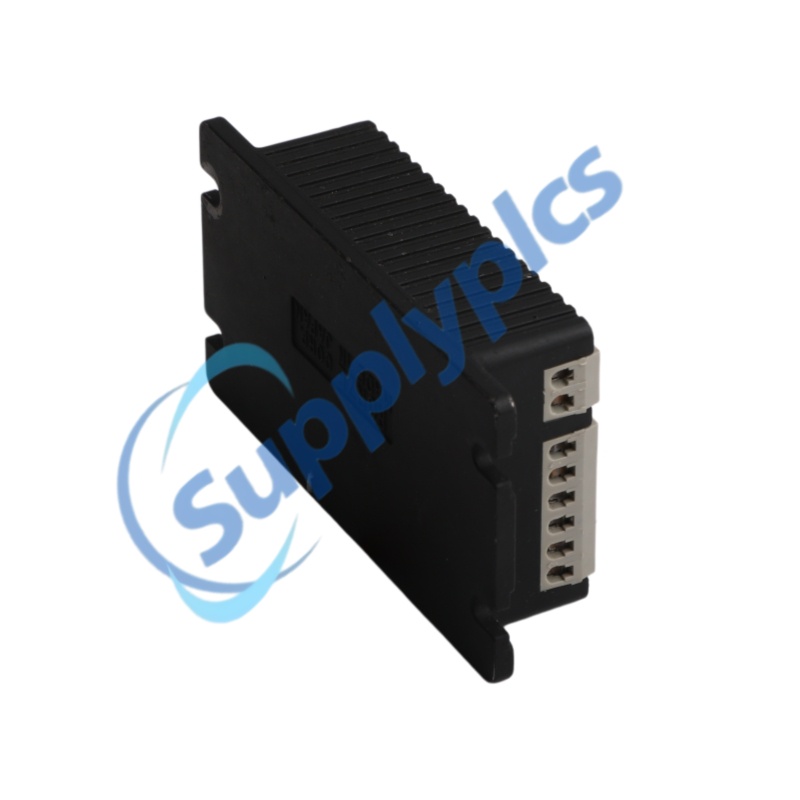

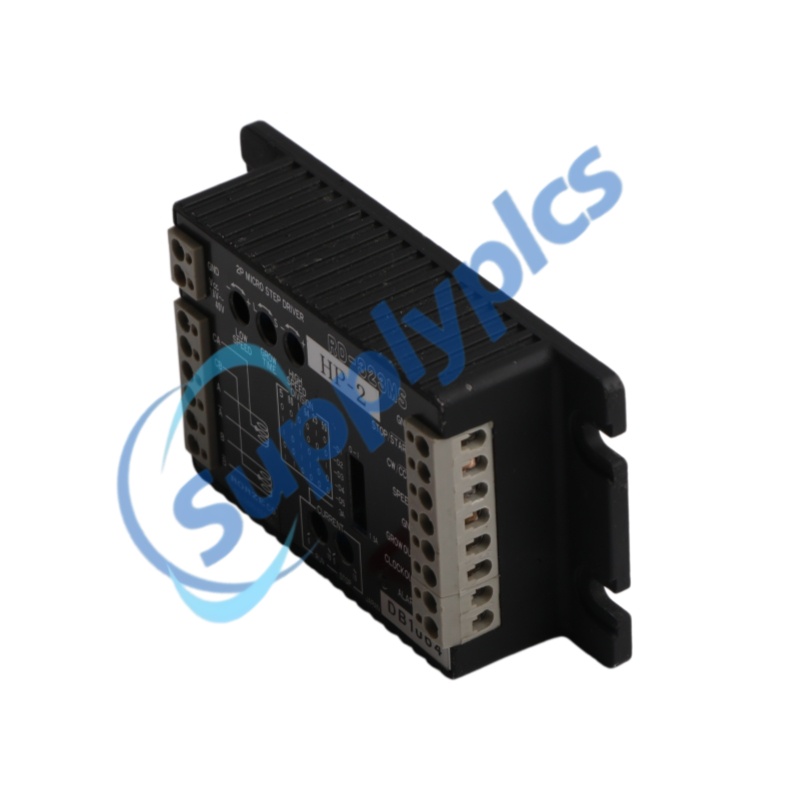

RORZE RD-323MS 2-Phase Microstepping Motor Driver Ready For Ship

RORZE RD-323MS 2-Phase Microstepping Motor Driver Ready For Ship

Product Name:2-Phase Microstepping Motor Driver

Brand Name:RORZE

Model Number:RD-323MS

Country of Origin:Japan

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

rorze rd 323ms 2 phase microstepping motor driver ready for ship-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	RORZE
Model Number:	RD-323MS
Country of Origin:	Japan
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	RD-323MS
Product Type	2-Phase Microstepping Motor Driver with Built-in Pulse Oscillator
Supply Voltage	18–40 VDC (including ripple)
Motor Current	0.3–3.0 A/phase
Drive Method	Unipolar constant-current chopper drive
Microstep Resolution	Up to 80 microsteps, selectable from 1 to 80 pulses/step
Oscillating Frequency	Maximum 700 kpps
Speed Control	Analog voltage speed adjustment (SPEED terminal)
Acceleration / Deceleration Time	Adjustable from 20 ms to 3 seconds
Protection Functions	Overcurrent, overheating, and low-voltage protection
Dimensions	27.5 (H) × 105 (W) × 56 (D) mm
Weight	Approximately 250 g

Description

RD-323MS is a compact 2-phase microstepping motor driver engineered for stable motion control in industrial automation systems. Featuring a built-in pulse oscillator, it can directly drive compatible stepping motors without requiring an external pulse generator, helping simplify system design while improving installation efficiency. Its selectable microstep resolution delivers smooth motion, accurate positioning, and reduced vibration across a wide range of operating conditions.

Designed for compatibility with RORZE RM2B42 Series, RM26 Series, and various HB-type (PM-type) 2-phase stepping motors, the RD-323MS supports analog speed adjustment and configurable acceleration/deceleration control. The constant-current chopper drive method ensures reliable torque output while minimizing heat generation during continuous operation.

With integrated overcurrent, overheating, and low-voltage protection, the RD-323MS provides dependable performance for semiconductor equipment, laboratory automation, packaging machinery, conveyors, precision positioning systems, and OEM motion control applications where stable and accurate motor control is essential.

Applications

Semiconductor manufacturing: Provides precise motion control for wafer handling equipment, inspection systems, and cleanroom automation.
Packaging machinery: Controls indexing tables, labeling machines, and automatic conveying systems with smooth positioning.
Electronics assembly: Supports PCB handling equipment, pick-and-place mechanisms, and precision feeding devices.
Industrial automation: Integrates into robotic workstations, positioning stages, and compact motion control systems.
Laboratory equipment: Enables accurate linear movement for analytical instruments, testing devices, and precision automation platforms.

Features

Built-in pulse oscillator eliminates the need for an external pulse generator.
Supports up to 80 selectable microstep resolutions for smoother motor operation.
Constant-current chopper drive improves efficiency and positioning stability.
Wide 18–40 VDC operating voltage for flexible industrial integration.
Adjustable analog speed control for convenient motion tuning.
Configurable acceleration and deceleration parameters.
Compact lightweight housing simplifies panel installation.
Multiple protection functions improve operational reliability.

Functions

Motion Control: Drives compatible 2-phase stepping motors with stable microstepping performance.
Speed Regulation: Adjusts motor speed through analog voltage input for flexible operation.
Positioning: Provides smooth and accurate incremental positioning with selectable resolutions.
Motor Protection: Monitors abnormal operating conditions to prevent driver damage.
System Integration: Interfaces easily with industrial automation controllers and OEM equipment.
Pulse Generation: Built-in oscillator enables standalone motor control without external pulse sources.

FAQ

Q1: What is the primary function of the RD-323MS?
A1: The RD-323MS is a 2-phase microstepping motor driver designed to provide precise and stable control of compatible stepping motors.

Q2: Does the RD-323MS require an external pulse generator?
A2: No. The driver features a built-in pulse oscillator, allowing standalone motor operation in many applications.

Q3: What motor current range does the RD-323MS support?
A3: It supports adjustable motor currents from 0.3 A to 3.0 A per phase.

Q4: What protection features are integrated into the RD-323MS?
A4: The driver includes overcurrent, overheating, and low-voltage protection to improve operational safety and reliability.

Q5: Which applications are suitable for the RD-323MS?
A5: The RD-323MS is widely used in semiconductor equipment, packaging machinery, laboratory automation, precision positioning systems, and general industrial motion control applications.
