Home > Products > SIEMENS > SIMATIC S7 Series

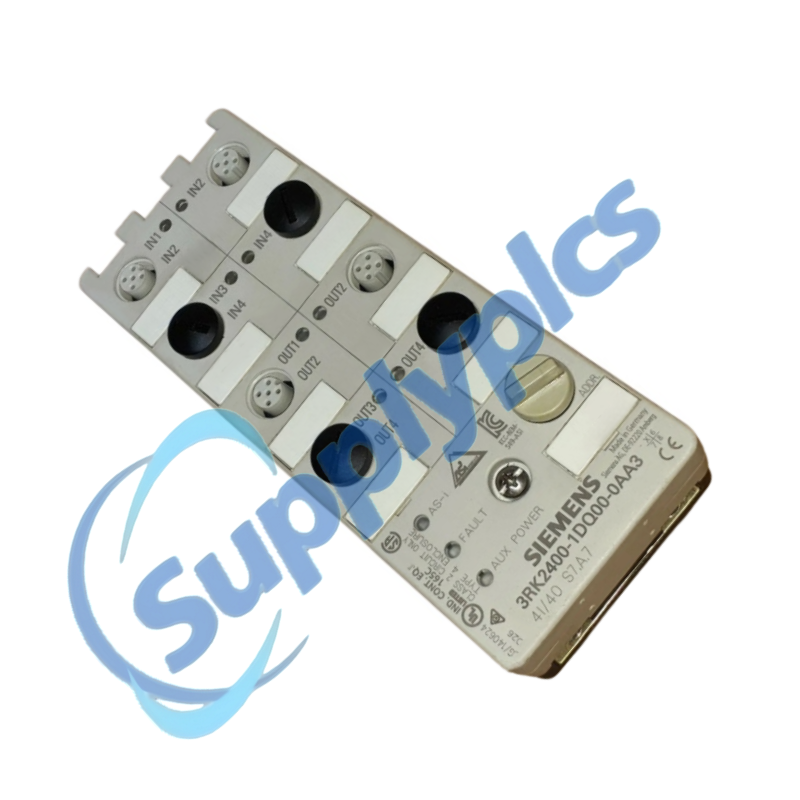

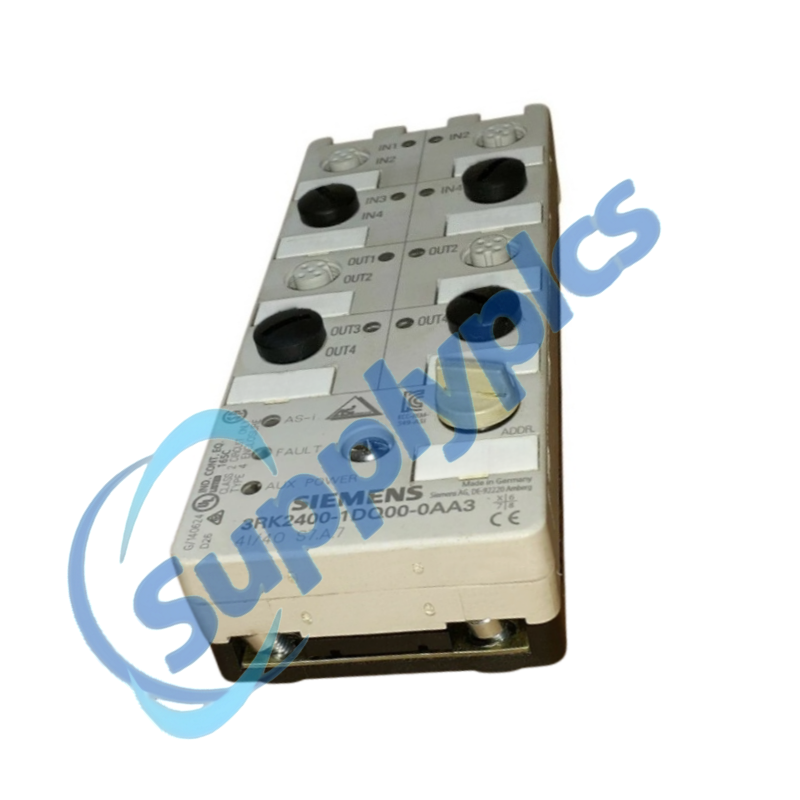

Product Name: AS-i Compact Module K60 Digital I/O Module (4 DI/4 DO, IP67)
Brand Name: Siemens
Model Number: 3RK2400-1DQ00-0AA3
Place of Origin: Germany
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Sales: |
Email: |
Whatsapp: |
Jim Pei |
| Product Name | Siemens 3RK2400-1DQ00-0AA3 AS-i Compact Module K60 Digital I/O Module (4 DI/4 DO, IP67) |
| Manufacturer | Siemens |
| Product Type | AS-i Compact K60 Digital I/O Module |
| Part Number | 3RK2400-1DQ00-0AA3 |
| Place of shipment | Xiamen, China |
| Country of origin | Germany |
| Digital Inputs | 4 |
| Digital Outputs | 4 |
| I/O Configuration | 4 DI / 4 DQ |
| Number of I/O Sockets | 8 × M12 Sockets (Y-II Assignment) |
| Electrical Connection | M12 Screw-Type Terminals |
| Input Circuit | PNP Transistor |
| Input Voltage Type | DC |
| Input Voltage Range | 20–30 V DC |
| Input Switching Level (High) | ≥10 V |
| Input Current (Signal "1") | Min. 6 mA |
| Input Current (Signal "0") | Max. 1.5 mA |
| AS-Interface Operating Voltage | 26.5–31.6 V |
| AS-Interface Current Consumption | Max. 270 mA |
| Sensor Supply Current | Max. 200 mA (at 40°C) |
| Output Supply Voltage | External 24 V DC (AUX POWER, 20–30 V DC) |
| Output Current | 2 A per output |
| Maximum Total Output Current | 4 A |
| Output Protection | Short-circuit proof |
| Ground Connection | Pin 5 of each M12 socket connected to mounting plate grounding strap |
| Status Indicators | Yellow LED (I/O), Green LED (Uaux), Green/Red LED (AS-i Diagnostics) |
| Operating Temperature | -25°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP67 |
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Jim |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |
The Siemens 3RK2400-1DQ00-0AA3 AS-i Compact Module K60 Digital I/O Module is a compact IP67-rated AS-Interface I/O module designed for decentralized industrial automation. It features 4 digital inputs and 4 digital outputs, supports PNP DC input signals, and provides 8 M12 sockets for fast field wiring. With short-circuit-protected outputs, integrated status LEDs, and rugged construction, it delivers reliable communication and control for machines, conveyors, and distributed I/O applications.
Compared with similar AS-i digital I/O modules, the Siemens 3RK2400-1DQ00-0AA3 offers greater installation flexibility, reliable field connectivity, and durable performance in harsh industrial environments.
Q1: What is the 3RK2400-1DQ00-0AA3 used for?
A1: 3RK2400-1DQ00-0AA3 is used for distributed digital input and output control in AS-Interface automation systems.
Q2: How many digital inputs and outputs does the 3RK2400-1DQ00-0AA3 provide?
A2: 3RK2400-1DQ00-0AA3 provides 4 digital inputs and 4 digital outputs.
Q3: What type of input signals does the 3RK2400-1DQ00-0AA3 support?
A3: 3RK2400-1DQ00-0AA3 supports PNP DC digital input signals with an operating voltage range of 20–30 V DC.
Q4: How are field devices connected to the 3RK2400-1DQ00-0AA3?
A4: 3RK2400-1DQ00-0AA3 uses 8 M12 screw-type sockets for reliable field wiring.
Q5: What output current does the 3RK2400-1DQ00-0AA3 support?
A5: 3RK2400-1DQ00-0AA3 supports 2 A per output with a maximum combined output current of 4 A.
Q6: Does the 3RK2400-1DQ00-0AA3 include output protection?
A6: 3RK2400-1DQ00-0AA3 features built-in short-circuit protection for all digital outputs.
