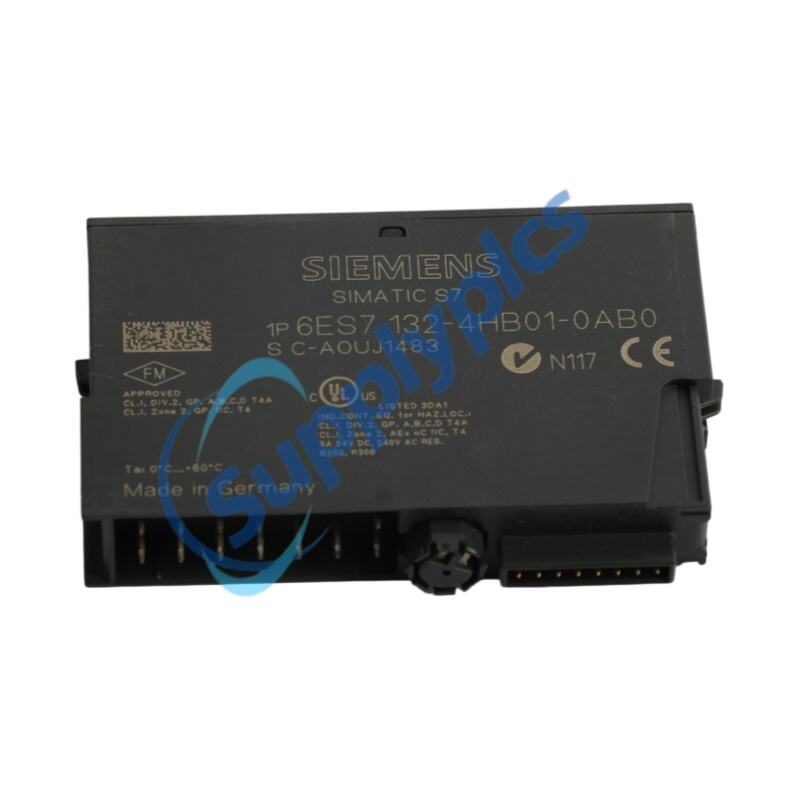

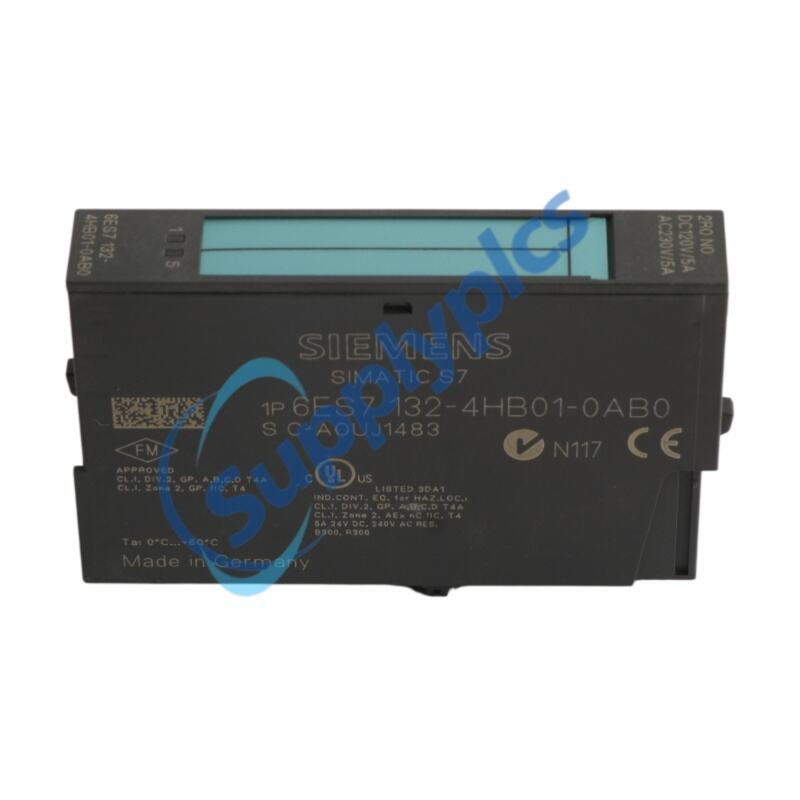

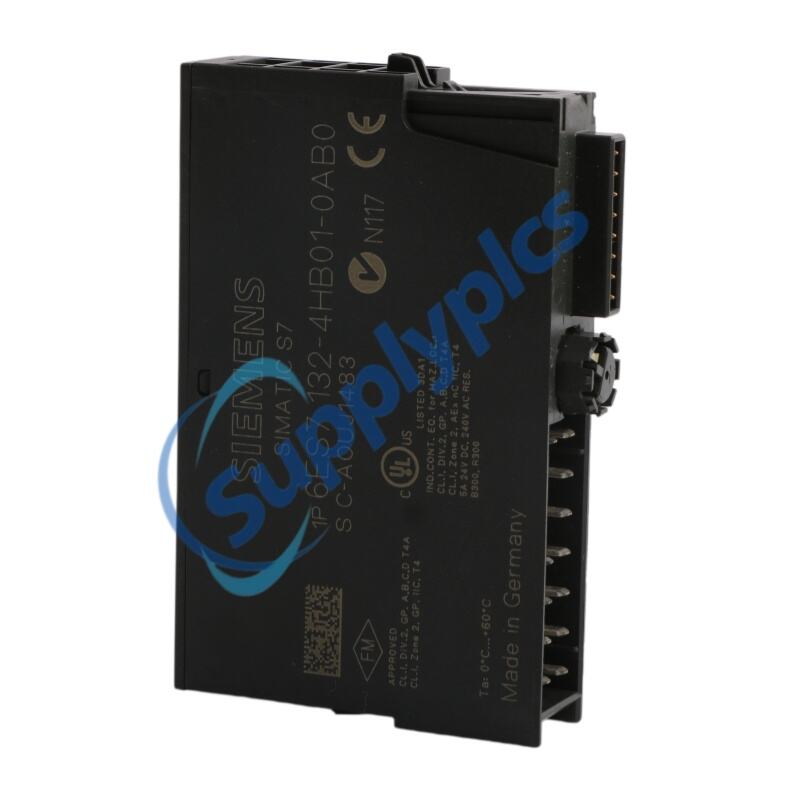

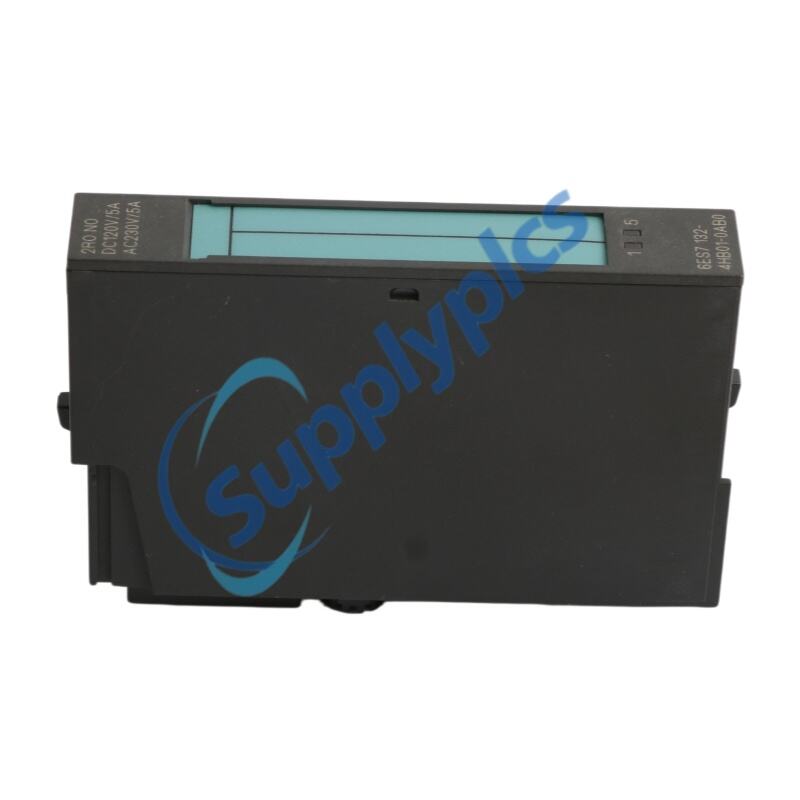

Siemens 6ES7132-4HB01-0AB0 ET 200S distributed I/O Digital electronic module Ready For Ship

Siemens 6ES7132-4HB01-0AB0 ET 200S distributed I/O Digital electronic module Ready For Ship

Product Name:ET 200S distributed I/O Digital electronic module

Brand Name:Siemens

Model Number:6ES7132-4HB01-0AB0

Country of Origin:Germany

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

o digital electronic module ready for ship-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7132-4HB01-0AB0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Details
Product Model	6ES7132-4HB01-0AB0
System	SIMATIC ET 200S
Output Type	Relay output
Number of Outputs	2
Rated Voltage	24 V DC / 230 V AC
Rated Current	5 A
Power Loss	~0.6 W
Load Voltage Supply	From power module
Backplane Voltage	3.3 V DC
Width	15 mm
Height	81 mm
Depth	52 mm
Weight	~50 g
Protection	Electrical isolation between channels

Description

The 6ES7132-4HB01-0AB0 is a SIMATIC DP electronic module designed for the ET 200S distributed I/O system, offering reliable relay-based digital output control in industrial automation environments. As a spare part module, it integrates 2 relay outputs capable of handling both AC and DC switching tasks, supporting up to 24 V DC and 230 V AC with a rated current of 5 A.

The 6ES7132-4HB01-0AB0 ensures stable signal switching with LED status indication and substitute value output function for enhanced system diagnostics during CPU STOP conditions.

Built for flexible installation, the 6ES7132-4HB01-0AB0 provides compact design, electrical isolation between channels, and dependable operation for demanding automation applications such as process control and machine systems.

Applications

Power plants: Used for generator set status monitoring and relay protection.
Substations: Enables switching control, bus protection, and signal acquisition.
Chemical plants: Supports process automation and safe signal handling.
Steel mills: Ensures stable control under high temperature and EMI environments.
Machinery manufacturing: Applied in automated production lines and robotics control systems.

Features

Compact ET 200S relay output module design
Dual relay outputs with 5 A switching capacity
LED status indication for each channel
Substitute value output during CPU STOP
Electrical isolation between channels and bus system
Stable operation under industrial conditions

Functions

Digital relay switching control
Signal output execution for automation systems
Fault-safe substitute value handling
Load switching for AC/DC circuits
Integration into SIMATIC distributed I/O architecture

FAQ

Q1: What is the main function of 6ES7132-4HB01-0AB0?
A1: It provides relay-based digital output control for ET 200S distributed I/O systems.

Q2: What type of loads can this module handle?
A2: It supports both AC and DC loads up to 230 V AC / 24 V DC with 5 A switching capacity.

Q3: Does 6ES7132-4HB01-0AB0 support fault diagnostics?
A3: It includes LED status indicators and substitute value output during system STOP conditions.

Q4: Is the module suitable for harsh environments?
A4: Yes, it is designed for industrial environments with electrical isolation and stable relay operation.

Q5: How many outputs does this module provide?
A5: The module offers 2 independent relay digital outputs.
