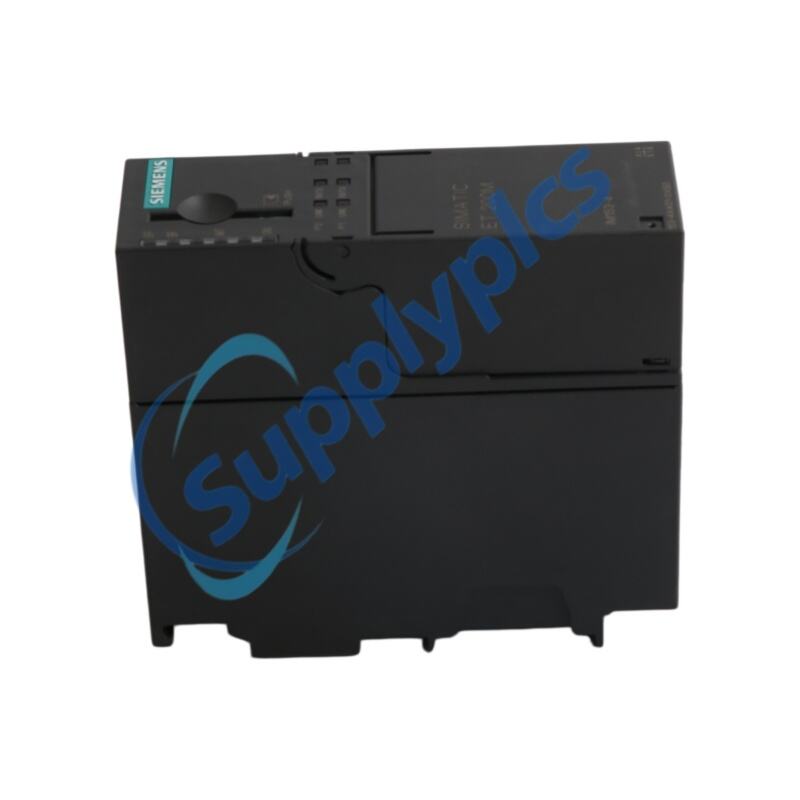

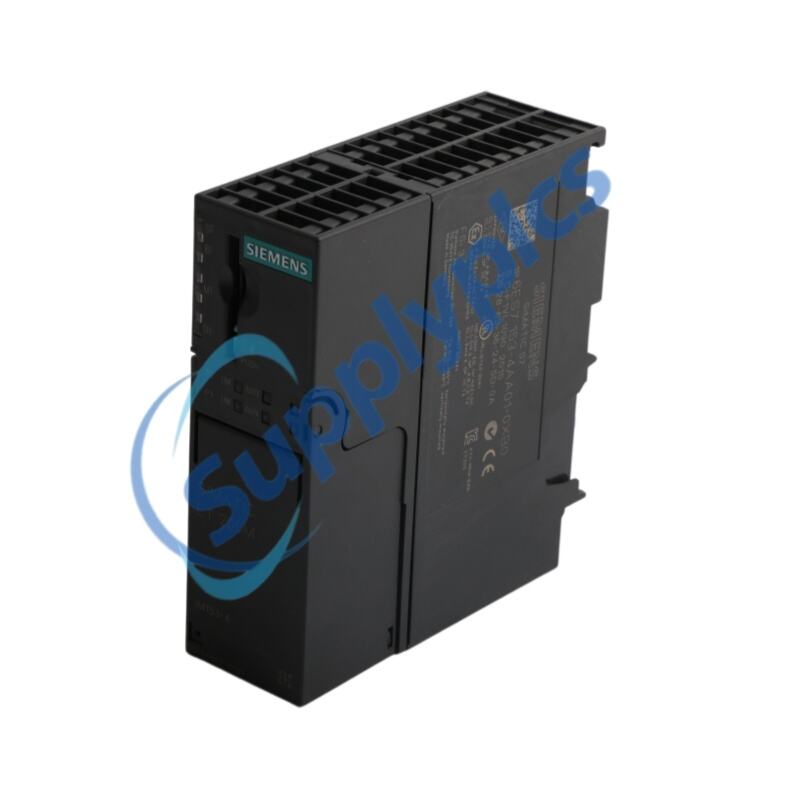

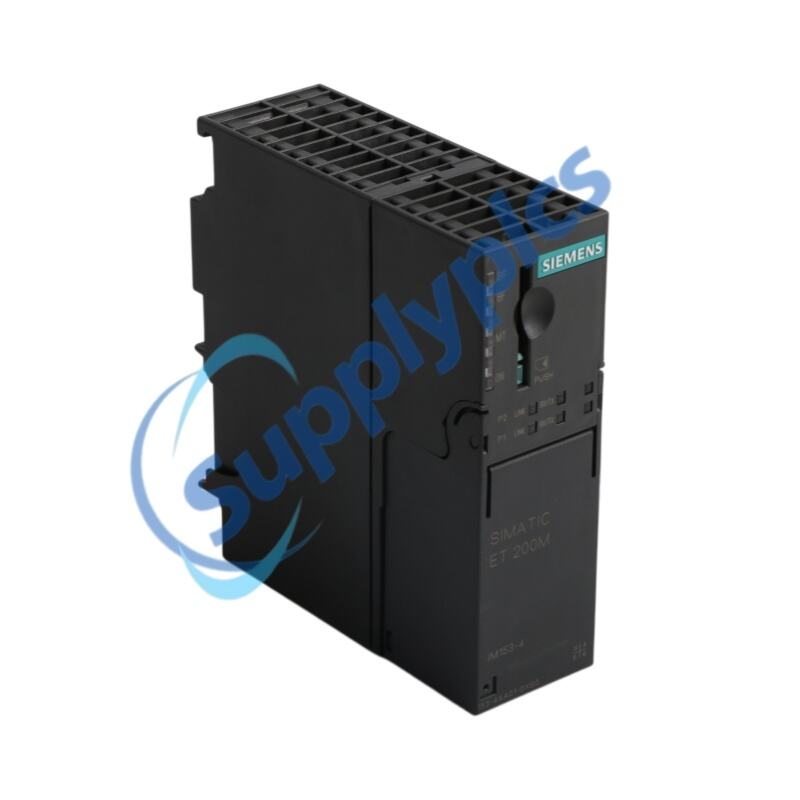

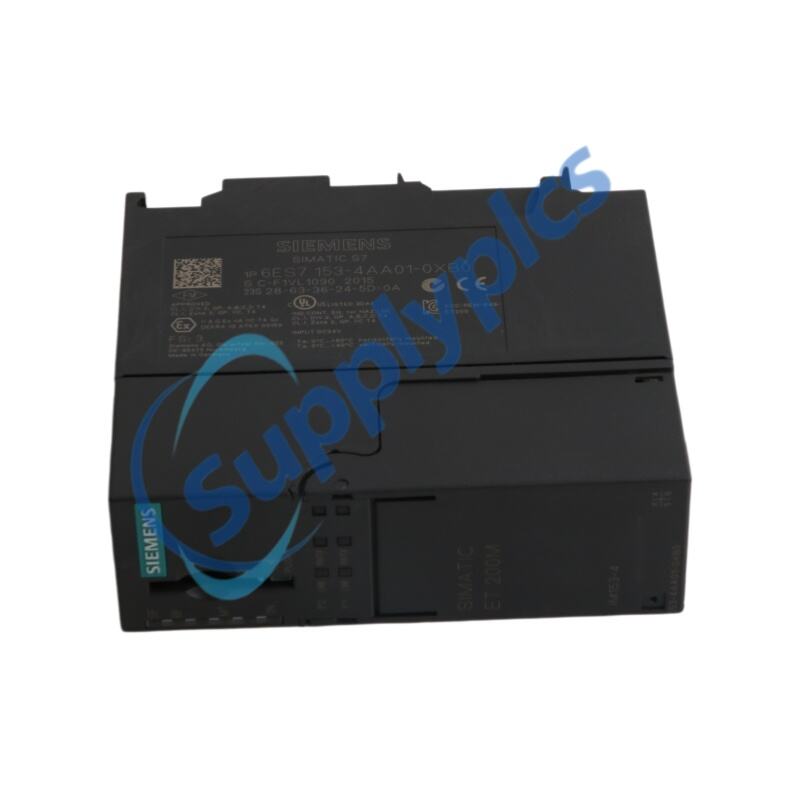

Product Name:SIMATIC ET 200M interface module
Brand Name:Siemens
Model Number:6ES7153-4AA01-0XB0
Country of Origin:Germany
Warranty:12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Siemens |
Model Number: |
6ES7153-4AA01-0XB0 |
Country of Origin: |
Germany |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Parameter | Specification |
|---|---|
| Model | 6ES7153-4AA01-0XB0 |
| Product Type | IM 153-4 PN ST Interface Module |
| Series | SIMATIC ET 200M |
| Communication Protocol | PROFINET IO |
| Supply Voltage | 24 V DC |
| Voltage Range | 20.4 ... 28.8 V DC |
| Current Consumption | Max. 600 mA |
| Inrush Current | Typical 4 A |
| Backplane Bus Output | 5 V DC / 1.5 A |
| Maximum I/O Modules | 12 S7-300 Modules |
| Input Address Area | 192 Bytes |
| Output Address Area | 192 Bytes |
| Media Redundancy | MRP Supported |
| Protection Rating | IP20 |
| Isolation Voltage | 500 V DC Tested |
| Operating Temperature | 0°C to +60°C |
| Maximum Installation Altitude | 2000 m |
| Dimensions (W × H × D) | 40 × 125 × 118 mm |
| Weight | Approx. 215 g |
6ES7153-4AA01-0XB0 is a Siemens SIMATIC ET 200M interface module designed to connect distributed I/O stations to PROFINET networks with high reliability and efficient data exchange. As the IM 153-4 PN ST communication interface, it supports up to 12 S7-300 I/O modules, making it an ideal solution for scalable automation architectures in modern industrial environments.
Integrated into the SIMATIC automation family, 6ES7153-4AA01-0XB0 provides advanced functionality including PROFINET IO communication, media redundancy support, module replacement during operation, and enhanced maintenance capabilities. Its compact design and robust construction help ensure stable network performance while minimizing downtime during system servicing.
Widely applied in manufacturing, energy, infrastructure, and process industries, 6ES7153-4AA01-0XB0 improves operational flexibility, simplifies distributed I/O integration, and supports reliable real-time communication for demanding automation applications.
Power Plants: Connects distributed I/O stations with central control systems, supports turbine monitoring, generator control, and plant-wide automation communication.
Substations: Enables reliable data exchange between protection relays, SCADA systems, and remote I/O devices, improving operational visibility and control.
Chemical Plants: Integrates field instrumentation with distributed control architectures, supporting process automation and continuous production monitoring.
Steel Mills: Provides stable communication for decentralized I/O systems, supporting equipment control in high-temperature and high-interference environments.
Machinery Manufacturing Plants: Connects production line sensors, actuators, and automation equipment, enabling efficient machine control and process synchronization.
Water Treatment Facilities: Supports distributed monitoring and control systems, facilitating communication between field devices and central automation platforms.
PROFINET IO Connectivity – Enables high-speed industrial Ethernet communication, supports distributed automation systems, improves network performance.
Support for Up to 12 Modules – Accommodates multiple S7-300 I/O modules, enhances system scalability, simplifies expansion projects.
Maintenance-Friendly Design – Supports module replacement without programming devices, reduces downtime, improves service efficiency.
Media Redundancy Support – Includes MRP functionality, increases network availability, enhances communication reliability.
Compact Industrial Construction – Combines a space-saving design with durable performance, suitable for demanding automation environments.
Distributed I/O Interface Function – Connects ET 200M stations to PROFINET networks, enabling seamless communication between field devices and controllers.
Real-Time Communication Function – Supports deterministic data exchange, improves process response times, enhances automation performance.
Network Management Function – Facilitates reliable communication monitoring, diagnostics handling, and distributed system integration.
System Expansion Function – Supports additional I/O modules, enabling flexible automation architecture growth and modernization.
Maintenance Support Function – Simplifies module replacement and diagnostics processes, reducing maintenance effort and operational interruptions.
Q1: What is the Siemens 6ES7153-4AA01-0XB0 used for?
A1: It is a PROFINET interface module used to connect ET 200M distributed I/O stations to industrial automation networks.
Q2: How many S7-300 modules can the 6ES7153-4AA01-0XB0 support?
A2: The module supports up to 12 S7-300 I/O modules in a single ET 200M station.
Q3: Does the 6ES7153-4AA01-0XB0 support PROFINET communication?
A3: Yes, it is designed specifically for PROFINET IO communication applications.
Q4: What redundancy feature is available on this module?
A4: The module supports Media Redundancy Protocol (MRP) for improved network availability.
Q5: In which industries is the 6ES7153-4AA01-0XB0 commonly used?
A5: It is widely used in power generation, chemical processing, water treatment, manufacturing, and industrial automation facilities.
|
