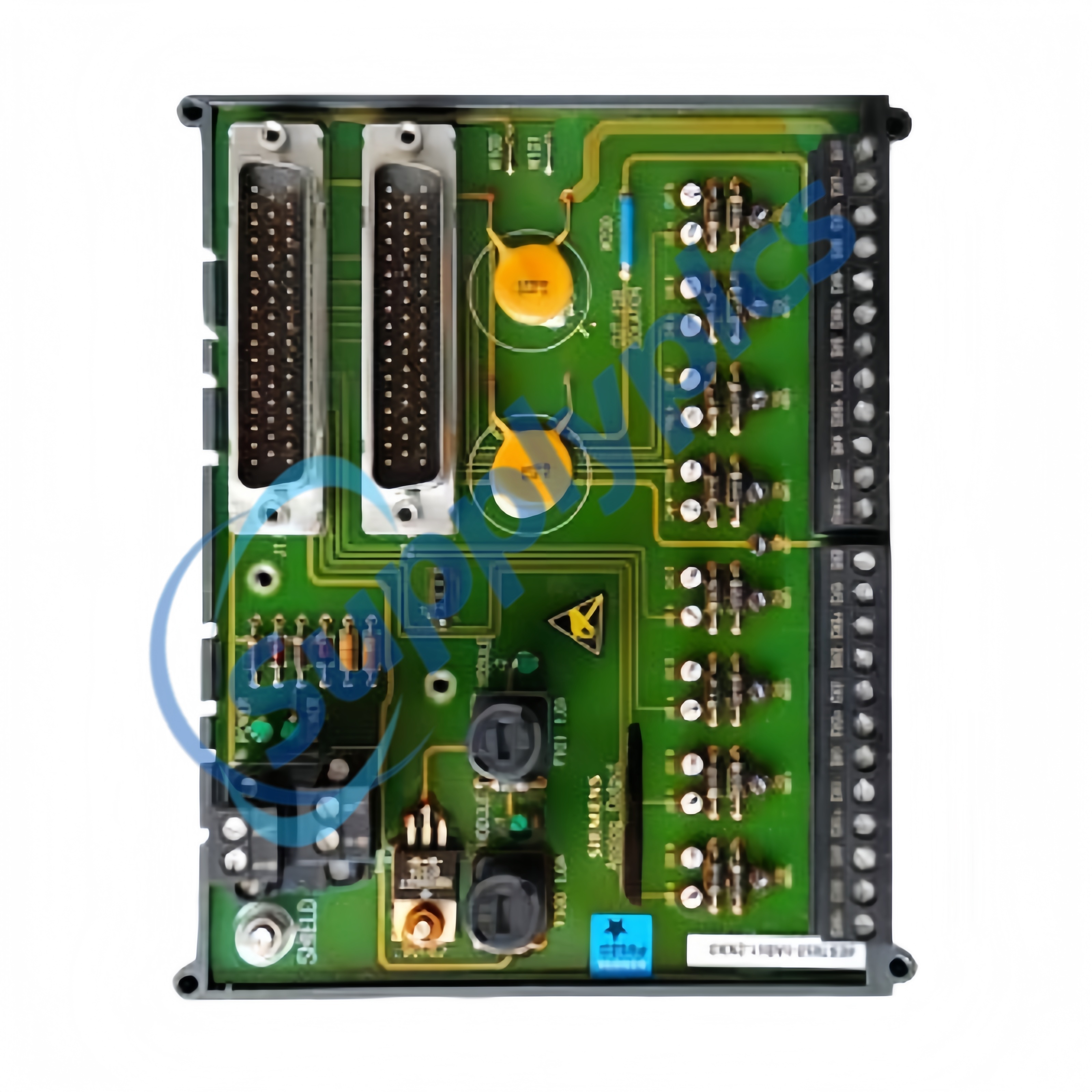

SIEMENS 6ES7650-1AM30-6XX0 failsafe marshalled termination assembly Ready For Ship

SIEMENS 6ES7650-1AM30-6XX0 failsafe marshalled termination assembly Ready For Ship

Product Name:failsafe marshalled termination assembly

Brand Name:SIEMENS

Model Number:6ES7650-1AM30-6XX0

Country of Origin:Germany

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6es7650 1am30 6xx0 failsafe marshalled termination assembly ready for ship-1

Overview
Get your discount today
Specifications
Description
Applications
Environment & certification
Features & benefits
FAQ
Spares
Recommended Products

Overview

Brand Name:	SIEMENS
Model Number:	6ES7650-1AM30-6XX0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Get your discount today

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model:	6ES7650-1AM30-6XX0, Siemens failsafe 10-channel relay output MTA for ET 200M systems, designed for distributed safety switching and field termination
System Type:	ET 200M marshalled termination assembly, enables structured relay interfacing for remote I/O safety modules
Output Channels:	10-channel relay outputs, Form C contact design supporting NO/NC switching for flexible load control
Rated Voltage:	24 VDC input supply, operating within 21.6–28.8 VDC range for stable industrial power compatibility
Power Consumption:	Approx. 0.575–0.82 A load consumption, optimized for multi-channel relay operation efficiency
Mounting Method:	35 mm DIN rail installation, designed for standard industrial control cabinet integration
Protection System:	Per-channel fuse protection and module-level fuse isolation, preventing fault propagation across channels
Wiring Type:	Pluggable terminal blocks supporting 24–14 AWG conductors, simplifying maintenance and replacement
Indicators:	LED status indication for A/B power and module operation, enabling fast diagnostics in field use
Dimensions:	Approx. 230.4 × 130.9 × 73 mm, compact modular structure for panel-mounted systems
Weight:	Approx. 0.8–1.2 kg depending on configuration, optimized for industrial relay assemblies

Description

The 6ES7650-1AM30-6XX0 is a failsafe marshalled termination assembly developed for ET 200M distributed I/O architectures. It is designed to interface with 10-channel relay output modules, supporting both AC and DC switching in safety-oriented automation environments.

The system incorporates Form C relay contacts, redundant power input paths, and channel-level fusing to ensure stable and protected signal distribution. Dual diagnostic LEDs provide real-time indication of power status and module operation, improving maintenance visibility and system reliability in industrial installations.

Engineered for SIL2 functional safety performance, the module supports redundant or single-channel operation with pluggable field wiring for simplified installation. Its robust DIN-rail design and high insulation capability make it suitable for demanding process control and machine safety applications requiring continuous and fault-tolerant operation.

Applications

Power plants: Used for turbine relay control, auxiliary system switching, and generator protection signal routing in safety systems.
Substations: Enables breaker control logic, protection relay interfacing, and distributed switching in high-voltage networks.
Chemical plants: Supports process interlocks, emergency shutdown systems, and hazardous area signal switching.
Steel mills: Applied in high-temperature environments for motor control, furnace automation, and heavy-duty relay operations.
Machinery manufacturing plants: Used in production line automation, actuator switching, and modular machine control systems.

Environment & certification

Industrial Temperature Range: Operates reliably from -25°C to +60°C, supporting stable performance in both standard and demanding plant environments.
Humidity Resistance: Designed for 5%–95% non-condensing humidity conditions, ensuring long-term stability in moisture-prone industrial areas.
Overvoltage Protection: Supports installation categories II and III up to 250 V, improving safety under electrical disturbance conditions.
Harsh Environment Suitability: Built for continuous duty in process automation, power distribution, and heavy machinery control systems.
Electrical Isolation: Reinforced insulation design enhances protection between channels and supply circuits, reducing risk in fault conditions.

Features & benefits

High System Availability: Redundant architecture ensures continuous operation in mission-critical industrial environments.
Simplified Maintenance: Plug-in design and LED diagnostics reduce troubleshooting time and maintenance costs.
Improved Safety Integrity: SIL2 compliance ensures reliable performance in safety-critical automation systems.
Flexible Integration: Compatible with ET 200M distributed I/O systems for scalable automation architecture.
Reduced Wiring Complexity: Structured termination design minimizes wiring errors and installation time.
Enhanced Fault Protection: Fuse-based channel protection prevents cascading failures across connected devices.

FAQ

Q1: What is the main purpose of 6ES7650-1AM30-6XX0?
A1: It provides 10-channel relay termination for ET 200M systems in safety and process automation.

Q2: Does it support redundant power input?
A2: Yes, it supports single and redundant 24 VDC power configurations for higher availability.

Q3: What type of relay contacts are used?
A3: Form C contacts supporting normally open and normally closed switching.

Q4: Is the module suitable for safety systems?
A4: Yes, it is designed for SIL2 functional safety applications.

Q5: Can it be maintained easily in the field?
A5: Yes, it features pluggable terminals and modular fuse protection for quick maintenance.
