Siemens 6FC5370-8AA30-0AA1 SINUMERIK 828D PPU 280.3

Siemens 6FC5370-8AA30-0AA1 SINUMERIK 828D PPU 280.3

Product Name: SINUMERIK 828D PPU 280.3 Vertical Operator-Panel CNC

Brand Name: Siemens

Model Number: 6FC5370-8AA30-0AA1

Place of Origin: Germany

Warranty: 12 Months

Whatsapp: +86 18020776782

Email: [email protected]

Appurtenance:

siemens 6fc5370 8aa30 0aa1 sinumerik 828d ppu 2803-1

Overview
Description
Drive Integration
Specifications
Panel Commissioning
Commercial Term
Contact info
FAQ
Other Products
Recommended Products

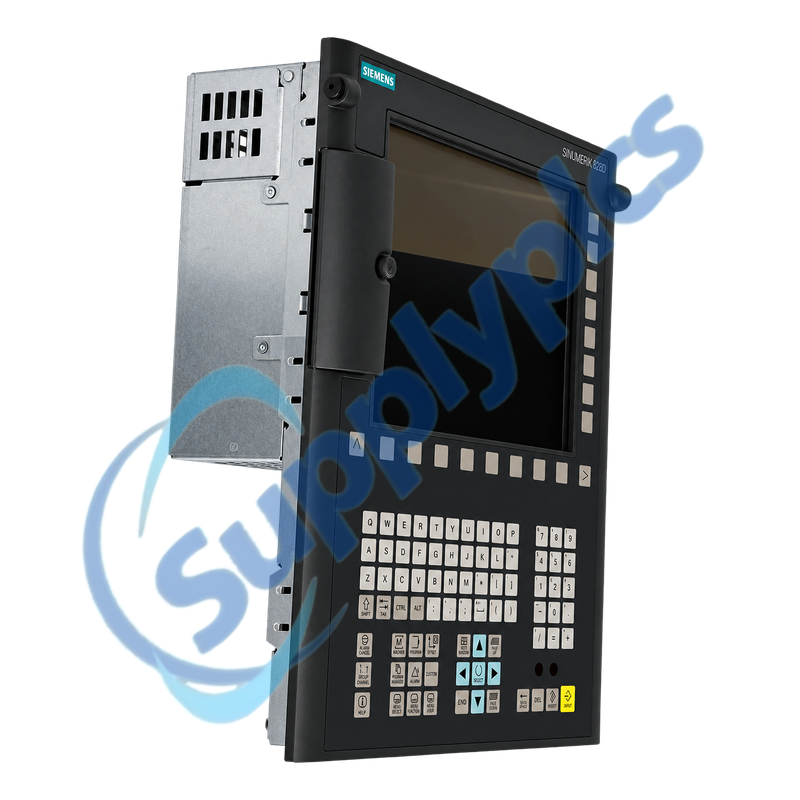

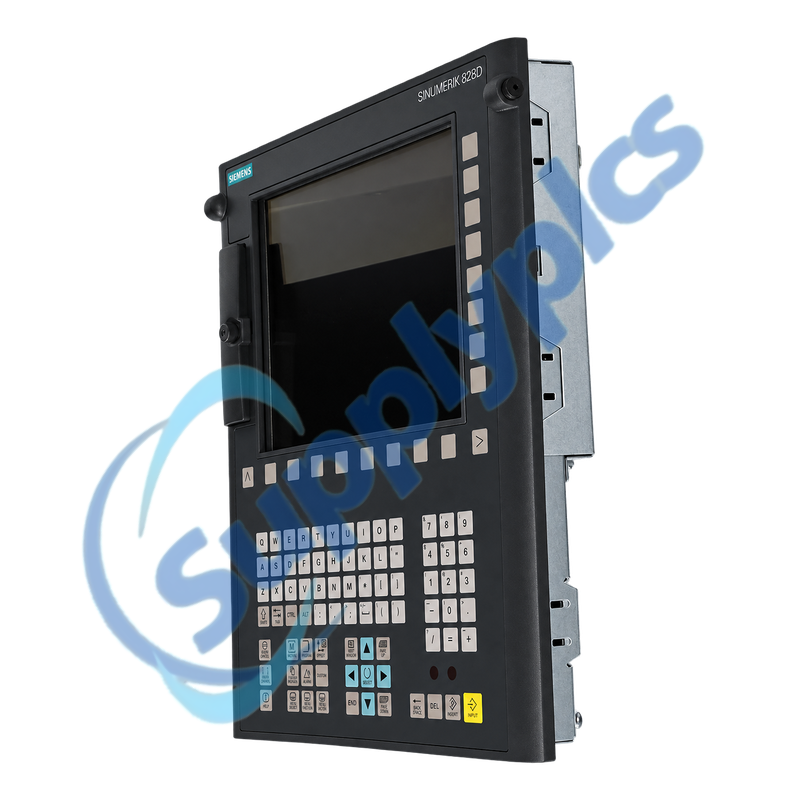

Vertical 10.4-inch operator-panel CNC for compact turning, milling and grinding machines

The PPU 280.3 combines CNC, PLC and HMI functions in one panel. It provides an 800 x 600 TFT display, integrated CNC keyboard, PROFINET I/O, Ethernet and USB access, and DRIVE-CLiQ connection to SINAMICS S120 systems.

Machine-match review: Confirm the vertical 310 x 380 mm panel format, installed CompactFlash system software, licensed technology package, axis and spindle scope, DRIVE-CLiQ topology, machine control panel and I/O configuration before replacement.

Description

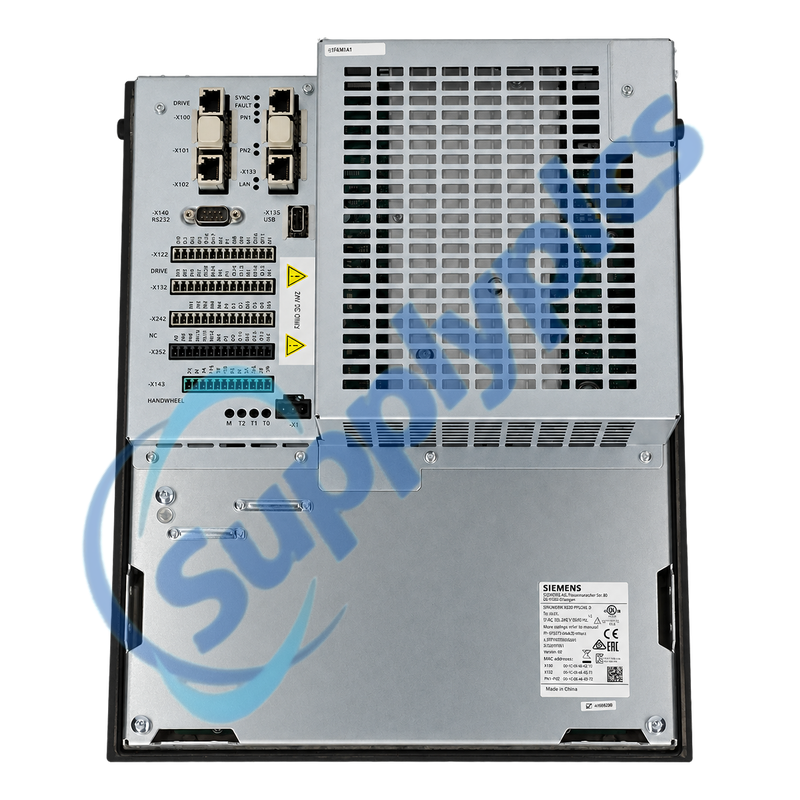

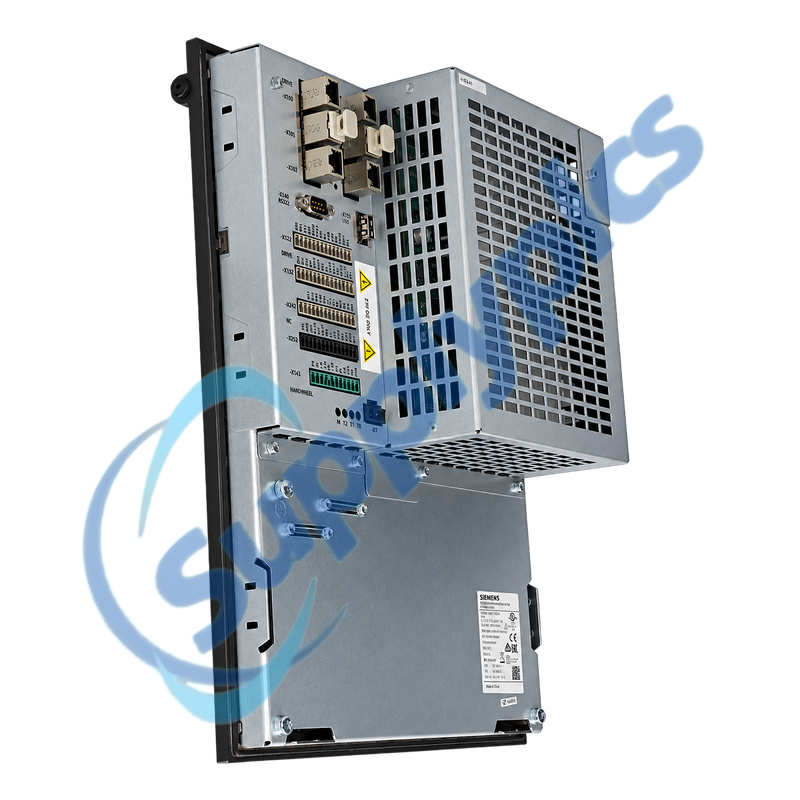

6FC5370-8AA30-0AA1 is the vertical PPU 280.3 hardware component in the SINUMERIK 828D family. The unit is designed for a 24 V DC supply and a rear-mounted panel installation with the front sealed to IP65 when the front cover is closed.

A controlled exchange requires more than matching the display size. Back up the CNC, PLC, HMI, drive and machine data, identify the installed software and licenses, photograph every rear connector and verify the CompactFlash card before disturbing the original unit.

Drive Integration

Preserve the complete SINAMICS and machine-network topology before moving any connection to the replacement panel.

DRIVE-CLiQ map

Record every drive, encoder, NX module and cable position, including the physical order of the topology.

PLC I/O map

Archive the PROFINET device names, IP settings, PP module configuration and machine control panel assignment.

Software scope

Identify the CompactFlash software version, turning or milling package, licensed options and any axis extension.

Specifications

Product type designation	SINUMERIK 828D PPU 280.3
Order number	6FC5370-8AA30-0AA1
Panel orientation	Vertical
Display	10.4-inch TFT color, 800 x 600 pixels
Supply voltage	24 V DC, -15% / +20%
Maximum power	60 W
Power-failure buffer	3 ms; 20 ms with SITOP smart supply
Protection	IP65 front with cover closed; IP20 rear
Operating temperature	0 to 45 degrees C front; 0 to 55 degrees C rear
Interfaces	DRIVE-CLiQ, PROFINET, Ethernet, USB and RS232C
Dimensions	310 x 380 x 105 mm
Net weight / approvals	4.5 kg; CE, cULus and EAC

Panel Commissioning

Commission the panel in stages so that power, boot media, communication and machine motion are verified independently.

Power and boot

Measure the 24 V DC supply under load, verify protective earth and confirm that the approved CompactFlash card boots normally.

Network recovery

Restore Ethernet, PROFINET and DRIVE-CLiQ settings before testing machine functions or drive enable.

Safe motion test

Validate emergency-stop logic, axes, spindle, handwheels and operator keys at controlled speed before production.

Commercial Term

Quotation

Current price and availability

Payment

T/T or agreed terms

Lead time

Confirmed with quotation

Shipping

DHL, FedEx, UPS or agreed freight

Warranty

12 months

Contact info

CONTACT

Jim Pei

[email protected]

+86 180 2077 6782

FAQ

How can I confirm that 6FC5370-8AA30-0AA1 matches the installed SINUMERIK 828D machine?

Check the vertical panel format, 310 x 380 mm dimensions, rear connectors, CompactFlash software, licensed technology package, axis and spindle scope, SINAMICS drive topology, PROFINET I/O and machine control panel.

What should I back up before replacing 6FC5370-8AA30-0AA1 during a planned outage?

Create a complete commissioning archive covering CNC, PLC, HMI, drives and machine data. Record software and firmware versions, licenses, network settings, alarms, rear wiring and every DRIVE-CLiQ connection before removing power.

Why can 6FC5370-8AA30-0AA1 power on but remain at a blank or incomplete startup screen?

Measure the 24 V DC supply under load, inspect protective earth and rear connectors, then verify the CompactFlash card, installed system software and temperature conditions. Preserve the first boot message or alarm before cycling power.

Why can the drives remain unavailable after 6FC5370-8AA30-0AA1 is exchanged?

Compare the restored DRIVE-CLiQ topology with the archived cable map, check every SINAMICS component and encoder connection, then verify the commissioning archive, axis licenses and drive configuration before replacing hardware again.

How should I investigate intermittent touch, key or communication faults on 6FC5370-8AA30-0AA1?

Check the 24 V supply, cabinet earth, rear temperature, connector seating and Ethernet or PROFINET error counters. Note whether the fault follows vibration, heat or a specific interface and capture diagnostics before disturbing the panel.

What must be ordered with 6FC5370-8AA30-0AA1 when the original CompactFlash card is unusable?

Treat the PPU hardware and system software as separate order decisions. Confirm the approved software version, turning or milling package, export variant and required licenses with the machine archive before selecting a replacement card.
