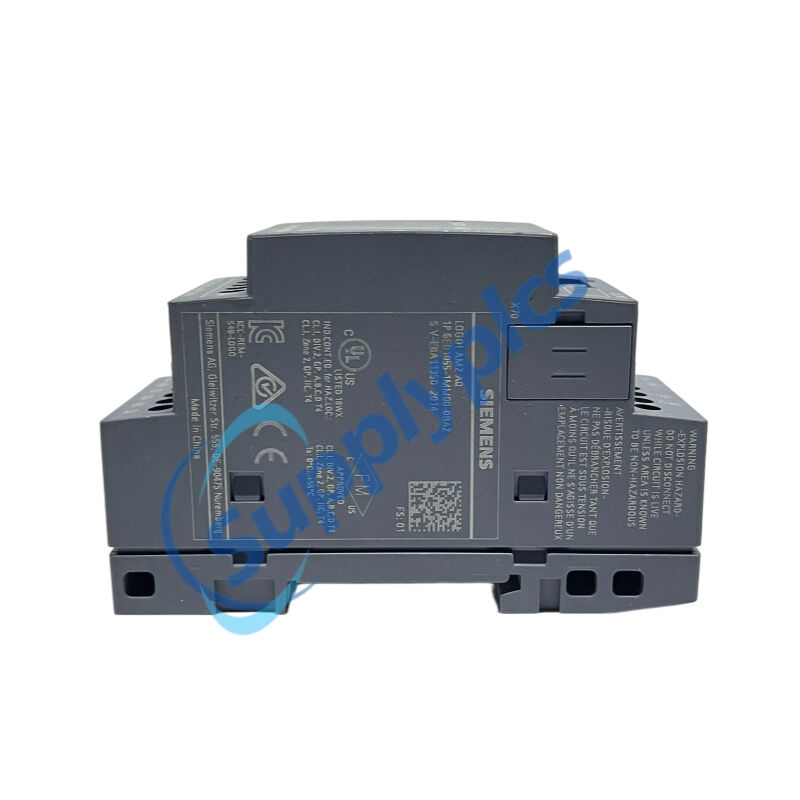

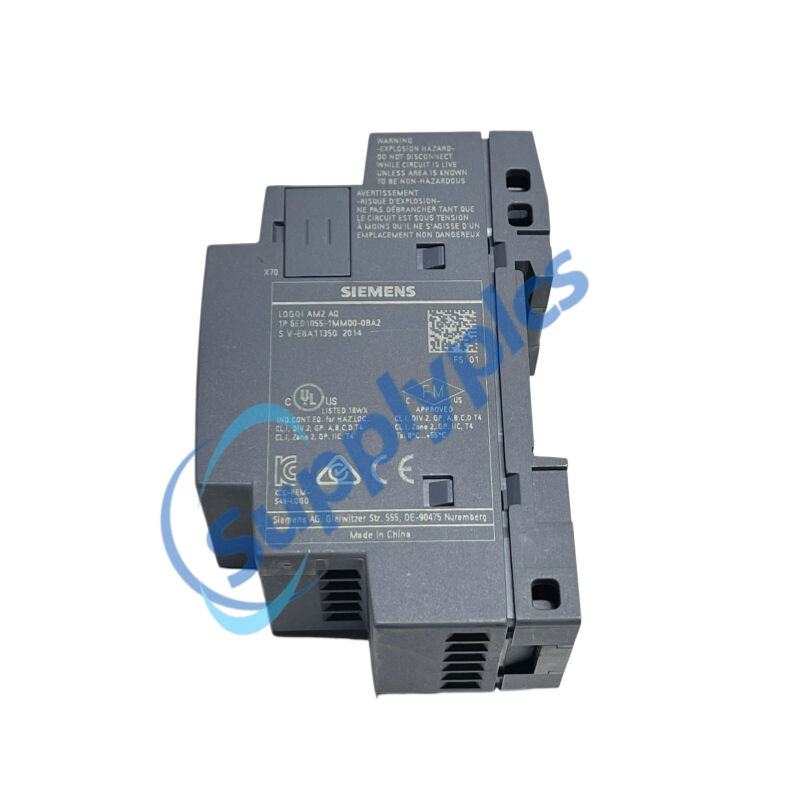

Product Name:expansion module
Brand Name: SIEMENS
Model Number:6ED1055-1MM00-0BA2
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6ED1055-1MM00-0BA2 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Manufacturer |
Siemens |
|
Product Type |
LOGO! AM2 AQ Analog Output Expansion Module |
|
Order Number |
6ED1055-1MM00-0BA2 |
|
Compatible Controllers |
LOGO! 8 and LOGO! 8.2 series |
|
Number of Analog Outputs |
2 |
|
Output Ranges (Voltage) |
0–10 V |
|
Output Ranges (Current) |
0–20 mA / 4–20 mA |
|
Resolution |
10bit |
|
Supply Voltage (Rated) |
24 V DC |
|
Permissible Range |
20.4 … 28.8 V DC |
|
Current Consumption (typ.) |
82 mA |
|
Power Loss (typ.) |
2 W (range 0.4–2.0 W) |
|
Current Output Capability |
max. 300 mA per channel |
|
Protection Rating |
IP20 |
|
Mounting |
35 mm DIN rail, 2 spacing units wide |
|
Dimensions (W × H × D) |
35.5 × 90 × 58 mm |
|
Net Weight |
approx. 0.12 kg |
|
Operating Temperature |
0 … +55 °C (ES03: –20 °C) |
|
Storage / Transport Temperature |
–40 … +70 °C |
|
Certifications |
CE, cULus, FM, CSA, Marine, VDE 0631, IEC 61131 |
|
Radio Interference Suppression |
EN 55011 Limit Class B |
|
RoHS Compliant |
Yes |
|
Country of Origin |
China |
|
Global Warming Potential (total) |
16.5 kg CO₂ equivalent |

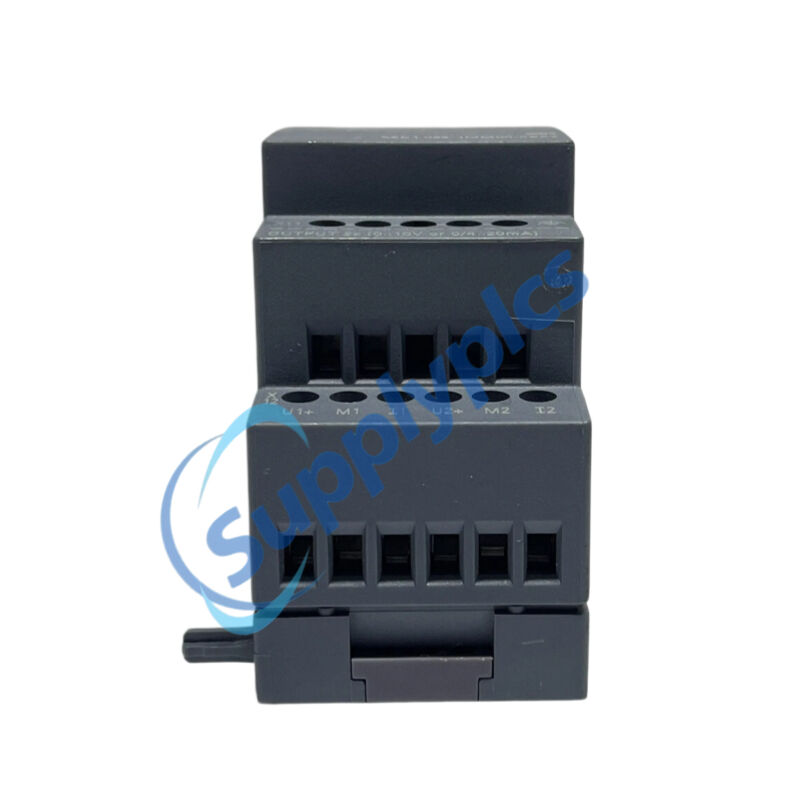

The Siemens 6ED1055-1MM00-0BA2 is a compact analog output expansion module designed for LOGO! 8 and 8.2 controllers. Providing two configurable analog outputs supporting 0–10 V voltage or 0/4–20 mA current signals with 10‑bit resolution, the Siemens 6ED1055-1MM00-0BA2 mounts on 35 mm DIN rail and draws only 82 mA at 24 V DC. The 6ED1055-1MM00-0BA2 seamlessly expands control systems to drive actuators, valves, and other field devices requiring precise analog control signals.
Speed control of motors and industrial drives
Positioning of valves, dampers, and actuators
Pressure and flow regulation in process control
Setpoint transmission to variable frequency drives (VFDs)
Building automation (HVAC damper control, lighting dimming)
Analog signaling to remote I/O and transmitters
2 configurable analog outputs (voltage or current)
10‑bit resolution for precise signal generation
Ultra‑slim 35.5 mm width (2 spacing units)
Simple DIN rail mounting
Compatible with LOGO! 8 and LOGO! 8.2 series
Low power consumption (2 W typical)
Wide operating temperature range
Comprehensive global safety certifications (CE, UL, CSA, FM, Marine)
RoHS compliant with environmental product declaration
Generates 0–10 V voltage output for analog actuator control
Generates 0–20 mA or 4–20 mA current output for transmitter‑based field devices
Converts internal 0–1000 digital values to proportional analog output signals
Expands analog output capacity of LOGO! 8 basic systems (up to 8 analog outputs total)
Enables closed‑loop analog control logic within LOGO! programs
Drives devices requiring variable speed, position, or flow setpoints
Q1: What is the Siemens 6ED1055-1MM00-0BA2 used for?
A1: It adds two analog output channels to a LOGO! 8 controller for generating 0–10 V or 0/4–20 mA signals to drive actuators, valves, or VFDs.
Q2: What power supply is required for the 6ED1055-1MM00-0BA2?
A2: It requires 24 V DC nominal (permissible range 20.4–28.8 V DC) with typical current draw of 82 mA.
Q3: What is the resolution of the Siemens 6ED1055-1MM00-0BA2 analog outputs?
A3: 10‑bit resolution, with internal value range normalized to 0–1000.
Q4: Can the 6ED1055-1MM00-0BA2 be used with LOGO! 8.2?
A4: Yes, the module is fully compatible with both LOGO! 8 and LOGO! 8.2 series basic units.
Q5: How many analog outputs can a LOGO! 8 system have using the 6ED1055-1MM00-0BA2?
A5: A LOGO! 8 system can be expanded up to 8 analog outputs by using multiple AM2 AQ modules (max. four modules)
