Product Name: CPU Module
Brand Name: GE
Model Number:DS200SDCCG1AGD/DS215SDCCG1AZZ01B
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
DS200SDCCG1AGD/DS215SDCCG1AZZ01B |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
DS200SDCCG1AGD |
DS215SDCCG1AZZ01B |
|
Manufacturer |
General Electric |
General Electric |
|
Series |
Mark V (Speedtronic) |
Mark V (Speedtronic) |
|
Product Type |
Drive Control Card / Drive Control Board |
Drive Control Card with Preloaded Firmware |
|
Functional Acronym |
SDCC |
SDCC |
|
Microprocessors |
3×16-bit (DCP, MCP, CMP) |
3×16-bit (DCP, MCP, CMP) |
|
Microcontroller |
80C196 |
80C196 |
|
Digital Signal Processor |
TMS320C25 (CMP) |
TMS320C25 (CMP) |
|
Memory Architecture |
Shared dual-ported RAM + 4 EPROMs |
Shared dual-ported RAM + 4 EPROMs (preloaded firmware) |
|
Onboard Storage Chips |
5 memory chips (4 EPROMs + 1 EEPROM) |
5 memory chips (pre-configured) |
|
LED Diagnostics |
10 LEDs (BCD/binary fault codes) |
10 LEDs (BCD/binary fault codes) |
|
Connectors |
8× (1PL, 2PL, 3PL, 6PL, 7PL, 8PL, 9PL, 11PL) |
8× (same assignment) |
|
Power Supply |
24 VDC (backplane-powered) |
18.5–36 VDC |
|
Operating Temperature |
–40°C to +70°C |
–40°C to +70°C |
|
Dimensions (approx.) |
210 × 150 × 55 mm |
210 × 150 × 55 mm |
|
Net Weight |
Approx. 1.8 kg |
Approx. 1.8 kg |
|
Compatible Drives |
AC2000, DC2000, EX2000 |
AC2000, DC2000, EX2000 |
|
Software Platform |
ST2000 / Control System Toolbox |
ST2000 (pre-installed) |
|
Instruction Manual |
GEI-100029 |
GEI-100029D |

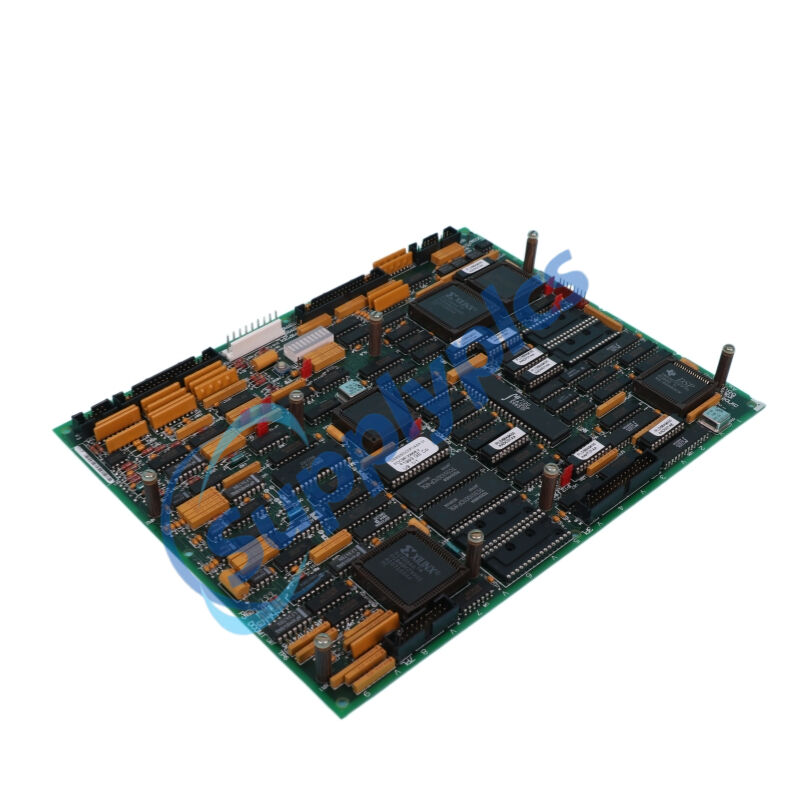

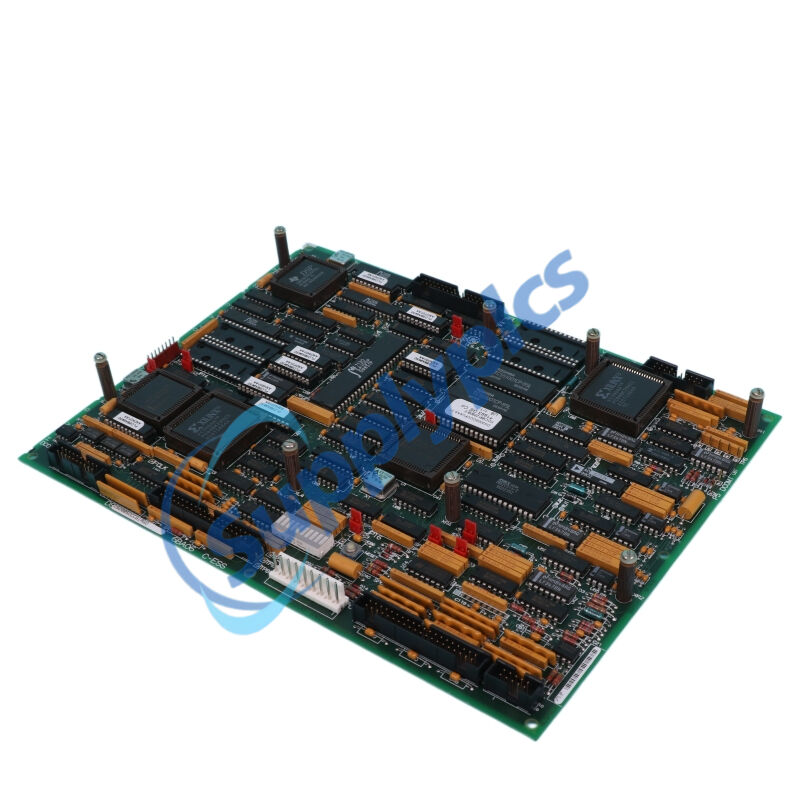

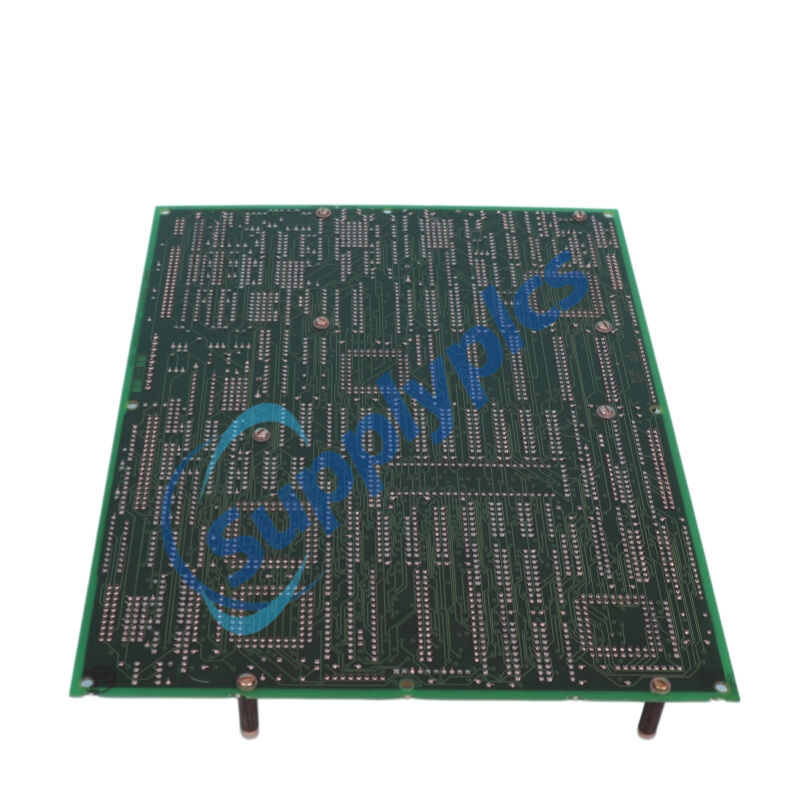

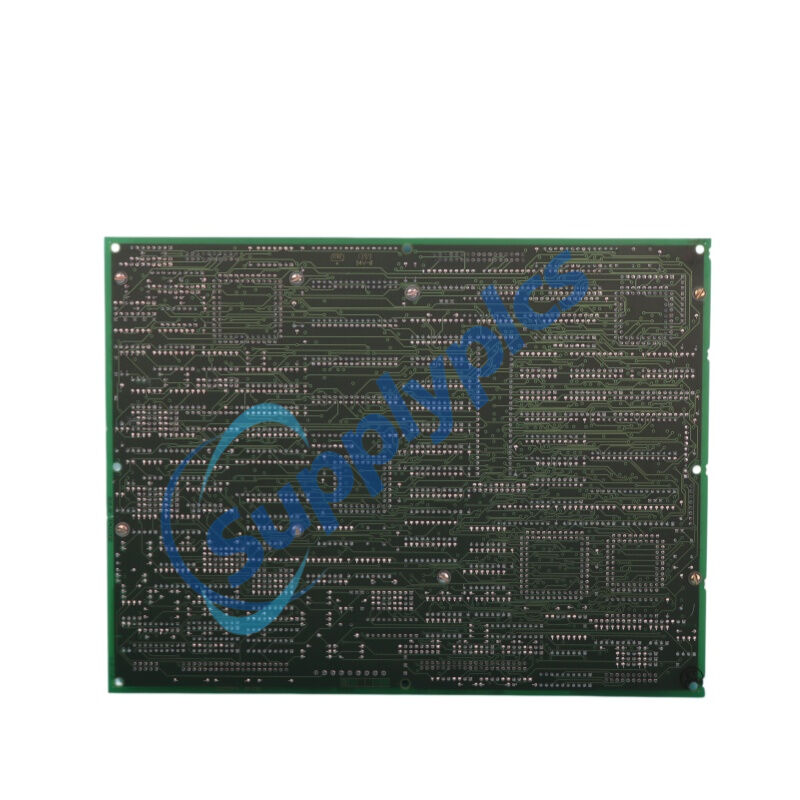

The DS200SDCCG1AGD and DS215SDCCG1AZZ01B are Drive Control Cards engineered by General Electric for the Mark V Speedtronic turbine control platform. The DS200SDCCG1AGD serves as the base hardware assembly, while the DS215SDCCG1AZZ01B incorporates pre‑loaded firmware and system software, together forming the complete control backbone for AC2000, DC2000, and EX2000 drive systems. Both cards deploy three dedicated 16‑bit microprocessors—Drive Control Processor, Motor Control Processor, and Co‑Motor Processor—operating in parallel via shared dual‑ported RAM to execute real‑time regulation, high‑speed I/O management, and complex algorithmic processing. Ten onboard LEDs provide binary or BCD fault codes for rapid diagnostics. Although part of a legacy series, the DS200SDCCG1AGD and DS215SDCCG1AZZ01B remain essential for maintaining and upgrading existing turbine installations without chassis reconfiguration.
Gas turbine power plants – fuel valve positioning, compressor surge prevention, speed governing
Steam turbine systems – inlet valve regulation, extraction pressure control, overspeed protection
Wind turbine farms – pitch control, yaw positioning, torque management for variable‑speed generators
AC2000 drive systems – variable frequency motor control for pumps, fans, and compressors
DC2000 drive systems – precise speed and torque regulation for rolling mills and hoists
EX2000 excitation systems – synchronous generator field current control and voltage regulation
Oil & gas pipelines – electric compressor station drive automation
Industrial manufacturing – extruder drives, crane hoists, and test stand positioning
Triple‑processor parallel architecture – DCP for drive supervision, MCP for motor‑specific inner loops, CMP for advanced mathematical calculations
Shared dual‑ported RAM – simultaneous access by all three processors for minimal data latency
Ten‑LED fault indication array – binary or BCD encoded diagnostics for expedited troubleshooting
VME‑based construction – robust backplane interface with electromagnetic compatibility for harsh industrial environments
Eight multi‑function connectors – designated interfaces for power, I/O, LAN communications, signal processing, and terminal boards
Wide temperature tolerance – certified for –40°C to +70°C operation across varying climates
Modular auxiliary expansion – supports daughterboards including SLCC (LAN communications), SPC (signal processing), and SPBC (multibridge interface)
Factory‑preconfigured or field‑loadable firmware – DS215 variant ships with complete software stack pre‑installed for plug‑and‑play replacement
ST2000 software suite compatibility – DOS‑based configuration, tuning, and diagnostics toolkit
Centralized drive orchestration – Executes full‑scope control sequences, real‑time logic, and fault response coordination
Motor regulation – MCP handles current loops, velocity feedback, and position control for AC induction, DC, and synchronous machines
Math‑intensive processing offload – CMP resolves advanced motion algorithms, state‑space estimators, and adaptive tuning routines beyond MCP capacity
I/O signal conditioning – Interfaces with analog (voltage/current) and digital (discrete) field signals via dedicated PL connectors
Diagnostic logging – Captures fault events and operational anomalies; displays codes through the front LED array
System‑level communication bridging – Exchanges data with SLCC LAN card for network integration and with SPC/SPBC for expanded signal processing
Q1: Are the DS200SDCCG1AGD and DS215SDCCG1AZZ01B interchangeable?
A1: The DS215SDCCG1AZZ01B is a pre‑configured variant with factory‑loaded firmware, intended as a direct operational replacement for the base DS200SDCCG1AGD once the latter has been programmed. Physical footprints and connector assignments are identical.
Q2: What software is required to configure the DS200SDCCG1AGD?
A2: Configuration is performed using the ST2000 software suite (DOS‑based) or the GE Control System Toolbox (Windows environment), enabling parameter editing, ladder logic modification, and real‑time monitoring.
Q3: How do I interpret the fault codes on the DS200SDCCG1AGD?
A3: The ten LEDs display fault codes in binary or binary‑coded decimal (BCD) format. Under normal operation, LEDs illuminate sequentially from left to right in pairs. Refer to the GEI‑100029 manual for full code tables.
Q4: Can the DS215SDCCG1AZZ01B be used in a redundant configuration?
A4: Yes. When paired with appropriate rack hardware and auxiliary modules such as the SLCC communications card, the DS215SDCCG1AZZ01B supports dual‑channel redundancy with automatic failover.
Q5: Is the DS200SDCCG1AGD still available for legacy system maintenance?
A5: While the Mark V series is discontinued, aftermarket suppliers and certified repair services continue to offer refurbished and New‑Old‑Stock (NOS) units of both DS200SDCCG1AGD and DS215SDCCG1AZZ01B for existing installations.
