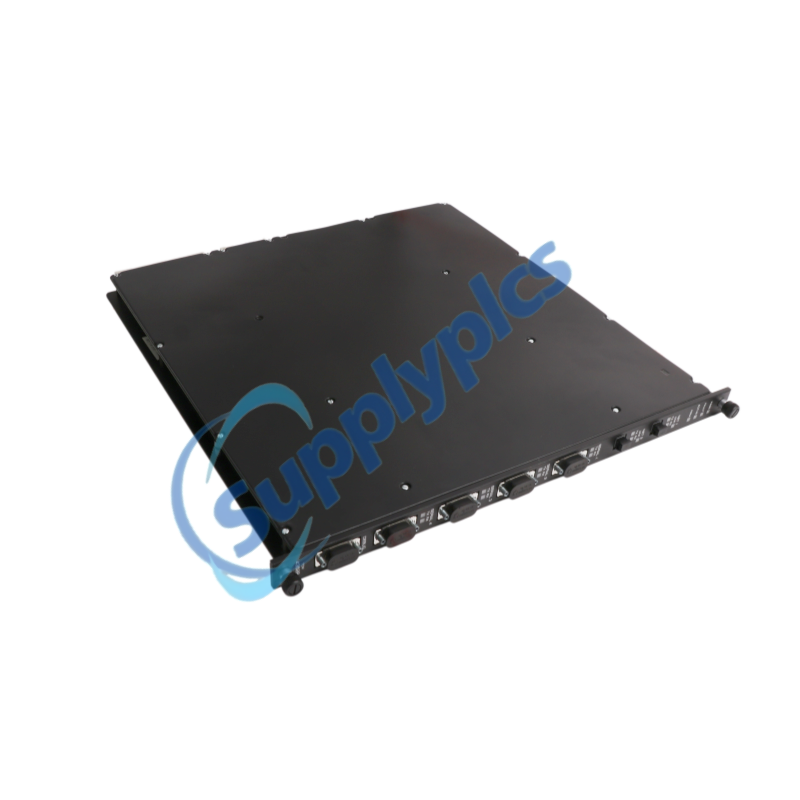

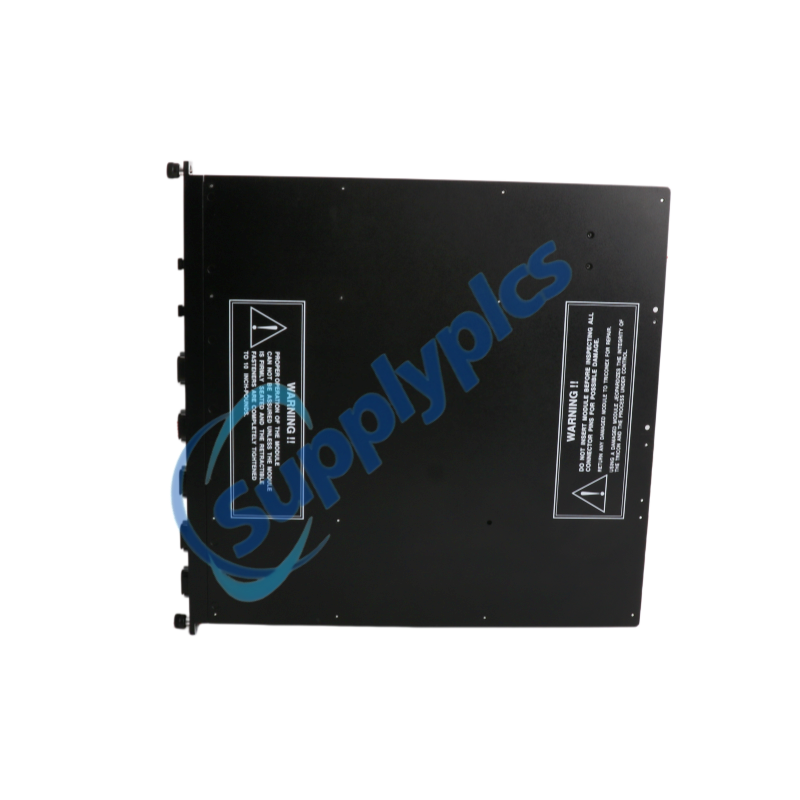

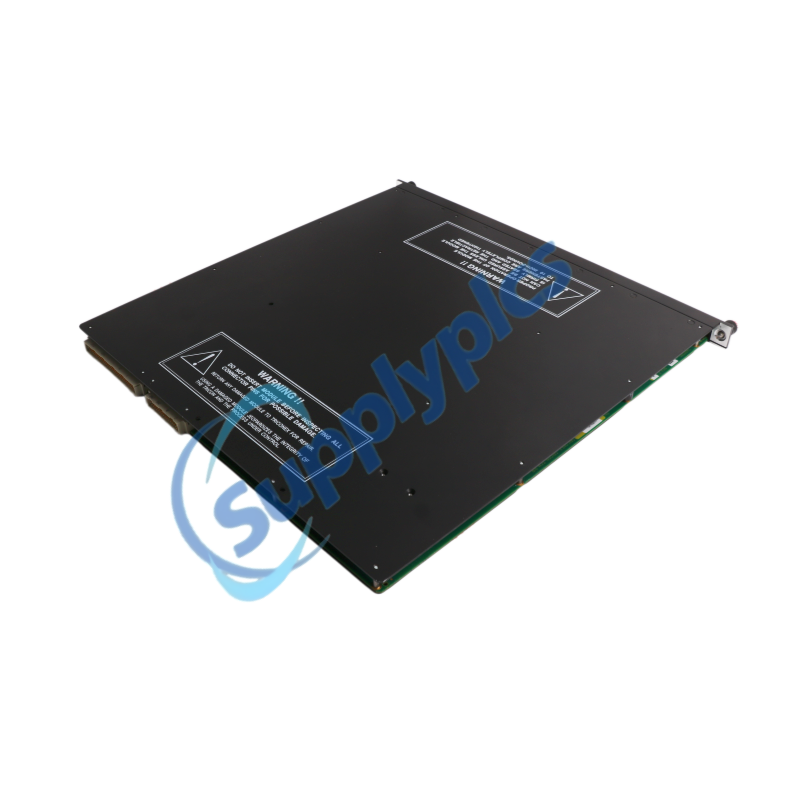

Product Name: Tricon Communication Module
Brand Name: TRICONEX
Model Number: 4352B
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Alternative Names
TRICONEX 4352B TCM
TRICONEX 4352B Fiber-Optic Ethernet TCM
TRICONEX 4352B Triconex Communication Module
Description
The TRICONEX 4352B is a specialized communication interface module engineered specifically for Tricon v10.0 and later safety systems. It provides robust, high-performance connectivity through two fiber-optic Ethernet ports and four serial ports. The module is essential for critical safety-related industrial applications, ensuring reliable data exchange and system integration while maintaining the high availability and integrity standards required by the Triconex safety architecture.
Main Function
The TRICONEX 4352B is a Tricon Communication Module (TCM) designed to facilitate high-speed Ethernet and serial communication between a Tricon controller and external devices, including TriStation 1131, other Tricon or Trident controllers, Modbus-compatible master/slave devices, and external host systems.
Commercial Terms
Minimum Order Quantity |
1 Piece |
Price |
Contact for Winnie |
Packaging Details |
Original new Factory Sealed |
Delivery Time |
3–7 Days |
Payment Terms |
T/T |
Shipping Method |
DHL / FedEx / UPS / TNT |
Supply Ability |
In stock |
|
Sales: |
Email: |
Whatsapp: |
|
JIM |
|
Manufacturer |
TRICONEX |
|
Product Type |
Tricon Communication Module |
|
Part Number |
4352B |
|
Ethernet Ports |
2x Fiber-optic (MT-RJ connectors, 62.5/125 micron multi-mode fiber) |
|
Ethernet Speed |
100 MbpsSerial Ports: 4x RS-232/RS-485 (DB-9 connectors) |
|
Serial Communication Speed |
Up to 115.2 Kbps per port |
|
Isolation |
500 VDC port-to-port and port-to-chassis |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) with ISA G3 Corrosive Protection |
|
Storage Temperature |
-40° to 167° F (-40° to 75° C) |
|
Relative Humidity |
5% to 95%, non-condensing |
|
Sinusoidal Vibrations |
2 G @ 10 to 150 Hz per axis |
|
Shock Resistance |
15 G for 6–11 ms in each axis |
|
Estimated shipping dimensions |
2.2x40.6x40cm |
|
Weight |
2.25kg |
|
Place of shipment |
Xiamen, China |
Dual-Port Network Routing: Provides two physical fiber-optic network connections (NET 1 and NET 2) with multi-protocol support including TCP/IP, ICMP, SNTP, TSAA, and TriStation.
Dedicated Serial Assignments: Serial Port #1 natively supports Modbus or Trimble GPS time interfaces; Serial Port #4 natively supports Modbus or TriStation workstation interfaces.
Hot-Swap Maintenance Access: Supports online removal and insertion, allowing plant personnel to completely replace a faulty TRICONEX 4352B while the system is under power and actively running process logic.
Multi-Master Modbus Capacity: Supports comprehensive Modbus function codes (01, 02, 03, 04, 05, 06, 07, 08, 15, 16) with an aggregate serial system capacity of up to 32 Modbus masters or slaves across the network.

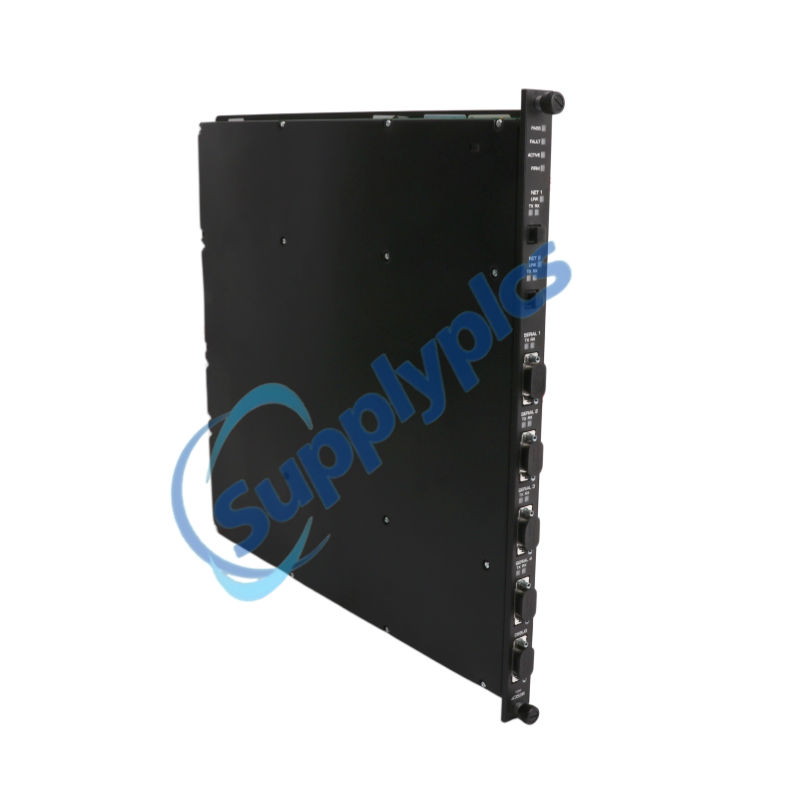

Extensive Physical Diagnostic Indicators: Equipped with specialized front-panel status LEDs (PASS, FAULT, ACTIVE, FIRM, LINK, TX, RX) for immediate, visibility-guided physical troubleshooting.
Emergency Shutdown Systems (ESD): The TRICONEX 4352B is deployed in critical loop interlocks where rapid communication with host HMI platforms is necessary during plant emergency events.
Burner Management Systems (BMS): Manages safe ignition and fuel isolation communication arrays, ensuring that high-voltage boiler ignition pulses do not disrupt safety data links.
Fire and Gas Detection Applications (F&G): Utilizes fiber paths to reliably backhaul critical safety alarms from remote detector clusters across wide processing fields to central control hubs.
Nuclear Power 1E Applications: Used in certified nuclear configurations under specific NRC safety guidelines to ensure stable communication architecture in critical power grids.
SIL 3 System Certification: Extensively certified by TÜV Rheinland for active use in safety-critical applications requiring Functional Safety Certification from SIL 1 up to SIL 3 under the global IEC 61508 framework.
Hazardous Location Safety Regulations: Fully qualified through rigorous testing regimes to meet strict directives including ATEX Zone 2, Group IIB compliance, and Factory Mutual (FM) Class I, Division 2, Temperature T4 standards.
Comprehensive Environmental Standards: Complies with foundational European Union CE Mark requirements, international electrical safety specifications via the Canadian Standards Association (CSA), and international EMC rules per IEC 61000-4 series tests.
The TRICONEX 4352B must be configured via the TriStation 1131 programmer software platform to initialize physical network mapping and register correct variable alias numbers. Ensure the internal firmware profile of the TRICONEX 4352B module is validated against the active revision of your system’s main processors before online insertion.
Q: What are the exact cable and connector material requirements for the TRICONEX 4352B?
A: The TRICONEX 4352B features dedicated fiber-optic network ports using MT-RJ type connectors. It strictly requires 62.5/125 μm multi-mode fiber-optic cabling. Standard copper RJ-45 twisted-pair patches cannot be used with this module.
Q: Is the TRICONEX 4352B compatible with other TCM models within the same chassis slot?
A: No. Tricon system guidelines strictly prohibit mixing different TCM models within a single logical slot. The designated companion slot must house an identical TRICONEX 4352B module to ensure proper redundant configuration.
Q: Does the TRICONEX 4352B support an embedded OPC server?
A: No. The embedded OPC server is exclusive to TCM models 4353 and 4354. The TRICONEX 4352B relies on standard TCP/IP and TSAA protocols to pass data to external host PCs.Application, Installation & Compliance
Q: Does the TRICONEX 4352B support hot-spare positioning? What happens if it fails?
A: The hot-spare feature is not available for this module. However, the TRICONEX 4352B is fully hot-swappable. You can safely replace a faulty module online while the controller remains live. When installed in pairs, communication automatically routes to the redundant companion module upon primary failure.
Q: How many TRICONEX 4352B modules can I install in one Tricon system?
A: A single system supports a maximum of 4 TRICONEX 4352B modules. They must occupy two designated logical communication slots within the chassis.
