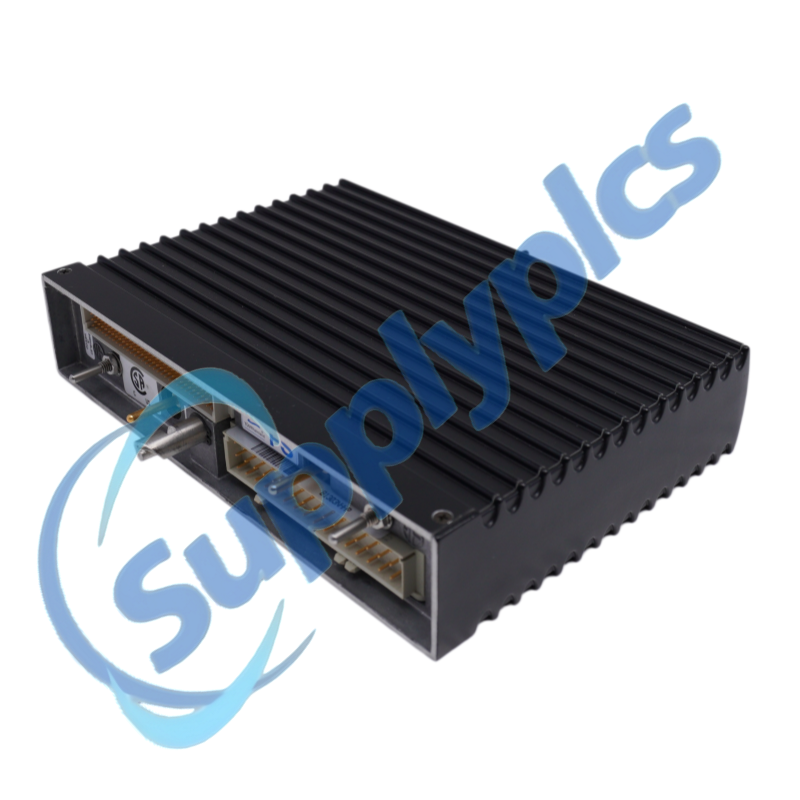

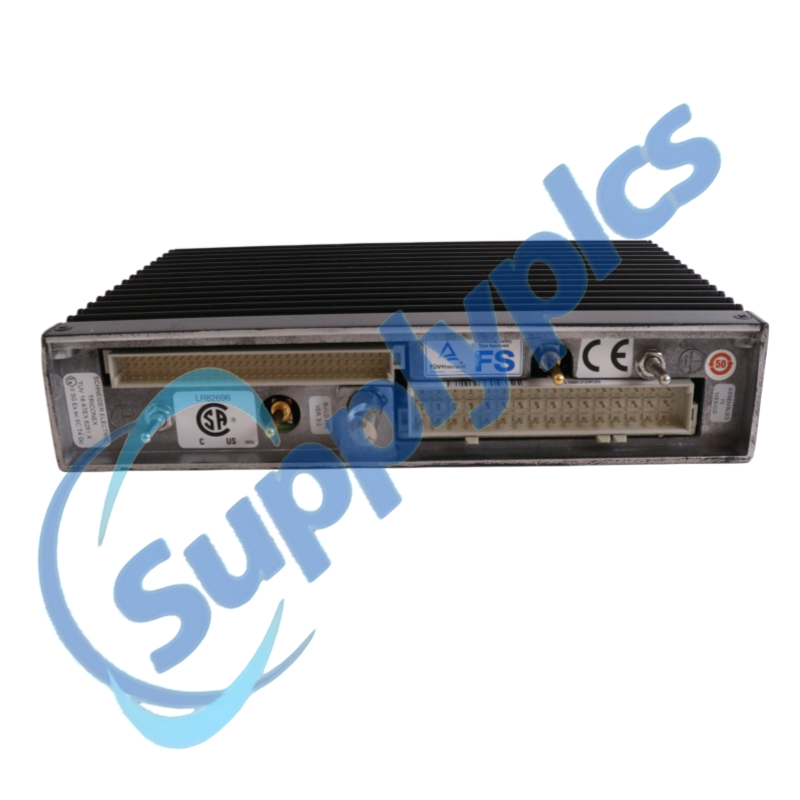

Product Name: Main Processor Module (MP)
Brand Name: Triconex Invensys
Model Number: MP3101 MP 3101
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Sales |
Phone/Whatsapp |
|
Jim Pei |

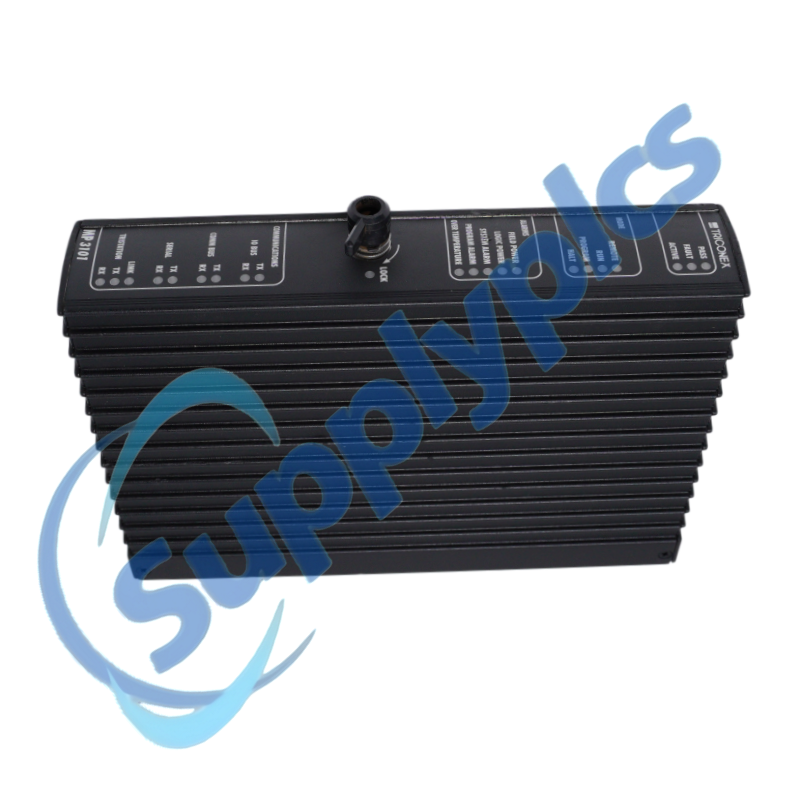

| Product Name | Triconex Invensys MP3101 MP 3101 Main Processor Module (MP) |
| Manufacturer | Triconex Invensys |
| Product Type | Main Processor Module (MP) |
| Part Number | MP3101 MP 3101 |
| Weight | 1.66kg |
| Estimated shipping dimensions | 4.3x18.8x21.8cm |
| Place of shipment | Xiamen, China |
| Country of origin | USA |
| Application Processor | Motorola MPC860, 32-bit, 50 MHz |
| Flash PROM | 6 MB, CRC-Protected |
| Application Processor DRAM | 16 MB, Byte Parity |
| NVRAM | 8 KB, CRC-Protected |
| NVRAM Function | Retentive Variables |
| IOX Processor | Motorola MPC860, 32-bit, 50 MHz |
| IOX DRAM | 16 MB, Byte Parity |
| Shared Memory | 128 KB, Byte Parity |
| TriBus Speed | 25 Mbps |
| Communication Bus | RS-485, 2 Mbps HDLC |
| I/O Bus | RS-485, 2 Mbps HDLC |
| Diagnostic Bus | 2 Mbps HDLC |
| TriStation Port | 1 × 10BaseT Ethernet |
| TriStation Connector | RJ-45, Shielded, on Baseplate |
| Modbus Port | 1 × RS-232/485 DTE |
| Modbus Connector | DB-9, Shielded, on Baseplate |
| Debug Port | RJ-12 |
| Alarm Contacts | Redundant, Normally Closed |
| Nominal Input Voltage | 24 VDC |
| Operational Voltage Range | +19.2 to +30 VDC |
| Logic Power | 8 W Maximum |
| Absolute Maximum Input Voltage | 33 VDC |
| Absolute Maximum Reverse Input Voltage | -0.6 VDC |
| Inrush Current per Input | 2.4 A Maximum; 1.2 A for 50 ms Typical |
| Short-Circuit Current Limit per Input | 2.4 A Maximum |
| Protective-to-Functional-Earth Isolation | 500 VDC |
| Battery | ½ AA Lithium |
| Battery Predicted Life | 15 Years |
| Modbus RS-232 Max. Cable Length | 15 m (50 ft) |
| Modbus RS-485 Max. Cable Length | 1.2 km (4,000 ft) |
| Modbus Transmission Rates | 1200, 2400, 4800, 9600, 19.2K, 38.4K, 57.6K, 115.2K bps |
| Modbus Protocol | Slave, RTU Mode, Optional Parity, 1 Stop Bit |
| Network Port | 10BaseT Ethernet |
| Network Max. Cable Length | 100 m (330 ft), Category 5 Twisted-Pair |
| Network Protocols | TriStation, TSAA, Triconex Peer-to-Peer |
| Front Panel Status Indicators | PASS, FAULT, ACTIVE |
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Jim |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |
The Triconex Invensys MP3101 MP 3101 is a Main Processor Module designed for high-integrity Triconex control and safety system applications. It incorporates dedicated 32-bit Motorola MPC860 application and I/O processors, protected memory resources, and a high-speed 25 Mbps TriBus for reliable system processing and data exchange. The module supports TriStation Ethernet, Modbus RS-232/485, TSAA, and Triconex peer-to-peer communications, providing flexible connectivity for engineering, monitoring, and external system integration. With retentive memory, redundant alarm contacts, extensive diagnostics, and industrial power protection, it is well suited for safety instrumented systems, emergency shutdown, process protection, and other mission-critical industrial control applications.
Q1: What role does the Triconex Invensys MP3101 MP 3101 play in a control system?
The MP3101 MP 3101 functions as the main processor module, handling application processing, I/O coordination, system communication, and diagnostic activities within compatible Triconex control and safety systems.
Q2: How does the MP3101 protect critical program and operating data?
It uses CRC-protected Flash PROM and NVRAM together with parity-protected DRAM to help maintain the integrity of application programs, retentive variables, and operational data.
Q3: What communication options are available for connecting the MP3101 to other equipment?
The MP3101 provides 10BaseT Ethernet and RS-232/485 connectivity, supporting TriStation, TSAA, Triconex peer-to-peer, and Modbus communications.
Q4: How does the MP3101 handle communication with system I/O?
It uses dedicated I/O processing resources and an RS-485 HDLC I/O bus to coordinate data exchange between the processor and compatible I/O components.
Q5: What is the purpose of the TriBus in the MP3101 system architecture?
The MP3101 MP 3101 uses a 25 Mbps TriBus for high-speed internal communication and coordinated data exchange within the compatible Triconex system.
Q6: How can operators identify the operating condition of the MP3101?

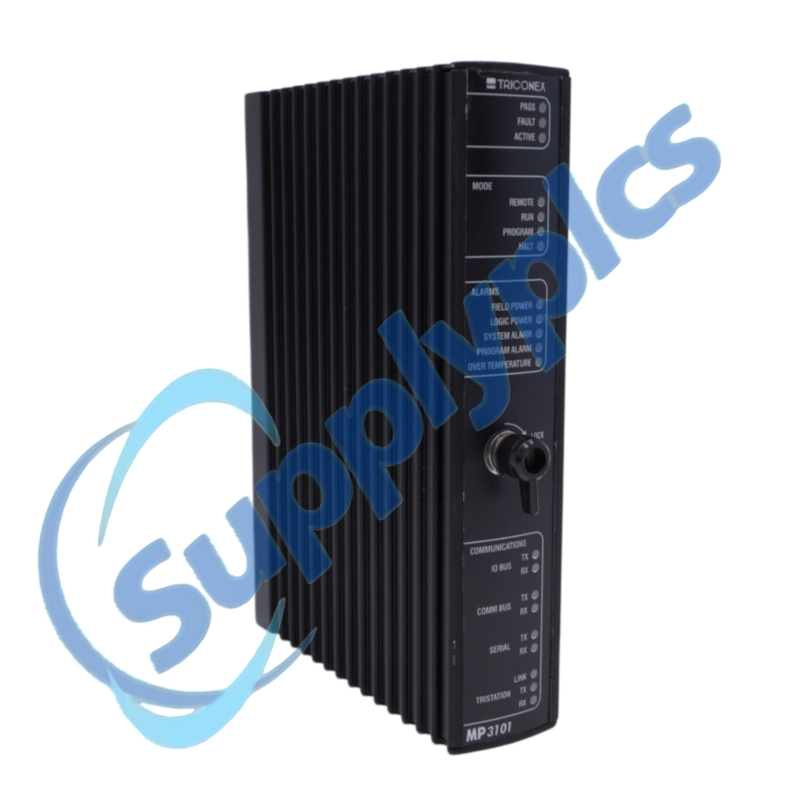

PASS, FAULT, and ACTIVE indicators on the front panel provide convenient visual information about module health and operating status.
