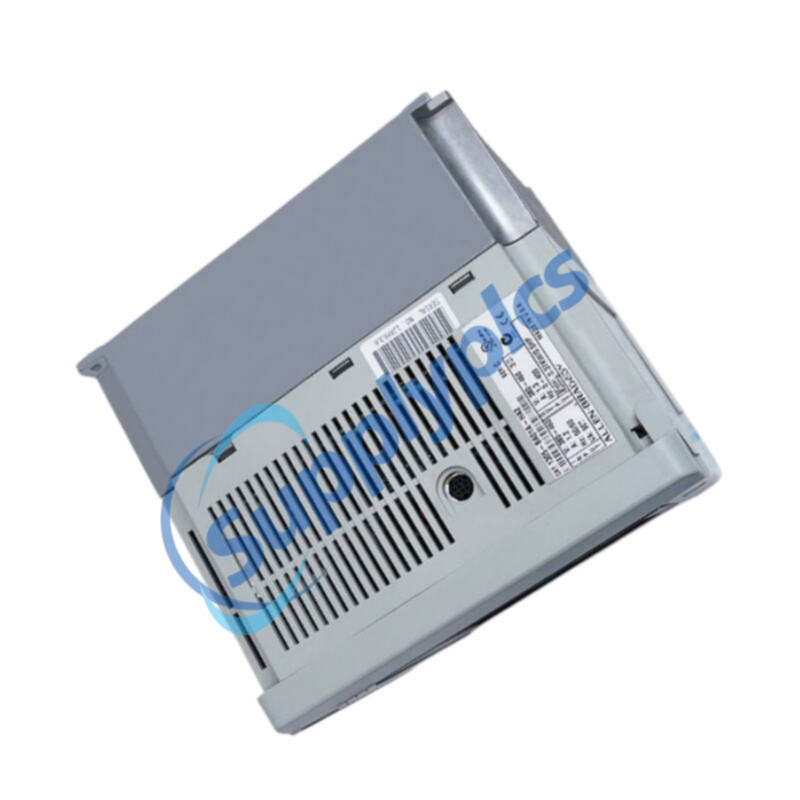

Product Name: Adjustable Frequency AC Drive Ready
Brand Name: Allen Bradley
Model Number:1305-BA01A-HA2
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Allen Bradley |
Model Number: |
1305-BA01A-HA2 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Value |
|
Catalog Number |
1305-BA01A-HA2 |
|
Motor Rating |
0.37 kW (0.5 HP) |
|
Input Voltage |
380-460V three-phase, 50/60 Hz |
|
Output Current |
1.3 A (at 380V) |
|
Output Voltage |
Adjustable 0 V to input voltage |
|
Output Frequency |
0.00 – 400.00 Hz |
|
Enclosure |
NEMA Type 1 (IP30) |
|
Ambient Temperature |
0 to +50 °C |
|
Storage Temperature |
-40 to +70 °C |
|
Relative Humidity |
0–95% non-condensing |
|
Carrier Frequency |
2 – 8 kHz (derate above 4 kHz) |
|
V/Hz Pattern |
Programmable (Standard, Fan/Pump, Custom) |
|
Accel/Decel Times |
0.1 – 3600 sec (independent) |
|
Current Limit |
20–150% of drive rated current |
|
Overload Protection |
150% for 60 sec, electronic |
|
Control Inputs |
Start, Stop, Enable, Reverse, Jog, SW1-SW3 (contact closure) |
|
Analog Inputs |
0-10V (100kΩ), 4-20mA (250Ω), external pot (10kΩ) |
|
Analog Output |
0-10V (≥4kΩ load) |
|
Programmable Outputs |
Relay (Form A) + Open collector (24V, 50mA) |
|
SCANport Load |
250 mA max (all adapters) |
|
Dynamic Braking |
External resistor capable (DB Enable parameter) |
|
Approvals |
UL, cUL, CSA, CE (with optional filter) |

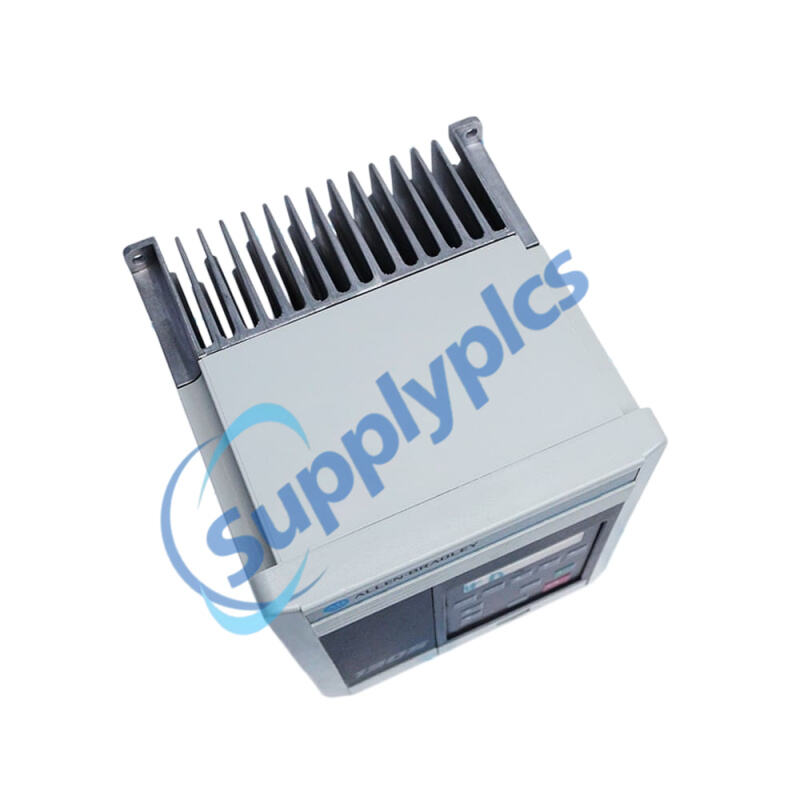

The 1305‑BA01A‑HA2 is part of the Bulletin 1305 Series C adjustable frequency drive family, specifically the 0.5 HP / 0.37 kW model for 380‑460V three‑phase systems. It includes a factory‑installed 1201‑HA2 Human Interface Module which provides a 16‑character, 2‑line LCD with digital up‑down keys for speed control, parameter programming, and real‑time monitoring. The drive is designed for simple operation: all control terminals are accessible behind a hinged panel, and the HIM can be removed for remote mounting or handheld use (with optional cables). The 1305‑BA01A‑HA2 supports multiple input modes (3‑wire, run forward/reverse, MOP), up to seven preset speeds, two independent accel/decel ramps, skip frequencies, S‑curve profiling, and built‑in electronic motor overload protection. It is also compatible with Bulletin 1203 communication modules (Remote I/O, DeviceNet, serial) for integration into PLC‑based systems. The drive’s IGBT output provides high efficiency (≈97.5%) and low audible motor noise. An optional RFI filter (e.g., 1305‑RFB‑05‑A) can be added for CE compliance.
Small conveyors, fans, pumps, and blowers in HVAC or material handling
Packaging machinery, mixers, and centrifugal machines requiring variable speed
Retrofitting fixed‑speed motors for energy savings and process control
Standalone speed control in light industrial environments (NEMA 1 enclosures)
OEM equipment where digital HIM with up/down keys is preferred over potentiometer
Integrated digital HIM (1201‑HA2) – Local programming, speed control, fault display, and parameter upload/download (Series B HIM)
Sine‑weighted PWM – Low motor noise and smooth torque
Flexible I/O – Two programmable outputs, one analog output, three configurable digital inputs (SW1‑SW3)
Multiple stop modes – Coast, ramp, DC brake, or S‑curve
Motor protection – Electronic overload, current limit, phase‑to‑ground short detection, thermistor simulation (drive temp)
Datalink support – Real‑time parameter access via communication adapters (Data In/Out A1‑D2)
EEprom functions – Save/recall of parameter sets; reset to factory defaults
Password protection – Prevents unauthorised parameter changes
Speed regulation – Accepts frequency commands from HIM, analog inputs (0‑10V, 4‑20mA, remote pot), preset speeds, or serial adapters
Start/stop control – Local (HIM keys) or remote (TB2 terminals) with 2‑wire or 3‑wire schemes
Accel/decel ramping – Two independent linear or S‑curve ramps, selectable via digital inputs
Motor jogging – Momentary jog at programmable frequency
Fault handling – Auto‑restart (up to 9 attempts), fault queue (last 4 faults), configurable response to 4‑20mA loss
Monitoring – Displays output frequency, current, voltage, power, DC bus, drive temperature, and last fault
Custom V/Hz – Adjustable boost frequencies, break point for special torque requirements
Dynamic braking – Enables external brake resistor for rapid deceleration
Q1: What is the difference between the 1305‑BA01A‑HA2 and a standard 1305‑BA01A?
A: The ‑HA2 suffix indicates the drive comes with a 1201‑HA2 HIM featuring digital up‑down keys for speed control (instead of a blank cover or analog potentiometer). The base drive electronics are identical, but the HA2 HIM allows local programming and digital speed reference.
Q2: Can I operate the 1305‑BA01A‑HA2 without the HIM attached?
A: Yes, the drive will run without the HIM if you provide control signals (start, stop, frequency reference) via the terminal block (TB2). However, to remove the HIM while power is applied, you must first mask out its control bit in [Logic Mask] (parameter 92) or use the “Control Logic Disable” function in the Control Status menu; otherwise, a Serial Fault (F10) will occur.
Q3: What is the maximum motor cable length for this 460V drive?
A: Without output reactors or terminators, for a 0.5 HP motor with 1600V insulation, the maximum unshielded cable length is 121m (400 ft) at 2 kHz carrier frequency. For longer runs, use an output reactor (e.g., 1321‑3R2‑A) or a terminator (1204‑TFA1) – refer to Table 2.E in the manual.
Q4: How do I clear a fault on the 1305‑BA01A‑HA2?
A: Press the Stop key on the HIM (if [Fault Clear Mode] is enabled and [Fault Mask] permits HIM). Alternatively, cycle the stop signal via TB2, cycle power, or set parameter 51 ([Clear Fault]) to “Clear Fault”. Note that resetting a fault does not correct the root cause.
Q5: What accessories are available for communication with a PLC?
A: The drive’s SCANport port accepts Bulletin 1203 modules: 1203‑GK1 (Remote I/O), 1203‑GK5 (DeviceNet), 1203‑GK2 (RS232/RS485/DF1). These allow the 1305‑BA01A‑HA2 to be controlled and monitored by PLC‑5, SLC 500, or Logix controllers via datalinks and block transfers.
