Product Name:3300 XL Proximitor Sensor
Brand Name: BENTLY NEVADA
Model Number:330180-50-00
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
BENTLY NEVADA |
Model Number: |
330180-50-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

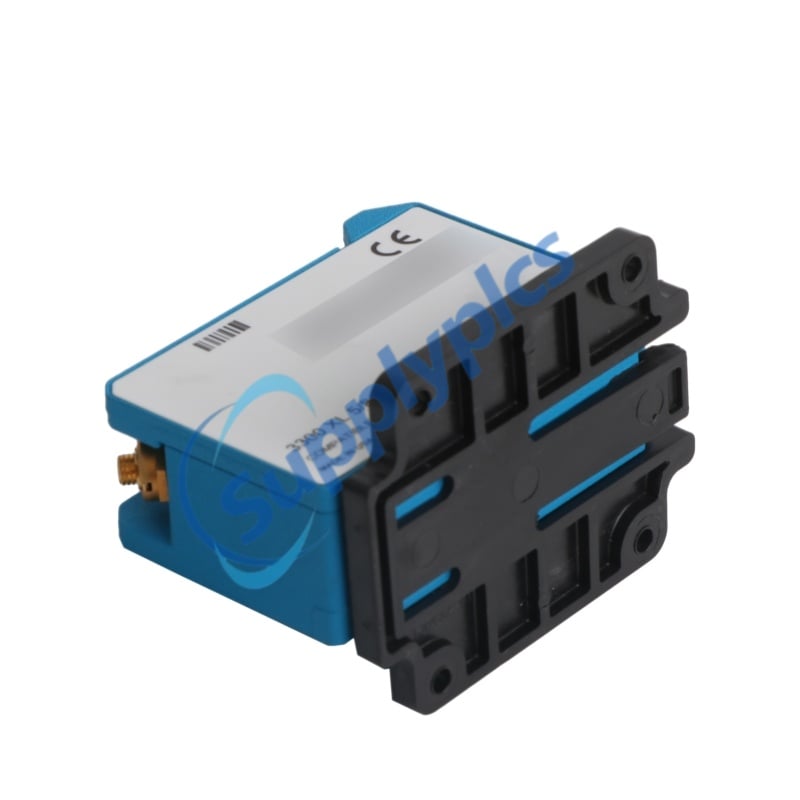

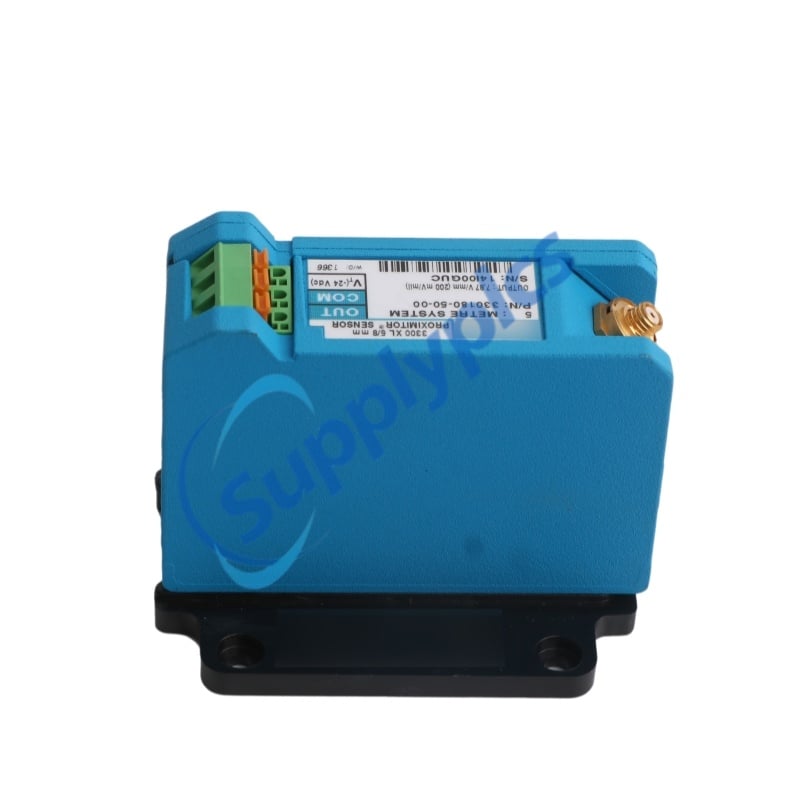

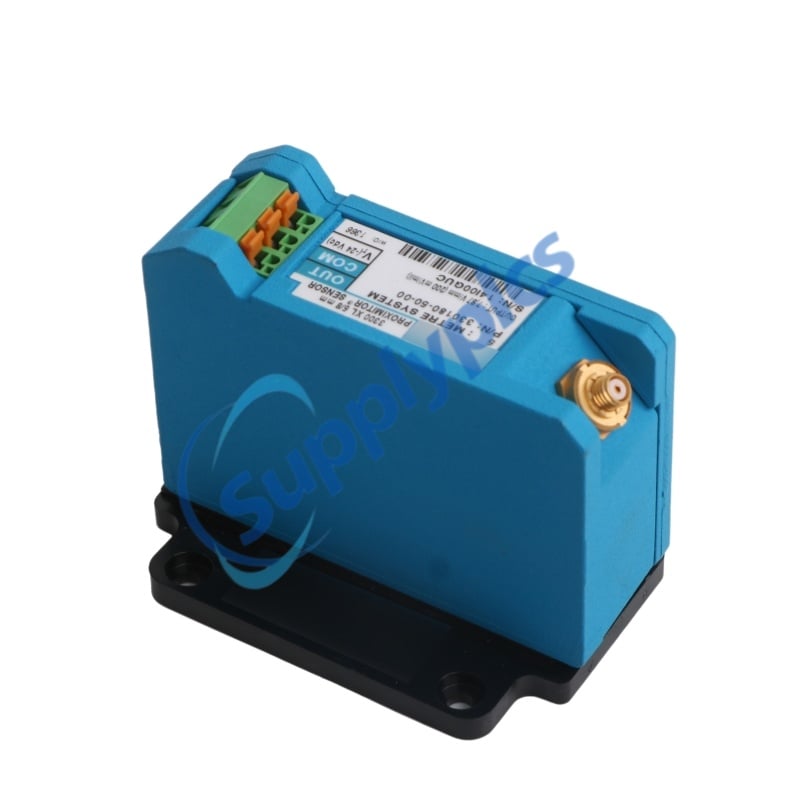

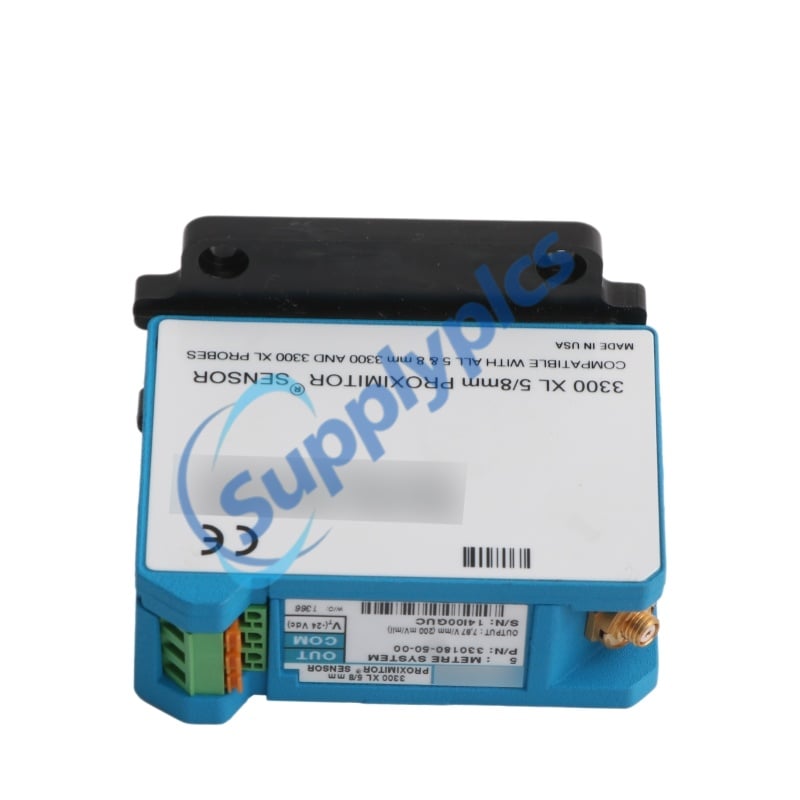

The 330180-50-00 is a 3300 XL Proximitor Sensor from Bently Nevada, serving as the signal conditioning module for the 3300 XL 8 mm proximity transducer system . This 330180-50-00 is factory‑calibrated for a 5‑meter system length with panel mount configuration . The 330180-50-00 converts the probe’s eddy current signal into a linear voltage output proportional to shaft displacement . The 330180-50-00 features enhanced RFI/EMI immunity and SpringLoc terminals for simplified wiring .
Mounting Options: Supports both panel mount (4‑hole footprint, compatible with legacy 3300 installations) and high‑density DIN‑rail mount . The 330180-50-00 mounting base provides electrical isolation .
System Length Integrity: The combined electrical length of the probe and extension cable must equal the Proximitor’s system length (5 meters for this model) . Do not mix 5‑meter probes with 9‑meter Proximitors.
Field Wiring: Use 0.2 to 1.5 mm² (16 to 24 AWG) three‑conductor shielded triad cable, recommended maximum length 305 meters (1,000 feet) between Proximitor and monitor .
SpringLoc Terminals: Tool‑free wiring with spring‑clamp terminals eliminates screw‑type loosening .
Grounding: The Proximitor must be properly grounded per installation drawing 140979 for non‑incendive circuits .
Interchangeable Components: All 3300 XL 8 mm system components (probes, extension cables, Proximitors) are fully interchangeable, eliminating the need for bench calibration .
API 670 Compliance: Standard 5‑meter system fully complies with API 670 (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability .
Enhanced RFI/EMI Immunity: Achieves CE mark approvals without special shielded conduit or metallic housings, reducing installation cost .
Backward Compatibility: Interchangeable with non‑XL 3300 series 5 mm and 8 mm components
The 3300 XL Proximitor Sensor operates on the eddy current principle . The Proximitor generates a radio frequency (RF) signal that is radiated through the probe tip into the observed conductive surface . Eddy currents are induced in the target surface, and the resulting loss of signal strength is detected by the Proximitor. This loss is proportional to the distance between the probe tip and the target . The Proximitor conditions this signal to produce a linear DC voltage output (scale factor: 200 mV/mil or 7.87 V/mm) . The system measures both static (position) and dynamic (vibration) displacement with a frequency response of 0 to 10 kHz
|
141078 |

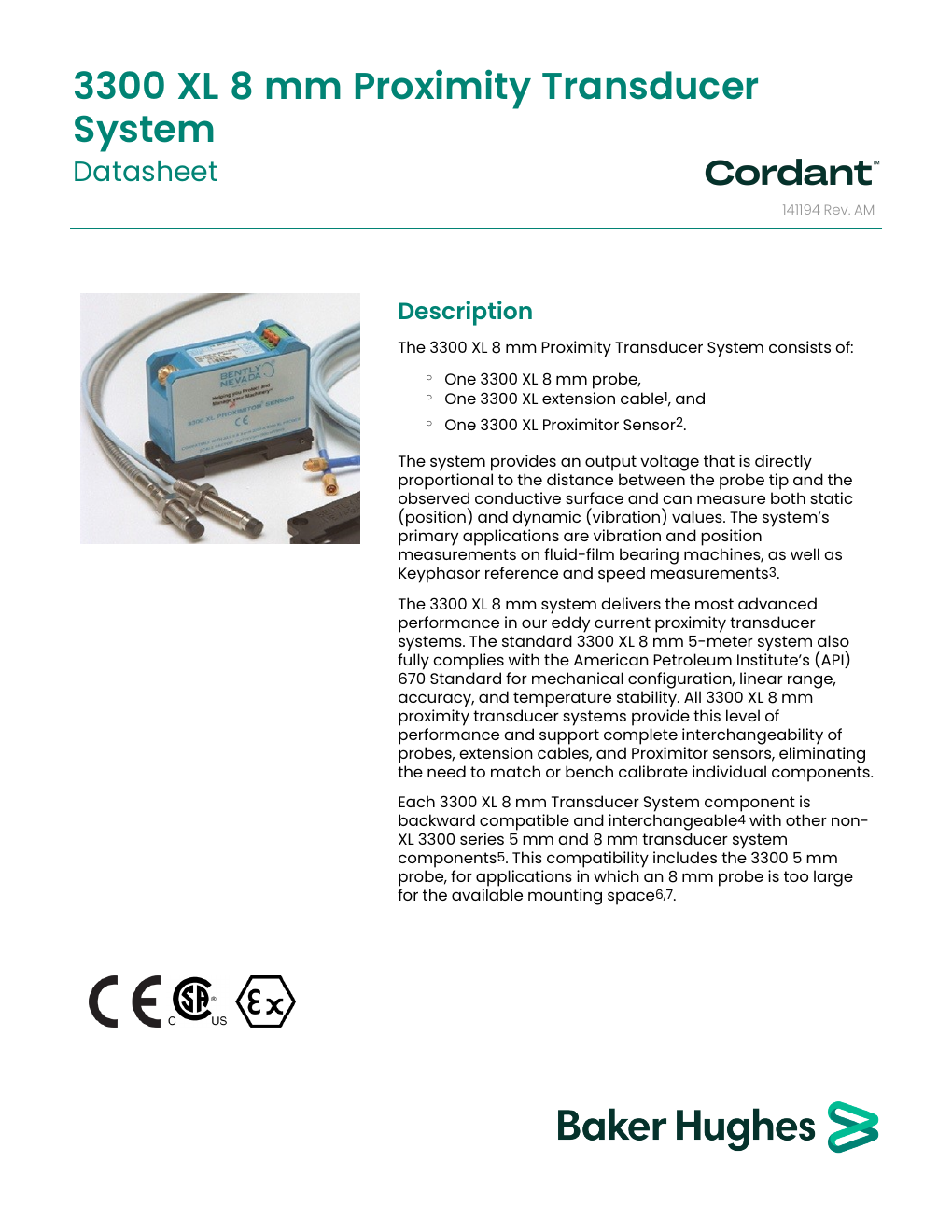

3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual. |
|
175751 |
3300 XL Multi-Purpose Stainless Steel Housing. 12”x12”x6”. Can hold up to 8 Proximitor Sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. (Available with ATEX Zone 0 and Zone 1 certifications.) |
|
176467 |
3300 XL Multi-Purpose Stainless Steel Housing. 12”x8”x6”. Can hold up to 4 3300XL Proximitor Sensors in both DIN-mount and panel-mount configurations. (Available with ATEX Zone 0 and Zone 1 certifications.) |
|
330181 |
3300 XL Multi-Purpose Stainless Steel Housing. 13”x9.5”x7”. Can hold up to 8 Proximitor sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. Primarily used by customers requiring hazardous area approvals fro their installations. Available with ATEX Zone 0 and Zone 1 and North American Division 1 and Division 2 certifications. |
|
02120015 |
Bulk field wire. 1.0 mm2 (18 AWG), 3 conductor, twisted, shielded cable with drain wire. Specify length in feet. |
|
138492-01 |
Replacement panel-mount mounting pad. |
|
138493-01 |
Replacement DIN-mount mounting pad. |
|
148722-01 |
3300 XL test plug. The 3300 XL Test Plug contains 3 small test pins attached to 3 color-coded 1-meter wires, each terminated in a banana plug. The 3-pin adapter plugs into the test pin holes on 3300 XL-style Proximitor sensors. You can use this test plug to check the performance of the Proximitor sensor from the test pin holes in the terminal strip without removing the field wiring. |
|
04310310 |
3300 XL Proximitor Sensor panelmount screw. One 6-32 UNC thread forming mounting screw. Four screws are required for each Proximitor sensor. (Screws supplied standard with Proximitor housings [3300 XL panel-mount option]). |
|
03200006 |
Silicone self-fusing tape. A 9.1- meter (10-yard) roll of silicone tape to protect connectors. This tape is easy to install and provides excellent electrical isolation and protection from the environment. We do not recommend using this tape inside the casing of the machine. |
|
40113-02 |
Connector Protector Kit. Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools. |
|
136536-01 |
Connector protector adapter. This allows you to use connector protector installation tools manufactured prior to 1998 with 75Ω ClickLoc connectors. |
|
40180-02 |
Connector protectors. Package contains 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables. |
|
03839410 |
75Ω triaxial male connector protector. Male connector protectors install onto the extension cable and attach to the female connector protector on the probe, providing environmental protection of connectors. |
|
03839420 |
75Ω triaxial female connector protector. Female connector protectors install onto the probe lead and attach to the male connector protector on the extension cable, providing environmental protection of connectors. You can also place the connector protector onto the extension cable to slide over the connection to the Proximitor sensor to protect that connection from the environment. |
|
04301007 |
3/8-24 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
|
04301008 |
M10 x 1 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
|
330153-01 |
3300 XL connector kit. Used on 3300 XL 8 mm probes and extension cables. Contains 1 pair each of male and female ClickLoc connectors, 2 colorcoded sleeves, 2 pieces of slit FEP tubing, and 1 strip of silicone tape. |
|
330153-09 |
3300 XL ETR Connector Kit. Used on ETR 3300 XL 8mm probes and 3300 ETR XL extension cables. Contains one pair of male and female ClickLoc connectors, two color-coded sleeves, two pieces of high temperature slit FEP tubing, and one strip of silicon tape. |
|
163356 |
Connector Crimp Tool Kit. Includes 1 set of multiconnector inserts and connector installation instructions. Compatible only with 330153 connector kits or with probes shipped in 2003 or later with ClickLoc connectors uninstalled. Supplied with carrying case. |
