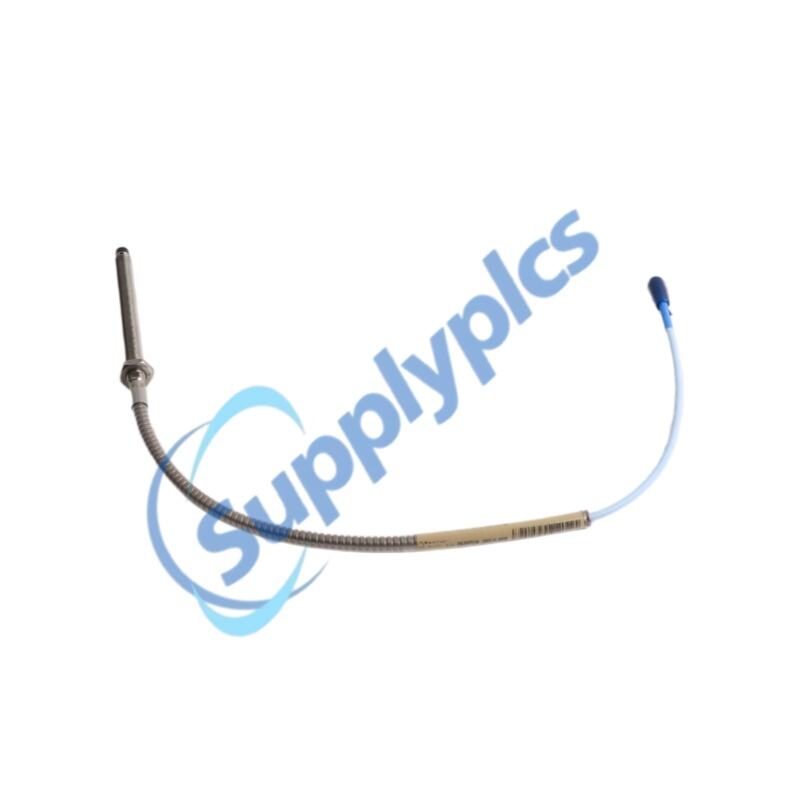

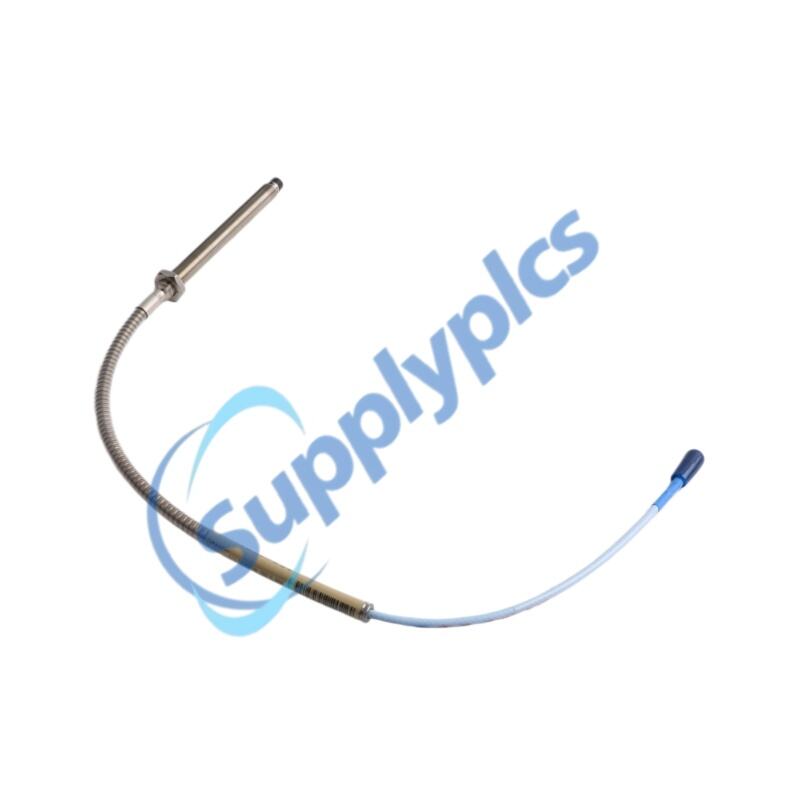

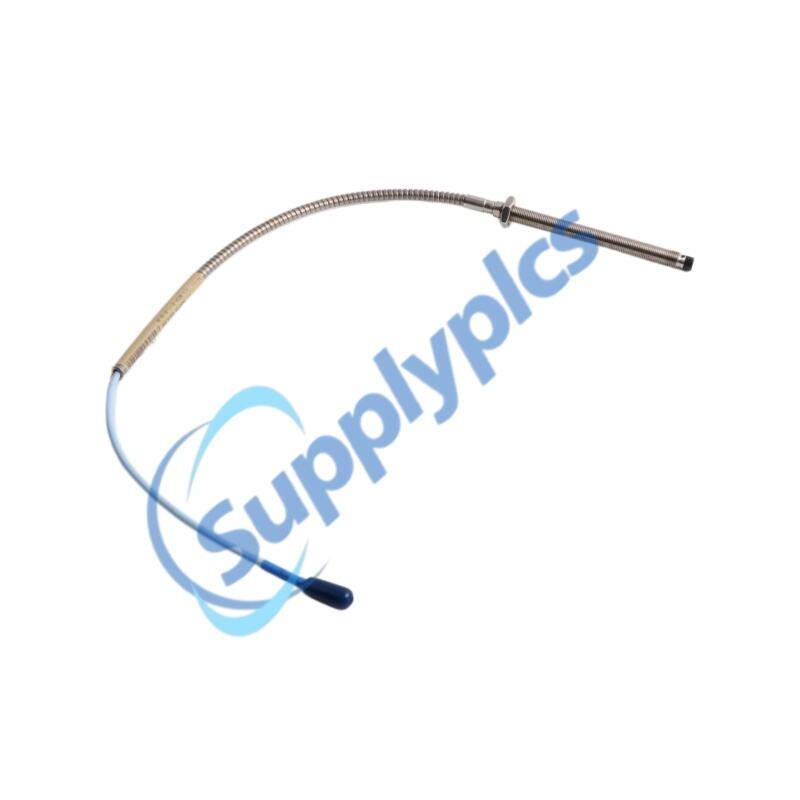

Product Name:3300 XL 8 mm Proximity Probes
Brand Name:Bently Nevada
Model Number:330104-00-11-05-02-00
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-11-05-02-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Product Model |
330104-00-11-05-02-00 |
|
Series |
3300 XL 8 mm Proximity Probe |
|
Thread Type |
M10 × 1 Metric Thread |
|
Armor Type |
Armored Cable |
|
Total Probe Length |
0.5 m (1.6 ft) |
|
Connector Type |
Miniature coaxial ClickLoc connector |
|
Cable Type |
Standard FEP insulated cable |
|
Linear Range |
2 mm (80 mils) |
|
Sensitivity |
7.87 V/mm (200 mV/mil) |
|
Frequency Response |
0 to 10 kHz |
|
Operating Temperature |
-52°C to +177°C |
|
Probe Tip Material |
Polyphenylene Sulfide (PPS) |
|
Probe Case Material |
AISI 303/304 Stainless Steel |
|
Minimum Shaft Diameter |
50.8 mm (2 in) |
|
Recommended Gap Setting |
-9 Vdc at 1.27 mm |
|
Dimension |
1.8x1.5x58cm |
|
Weight |
0.1kg |
|
Protection Features |
RFI/EMI resistant, oil-resistant armored structure |
|
Certifications |
CE, RoHS, API 670 compatible |
330104-00-11-05-02-00 is a high-performance armored proximity probe from the Bently Nevada 3300 XL 8 mm series, engineered for continuous shaft vibration and position monitoring in demanding rotating machinery applications. This model features an M10 × 1 metric threaded probe body with armored cable protection, delivering enhanced durability in high-vibration and oil-contaminated industrial environments.
Designed as part of the 3300 XL 8 mm Proximity Transducer System, 330104-00-11-05-02-00 works seamlessly with compatible extension cables and Proximitor sensors to provide highly stable eddy-current measurement performance. The probe supports precise radial vibration, axial displacement, Keyphasor reference, and speed sensing functions for turbines, compressors, motors, and pumps.
Compared with conventional proximity probes, 330104, 330103, and other 3300 XL series models offer improved RFI/EMI resistance, rugged stainless-steel construction, gold-plated ClickLoc connectors, and excellent interchangeability without individual calibration. Its API 670 compliance and reliable long-distance signal transmission make it an ideal choice for critical machinery protection systems in modern industrial plants.
Q1: What is the main application of the 330104-00-11-05-02-00 probe?
A1: It is mainly used for shaft vibration and position monitoring in turbines, motors, compressors, and pumps.
Q2: Does the 330104-00-11-05-02-00 include armored cable protection?
A2: Yes, this model features a stainless-steel armored cable for improved mechanical protection.
Q3: Is the probe compatible with API 670 machinery protection systems?
A3: Yes, the 3300 XL 8 mm series is designed to comply with API 670 standards.
Q4: What temperature range can this probe operate in?
A4: The standard operating temperature range is from -52°C to +177°C.
Q5: Can the 330104 probe work with other 3300 XL components?
A5: Yes, it is fully interchangeable with compatible 3300 XL extension cables and Proximitor sensors.
| Number | Describe |
|---|---|
| 141078 | 3300 XL 8 mm and 3300 5 mm Proximity Transducer System manual for installation, operation, and maintenance reference |
| 175751 | Multi-purpose stainless steel housing, 12”×12”×6”, supports up to 8 DIN-mount or 6 panel-mount Proximitor Sensors with hazardous area certification options |
| 176467 | Compact stainless steel housing, 12”×8”×6”, supports up to 4 3300 XL Proximitor Sensors in DIN-mount or panel-mount configurations |
| 330181 | Stainless steel hazardous-area housing, 13”×9.5”×7”, designed for up to 8 DIN-mount or 6 panel-mount Proximitor Sensors |
| 02120015 | Bulk field wire, 1.0 mm² (18 AWG), 3-conductor twisted shielded cable with drain wire, custom length available |
| 138492-01 | Replacement panel-mount mounting pad for 3300 XL Proximitor Sensor installation |
| 138493-01 | Replacement DIN-mount mounting pad for DIN rail Proximitor Sensor mounting applications |
| 148722-01 | 3300 XL test plug with color-coded banana plug leads for Proximitor Sensor signal testing and diagnostics |
| 04310310 | Panel-mount screw for 3300 XL Proximitor Sensor installation, 6-32 UNC thread forming type |
| 03200006 | Silicone self-fusing protective tape roll for connector insulation and environmental sealing protection |
