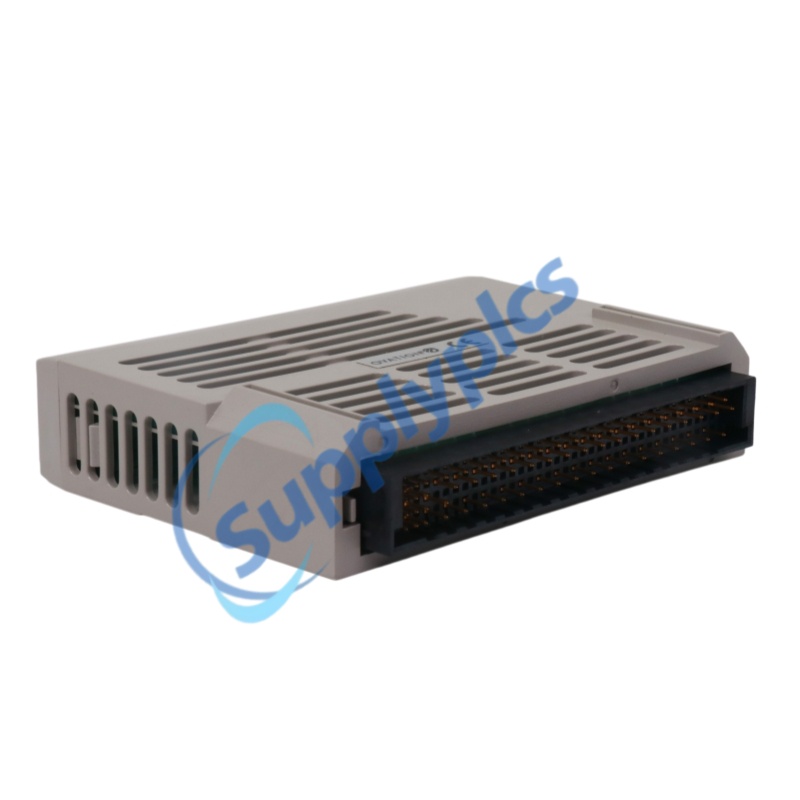

The 5X00121G01 is an 8‑channel RTD input Personality Module (PMOD) from Emerson‘s Ovation series, engineered exclusively for the Ovation Distributed Control System (DCS). The 5X00121G01 provides signal conditioning, sensor‑specific configuration, and field termination for the companion 5X00119G01 Electronics Module (EMOD). The 5X00121G01 supports Pt100, Pt1000, Ni100, and Cu10 RTDs in 2‑, 3‑, or 4‑wire configurations, with a measurement range of –200°C to +850°C and 16‑bit resolution. With 1500 V isolation and 0.1°C accuracy, the 5X00121G01 delivers reliable temperature measurement for power generation, petrochemical, and pharmaceutical applications.
Compatibility & Pairing
The 5X00121G01 PMOD must be paired with the 5X00119G01 Electronics Module (EMOD). The two modules are not interchangeable with other Ovation I/O modules.
Mounting
Install the PMOD + EMOD assembly into a standard Ovation I/O rack slot. The module supports hot‑swappable replacement without system shutdown.
Ensure the DIN rail or rack mount is secure and that ventilation openings are not obstructed.
Wiring

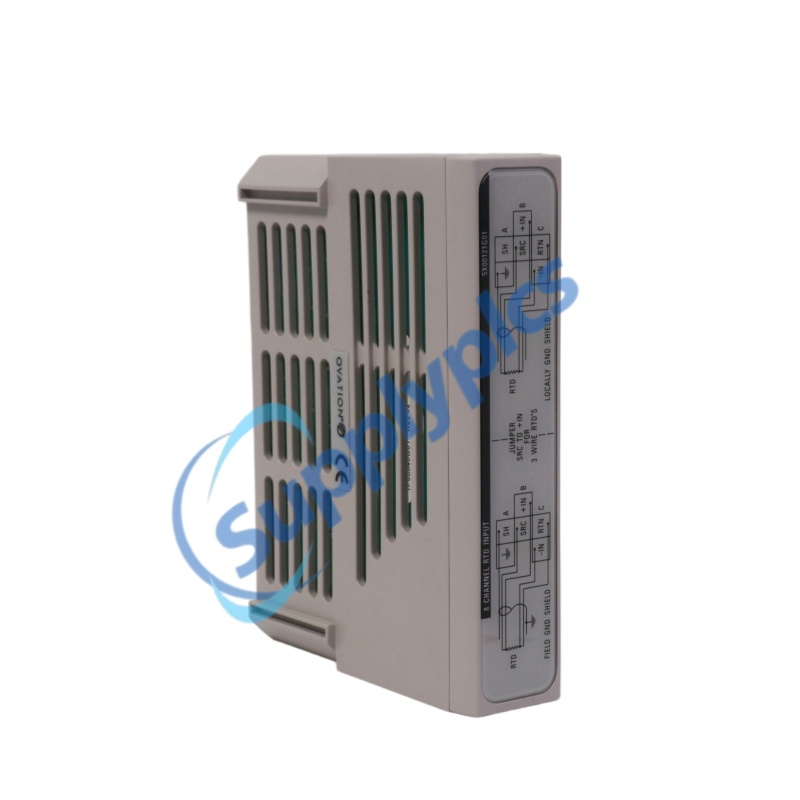

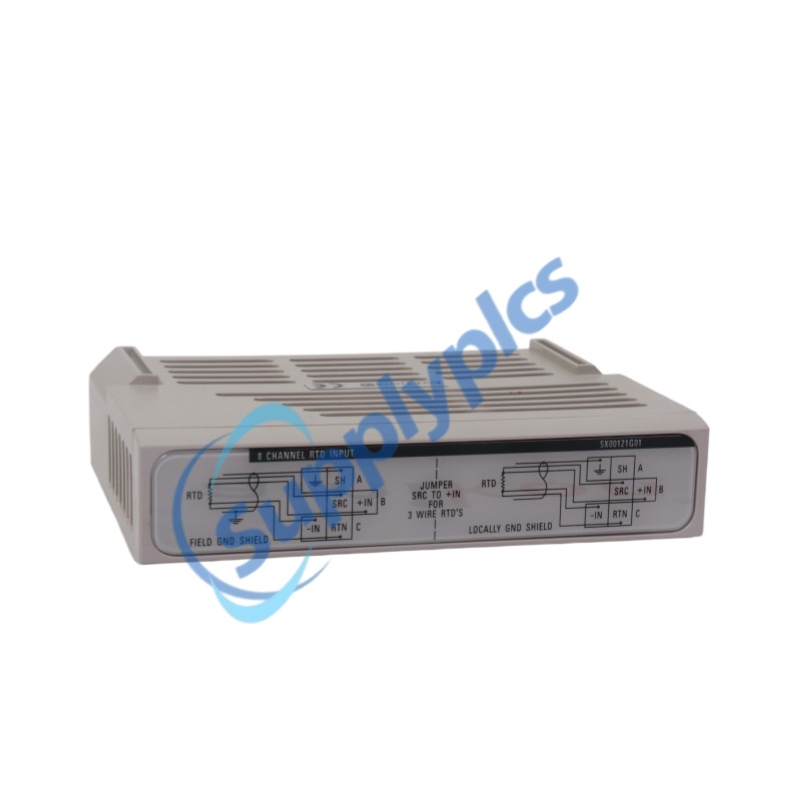

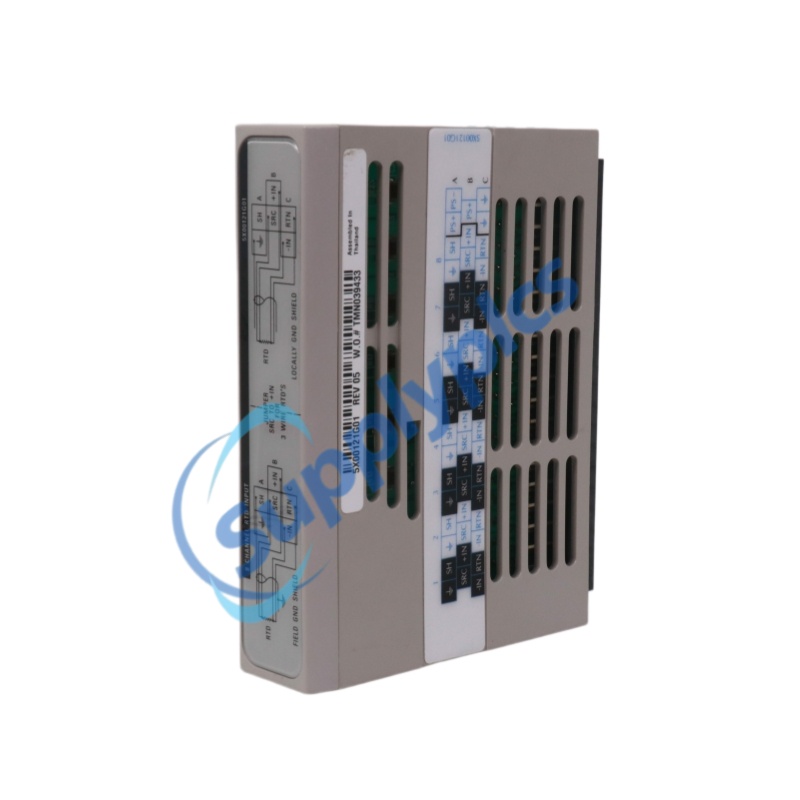

Field RTD sensors connect to the terminal block on the Personality Module (5X00121G01). A simplified wiring diagram label on the PMOD side indicates the correct terminal connections.
RTD Wiring Configurations: The module supports 2‑wire, 3‑wire, or 4‑wire connections:
3‑wire: Requires equal‑length shielded wires to reduce line resistance error.
4‑wire: Provides the highest accuracy by eliminating lead resistance effects.
Use shielded twisted‑pair wiring for RTD connections. Ground the shield at the module end only.
The PMOD does not generate sense voltage; external power must be supplied to the field devices.
Power
8 Independent RTD Input Channels – Simultaneously monitors multiple temperature points with galvanic isolation
Universal RTD Support – Compatible with Pt100, Pt1000, Ni100, Ni1000, Cu10, Cu50 RTD types
Flexible Wiring Configurations – Per‑channel support for 2‑wire, 3‑wire, or 4‑wire RTD connections
16‑Bit Resolution – Delivers high‑precision temperature measurement with ±0.1°C accuracy
1500 V Galvanic Isolation – Channel‑to‑backplane isolation for noise immunity in harsh environments
On‑Demand Self‑Calibration – User‑initiated calibration via Ovation Controller ensures ongoing measurement accuracy
Hot‑Swappable Design – Supports online module replacement without system shutdown
Comprehensive Diagnostics – Built‑in sensor break detection, short circuit detection, and out‑of‑range alarms
Lead Wire Compensation – In 3‑wire mode, the module performs lead resistance measurements to eliminate cable‑induced errors
Diagnostic LEDs – Power (P), Communication (C), Internal Fault (I), and per‑channel error LEDs for rapid troubleshooting
The 5X00121G01 functions as the personality‑defining interface within the Ovation RTD input module architecture, serving as the critical companion to the 5X00119G01 Electronics Module (EMOD). While the EMOD provides analog‑to‑digital conversion, logic processing, and communication functions, the 5X00121G01 supplies the essential signal conditioning, sensor‑specific configuration, and field termination infrastructure.
The module provides the physical interface between field‑mounted RTD sensors and the measurement electronics, accommodating 2‑wire, 3‑wire, and 4‑wire connection configurations to compensate for lead wire resistance errors. It houses precision reference resistors and switching networks that enable the EMOD to perform lead wire compensation measurements in 3‑wire mode, effectively eliminating measurement errors caused by long cable runs.
Each of the eight channels is electrically isolated from the others and from the controller logic (via the mated EMOD), preventing ground loop currents from affecting measurement accuracy when multiple sensors reference different ground potentials. The module receives the low‑level resistance signals from the RTD elements and conditions them for digitization by the EMOD‘s 12‑bit ADC, ensuring 0.10% accuracy at reference temperature across the supported sensor ranges.
The Ovation controller configures the module via register writes:
Address 13 (0xD): Configures module settings including 50/60 Hz selection, self‑calibration initiation, and per‑channel 3‑wire/4‑wire selection.
Address 12 (0xC) and Address 14 (0xE): Configure channel scales (RTD type and range) for Channels 1–4 and 5–8 respectively.
Diagnostic LEDs on the module front panel provide visual status indication: P (Green) for power OK, C (Green) for communication OK, I (Red) for internal fault, and channel‑specific error LEDs for overrange, underrange, or communication failure.
Q1: What is the primary function of the 5X00121G01?
A1: The 5X00121G01 is an 8‑channel RTD input Personality Module (PMOD) for Emerson‘s Ovation DCS. It provides signal conditioning, sensor‑specific configuration, and field termination for the companion 5X00119G01 Electronics Module, enabling precise temperature measurement from RTD sensors.
Q2: Which Electronics Module is required with the 5X00121G01?
A2: The 5X00121G01 must be paired with the 5X00119G01 Electronics Module. The two modules form a complete RTD measurement unit and are not interchangeable with other Ovation modules.
Q3: What RTD types and wiring configurations does the 5X00121G01 support?
A3: The module supports Pt100, Pt1000, Ni100, Ni1000, Cu10, Cu50 RTD types in 2‑wire, 3‑wire, or 4‑wire configurations.
Q4: Is the 5X00121G01 CE Mark certified?
A4: No. The 5X00121G01 and its companion 5X00119G01 are not applicable for CE Mark certified systems.
Q5: Does the 5X00121G01 support hot‑swappable replacement?
A5: Yes. The module supports hot‑swappable replacement without system shutdown, minimising downtime during maintenance.
