Product Name:Vertical bus terminator
Brand Name: HONEYWELL
Model Number:10307/1
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
HONEYWELL |
Model Number: |
10307/1 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Manufacturer |
Honeywell |
|
Catalog Number |
|
|
Product Type |
Vertical Bus Terminator Module |
|
System Compatibility |
|
|
Power Supply |
|
|
Current Consumption |
|
|
Termination Resistance |
|
|
Operating Temperature |
|
|
Storage Temperature |
|
|
Relative Humidity |
|
|
Shock/Vibration |
|
|
Dimensions |
37x6.2x6cm |
|
Weight |
0.22kg |
|
Approvals |
|
|
Mounting Orientation |
Vertical |
The Honeywell 10307/1 is a vertical bus terminator module designed for the FSC (Fail Safe Controller) system. This 10307/1 module provides extra line termination on the vertical communication bus, preventing signal reflections and ensuring data integrity. The Honeywell 10307/1 draws 50 mA from the 5 Vdc bus and carries CE, TÜV, and UL approvals. With a compact 62.5 × 34.5 × 17.5 mm footprint, the 10307/1 ensures reliable, maintenance‑free operation in safety‑critical industrial control environments.
Safety‑Critical Design – CE, TÜV, and UL approved for use in FSC systems where signal integrity is paramount.
Passive, Maintenance‑Free Operation – Built‑in resistor network requires no external power or ongoing calibration.
Plug‑and‑Play Installation – Quick replacement with minimal downtime; compact form factor fits space‑constrained cabinets.
Proven Platform Compatibility – Engineered specifically for Honeywell FSC vertical bus architectures.
Industrial Durability – IEC 60068 compliant for shock and vibration resistance.
The 10307/1 functions as an impedance‑matching termination module for the vertical bus (V‑Bus) in Honeywell FSC systems. The V‑Bus is a 34‑wire flat cable that serves as the communication backbone between the processor (CP) rack and I/O racks, routing all scan, test, and update actions. The 10307/1 is installed at the end of the V‑Bus line, where it provides a passive resistor network that matches the characteristic impedance of the bus.
When data signals travel along the vertical bus, they can reflect back from unterminated endpoints, causing signal distortion, data corruption, and communication errors. The 10307/1 absorbs these reflected signals by presenting the correct termination impedance, ensuring that the signal is cleanly cut off at the bus endpoint. The module draws 50 mA from the 5 Vdc supply provided by the vertical bus driver (VBD) and connects to the bus via its own dedicated connector. In large systems with multiple cabinets, the V‑Bus links cabinets together, and a 10307/1 terminator is required at the end of each bus segment to maintain signal integrity across the entire distributed architecture.
|
Item |
Description |
Part Number / Reference |
|
Vertical Bus Terminator |
Termination module for V-Bus in FSC systems |
|
|
Vertical Bus Driver (VBD) |
Provides 5 Vdc power and drives the vertical bus |
|
|
Horizontal Bus Driver (HBD) |
Interface between V-Bus and I/O backplanes |
10100/1/1, 10100/2/1 |
|

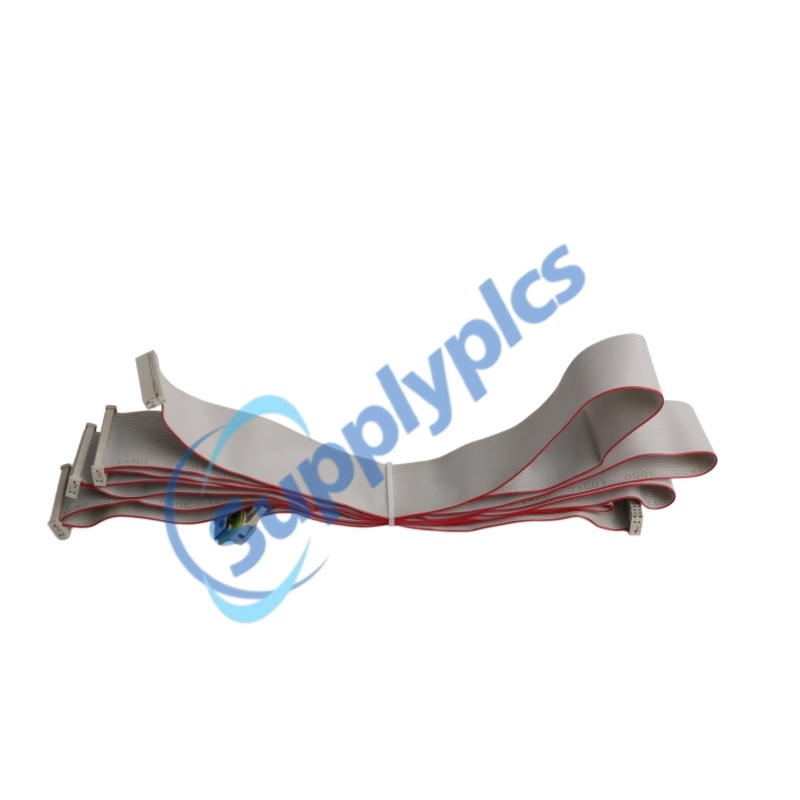

V-Bus Flat Cable |
34-wire ribbon cable with connectors for VBD, HBD, and terminator |
Order per cabinet layout |
|
V-Bus Link Cable (Inter-Cabinet) |
34-wire round cable for connecting multiple cabinets |
Order per cabinet layout |
