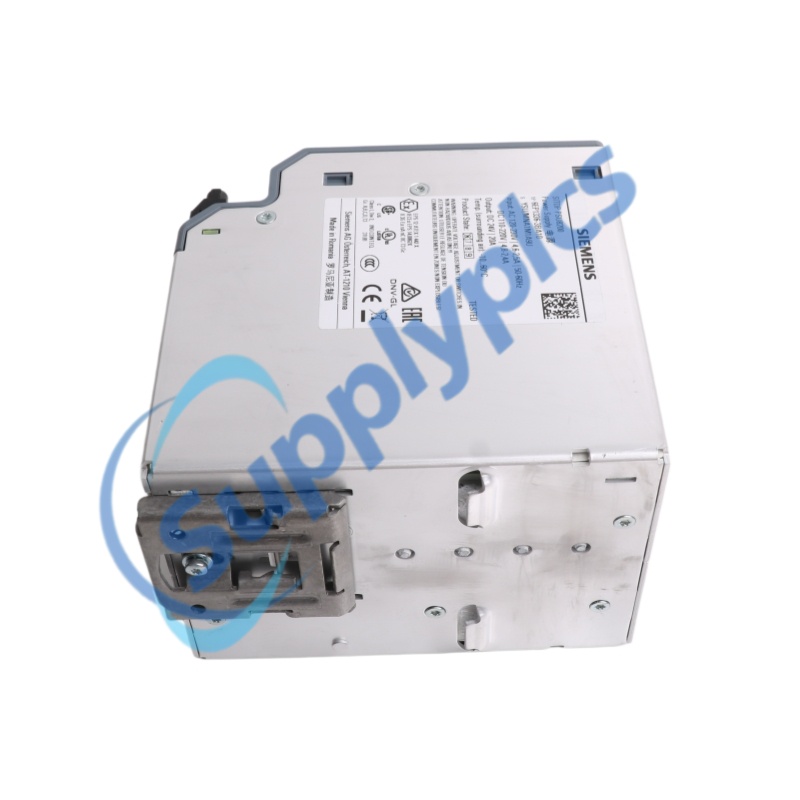

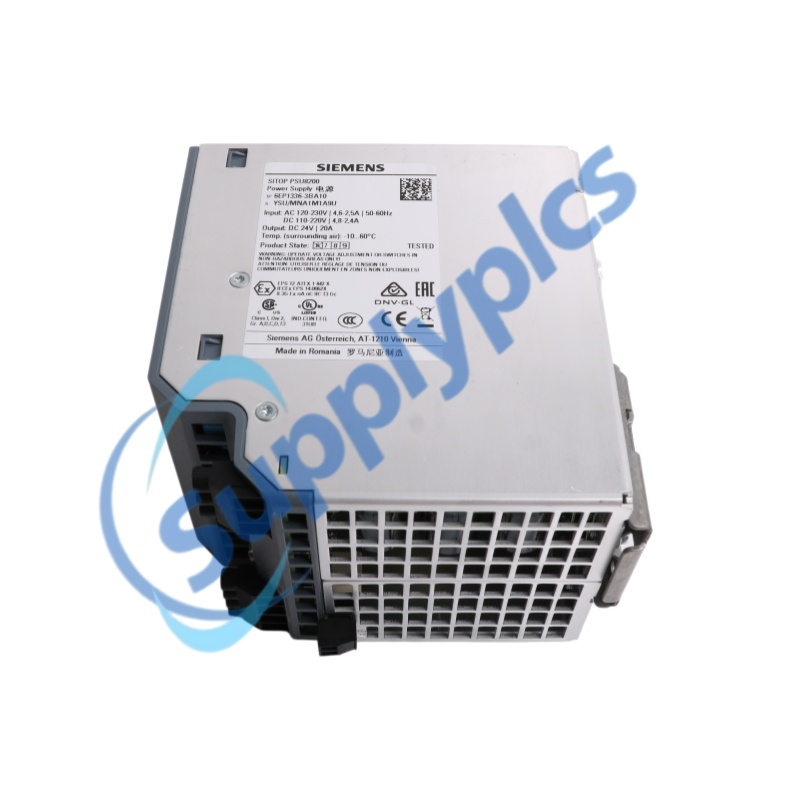

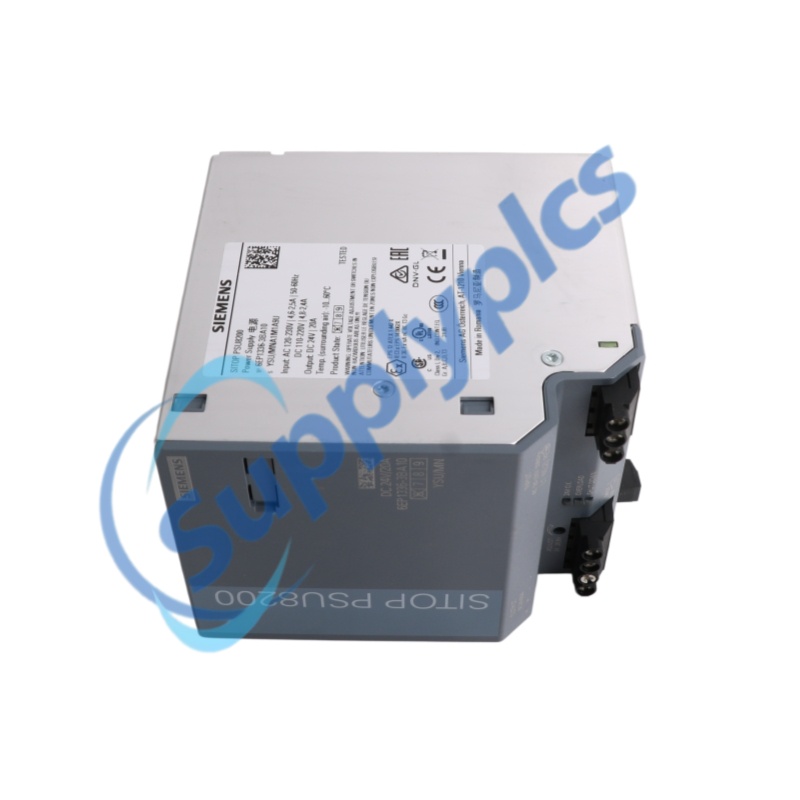

Siemens 6EP1336-3BA10 high-performance SITOP PSU8200 industrial power supply Ready For Ship

Siemens 6EP1336-3BA10 high-performance SITOP PSU8200 industrial power supply Ready For Ship

Product Name:SITOP PSU8200 industrial power supply

Brand Name:Siemens

Model Number:6EP1336-3BA10

Country of Origin:Germany

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6ep1336 3ba10 high performance sitop psu8200 industrial power supply ready for ship-1

Overview
How to get price
Specifications
Description
Applications
Control & Communication
High-Resolution Measurement
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6EP1336-3BA10
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

How to get price

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	6EP1336-3BA10
Product Series	Siemens SITOP PSU8200
Product Type	Stabilized Industrial Power Supply
Input Voltage	120–230 V AC / 110–220 V DC
Input Range	85–275 V AC / 88–350 V DC
Output Voltage	24 V DC (adjustable 24–28 V DC)
Rated Output Current	20 A
Rated Output Power	480 W
Efficiency	Up to 94%
Ripple Voltage	Typical 80 mV, maximum 100 mV
Parallel Operation	Supports up to 2 units
Protection	Short-circuit, overload, overvoltage, soft-start
Mounting Method	DIN Rail EN 60715
Operating Temperature	-25°C to +70°C
Protection Rating	IP20
Dimensions	90 × 125 × 125 mm (W × H × D)
Weight	Approx. 1.2 kg

Description

Siemens 6EP1336-3BA10 is a high-performance SITOP PSU8200 industrial power supply engineered to deliver a stabilized 24 V DC / 20 A output for demanding automation and process control systems. Designed with a wide input voltage range and high conversion efficiency, it provides reliable power for PLCs, HMI panels, industrial PCs, distributed I/O stations, and field devices.

Compatible with SITOP PSU8200, SITOP PSU6200, and other Siemens power management solutions, the 6EP1336-3BA10 features overload capability, parallel operation support, soft-start technology, and comprehensive protection functions for continuous industrial operation. Its compact DIN-rail design simplifies installation while reducing cabinet space requirements.

Built for factories, energy facilities, transportation, and process industries, this power supply ensures dependable DC power distribution, improved system availability, and long-term operational reliability in mission-critical applications.

Applications

Power plants: Supplies stable 24 V DC power for PLC systems, relay protection, turbine auxiliaries, and distributed control equipment.
Substations: Powers automation controllers, communication devices, protection relays, and remote terminal units with reliable DC output.
Chemical plants: Supports continuous operation of DCS cabinets, field instruments, and industrial process automation systems.
Steel mills: Provides dependable power for production line automation, heavy machinery control, and high-EMI industrial environments.
Machinery manufacturing plants: Energizes robotic systems, PLC control panels, servo controllers, and automated assembly equipment.
Water treatment facilities: Delivers reliable DC power for pump control, instrumentation, and SCADA systems.

Control & Communication

Supplies highly regulated 24 V DC power for PLCs, HMIs, industrial PCs, and distributed I/O systems.
Supports wide-range AC/DC input for flexible deployment across global industrial power networks.
Provides relay output for 24 V OK status monitoring and remote diagnostics.
Enables parallel operation of two power supplies to increase system capacity or redundancy.
Soft-start technology prevents output voltage overshoot during equipment startup.
Fast transient response maintains stable voltage during rapid load changes.
Designed for seamless integration into Siemens automation platforms and industrial control cabinets.

High-Resolution Measurement

Maintains highly stable output voltage with excellent regulation under varying load conditions.
Low ripple and noise improve the performance of sensitive industrial controllers and measurement devices.
Typical voltage regulation of 0.1% minimizes fluctuations caused by input voltage variations.
Fast response time supports precision automation systems with rapidly changing power demands.
Controlled isolated DC output enhances measurement stability in industrial instrumentation.
High efficiency reduces thermal stress, improving long-term electrical performance.
Reliable power quality helps maximize accuracy for PLC-based monitoring, sensor acquisition, and precision control applications.

FAQ

Q1: What is the output capacity of the 6EP1336-3BA10 power supply?
A1: It provides a regulated 24 V DC output with a maximum continuous current of 20 A.

Q2: Can the 6EP1336-3BA10 operate with both AC and DC input voltages?
A2: Yes. It supports wide-range 120–230 V AC and 110–220 V DC nominal input voltages.

Q3: Does the 6EP1336-3BA10 support parallel operation?
A3: Yes. Two units can be connected in parallel to increase available output power or improve system reliability.

Q4: Which industrial applications are suitable for the 6EP1336-3BA10?
A4: It is widely used in factory automation, power generation, transportation, water treatment, and process control systems requiring stable 24 V DC power.

Q5: What protection features are included in the 6EP1336-3BA10?
A5: The unit incorporates overload, short-circuit, overvoltage, thermal protection, and soft-start functions for safe and reliable industrial operation.
