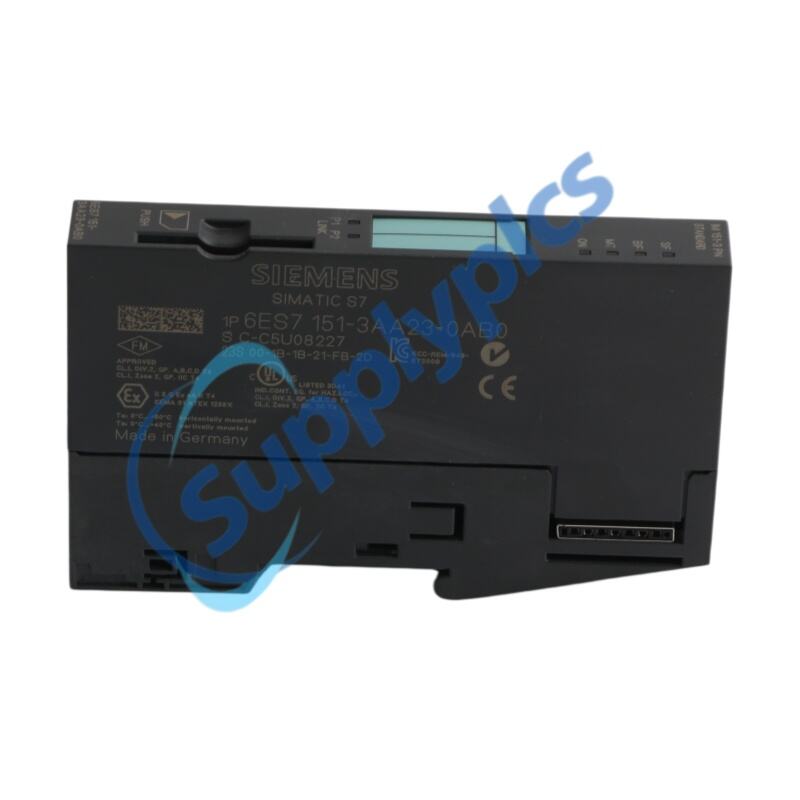

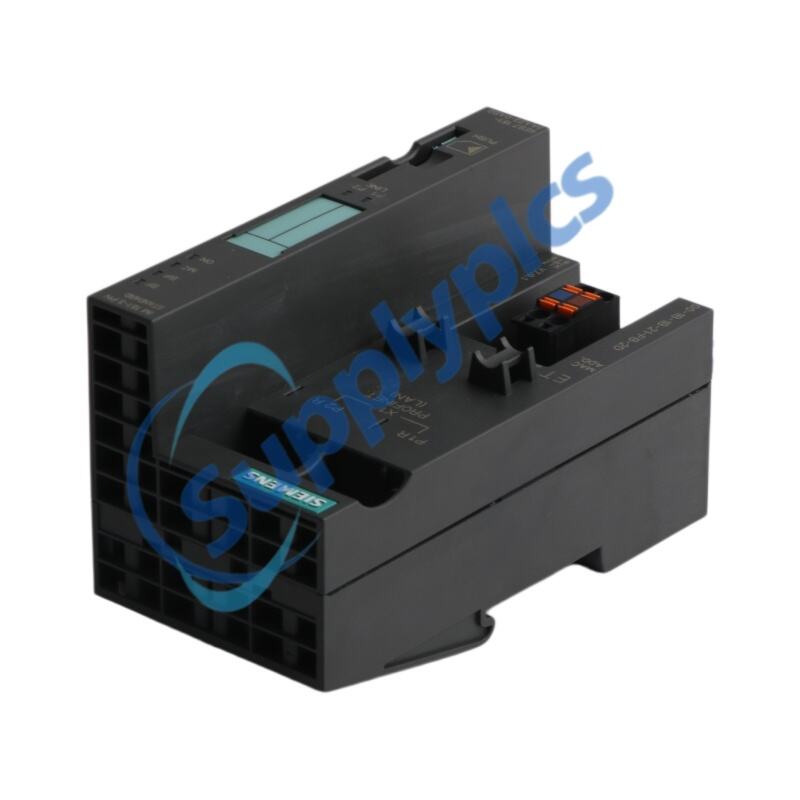

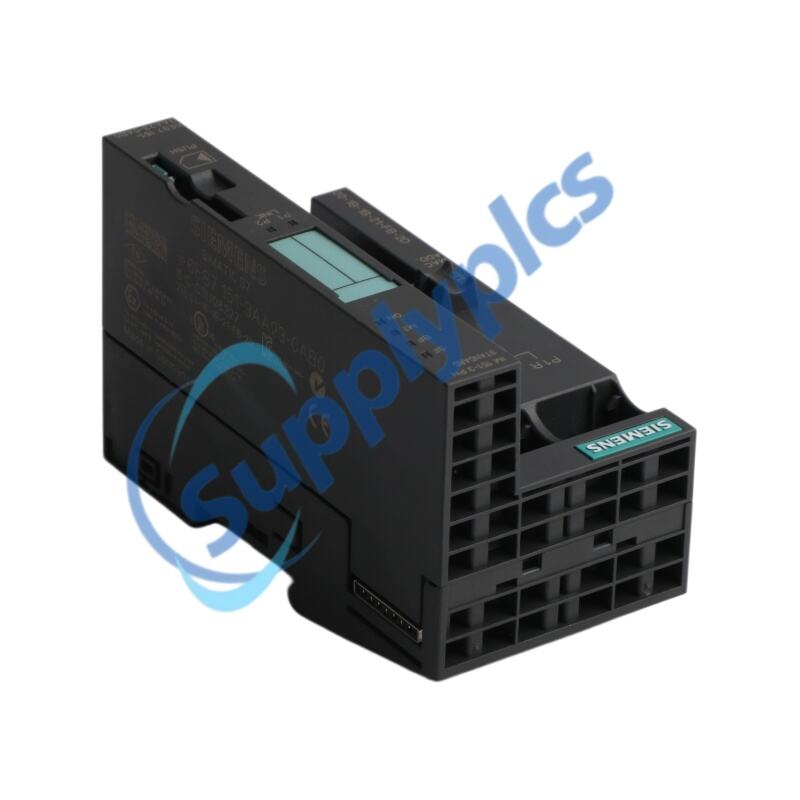

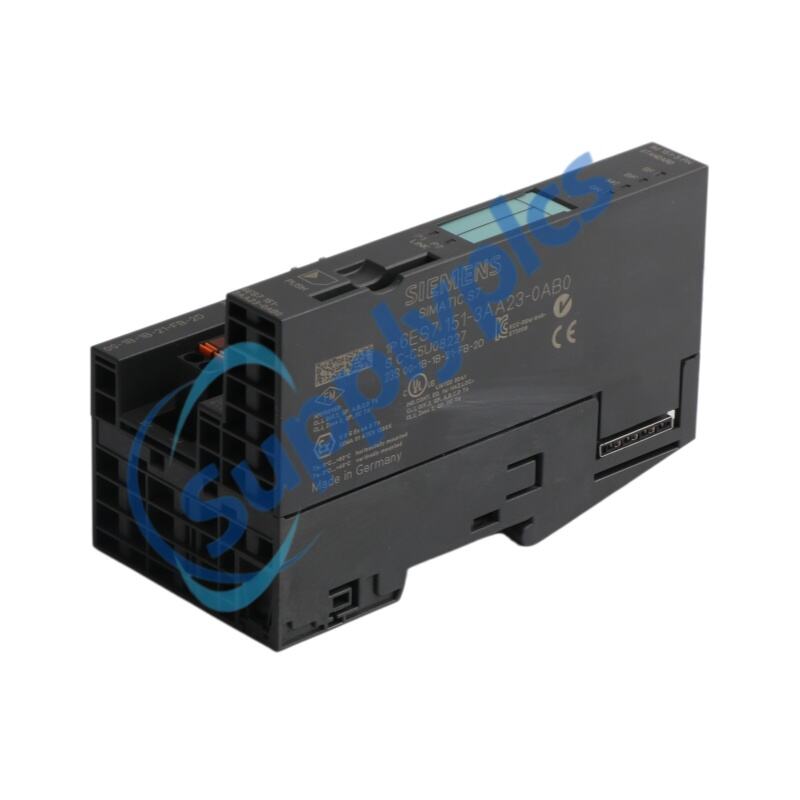

Siemens 6ES7151-3AA23-0AB0 ET 200S distributed I/O Interface module IM151-3 PN Ready For Ship

Siemens 6ES7151-3AA23-0AB0 ET 200S distributed I/O Interface module IM151-3 PN Ready For Ship

Product Name: I/O Interface module

Brand Name:Siemens

Model Number:6ES7151-3AA23-0AB0

Country of Origin:Germany

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

o interface module im151 3 pn ready for ship-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7151-3AA23-0AB0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model Number	6ES7151-3AA23-0AB0
Product Type	PROFINET Interface Module
Communication Protocol	PROFINET IO
Ethernet Ports	2 × RJ45
Transmission Speed	10 Mbps / 100 Mbps Full Duplex
Transmission Standard	100BASE-TX
Supply Voltage	24 VDC
Current Consumption	Approx. 200 mA
Power Dissipation	Approx. 3.3 W
Diagnostic Functions	Bus Monitoring, Batch Error Detection
Network Services	SNMP, LLDP, ARP, Ping
Insulation Test Voltage	500 VDC
Permissible Potential Difference	75 VDC / 60 VAC
Dimension (W × H × D)	60 mm Width
Weight	Approx. 150 g
Status Indicators	SF, BF, ON, MAINT, LINK LEDs

Description

The 6ES7151-3AA23-0AB0 is a high-performance PROFINET interface module designed for Siemens ET 200S distributed I/O systems. It provides reliable communication between field devices and higher-level automation controllers, ensuring stable data exchange in demanding industrial environments. With integrated dual RJ45 ports, the module supports 10/100 Mbps Ethernet communication, media redundancy, and advanced network diagnostics.

Engineered for modern industrial automation, the 6ES7151-3AA23-0AB0 supports PROFINET IO, shared device functionality, prioritized startup, and SNMP-based network management. Its robust communication architecture helps improve system availability while reducing downtime during operation and maintenance.

Compatible with various Siemens automation platforms, including SIMATIC S7-300, SIMATIC S7-400, and ET 200S systems, this interface module is widely used in process control, manufacturing automation, and industrial networking applications requiring fast and dependable communication performance.

Applications

Power Plants: Used for generator monitoring, turbine automation systems, and distributed I/O communication networks.
Substations: Supports relay protection, switchgear control, and real-time PROFINET-based data transmission.
Chemical Plants: Integrates process control equipment, remote I/O stations, and industrial Ethernet infrastructure.
Steel Mills: Provides stable communication for rolling mills, furnace control systems, and harsh industrial environments.
Machinery Manufacturing Plants: Enables connectivity between PLCs, robotic workstations, packaging systems, and production lines.
Water & Wastewater Facilities: Supports plant-wide monitoring, process control, and distributed automation systems.
Industrial Assembly Lines: Facilitates high-speed communication between sensors, actuators, and central controllers.

Features

Dual RJ45 PROFINET interfaces for flexible network integration.
Supports 10/100 Mbps Ethernet communication with auto-negotiation.
Compatible with Siemens ET 200S distributed I/O architecture.
Supports Shared Device and Prioritized Startup functions.
Integrated SNMP, LLDP, ARP, and Ping diagnostic capabilities.
LED indicators for network status, faults, maintenance, and operation monitoring.
Designed for reliable performance in demanding industrial environments.
Supports media redundancy to improve network availability.

Functions

Acts as a PROFINET interface module for ET 200S stations.
Enables real-time communication between field devices and PLC systems.
Transfers process and diagnostic data across industrial Ethernet networks.
Provides network monitoring and maintenance via SNMP diagnostics.
Supports fault detection including bus faults and system errors.
Facilitates seamless integration of distributed I/O devices into automation systems.
Enhances system reliability through redundancy and advanced communication services.

FAQ

Q1: What is the 6ES7151-3AA23-0AB0 used for?
A1: The 6ES7151-3AA23-0AB0 is a PROFINET interface module designed to connect Siemens ET 200S distributed I/O stations to industrial Ethernet networks.

Q2: What communication protocol does the 6ES7151-3AA23-0AB0 support?
A2: It supports PROFINET IO communication, enabling high-speed data exchange between controllers and field devices in automation systems.

Q3: Does the 6ES7151-3AA23-0AB0 provide diagnostic functions?
A3: Yes, the module offers comprehensive diagnostic features including network monitoring, fault detection, and status indication through integrated LEDs.

Q4: What are the network connectivity options of the 6ES7151-3AA23-0AB0?
A4: The module includes two RJ45 Ethernet ports and supports 10/100 Mbps communication with auto-negotiation and media redundancy capabilities.

Q5: Why is the 6ES7151-3AA23-0AB0 suitable for industrial automation applications?
A5: Its reliable PROFINET communication, advanced diagnostics, redundant networking support, and compatibility with Siemens ET 200S systems make it ideal for demanding industrial environments.
