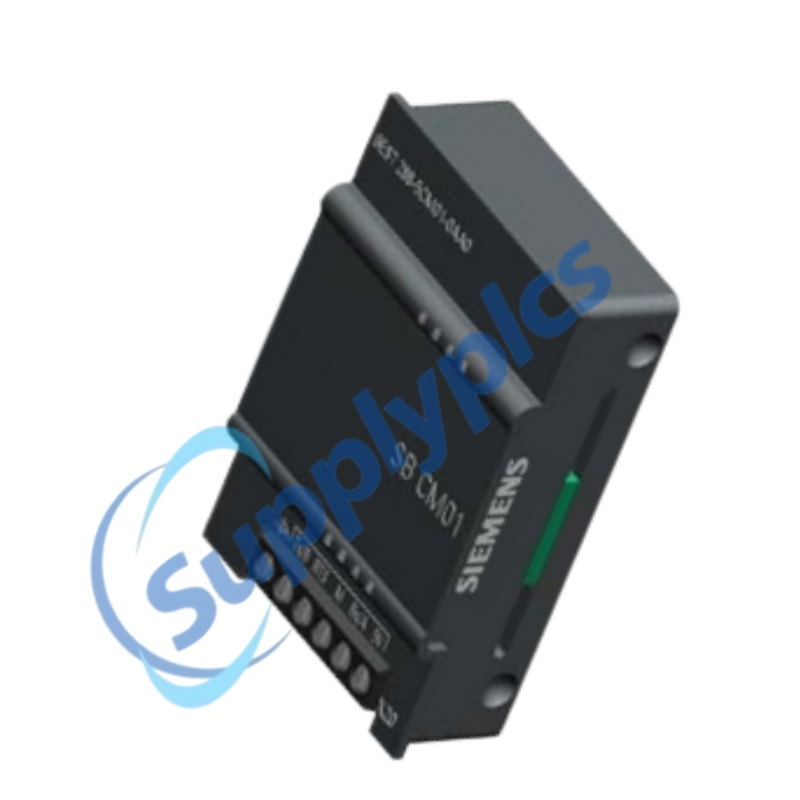

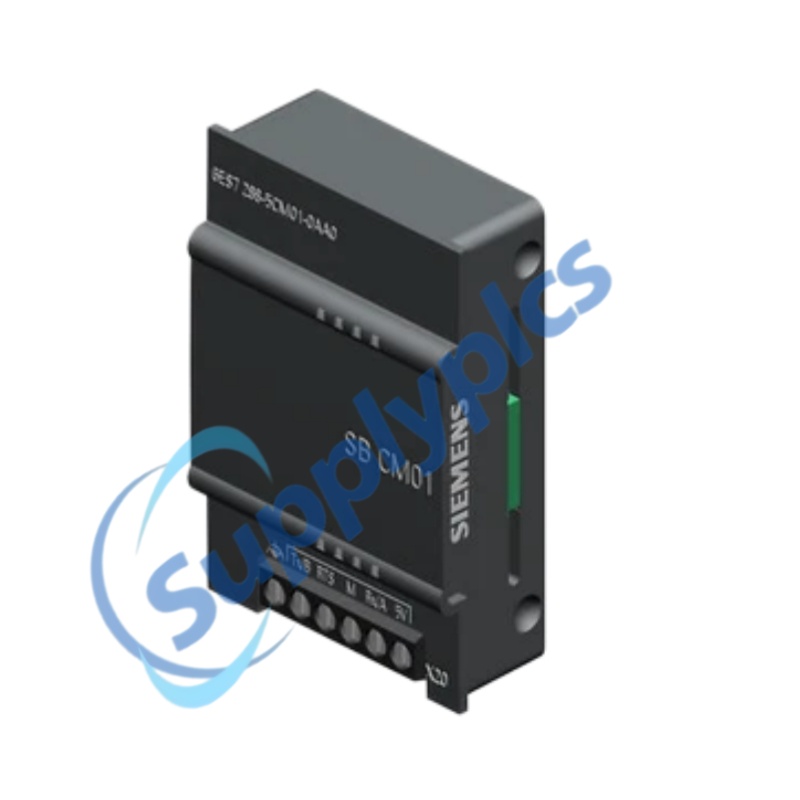

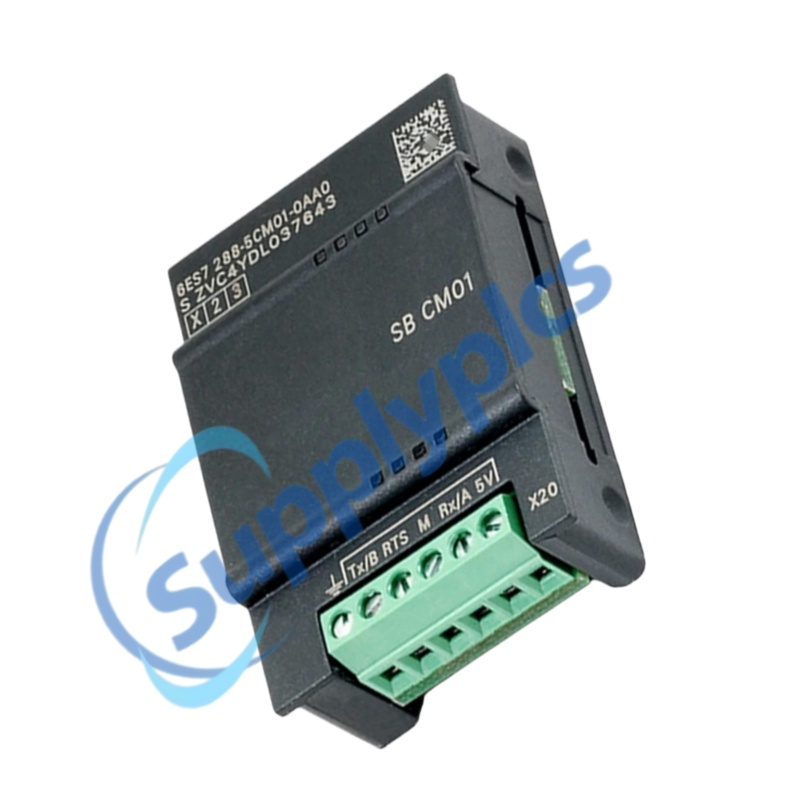

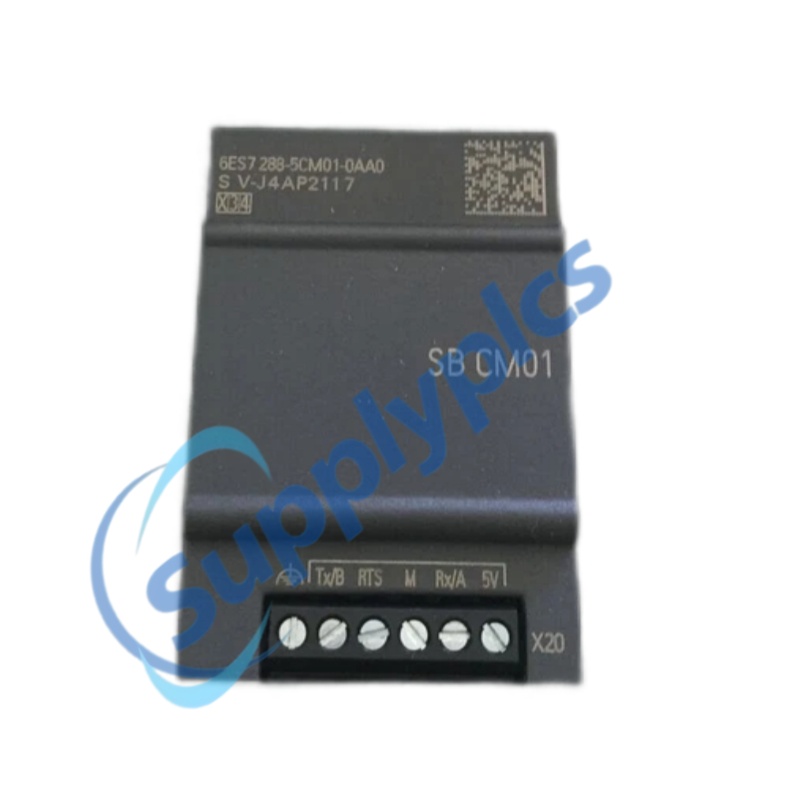

Siemens SIMATIC S7-200 SMART 6ES7288-5CM01-0AA0 CM 01 RS485 Freeport Communication Module

Siemens SIMATIC S7-200 SMART 6ES7288-5CM01-0AA0 CM 01 RS485 Freeport Communication Module

SIEMENS SIMATIC S7-200 SMART

6ES7288-5CM01-0AA0

SIMATIC S7-200 SMART, communication module CM 01, RS485, 9-pole D-sub (pin), supports Freeport

1 x RS485 interfaceFreeport support50 mA typical at 5 V backplane35 x 52.2 x 16 mm

Confirm: Exact article number, configuration and compatibility before quotation.

Email Inquiry WhatsAppEmail: [email protected] | WhatsApp: +86 18159889985

Overview
Applications
Data
Construction
Environment
Selection
Verification
Commercial
Models
Recommended Products

OFFICIAL-DATA PRODUCT PROFILE

6ES7288-5CM01-0AA0

The Siemens 6ES7288-5CM01-0AA0 CM 01 adds one RS485 serial interface to a compatible SIMATIC S7-200 SMART configuration. It is not an Industrial Ethernet, PROFINET IO, PROFIBUS or TCP/IP interface.

1 x RS485 interface

Freeport support

50 mA typical at 5 V backplane

35 x 52.2 x 16 mm

Applications

USE 1
Freeport serial communication with compatible field devices.

USE 2
Additional RS485 connectivity for an approved CPU configuration.

USE 3
Machine retrofit requiring the exact communication module.

USE 4
Topology, cable and termination must follow the approved design.

Application suitability and system coordination must be confirmed before quotation.

Data

Product type	CM01 RS 485
RS485 interfaces	1
Supported function	Freeport
Backplane current	50 mA typical at 5 V DC
Power loss	0.5 W typical
Ingress protection	IP20
Dimensions / weight	35 x 52.2 x 16 mm; approximately 18.2 g
Not supported	Industrial Ethernet, PROFINET IO, PROFIBUS and TCP/IP

Construction

A
Compact communication-module form factor.

B
Verify mating connector, shield termination and pin assignment.

C
Power is supplied from the 5 V backplane bus.

Environment

Ingress protection	IP20
CE mark	Yes in Siemens data sheet
Declarations	EU and UK declarations available
Other compliance	China RoHS and EAC listed by Siemens

Confirm enclosure, ambient and EMC requirements for the actual installation.

Selection

1	Confirm host CPU and slot.
2	Review RS485 polarity, shield and termination.
3	Match Freeport serial parameters.
4	Verify firmware and engineering software.

Verification

CHECK
Complete article number

CHECK
Compatible CPU and slot

CHECK
RS485 pinout and mating connector

CHECK
Freeport serial parameters

CHECK
Current unit and nameplate photographs

CHECK
Condition, testing, warranty and dispatch terms

Commercial

Real stock	Confirm before quotation.
Condition	New, used or refurbished status is subject to verification.
Current photos	Available on request.
Testing	Test scope is subject to verification.
Warranty	State period and coverage in the quotation.
Dispatch	Confirm after stock and payment verification.
Payment	Methods are stated in the formal quotation.
Quote response	Subject to inquiry completeness.
Trust process	Request company details, proforma invoice and traceable order confirmation.
